Typical Fault Identification of Liangchi Reducer and Pulley
Common Faults of Liangchi Reducer
Continuous Oil Leakage on Housing and Shaft End
Long-term erosion by humid water vapor in cooling towers causes aging of input/output shaft oil seals, damage of box gaskets, and blockage of vent holes, resulting in increased internal box pressure and gear oil leakage. Minor oil leakage left unaddressed will lead to insufficient gear lubrication, wear and even gear tooth breakage.
Abnormal Noise, Vibration and High Housing Temperature
Uniform buzzing noise usually indicates insufficient lubrication; intermittent metal collision sound means gear pitting or broken teeth; sharp screeching noise is a typical sign of damaged bearings. Immediate shutdown and maintenance are required if the oil temperature exceeds 75°C continuously.
Insufficient Power Output and Reduced Fan Speed
Gear wear and bearing jamming will cause increased motor current, reduced cooling tower air volume and continuous deterioration of heat dissipation performance.

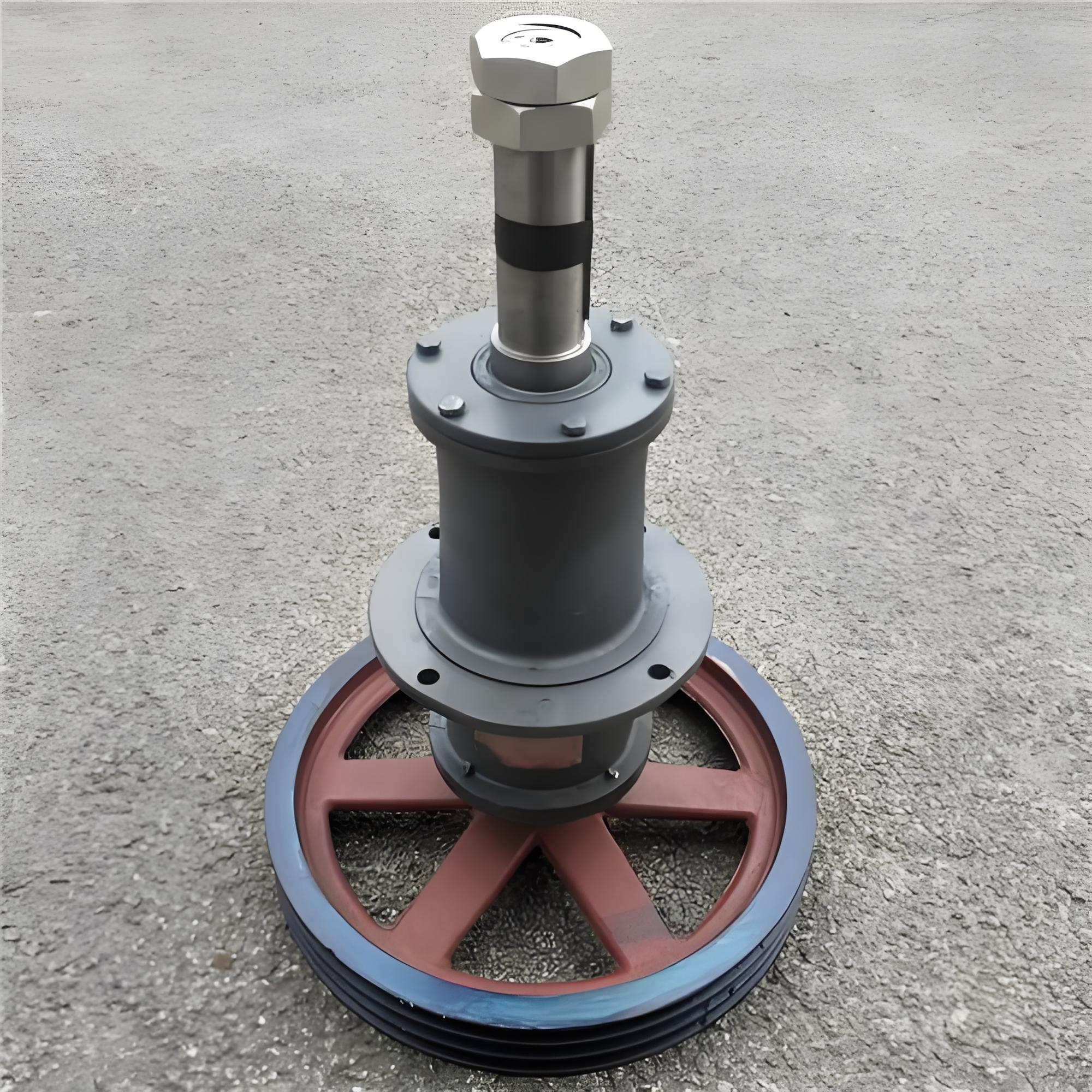

Frequent Faults of Liangchi Pulley Transmission System
Frequent Belt Slipping, Deviation and Fracture
The main causes include worn pulley grooves, misalignment between motor and reducer pulley, improper belt tension adjustment, and oil contamination on belts that accelerates rubber aging.
Pulley Shaking, Keyway Wear and Taper Bush Slipping
Long-term vibration loosens the fastening bolts of taper lock pulleys, causing idling and power transmission failure of the pulley.
Periodic Resonance of Transmission Parts
Uneven pulley end faces and mixed use of old and new belts will cause overall unit resonance, accelerating damage to fans and blades.
On-site Quick Inspection Without Disassembly
Observation: Check reducer oil leakage, belt cracks and pulley groove wear 2. Temperature Measurement: Detect reducer housing temperature after 30 minutes of no-load operation 3. Sound Recognition: Distinguish abnormal noise positions of gears and bearings with a listening rod 4. Manual Rotation: Turn the fan manually to check for jamming.
Root Cause Analysis of Reducer and Pulley Damage
Main Causes of Internal Reducer Component Damage
Non-standard Lubrication Maintenance
Failure to replace oil for the first time within 300 hours of new machine operation, long-term lack of gear oil replacement, and mixed use of different grade lubricants will cause excessive internal pressure (overfilled oil) or dry friction (insufficient oil). The official standard is to replace oil for the first time at 300 hours and regular replacement every 3000 hours thereafter.
Water Vapor Intrusion and Component Corrosion
Failed oil seals allow cooling tower water vapor to continuously enter the box, resulting in emulsified lubricating oil and corrosion pitting on gears and bearings.
Overload and Impact Operation
Foreign object impact on fans and unbalanced blade operation generate instantaneous impact loads, aggravating gear fatigue damage.
Damage Causes of Pulley Transmission System
Substandard Installation and Misalignment
Non-parallel motor and reducer input shafts, and misaligned pulley planes cause unilateral continuous belt wear.
Incorrect Belt Tension Adjustment
Excessively tight belts cause long-term lateral tension on bearings and rapid bearing failure; excessively loose belts lead to continuous slipping, heating and accelerated belt aging.
Mismatched and Mixed Non-original Accessories
Non-standard universal pulleys and V-belts have mismatched groove types, resulting in uneven stress and shortened service life of transmission parts.
Standard Disassembly and Repair Process for Liangchi Reducer
Pre-repair Safety Specifications
Shut down the cooling tower completely, cut off the main power supply and lockout/tagout to prevent accidental startup 2. Release internal reducer pressure, loosen the oil drain plug slowly and drain old gear oil 3. Build a safe working platform, prepare pullers, torque wrenches, copper rods and sealant; avoid violent knocking on precision parts
Reducer Disassembly and Component Inspection
Removal of External Accessories
Remove pulleys, protective covers, oil drain valves, oil level mirrors and vent caps in sequence, and mark the assembly position of all parts.
Box Disassembly and Parts Detection
Separate the upper and lower box bodies, clean all gears, bearings and main shafts. Focus inspection items: - Gears: Replace the entire gear pair if pitting, cracks or excessive wear occur - Bearings: Replace in pairs if corrosion or excessive gap is found - Main shaft: Check for scratches on the shaft journal that may cause repeated oil leakage
Component Repair and Assembly Key Points
1. Replace all seals (oil seals, gaskets) completely, do not reuse old seals 2. Evenly apply water-resistant sealant on the box joint surface, and tighten bolts diagonally and evenly 3. Fill with specified extreme pressure gear oil, and control the liquid level at 1/2~2/3 of the oil gauge 4. Rotate the shaft manually after assembly to ensure smooth operation without jamming and abnormal gaps
No-load Test Run Standard After Repair
Run no-load for 2 hours, continuously monitor oil temperature, noise and vibration, and put into load operation only after no abnormal conditions are confirmed.
Standard Disassembly, Replacement and Calibration of Liangchi Pulley
Removal Steps of Old Belts and Pulleys
Belt Disassembly Operation
Loosen the motor base adjusting bolts to release belt tension and take out the V-belt. Do not pry the belt with a screwdriver to avoid damage to the internal belt cords.
Taper Lock Pulley Disassembly Method
Loosen the taper bush fastening screws, and pull out the pulley steadily with a puller. Violent knocking on the pulley outer edge is forbidden to prevent hub cracking and spindle deformation. Clean rust and oil stains on the shaft surface.
New Pulley Installation and Precise Alignment
Pulley Installation Steps
Pre-install the taper bush into the pulley, align the key groove and push it steadily onto the spindle. Tighten the taper bush bolts according to standard torque to ensure no relative sliding between the pulley and the spindle.
Parallelism and Plane Calibration
Use a straight ruler or tension line to calibrate the end faces of the two pulleys, ensure they are on the same plane with parallel axes, and the end face deviation ≤1mm. Misalignment is the primary cause of short belt service life.
V-belt Tension Adjustment Standard
Adjust the tension by moving the motor base after belt installation. The standard tension is 10~15mm depression distance when pressing the middle of the belt with external force. Important Note: Replace all V-belts as a set synchronously; mixed use of old and new belts is strictly prohibited.
Common Maintenance Mistakes to Avoid
Common Reducer Maintenance Errors
Only Replace Oil Seals Without Troubleshooting Root Causes
Blocked vent holes, box cracks and shaft journal wear will cause repeated oil leakage even after replacing oil seals, which is only a temporary solution.
Replace Single Bearing or Gear
Replacing individual parts of gear pairs and bearings will lead to unbalanced meshing gaps, causing abnormal noise and damage again in a short time.
Common Pulley Transmission System Maintenance Errors
Continue to Use Slightly Worn Pulley Grooves
Worn groove bottoms change the belt stress angle, causing continuous slipping, heating and rapid belt aging.
Excessive or Insufficient Belt Tension
Over-tightening causes bearing burnout; over-loosening leads to power loss and reduced cooling efficiency.
Matching Wearing Parts for Synchronous Replacement
During reducer and pulley maintenance downtime, it is recommended to inspect and replace the following wearing parts synchronously to avoid repeated shutdown losses: 1. Reducer oil seals, gaskets and vent valves 2. Taper bushes, key pins and fastening bolts 3. V-belts and anti-vibration gaskets 4. Motor buffer coupling and tension adjustment components
Daily Maintenance Tips to Extend Service Life
1. Check the reducer oil level and oil quality monthly, replenish or replace lubricating oil in time 2. Regularly calibrate pulley alignment and belt tension every quarter 3. Clean vent holes regularly to prevent internal pressure accumulation and oil leakage 4. Check fastening bolts frequently to avoid vibration loosening 5. Stop the machine in time for inspection if abnormal noise or temperature rise occurs
Conclusion
The pulley and reducer are core power transmission components of Liangchi cooling towers. Common faults such as oil leakage, abnormal noise and belt slipping will seriously affect cooling efficiency and equipment safety. Adopting standardized disassembly, accurate calibration, complete replacement of wearing parts and scientific daily maintenance can effectively reduce failure rate, extend equipment service life and ensure stable and efficient operation of industrial cooling systems.
