10-15 days

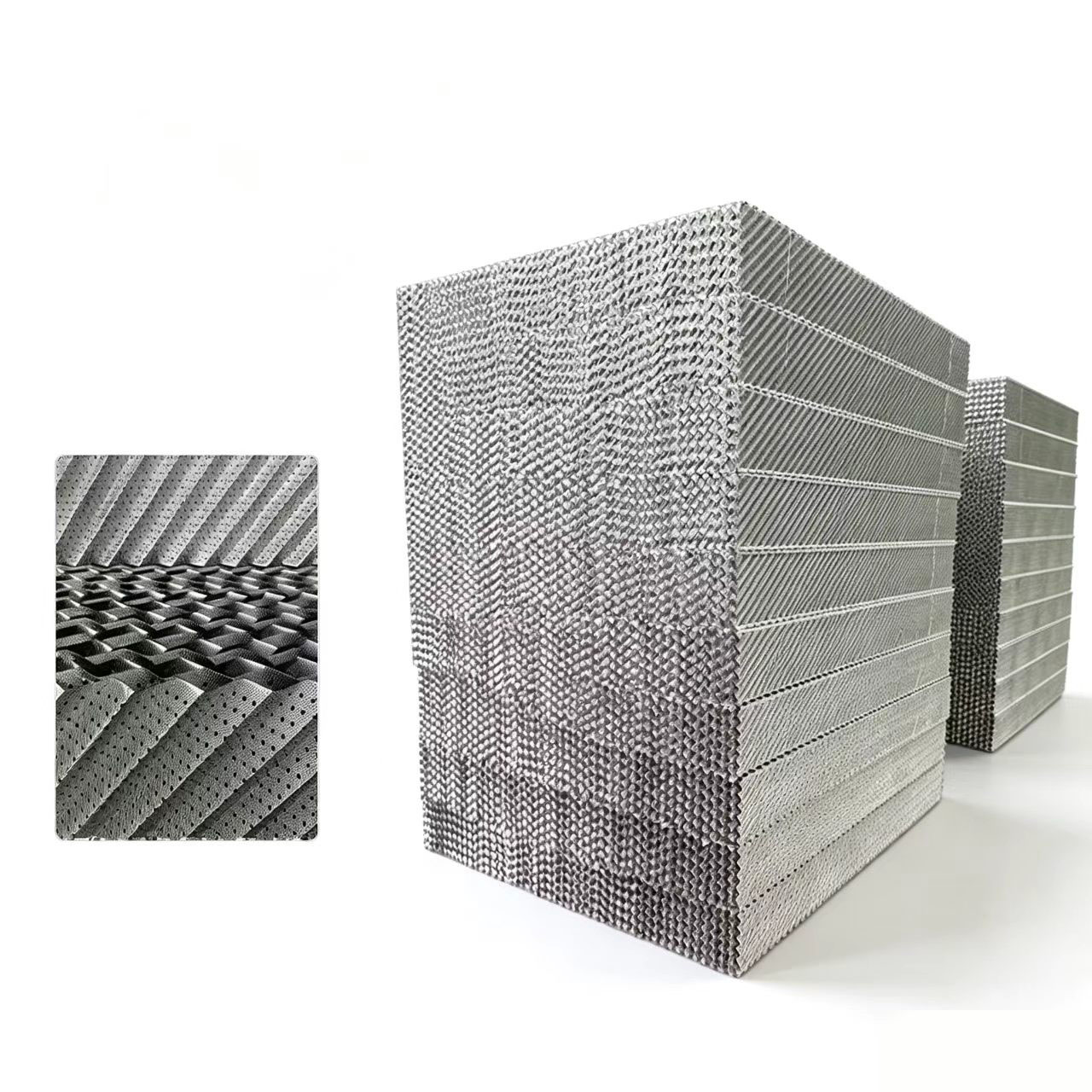

Stainless Steel Cooling Tower Packing Condenser Fill Packs are high-performance metal heat-transfer media designed for industrial cooling towers, evaporative condensers, closed-circuit cooling systems, and specialized heat-rejection equipment.
Manufactured from corrosion-resistant stainless steel sheet, these fill packs provide a large effective contact area between water and air. The engineered corrugated or structured surface promotes water spreading and turbulence while allowing air to pass through the packing.
Unlike conventional PVC or PP cooling tower fills, stainless steel cooling tower packing is designed for applications where higher temperature resistance, mechanical strength, fire resistance, or resistance to aggressive operating conditions is required.
The packing geometry, material grade, sheet thickness, surface pattern, dimensions, and installation configuration can be customized for different industrial cooling and condenser systems.
Stainless steel construction
High-temperature resistance
Excellent mechanical strength
Strong corrosion resistance
Large effective heat-transfer surface
Corrugated or structured packing design
Promotes water-air contact
Suitable for industrial cooling towers
Suitable for evaporative condensers
Suitable for high-temperature applications
Low-maintenance construction
Custom dimensions available
OEM replacement packing available
Suitable for demanding industrial environments
| Item | Specification |
|---|---|
| Product Type | Stainless Steel Cooling Tower Fill |
| Application | Cooling Tower / Evaporative Condenser |
| Material | Stainless Steel |
| Common Grades | 304 / 316 / 316L |
| Construction | Corrugated / Structured Sheet |
| Surface | Smooth / Textured / Perforated, depending on design |
| Sheet Thickness | Customized |
| Fill Height | Customized |
| Block Dimensions | Customized |
| Operating Temperature | Application dependent |
| Heat Transfer | Air-Water Contact |
| Installation | Crossflow / Counterflow / Custom Systems |
| Replacement | OEM / Aftermarket |
| Manufacturing | Custom |
Note: Exact material grade, sheet thickness, surface geometry, operating temperature, dimensions, and thermal performance should be selected according to the cooling tower or condenser design.
Cooling tower packing, also known as cooling tower fill, is the heat-transfer media installed inside a cooling tower to increase the contact area between circulating water and air.
The basic process is:
Hot Water → Fill Surface → Air-Water Contact → Evaporation → Cooled Water
As hot water flows over the packing surface, it spreads into a thin film or is broken into smaller streams and droplets. Air flowing through the fill removes heat from the water.
Stainless steel fill packs use specially formed metal sheets to create numerous flow passages and heat-transfer surfaces.
The cooling tower fill is one of the most important components affecting thermal performance.
Hot circulating water is distributed over the top of the fill.
The specially formed stainless steel surface encourages the water to spread across a large area.
Fans or natural draft move air through the packing.
Heat moves from the water to the air.
A small portion of the water evaporates, carrying away latent heat.
The cooled water leaves the fill and returns to the system.
The greater the effective water-air contact, the greater the potential for heat transfer—provided the fill is properly designed and the air and water are evenly distributed.
Most conventional cooling tower fill is manufactured from PVC or polypropylene. These materials are economical and effective for many applications.
However, stainless steel becomes attractive when operating conditions exceed the practical limits of plastic fill.
Stainless steel can withstand significantly higher temperatures than conventional PVC cooling tower fill.
This makes it suitable for selected high-temperature industrial applications.
Metal packing has high structural strength and can resist deformation under demanding operating conditions.
Stainless steel is non-combustible, making it an option for applications where fire performance is an important consideration.
Appropriately selected stainless steel grades can provide strong resistance to many industrial environments.
When correctly selected and maintained, stainless steel fill can provide extended service life in demanding cooling applications.
Material selection should be based on water chemistry, temperature, contaminants, and process conditions.
304 stainless steel is commonly used for general industrial applications where good corrosion resistance is required.
It can be suitable for:
General cooling systems
Industrial air conditioning
Evaporative condensers
Moderate-temperature applications
316 stainless steel offers enhanced corrosion resistance in many environments and may be preferred where chloride exposure or more aggressive water chemistry is present.
316L provides a low-carbon stainless steel option and is widely used where fabrication and corrosion resistance are important.
The correct grade should be confirmed through an assessment of actual operating conditions rather than selected solely by application name.
One of the primary applications for metal cooling tower packing is high-temperature service.
Plastic cooling tower fill has temperature limitations that depend on material, design, and operating conditions. Stainless steel provides an alternative where higher temperature resistance is required.
Potential applications include:
Industrial process cooling
Steel manufacturing
Chemical processing
Power generation
Petrochemical plants
Waste heat rejection
High-temperature water cooling
Industrial evaporative condensers
The maximum operating temperature should be confirmed for the selected stainless steel grade and packing construction.
| Feature | Stainless Steel Fill | PVC Fill |
| Material | Stainless steel | PVC |
| Temperature resistance | High | Lower |
| Mechanical strength | Excellent | Moderate |
| Fire resistance | Excellent | Application dependent |
| Corrosion resistance | Excellent with proper grade | Good in many water environments |
| Weight | Higher | Lower |
| Cost | Higher | Lower |
| High-temperature service | Excellent potential | Limited |
| Service life | Long when properly selected | Application dependent |
| Typical use | Industrial / demanding applications | General cooling towers |
PVC remains an economical choice for many standard cooling towers, while stainless steel fill is more appropriate where temperature, strength, fire resistance, or specific environmental conditions justify the additional investment.
Polypropylene is another common material for cooling tower packing.
| Feature | Stainless Steel | PP |
| Temperature resistance | High | Good |
| Mechanical strength | Very high | Good |
| Weight | Higher | Lower |
| Corrosion resistance | Excellent with correct grade | Excellent for many chemicals |
| Fire performance | Non-combustible | Material dependent |
| Cost | Higher | Lower |
| Industrial high-temperature applications | Excellent potential | Application dependent |
The best fill material depends on the actual cooling-water temperature, chemistry, mechanical requirements, and project budget.

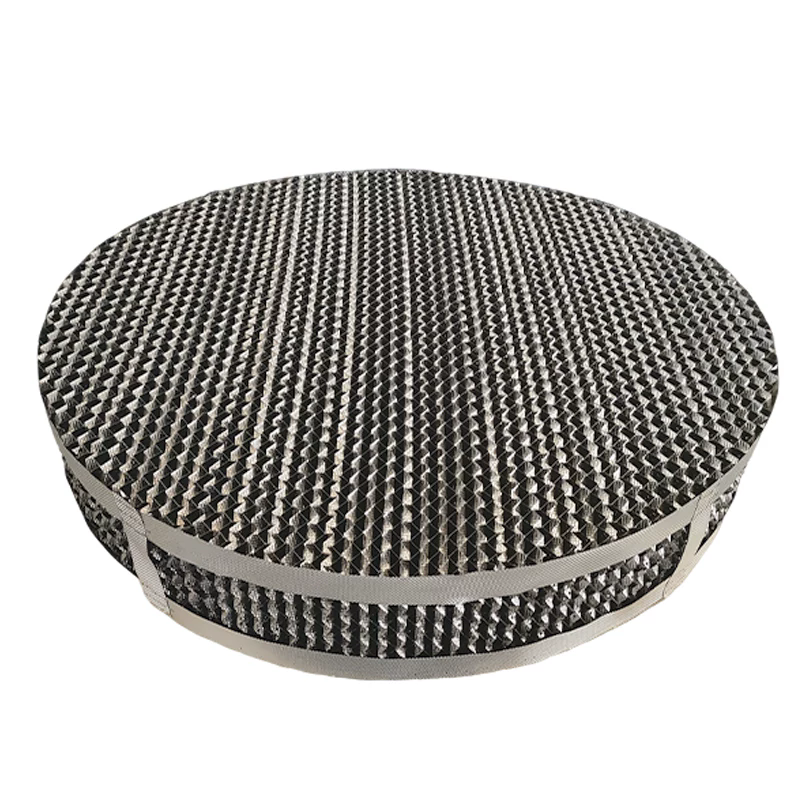

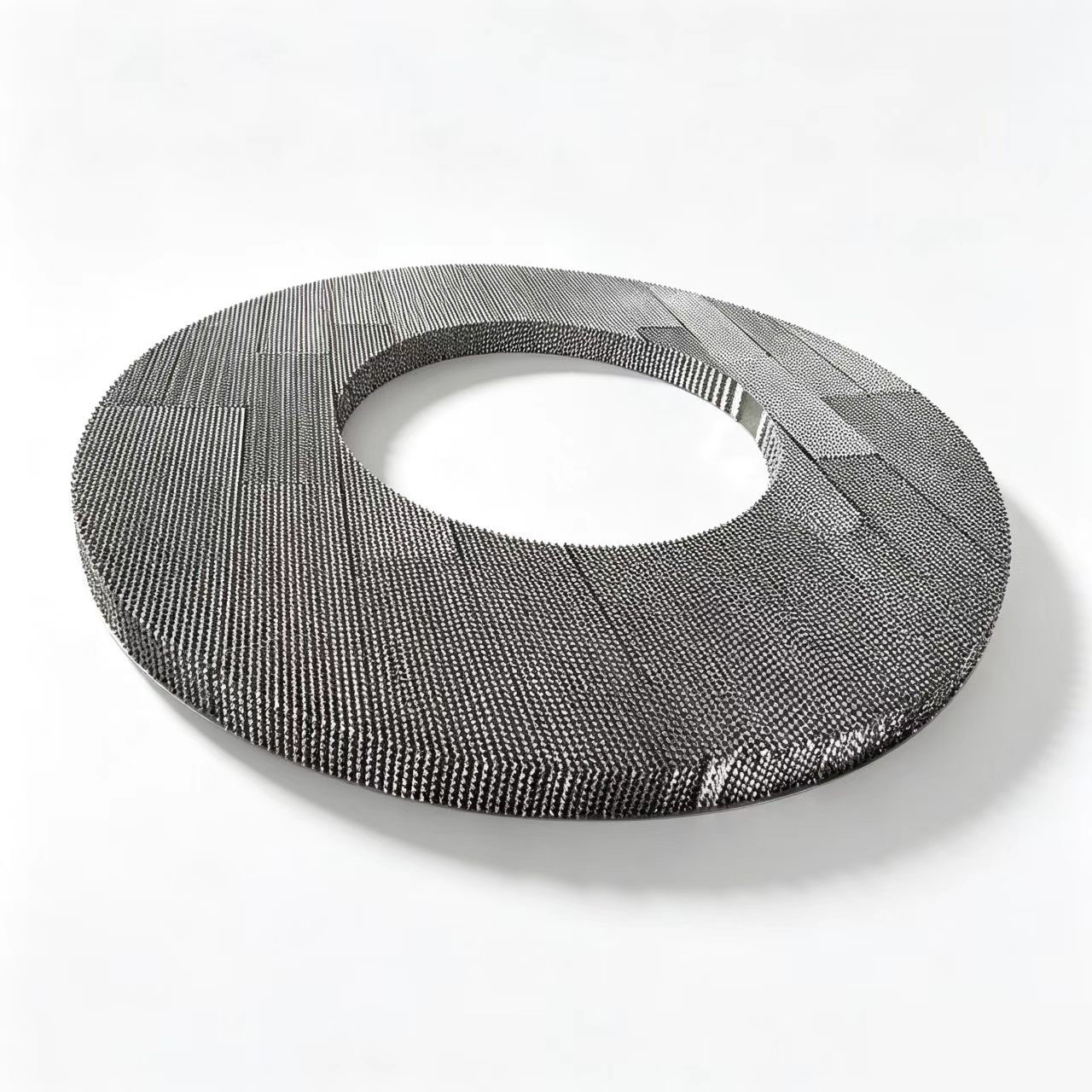

The fill packs can be manufactured using formed stainless steel sheets arranged into a structured configuration.
Corrugations create flow channels through the packing.
The surface may include:
Corrugations
Perforations
Embossed patterns
Textured surfaces
Cross-flow channels
Water-spreading features
These features can increase the effective contact area between water and air.
The exact geometry should be engineered to balance:
Heat-transfer performance
Air pressure drop
Water distribution
Fouling resistance
Mechanical strength
Manufacturing requirements
Stainless steel cooling tower packing can be used in many industrial heat-rejection systems.
Suitable for demanding cooling tower applications where conventional plastic fills may not provide the required temperature or mechanical performance.
Used to increase water-air contact in evaporative heat-rejection systems.
Can be incorporated into systems where external spray water is used to remove heat from a closed process circuit.
Stainless steel fill can be specified for selected chemical-processing environments after compatibility evaluation.
Useful for industrial cooling systems where temperature and durability are important.
Can be considered for specialized cooling applications involving high thermal loads.
Suitable for selected high-temperature process cooling systems.
Can be incorporated into equipment designed to reject process waste heat.

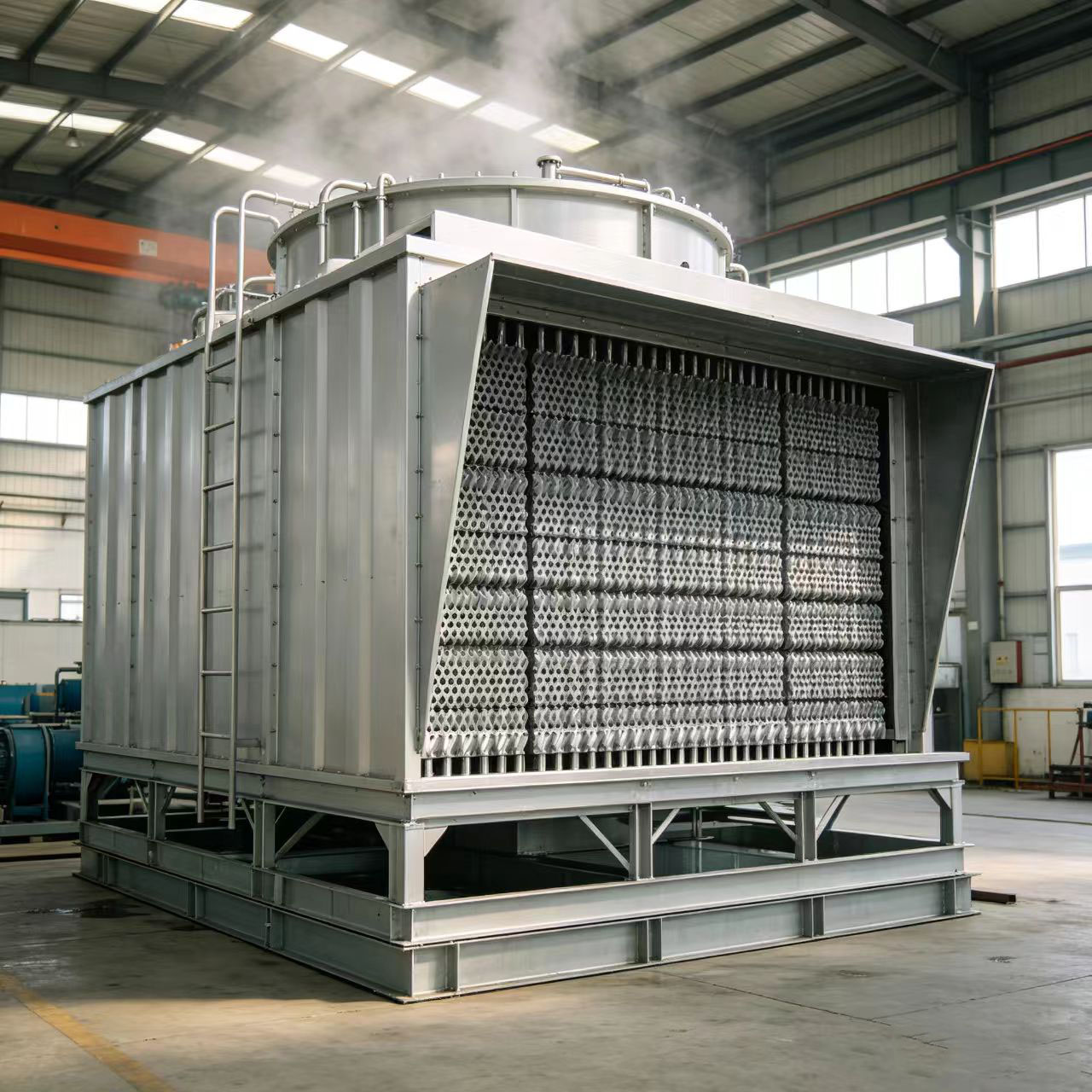

Cooling tower fill can be designed for different tower configurations.
In a counterflow tower, water moves downward while air travels upward through the fill.
The packing is designed to promote effective countercurrent contact.
In a crossflow tower, air moves horizontally through the fill while water flows downward.
The fill geometry must provide appropriate water distribution and airflow characteristics.
Stainless steel fill packs can be customized according to the tower's internal dimensions and airflow arrangement.
We provide customized stainless steel fill according to existing cooling tower and evaporative condenser requirements.
Customization can include:
Stainless steel grade
Sheet thickness
Corrugation angle
Corrugation height
Surface pattern
Packing height
Packing width
Packing length
Block dimensions
Water-flow direction
Airflow direction
Support configuration
Installation arrangement
Custom manufacturing is particularly useful for replacement cooling tower fill when the original product is obsolete or unavailable.
Selecting the correct stainless steel fill requires more than simply matching the physical dimensions.
Identify whether the equipment is:
Crossflow
Counterflow
Forced draft
Induced draft
Open circuit
Closed circuit
Evaporative condenser
Provide hot-water inlet and cold-water outlet temperatures.
Water loading affects the required packing configuration.
Air volume and allowable pressure drop are important for fill selection.
pH, chlorides, hardness, suspended solids, and other contaminants affect material selection and fouling.
Provide the exact fill dimensions and packing-bed height.
If the water contains significant suspended solids or biological contamination, a more open packing configuration may be preferable.
Cooling tower packing works together with the water distribution system.
A high-quality fill cannot compensate for severely uneven water distribution.
The system should include suitable:
Spray nozzles
Distribution pipes
Headers
Branch pipes
Water distributors
Uniform distribution allows more of the packing surface to remain wetted and can improve overall tower performance.

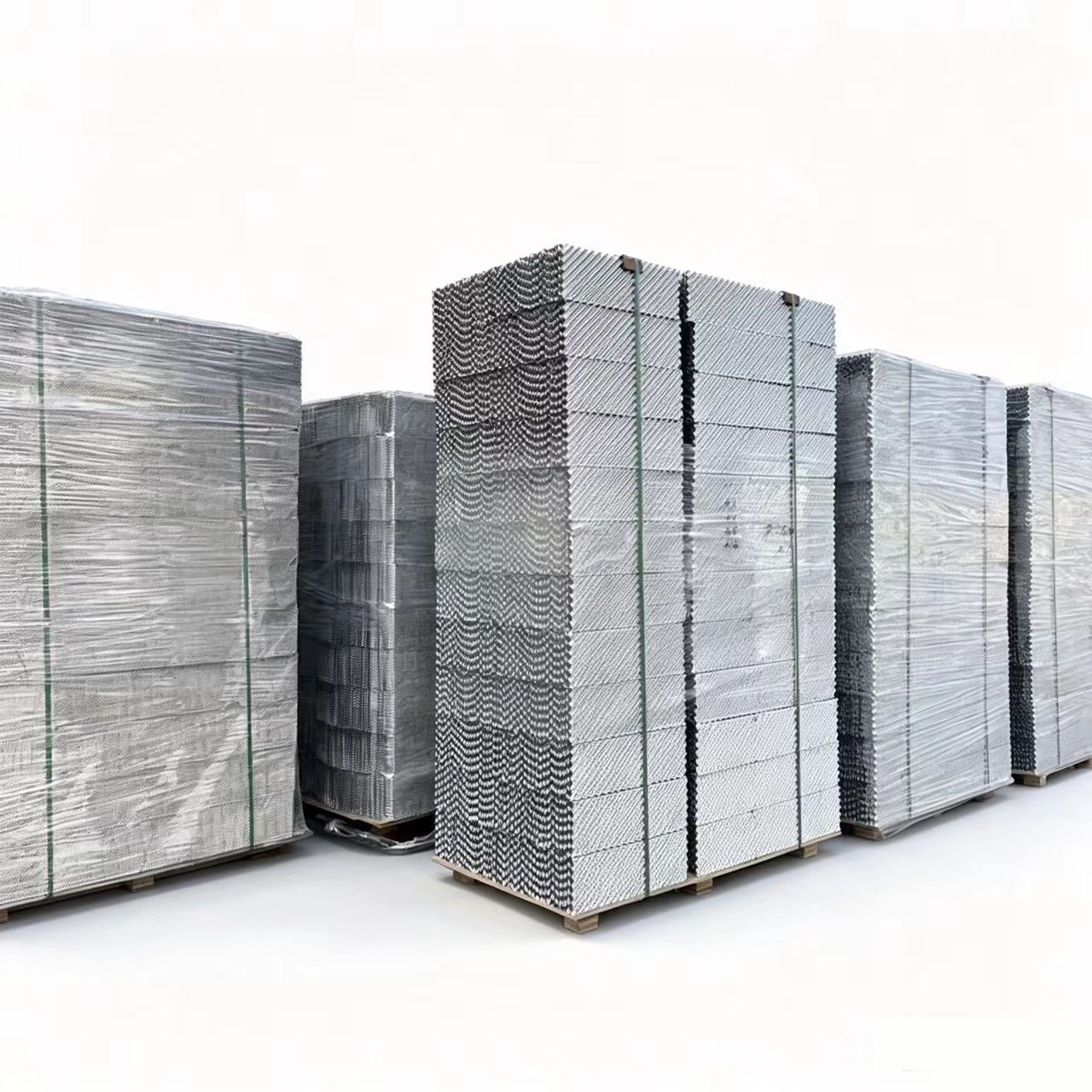

We supply stainless steel cooling tower packing, condenser fill packs, evaporative condenser fill, industrial cooling tower fill, and custom metal packing for industrial applications.
Our products can be manufactured according to:
Existing fill samples
Technical drawings
Tower dimensions
Equipment models
Photos
Operating conditions
Customer specifications
We support both new installations and replacement projects.
For accurate product selection and pricing, please provide:
Cooling tower or condenser type
Manufacturer and model
Fill dimensions
Required packing height
Tower width and length
Hot-water temperature
Cold-water temperature
Water flow rate
Airflow if available
Operating environment
Water chemistry
Stainless steel grade
Quantity required
Existing fill photographs or drawings
For replacement applications, clear photographs and accurate measurements are especially helpful.
It is metal heat-transfer media installed inside a cooling tower to increase water-air contact and improve heat rejection. Stainless steel provides high strength, temperature resistance, and corrosion resistance.
Condenser fill pack is packing installed in an evaporative condenser to improve contact between circulating water and air, helping remove heat from the condenser system.
Stainless steel can be selected for applications requiring higher temperature resistance, greater mechanical strength, fire resistance, or specialized corrosion performance.
Yes, stainless steel is suitable for many high-temperature applications, subject to the selected grade, design, water chemistry, and operating conditions.
Yes. Dimensions, material grade, sheet thickness, corrugation geometry, packing height, and block configuration can be customized.
Potentially, but the replacement should be evaluated for hydraulic, thermal, structural, and installation compatibility.
Yes. Stainless steel packing can be designed for suitable evaporative condenser applications.
Service life depends on water chemistry, temperature, fouling, corrosion, cleaning, and mechanical conditions. Proper water treatment and maintenance can significantly extend service life.
Provide the existing fill dimensions, tower type, operating temperatures, water flow rate, photos, and preferred material. Existing drawings or equipment model information are also useful.
Looking for a stainless steel cooling tower fill supplier, evaporative condenser fill manufacturer, industrial cooling tower packing manufacturer, or custom condenser fill pack supplier?
Send us your existing fill dimensions, photographs, equipment model, drawings, or operating conditions.
We can provide customized stainless steel cooling tower packing and condenser fill packs for industrial cooling towers, evaporative condensers, closed-circuit cooling systems, and high-temperature heat-rejection applications.
Contact us for technical specifications, custom dimensions, replacement solutions, and quotation.
