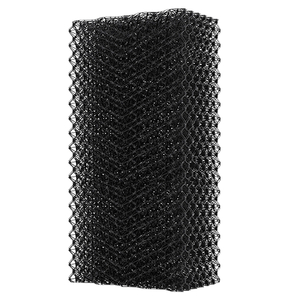

Liang chi pvc fills for cooling tower is one of the core components in the cooling tower, and its main function is to increase the contact area between water and air and improve the heat dissipation effect of water.
Liang Chi PVC Fills for Cooling Tower Specification
There are different requirements for fills, such as length and width, material or thickness, etc. Please tell us your detailed requirements so as to get the correct solution and provide a quotation. PT can cover all customer needs. Filler media can also be required in flame retardant or antibacterial performance.
W
| H | Gap | Angle |
| 750 | 400 multiple | 20 | 90° |
Material:
PVC, PP, CPVC
Thickness:
0.32mm or customized (customized min order 3000 pieces)
Liang Chi PVC Fills for Cooling Tower Customization options
Customized logo (Min. order: 3,000 pieces)
Customized packaging (Min. order: 3,000 pieces)
Graphic customization (Min. order: 3,000 pieces)
Liang Chi PVC Fills for Cooling Tower Features
Vacuum molding with flame-retardant PVC material can improve the thermal performance of the filler by an average of 7.3% and prolong its service life.
Convenient inspection, no disassembly, and convenient cleaning.
Self-extinguishing PVC material is free from decay and biological erosion, and its applicable temperature is below 50℃.
Select products available with Mechanical Assembly technology.
Liang Chi PVC Fills for Cooling Tower is an essential component of the cooling tower, and its performance directly affects the cooling efficiency and service life of the cooling tower. Here is a detailed analysis of the characteristics of the Liang Chi cooling tower fills :
Liang Chi PVC Fills For Cooling Tower Material Properties
The Liang Chi PVC Fills for Cooling Tower is mainly made of polyvinyl chloride (PVC) or polypropylene (PP).
These materials have the following advantages:
-
Strong Corrosion Resistance: PVC and PP materials have good resistance to acids, bases, salts, and other chemicals, making them suitable for use in various water quality conditions.
-
Good Temperature Resistance: The temperature resistance range of PVC fill material is generally from -20°C to 70°C, while that of PP fill material is from -20°C to 100°C, which can meet the temperature requirements of different industrial scenarios.
-
Excellent Anti-aging Performance: The fill material is added with anti-aging agents and UV absorbers during the manufacturing process, allowing it to maintain its performance even when exposed to sunlight for a long time, resulting in a long service life.
-
Good Flame Retardancy: The oxygen index of the fill material is ≥30, which meets fire protection requirements and reduces the risk of fire.
Liang Chi PVC Fills For Cooling Tower Structural Design
The Liang Chi PVC Fills for Cooling Tower comes in various structural forms, each with its unique characteristics and application scenarios:
-

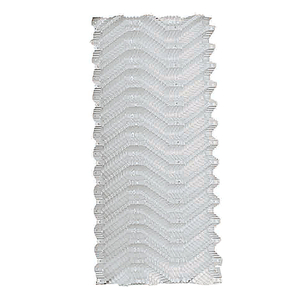

S-Wave Fill: The wavy design is compact in structure, with moderate ventilation resistance and a large water contact area, resulting in good cooling performance. It is suitable for a variety of cooling tower systems, especially in situations where compact design is required.
-

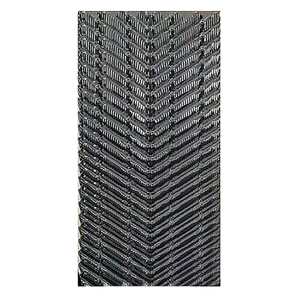

Skewed Interlaced Fill: The inclined angle design (usually 60 degrees) allows the water and air to flow through the fill layer in a crisscross manner multiple times, increasing the contact area and contact time between air and water, resulting in significant cooling performance and low ventilation resistance. It is mainly used in round counterflow cooling towers.
-
Hexagonal Honeycomb Fill: The unique honeycomb structure provides a large channel area and strong adhesion, with a wide range of temperature adaptability. It is widely used in industrial cooling towers.
-
Dotted Wave Fill: The surface is covered with numerous small protrusions, which increase the contact area between air and water, slow down the water flow speed, and improve heat exchange efficiency by extending the residence time of cooling water in the fill material.
-
Staggered Sine Wave Fill: The sine wave design, with staggered peaks and valleys, creates complex flow channels that effectively enhance the uniformity of air and water mixing, thereby improving heat exchange performance.
Liang Chi PVC Fills For Cooling Tower Heat Exchange Performance
-
Increased Contact Area: The complex surface structure or layered design of the fills material can disperse the water flow into fine droplets or form thin water films, greatly increasing the contact area between water and air, which is conducive to rapid heat transfer.
-
Extended Contact Time: The design of the fill material effectively extends the flow path of the water in the cooling tower, allowing for longer contact time between water and air, thereby improving heat exchange efficiency.
-
Promoting Evaporative Cooling: In wet cooling towers, the fill material promotes the evaporation process of water, as the larger contact area and longer contact time facilitate more water evaporation, which in turn carries away more heat.
Liang Chi PVC Fills For Cooling Tower Service Life
-
Durable Material: High-quality PVC or PP material is used for the fill material, which has good toughness and is not prone to breaking or deforming, maintaining performance even in harsh working conditions.
-
Anti-aging Design: The fill material is added with anti-aging agents and UV absorbers during the manufacturing process, allowing it to maintain its performance even when exposed to sunlight for a long time, resulting in a long service life.
-
Flame Retardancy: The oxygen index of the fill material is ≥30, which meets fire protection requirements and reduces the risk of fire, thereby extending the service life of the equipment.
Liang Chi PVC Fills For Cooling Tower Installation and Maintenance
-
Easy Installation: The fill material is designed for easy installation, usually in a modular form, which can be quickly assembled and installed, reducing installation time and cost.
-
Simple Maintenance: The structural design of the fill material makes it easy to clean, allowing for convenient removal of surface dirt and impurities to maintain good heat exchange performance. At the same time, the durability of the fill material also reduces the frequency of maintenance, lowering maintenance costs.
Liang Chi PVC Fills For Cooling Tower Environmental Performance
-
Low Noise Pollution: The design of the fill material can reduce the noise and vibration generated during the operation of the cooling tower, meeting environmental protection requirements and not causing pollution to the surrounding environment.
-
Significant Energy-saving Effects: By expanding the heat exchange area and region, the fill material can improve cooling efficiency and reduce energy consumption, thereby achieving more efficient heat dissipation, in line with environmental protection and energy-saving requirements.
Liang Chi PVC Fills For Cooling Tower Application Scenarios
The Liang Chi PVC Fills for Cooling Tower is widely used in many industries, including but not limited to:
-
Chemical Industry: Used to treat large amounts of exhaust gas and wastewater, with heat exchange and purification carried out through cooling towers.
-
Power Industry: Used to reduce the temperature of cooling water and improve power generation efficiency.
-
Steel Industry: Used for cooling and temperature reduction in steel metallurgical production.
-
Food Industry: Used in the cooling process of food processing to ensure food quality and safety.
-
Pharmaceutical Industry: Used in the cooling process of pharmaceutical production to ensure drug quality.
-
Construction Industry: Used in the cooling of central air conditioning systems to improve the efficiency of air conditioning systems.
Summary
The Liang Chi PVC Fills for Cooling Tower with its excellent material properties, efficient heat exchange performance, long service life, easy installation and maintenance, and environmental protection and energy-saving features, plays an important role in the industrial cooling field. Its diversified structural design can meet the needs of different application scenarios and is widely used in industries such as chemical, power, steel, food, pharmaceutical, and construction. Choosing the appropriate fill can not only improve cooling efficiency and reduce energy consumption but also reduce equipment maintenance costs, extend the service life of the equipment, and meet environmental protection requirements.

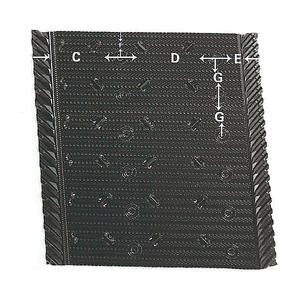

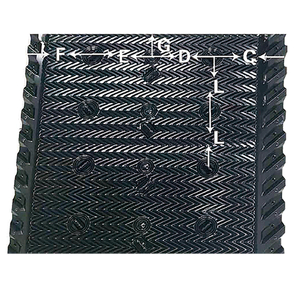

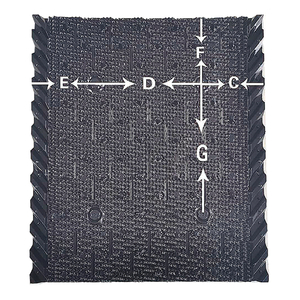

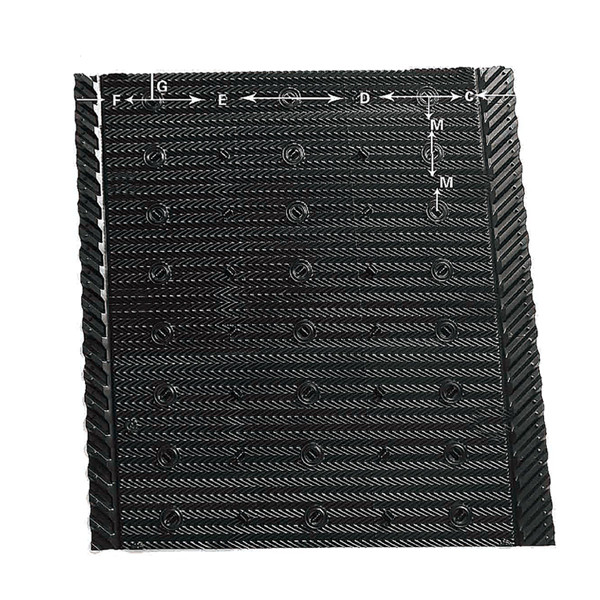

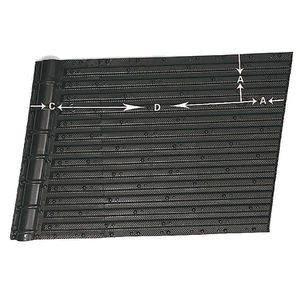

Liang Chi PVC Fills for Cooling Tower Measurement
Please measure the following data for the quality and reliability requirements of your maintenance cooling tower or maintenance project to adapt to the design of cooling tower filling or components.
Liang Chi PVC Fills for Cooling Tower Application
The application range of cooling tower fills is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation, Tannery, Electric furnace, Freezing Series, Air conditioning cooling system
Liang Chi PVC Fills for Cooling Tower Shippment
Packing:
In bundle,wooden pallet or as your request.
Delivery time:
With in 10 days.
Selling units:
Single item.
Our Services of Liang Chi PVC Fills for Cooling Tower
-Pre-sale services
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
Why choose us?
1. Highest quality
We are the manufacturer who adopts import raw materials. It is cheap price and guaranteed quality.
2. Most competitive price
We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.
3. Professional
We are specialized in producing and sells as development, methods and handling. We have 16 years experience.
4. Best service
Answering emails and solving questions timely. Delivery and update information on time.
Trust, good quality and service are the basic of long term business.
