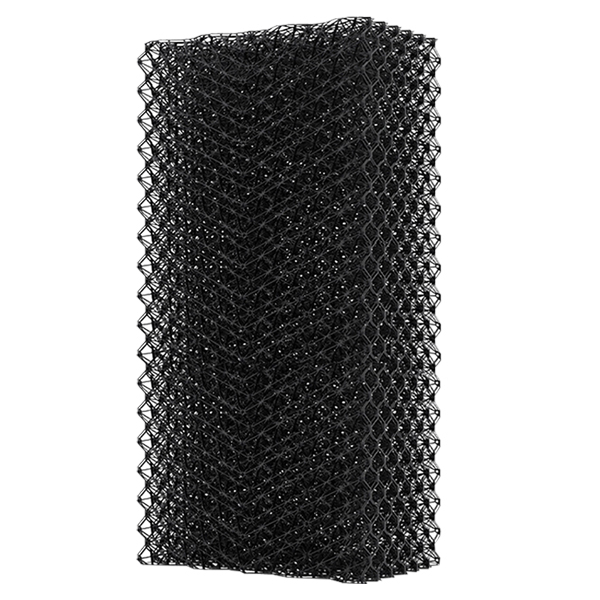

PVC Cooling Tower Fill in Grid is a high-performance heat exchange media designed to improve the thermal efficiency of industrial and commercial cooling towers. Manufactured from premium virgin PVC material, the grid-structured fill offers excellent water distribution, low airflow resistance, and outstanding resistance to corrosion and biological growth.
Compared with traditional fill media, PVC grid fill features an open lattice structure that allows water and air to flow more freely. This design minimizes clogging, making it particularly suitable for cooling towers operating with poor water quality or water containing suspended solids. It is widely used in power plants, chemical industries, steel mills, HVAC systems, mining, and wastewater treatment facilities.
CoolingTowerPart manufactures high-quality PVC Cooling Tower Grid Fill compatible with various cooling tower brands and offers customized sizes to meet different project requirements.

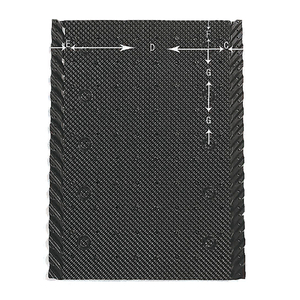

W | H | Gap | Angle |
| 450 | 600 | 20 | 90° |
| 450 | 908 | 20 | 90° |
The specially engineered grid structure maximizes contact between circulating water and airflow, increasing evaporation and improving heat transfer performance.
The open grid channels allow debris, sediment, and suspended particles to pass through more easily than conventional film fill, significantly reducing the risk of blockage.
The grid design promotes uniform water flow throughout the fill pack, eliminating dry spots and ensuring stable cooling performance.
Optimized airflow passages reduce pressure loss, allowing fans to operate more efficiently and lowering overall energy consumption.
Manufactured using high-quality PVC, the fill provides excellent structural stability and can withstand long-term industrial operation.
PVC material offers outstanding resistance to:
Industrial chemicals
Corrosive cooling water
Acids and alkalis
Biological fouling
Moisture
Optional UV-stabilized formulations help maintain long-term performance in outdoor installations.
The lightweight design reduces installation time while minimizing structural loading on the cooling tower.
| Item | Specification |
|---|---|
| Product Name | PVC Cooling Tower Fill in Grid |
| Material | Virgin PVC |
| Fill Type | Grid Fill |
| Color | Black / Blue / Customized |
| Sheet Thickness | 0.35–0.50 mm |
| Fill Height | Customized |
| Fill Width | Customized |
| Block Length | Customized |
| Maximum Operating Temperature | Up to 55°C |
| UV Resistant | Optional |
| Flame Retardant | Optional |
| Assembly Method | Glued or Welded |
| OEM Service | Available |
Customized specifications are available based on customer requirements.
High heat transfer efficiency
Excellent anti-clogging performance
Low maintenance requirements
Uniform water distribution
Reduced pressure drop
Long service life
Corrosion resistant
Lightweight design
Easy installation
Energy-saving operation
Cost-effective replacement solution
Suitable for various water qualities
Inside a cooling tower, hot circulating water flows downward through the PVC grid fill while the induced draft fan draws ambient air upward.
The open grid structure breaks the water into multiple streams and thin films while allowing unrestricted airflow. Heat transfers from the water to the air through evaporation, reducing the water temperature before it returns to the cooling system.
Because the grid channels are larger than those of standard film fill, dirt and suspended solids are less likely to accumulate, ensuring consistent cooling performance over time.
PVC Cooling Tower Grid Fill is suitable for a wide range of industries, including:
Power Generation
Petrochemical Plants
Steel Manufacturing
Chemical Processing
Mining Operations
HVAC Systems
Food & Beverage Processing
Pharmaceutical Manufacturing
Textile Mills
Paper Mills
Electronics Manufacturing
Wastewater Treatment Plants
PVC Grid Fill is particularly suitable for:
Poor water quality
High suspended solids
Recirculating industrial water
Dirty water systems
High biological contamination
Cooling towers requiring reduced maintenance
The optimized grid design enhances air-water contact, improving overall heat transfer efficiency and maintaining stable outlet water temperatures.
The anti-clogging structure minimizes scale buildup and sediment accumulation, reducing cleaning frequency and maintenance expenses.
Reduced airflow resistance decreases fan power requirements, helping lower operating costs.
Stable water distribution and efficient heat exchange reduce stress on pumps, fans, motors, and other cooling tower components.
Premium PVC material provides excellent resistance to corrosion, weathering, and chemical exposure, ensuring long-lasting performance.
Installation is simple and efficient:
Shut down the cooling tower and drain the water.
Remove old or damaged fill blocks.
Clean the support structure thoroughly.
Install the PVC grid fill according to the tower layout.
Ensure blocks are properly aligned and securely fixed.
Inspect the water distribution system before restarting the tower.
Professional installation is recommended for large industrial cooling towers.
Routine maintenance helps maximize service life and cooling performance.
Recommended practices include:
Inspect fill packs regularly.
Remove accumulated debris.
Maintain proper water treatment.
Check water distribution for uniform flow.
Replace damaged fill sections promptly.
Monitor pressure drop and cooling efficiency.
With proper maintenance, PVC grid fill can provide many years of reliable service.
CoolingTowerPart is a trusted manufacturer and exporter of cooling tower replacement parts in China, providing reliable products for customers around the world.
Factory-direct pricing
Premium virgin PVC materials
Advanced production technology
Strict quality inspection
Custom manufacturing
OEM-compatible replacement parts
Fast global delivery
Technical engineering support
Professional after-sales service
Our PVC Grid Fill can be manufactured for various cooling tower brands, including:
Marley
BAC
EVAPCO
Liang Chi
Hamon
Shinwa
Tashin
Kuken
Other OEM cooling towers
Custom dimensions are available according to customer drawings or samples.
Packaging options include:
Wooden Pallets
Export Cartons
Stretch Film Protection
Customized Packaging
Shipping methods:
Sea Freight
Air Freight
Express Delivery
We supply customers worldwide with fast and secure logistics solutions.
PVC Grid Fill is an open-structured heat exchange media designed for cooling towers. Its grid pattern improves airflow, enhances water distribution, and resists clogging, making it ideal for systems with challenging water quality.
Film fill provides maximum heat transfer efficiency for clean water systems, while grid fill features larger passages that resist clogging and perform better in applications with suspended solids or dirty water.
Yes. We offer custom dimensions, block sizes, sheet thicknesses, and assembly methods to fit different cooling tower models and operating requirements.
Yes. It is widely used in power plants, chemical processing, steel manufacturing, mining, wastewater treatment, and other industrial applications where durability and low maintenance are essential.
Yes. Samples are available for quality evaluation and project verification before bulk production.
Looking for a dependable PVC Cooling Tower Fill in Grid supplier? CoolingTowerPart offers high-quality, OEM-compatible grid fill solutions with custom manufacturing, competitive pricing, and global delivery.
Contact us today to receive a quotation, technical support, or a customized cooling tower fill solution tailored to your industrial application.
