The cooling tower filler is one of the core components in the cooling tower, and its main function is to increase the contact area between water and air and improve the heat dissipation effect of water.

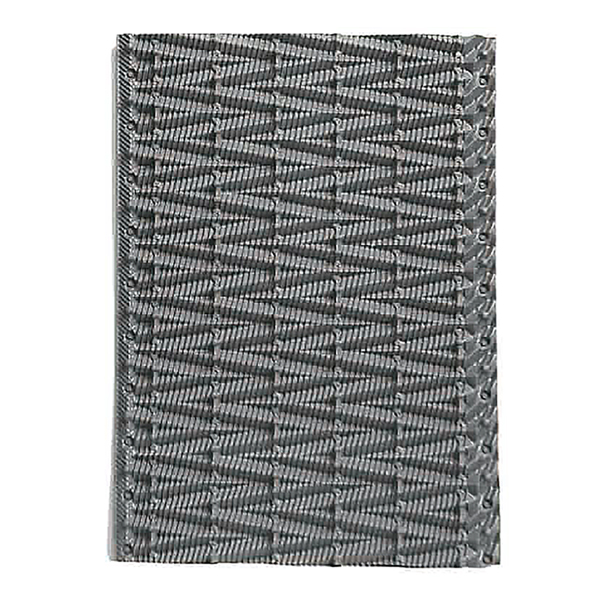

Kuken Cooling Tower Filler Specification
There are different requirements for fillers, such as length and width, material or thickness, etc. Please tell us your detailed requirements so as to get the correct solution and provide a quotation. PT can cover all customer needs. Filler media can also be required in flame retardant or antibacterial performance.
W
| H | Gap | Angle |
| 750 | 50 multiple | 20 | 90° |
| 950 | 50 multiple | 20 | 90° |
Material:
PVC, PP, CPVC
Thickness:
0.32 or customized (customized min order 3000 pieces)
Kuken Cooling Tower Filler Customization options
Customized logo (Min. order: 3,000 pieces)
Customized packaging (Min. order: 3,000 pieces)
Graphic customization (Min. order: 3,000 pieces)
Kuken Cooling Tower Filler Features
Features of Kuken Cooling Tower Filler
Kuken cooling tower packing is a high-performance packing widely used in industrial cooling systems, especially in industries such as chemical, power, and metallurgy. Below are the detailed features of Kuken cooling tower packing:
I. Kuken Cooling Tower Filler Structural and Design Features
-
Kuken Cooling Tower Filler W-shaped Water Path Film Design
Kuken cooling tower packing adopts the latest W-shaped water path film design, which increases the specific surface area of the packing and ensures more uniform water film distribution, thereby enhancing cooling efficiency. -
Kuken Cooling Tower Filler Modular Design
The packing is designed in a modular manner, facilitating installation and maintenance. This modular structure allows the packing to be flexibly combined according to the size and shape of the cooling tower, ensuring a perfect match between the packing and the cooling tower. -
Kuken Cooling Tower Filler Vacuum Forming Process
Utilizing vacuum forming technology ensures the quality of the packing's formation, endowing it with superior hydrophilic properties and ensuring ideal cooling effects. -
Kuken Cooling Tower Filler No Need for Cutting or Drilling during Installation
The packing, typically 0.27mm or 0.35mm in thickness, requires no cutting or drilling for installation, thereby avoiding the collapse of the packing.
II. Kuken Cooling Tower Filler Material and Performance Features
-
Kuken Cooling Tower Filler Flame-retardant Rigid Polyvinyl Chloride (PVC)
Kuken cooling tower packing is made from flame-retardant rigid polyvinyl chloride (PVC), which boasts excellent corrosion resistance and flame-retardant properties. This material not only withstands corrosive substances in cooling water but also effectively reduces fire risks. -
Kuken Cooling Tower Filler High Strength and Lightweight
With a thickness of typically 0.27mm or 0.35mm, the packing is lightweight yet strong, making installation convenient and preventing the collapse of the packing. -
Kuken Cooling Tower Filler Wide Operating Temperature Range
The operating temperature range of Kuken cooling tower packing is from 65℃ to -35℃, allowing it to operate stably under various climatic conditions. -
Kuken Cooling Tower Filler Strong Hydrophilic Properties
The packing has strong hydrophilic properties, ensuring uniform water film distribution and effectively reducing water drift losses to ensure good cooling performance.
III. Kuken Cooling Tower Filler Heat Transfer and Resistance Characteristics
-
Kuken Cooling Tower Filler High-efficiency Cooling Performance
Kuken cooling tower packing significantly enhances heat transfer efficiency by increasing the contact area of the water film and extending the retention time of water within the packing. Its design allows for multiple re-distributions of the water film, making it more uniform and further improving cooling effects. -
Kuken Cooling Tower Filler Low Resistance Design
The structural design of the packing effectively reduces air flow resistance, lowering the energy consumption of the cooling tower. With low ventilation resistance and uniform air distribution, the overall performance of the cooling tower is enhanced. -
Kuken Cooling Tower Filler Increased Vertical Ribs for Water Retention
Kuken cooling tower packing features increased vertical ribs that enhance the lateral diffusion capability of the water film, slow down the downward flow speed of the water film, and extend the time for heat and mass transfer, further improving cooling performance.
IV. Kuken Cooling Tower Filler Maintenance and Cleaning Features
-
Kuken Cooling Tower Filler Easy Cleaning and Maintenance
The smooth surface of Kuken cooling tower packing makes it less likely to adhere to dirt, facilitating cleaning and maintenance. This design reduces the risk of blockage and scaling in the cooling tower, maintaining good working conditions. -
Kuken Cooling Tower Filler Modular Replacement
Thanks to its modular design, packing replacement and maintenance are more convenient. When the packing is damaged or blocked, modules can be quickly replaced to minimize downtime.
-
No Frequent Shutdowns for Maintenance
Kuken cooling tower packing operates stably and safely, making it suitable for systems that require continuous operation without the need for frequent shutdowns for maintenance.
V. Kuken Cooling Tower Filler Application Scenarios
-
Kuken Coooling Tower Filler Industrial Cooling
Kuken cooling tower packing is widely used in industries such as chemical, power, and metallurgy, meeting the cooling requirements of various industrial environments. Its energy-efficient features make it an ideal choice for modern industrial cooling systems. -
Kuken Cooling Tower Filler Air Conditioning Systems
In air conditioning systems, Kuken cooling tower packing effectively reduces the temperature of cooling water, improving the efficiency of air conditioning systems. Its low noise and energy consumption make it particularly suitable for use in residential areas and commercial buildings.
VI. Kuken Cooling Tower Filler Installation and Usage Precautions
-
Kuken Cooling Tower Filler Installation Method
Kuken cooling tower packing is installed in a suspended or bonded manner, ensuring a tight fit with the cooling tower. The installation should ensure even water distribution to avoid local blockages. -
Kuken Cooling Tower Filler Uniform Water Distribution
Cooling water should be evenly distributed on the top of the packing using a combination of gravity sump and spray nozzles. Nozzles with a large diameter and low clogging risk should be selected to ensure long-term stable operation. -
Kuken Cooling Tower Filler Drift Rate Control
The water collection system should have high collection efficiency and low air resistance, with a drift rate of less than 0.001%. This not only reduces the waste of cooling water but also lowers the operating costs of the cooling tower.
Summary of Kuken Cooling Tower Filler
Kuken cooling tower filler with its excellent structural design, material performance, heat transfer characteristics, and maintenance convenience, has been widely applied in the industrial cooling field. Its energy-efficient features make it an ideal choice for modern industrial cooling systems. By properly selecting and maintaining Kongyan cooling tower packing, the operating efficiency of cooling towers can be significantly improved, reducing energy consumption and maintenance costs.

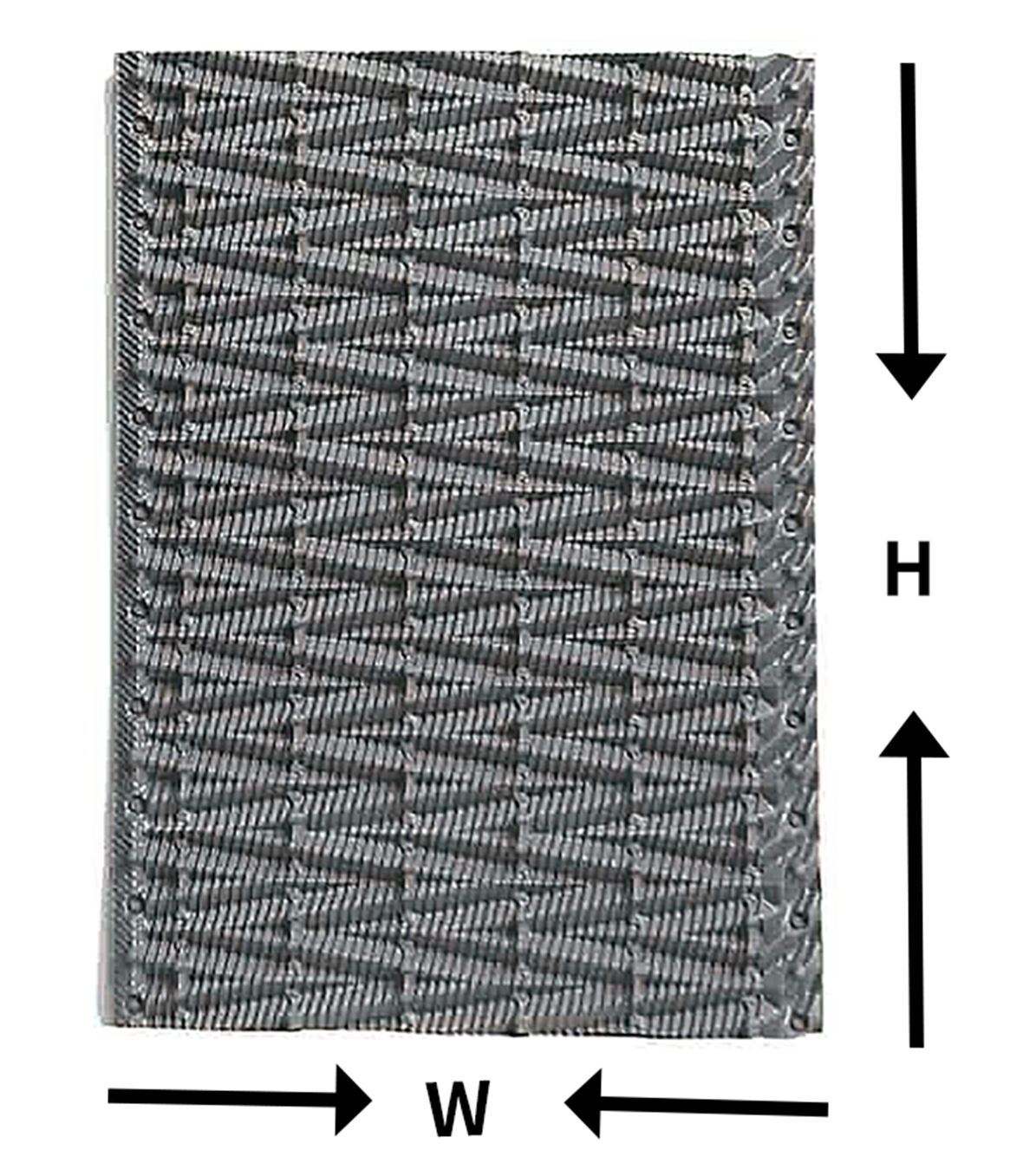

Kuken Cooling Tower Filler Size Measurement
Please measure the following data for the quality and reliability requirements of your maintenance cooling tower or maintenance project to adapt to the design of cooling tower filling or components.
Kuken Cooling Tower Filler Application
The application range of cooling tower PVC fills is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation, Tannery, Electric furnace, Freezing Series, Air conditioning cooling system
Kuken Cooling Tower Filler Shippment
Packing:
In bundle,wooden pallet or as your request.
Delivery time:
With in 10 days.
Selling units:
Single item.
Our Services of Kuken Cooling Tower Filler
-Pre-sale services
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
