The cooling tower PVC fills is one of the core components in the cooling tower, and its main function is to increase the contact area between water and air and improve the heat dissipation effect of water.
BAC Cross Flow PVC Fills for Cooling Tower Specification
There are different requirements for fillers, such as length and width, material or thickness, etc. Please tell us your detailed requirements so as to get the correct solution and provide a quotation. PT can cover all customer needs. Filler media can also be required in flame retardant or antibacterial performance.

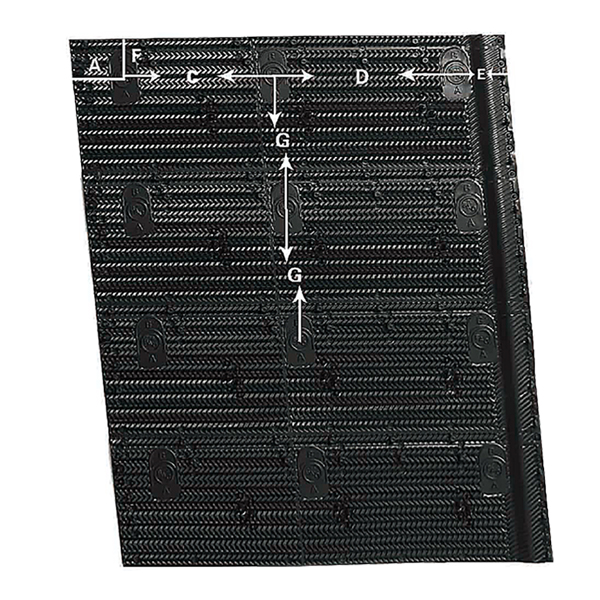

| W | H | A | B | C | D | E | F | G | Gap | Angle |
| 1350 | G multiple | 160 | 135 | 455 | 560 | 155 | 75 | 407 | 18.5 | 5.5° |
| 1380 | G multiple | 210 | 135 | 455 | 560 | 155 | 75 | 407 | 16 | 5.5° |
Material:
PVC, PP, CPVC
Thickness:
0.32 or customized (customized min order 3000 pieces)
BAC Cross Flow PVC Fills for Cooling Tower Customization options
Customized logo (Min. order: 3,000 pieces)
Customized packaging (Min. order: 3,000 pieces)
Graphic customization (Min. order: 3,000 pieces)
BAC Cross Flow PVC Fills for Cooling Tower Features
Vacuum molding with flame-retardant PVC material can improve the thermal performance of the filler by an average of 7.3% and prolong its service life.
Convenient inspection, no disassembly, and convenient cleaning.
Self-extinguishing PVC material is free from decay and biological erosion, and its applicable temperature is below 50℃.
Select products available with Mechanical Assembly technology.
Advantages of BAC Cross Flow PVC Fills for Cooling Tower
1. Superior Thermal Performance of BAC Cross Flow PVC Fills For Cooling Tower
BAC fills are designed with a patented structure and have been tested in the laboratory to significantly enhance the thermal performance of cooling towers, with an average improvement of 7.3% compared to the original BACross fills. These fills optimize the flow of water and air, maximizing the contact area between water and air, thereby improving cooling efficiency.
2. BAC Cross Flow PVC Fills For Cooling Tower Is Easy Inspection and Cleaning
BAC fills feature a unique design that allows for individual inspection and cleaning without the need to remove the fillers. This design not only facilitates routine maintenance but also reduces maintenance time and costs.
3. BAC Cross Flow PVC Fills For Cooling Tower Efficient Installation
BAC fills come with specific installation kits tailored to different models, including detailed installation instructions, support structures, hardware, and the fills themselves. This ensures a quick and efficient installation process. Additionally, the fills are designed for nested transport, occupying minimal space and reducing transportation costs.
4.BAC Cross Flow PVC Fills For Cooling Tower Is Low Maintenance Costs
BAC fills are made from self-extinguishing PVC material, which offers excellent corrosion resistance and biofouling resistance. This ensures a long service life and reduces the frequency of replacements. The material also has good chemical stability, allowing it to adapt to various water quality conditions.
5. Strong Adaptability of BAC Cross Flow PVC Fills For Cooling Tower
BAC fills are compatible with a wide range of crossflow cooling tower models, including the S3000 series, FXV series, and others. They can be perfectly integrated into existing equipment. Additionally, BAC offers high-temperature fills alternatives to meet different temperature requirements.
6. BAC Cross Flow PVC Fills For Cooling Tower Integrated Design
BAC fills come with integrated drift eliminators and louvers, which are certified by Eurovent, ensuring efficient water vapor separation and air flow control. This integrated design not only improves cooling efficiency but also reduces the need for additional components.
7. BAC Cross Flow PVC Fills For Cooling Tower Customization Options
BAC can customize the length and thickness of the fills according to customer requirements to meet the specific needs of different cooling towers. This flexibility ensures that the fills can be perfectly matched with existing equipment, further optimizing cooling performance.
8. BAC Cross Flow PVC Fills For Cooling Tower Energy-saving and Environmentally Friendly
BAC fills enhance thermal exchange efficiency, reducing the energy consumption of cooling towers and helping to lower operating costs. Additionally, the environmental characteristics of the materials used align with modern industry's requirements for sustainable development. In summary, BAC crossflow tower fills, with their superior thermal performance, low maintenance costs, and efficient installation, are an ideal choice for cooling tower upgrades and maintenance.

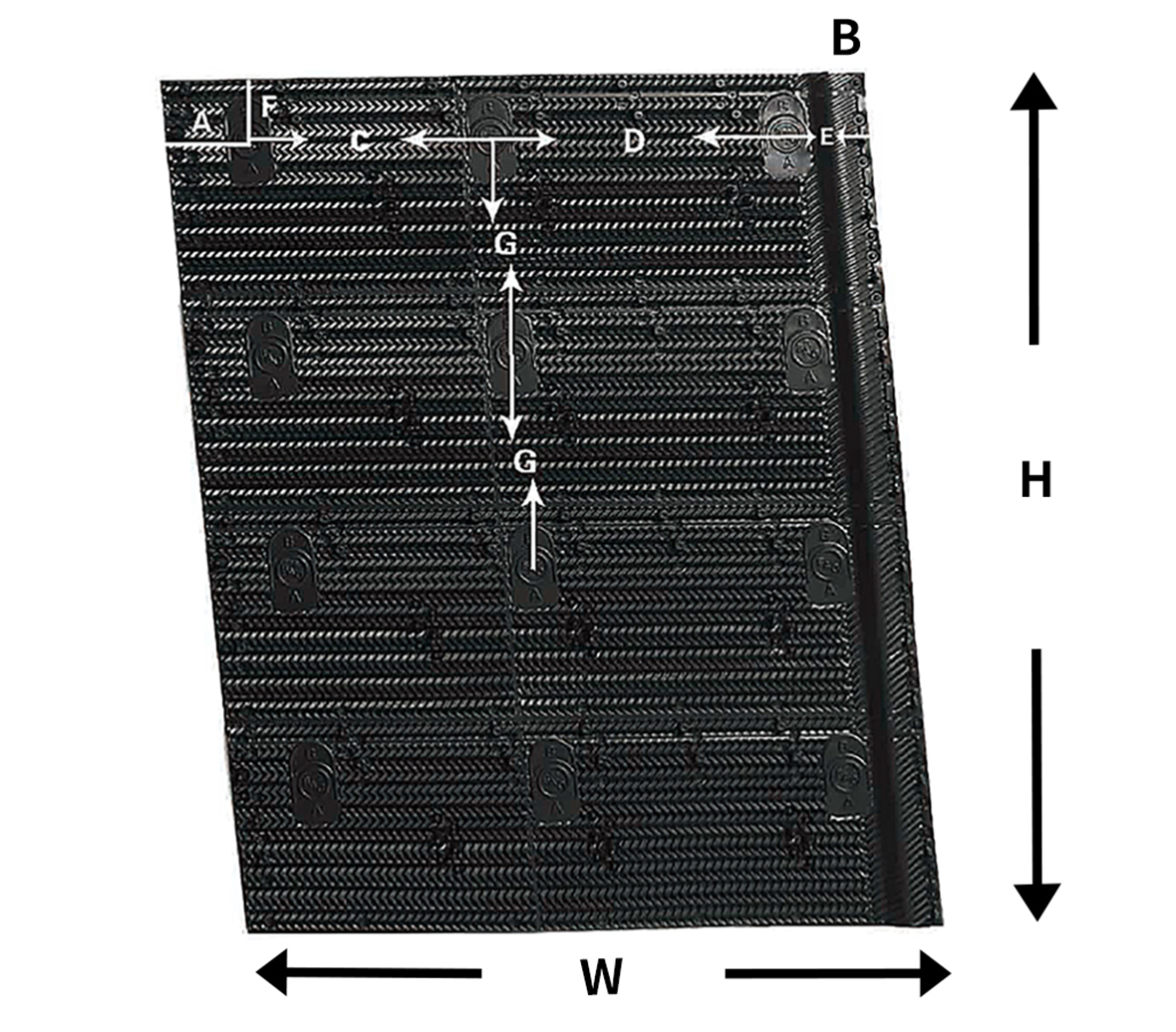

BAC Cross Flow PVC Fills for Cooling Tower Size Measurement
Please measure the following data for the quality and reliability requirements of your maintenance cooling tower or maintenance project to adapt to the design of cooling tower filling or components.
When To Replace BAC Cross Flow PVC Fills for Cooling Tower
Cooling tower fill is a crucial component in cooling tower systems, directly impacting cooling efficiency and overall system performance. Here are common situations and criteria for determining when to replace cooling tower fill:
1. BAC Cross Flow PVC Fills For Cooling Tower Aging and Wear
-
Surface Wear: Over time, the surface of the fill can wear out and age, reducing its performance and effectiveness.
-
Service Life: Generally, cooling tower fill should be replaced every 5 to 8 years under normal use. If proper maintenance is not performed, fill may need to be replaced every 2 to 3 years.
2. BAC Cross Flow PVC Fills For Cooling Tower Contamination and Blockage
-
Accumulation of Contaminants: During operation, cooling towers can accumulate various contaminants, such as sediment and sand, which can clog the fill, restricting water and air flow and affecting cooling efficiency.
-
Water Quality Issues: If the cooling water has poor quality, the fill may accumulate a significant amount of mud and bacteria, reducing heat dissipation capabilities. In such cases, fill replacement is necessary.
3. BAC Cross Flow PVC Fills For Cooling Tower Loosening and Detachment
-
Structural Damage: The internal structure of the fill may be affected by factors such as vibration, wind, and water impact, leading to loosening or detachment of the fill. This reduces the contact area between the fill and water/air, lowering cooling efficiency.
4. BAC Cross Flow PVC Fills For Cooling Tower Increased Resistance
-
Increased Airflow Resistance: Fill wear, blockage, and detachment can all lead to increased airflow resistance within the cooling tower. This can cause increased energy consumption, higher fan load, and may even affect the normal operation of the entire cooling system.
5. BAC Cross Flow PVC Fills For Cooling Tower Reduced Cooling Efficiency
-
Decreased Cooling Effectiveness: When the fill is severely damaged or aged, cooling efficiency can drop significantly, leading to equipment overloading and process anomalies.
-
High Water Temperature: If the cooling water is not sufficiently cooled, it may lead to excessively high water temperatures, affecting other equipment in the cooling system, such as condensers and pumps.
6. BAC Cross Flow PVC Fills For Cooling Tower Maintenance and Inspection
-
Regular Inspection: It is recommended to inspect the fill every 1 to 2 years to avoid sudden leaks due to aging.
-
Cleaning and Maintenance: Regular cleaning of the fill can extend its service life. However, if the fill is severely damaged or scaled, it should be replaced promptly.
7. BAC Cross Flow PVC Fills For Cooling Tower Environmental and Operating Conditions
-
Harsh Environments: If the cooling tower operates in high-temperature, high-humidity, or corrosive environments, the fill may wear out or become damaged more quickly. More frequent inspections and replacements may be necessary.
-
Operating Conditions: The frequency of fill replacement also depends on the operating conditions of the cooling tower, such as water temperature, water quality, and load.
8. BAC Cross Flow PVC Fills For Cooling Tower Economic Considerations
-
Reduced Product Yield: In some cases, even if product quality is not affected, a significant decrease in product yield may occur. In such instances, fill replacement should be considered to ensure economic efficiency, even if the fill appears undamaged.
BAC Cross Flow PVC Fills for Cooling Tower Shipment
Packing:
In bundle,wooden pallet or as your request.
Delivery time:
With in 10 days.
Selling units:
Single item.
Our Services of BAC Cross Flow PVC Fills for Cooling Tower
-Pre-sale services
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
