ZR-N30-35
PT
10 days

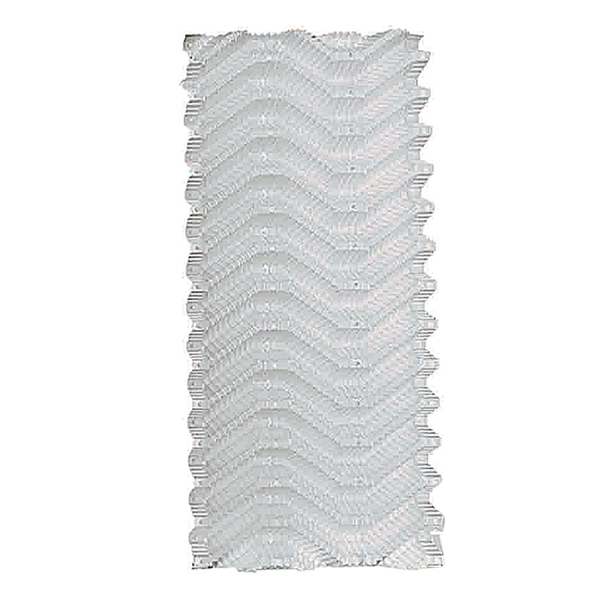

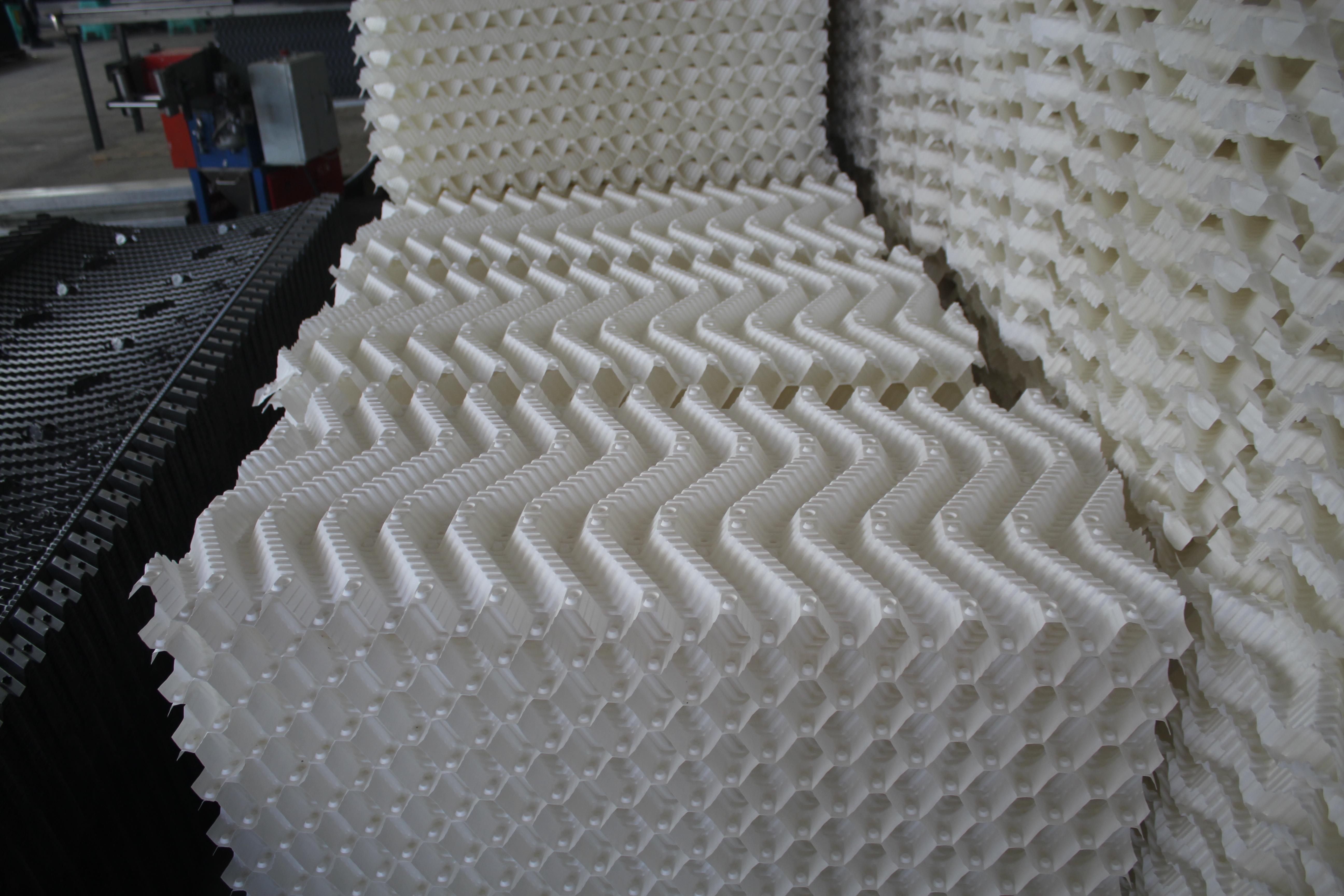

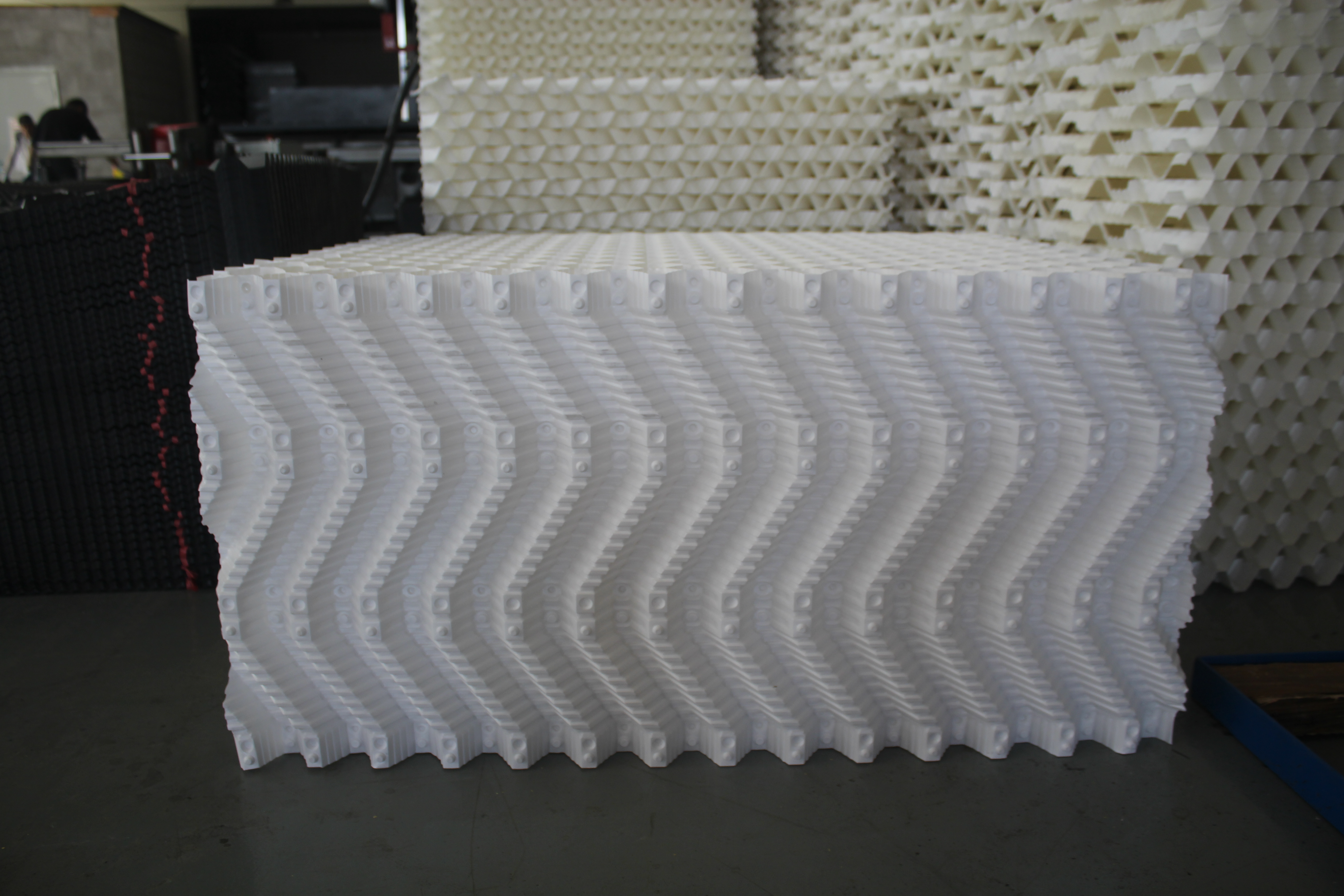

S-Wave PP Cooling Tower Fills are high-performance heat exchange media manufactured from premium polypropylene (PP) for industrial cooling towers operating under demanding conditions. The unique S-wave corrugated design enhances water distribution, increases the contact surface between air and water, and delivers superior cooling efficiency while maintaining low airflow resistance.
Compared with conventional PVC fills, PP cooling tower fills provide higher temperature resistance and excellent chemical stability, making them ideal for power plants, petrochemical facilities, steel mills, chemical processing plants, and other industries where cooling water temperatures or chemical concentrations exceed the limits of PVC.
CoolingTowerPart manufactures high-quality S-Wave PP Cooling Tower Fills with customized dimensions to fit new installations and replacement projects for a wide range of cooling tower brands.
 |  |

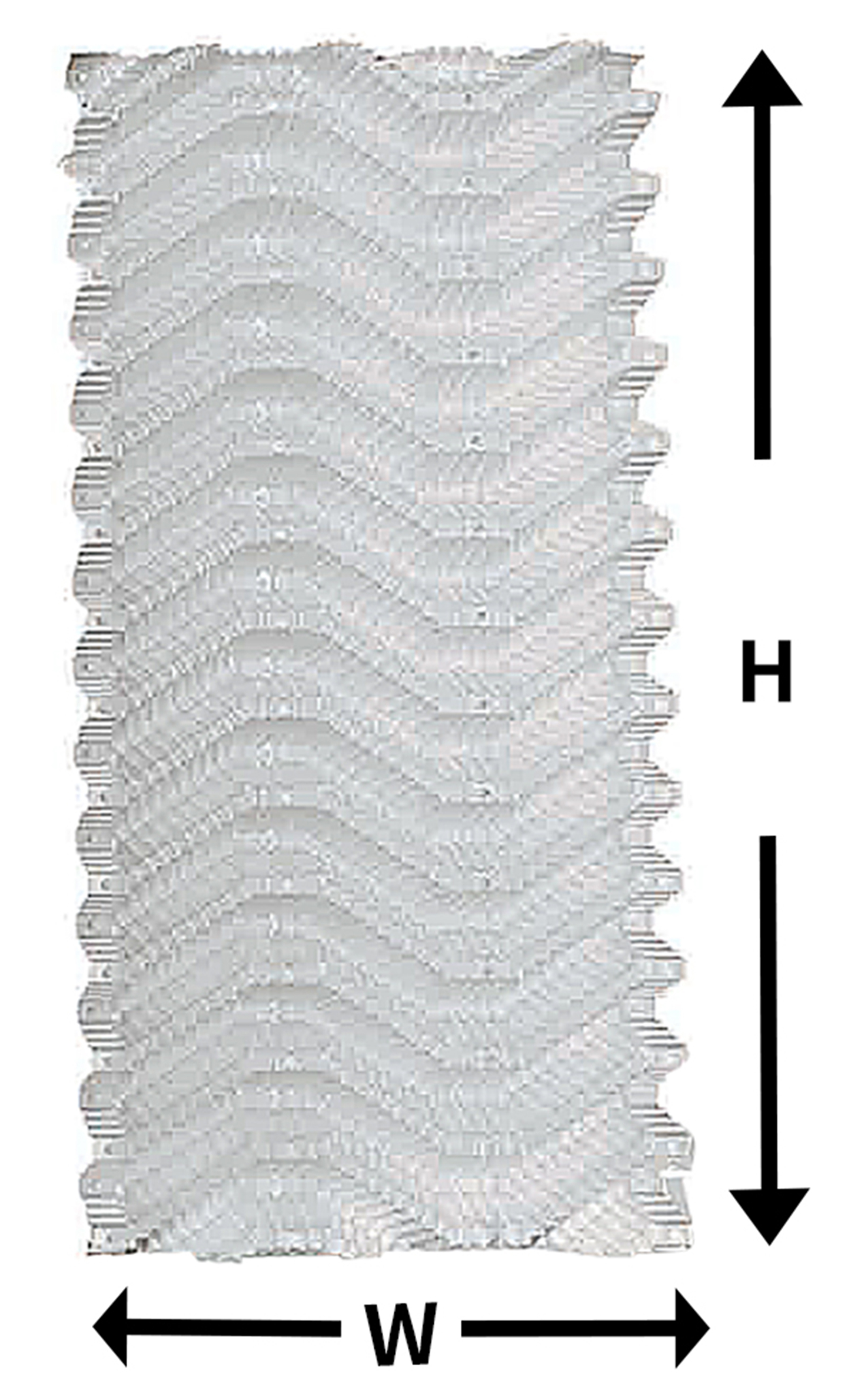

W | H | Gap | Angle |
| 500 | Any | 30/35 | 90° |
| 1000 | Any | 30/35 | 90° |
PVC, PP, CPVC
0.32mm or customized (customized min order 3000 pieces)
Graphic customization (Min. order: 3,000 pieces)
Manufactured from high-grade polypropylene resin, the fill provides outstanding mechanical strength, excellent thermal stability, and superior resistance to corrosion.
High-temperature resistance
Excellent chemical resistance
Strong impact resistance
Lightweight construction
Long service life
Low water absorption
Excellent weather resistance
The specially designed S-wave surface creates a larger heat transfer area while promoting uniform water distribution.
Benefits include:
Improved evaporation efficiency
Uniform water film formation
Enhanced airflow
Reduced pressure loss
Stable cooling performance
The optimized sheet geometry maximizes the contact between circulating water and airflow, increasing cooling capacity while reducing energy consumption.
The S-wave channels help distribute water evenly across the fill pack, minimizing dry spots and improving thermal performance.
Large airflow passages reduce fan operating pressure, lowering energy consumption while maintaining efficient cooling.
Polypropylene is highly resistant to:
Acids
Alkalis
Industrial chemicals
Cooling water treatment chemicals
Biological contamination
This makes PP fill suitable for harsh industrial environments.
Designed for continuous industrial service, S-Wave PP Cooling Tower Fill maintains excellent structural integrity under demanding operating conditions.
| Item | Specification |
|---|---|
| Product Name | S-Wave PP Cooling Tower Fill |
| Material | Virgin Polypropylene (PP) |
| Fill Type | Film Fill |
| Surface Design | S-Wave Corrugated |
| Color | Black / Blue / Custom |
| Sheet Thickness | 0.40–0.60 mm |
| Operating Temperature | Up to 90°C (application dependent) |
| UV Resistant | Optional |
| Flame Retardant | Optional |
| Assembly | Glued or Mechanically Assembled |
| Block Size | Customized |
| OEM Service | Available |
Specifications can be customized according to project requirements.
High cooling efficiency
Excellent heat transfer
High-temperature resistance
Superior chemical resistance
Low airflow resistance
Uniform water distribution
Long service life
Lightweight construction
Easy installation
Low maintenance requirements
Suitable for industrial cooling towers
Factory-direct pricing
Inside the cooling tower, hot circulating water flows over the S-wave PP fill while air is drawn through the fill by the induced draft fan.
The corrugated S-wave structure spreads the water into thin films, greatly increasing the contact area between water and air. Heat is removed through evaporation, allowing the cooled water to return to the process system.
The carefully engineered channel geometry promotes efficient airflow while reducing pressure loss, contributing to lower fan energy consumption.
Compared with standard PVC fill, polypropylene fill offers several advantages for demanding applications.
PP can operate at significantly higher temperatures than standard PVC, making it suitable for industrial cooling systems with elevated water temperatures.
Polypropylene resists a wide range of aggressive chemicals, extending service life in corrosive environments.
Its excellent impact strength reduces the risk of cracking during installation and long-term operation.
The combination of thermal stability and chemical resistance helps minimize replacement frequency and maintenance costs.
S-Wave PP Cooling Tower Fill is widely used in:
Power Plants
Petrochemical Refineries
Chemical Processing Plants
Steel Mills
Mining Operations
Pharmaceutical Manufacturing
Food & Beverage Processing
Textile Industry
Paper Mills
Electronics Manufacturing
Fertilizer Plants
Wastewater Treatment Facilities
Our S-Wave PP Cooling Tower Fill can be manufactured to fit many well-known cooling tower brands, including:
Marley
BAC
EVAPCO
Liang Chi
Hamon
Shinwa
Tashin
Kuken
Other OEM cooling towers
Custom dimensions are available based on customer drawings or samples.
Proper installation ensures maximum performance and service life.
Shut down the cooling tower and isolate the water system.
Remove damaged or worn fill blocks.
Clean the support structure and water distribution system.
Install the new S-Wave PP fill according to the tower layout.
Ensure proper alignment and secure all fill packs.
Inspect the system before restarting the cooling tower.
Routine maintenance helps maintain efficient cooling performance.
Recommended practices include:
Inspect fill packs regularly.
Maintain proper water treatment.
Remove scale and biological growth.
Check spray nozzles for even water distribution.
Replace damaged fill sections promptly.
Monitor cooling performance and pressure drop.
Proper maintenance extends equipment life and reduces operating costs.
CoolingTowerPart is a professional manufacturer of industrial cooling tower replacement parts with years of experience serving customers worldwide.
Premium virgin polypropylene materials
Advanced thermoforming production lines
Strict quality inspection
OEM-compatible products
Custom manufacturing capabilities
Competitive factory pricing
Fast international delivery
Technical engineering support
Comprehensive after-sales service
We also supply:
PVC Cooling Tower Fill
Splash Fill
Grid Fill
Drift Eliminators
Spray Nozzles
FRP Fan Blades
Cooling Tower Motors
Gear Reducers
Air Inlet Louvers
Packaging options include:
Export Wooden Pallets
Carton Packaging
Protective Stretch Film
Customized Packaging
Shipping methods:
Sea Freight
Air Freight
Express Courier
Worldwide delivery is available.
In bundle,wooden pallet or as your request.
With in 10 days.
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
