The Cooling Tower Float Valve is a mechanical water-level control component designed to automatically regulate makeup water in cooling tower basins. By responding directly to changes in basin water level, the float valve opens and closes the makeup-water supply without requiring an electrical control signal.

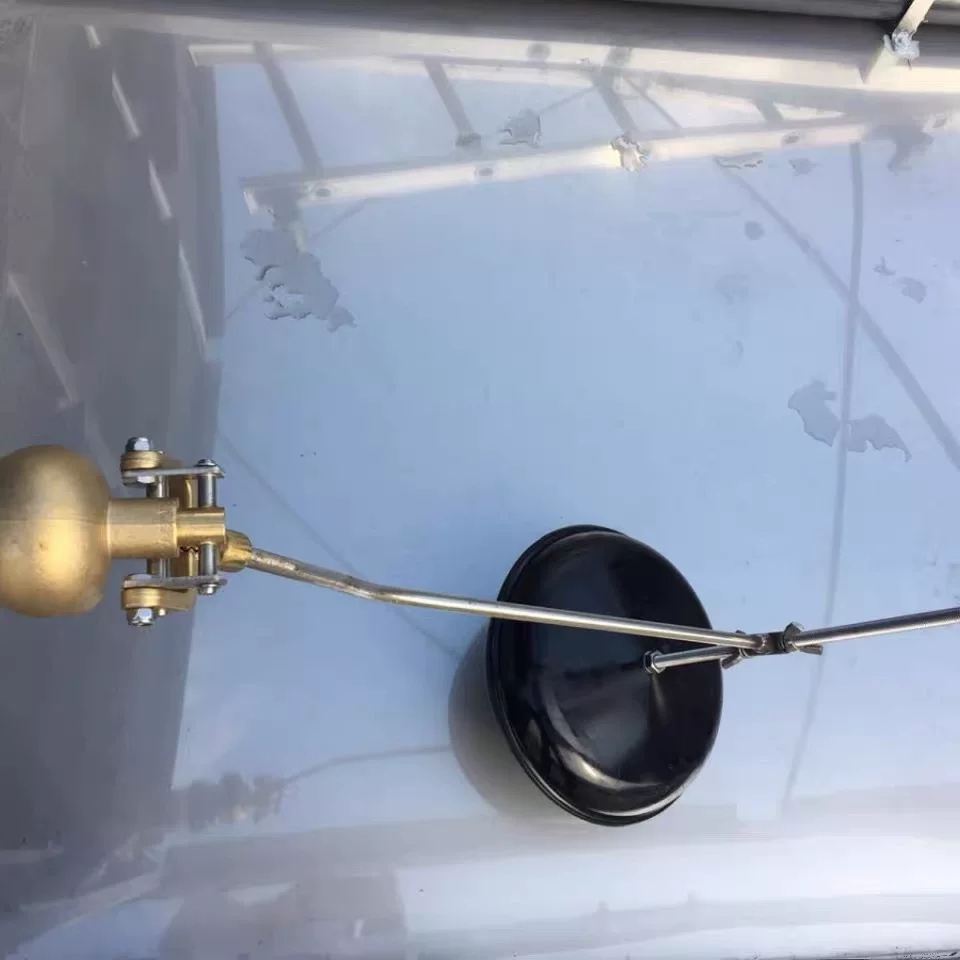

This cooling tower makeup water valve features a durable brass valve body, corrosion-resistant metal linkage, and a buoyant float ball. When water is consumed through evaporation, blowdown, or other operating losses, the basin level falls and the float moves downward. This movement opens the valve and allows fresh makeup water to enter the basin. Once the required water level is restored, the float rises and the valve closes.
The simple mechanical design makes this cooling tower basin float valve suitable for HVAC cooling towers, industrial process cooling systems, commercial buildings, factories, and other evaporative cooling applications.
CoolingTowerPart.com supplies cooling tower replacement components and can provide compatible float valve assemblies according to valve dimensions, connection size, operating pressure, float configuration, and application requirements.
| Product | Cooling Tower Float Valve |
|---|---|
| Main Function | Automatic makeup-water control |
| Installation | Cooling tower basin / makeup-water system |
| Operating Principle | Mechanical float |
| Valve Body | Brass |
| Float Arm | Metal / stainless-steel construction |
| Float | Plastic or engineering polymer |
| Control Type | Automatic mechanical |
| Power Requirement | No electrical power for basic operation |
| Applications | HVAC, industrial, commercial, process cooling |
| Replacement Use | Cooling tower spare part |
Actual materials, dimensions, connection sizes, pressure ratings, and configurations should be confirmed for the specific application.
A cooling tower float valve is a mechanical valve used to maintain the correct water level in a cooling tower basin.
Cooling towers continuously lose water during normal operation. Evaporation is the primary source of water loss, while blowdown and drift can also contribute to overall water consumption. Because of these losses, the cooling tower needs a makeup-water system to replenish the basin.
The float valve performs this task automatically.
A float ball is connected to the valve through an arm and mechanical linkage. As the basin water level changes, the float moves accordingly. This movement controls the opening and closing of the valve.
Unlike electronic level-control systems, a conventional mechanical float valve uses buoyancy and mechanical movement rather than an electronic sensor to regulate the water supply.
The operating principle of a cooling tower makeup water float valve is straightforward.
During normal operation, water is lost from the cooling tower. As the water level in the basin drops, the float ball moves downward.
The downward movement of the float is transferred through the metal float arm and linkage.
The linkage activates the valve mechanism, allowing fresh water to flow into the cooling tower basin.
As makeup water enters the basin, the water level gradually increases and lifts the float.
When the water reaches the preset operating level, the float moves into its upper position and the valve closes.
The process automatically repeats whenever the basin water level falls below the desired operating point.
A typical cooling tower float valve assembly consists of several interconnected components.
The brass valve body houses the internal valve mechanism and provides the connection between the makeup-water supply and cooling tower basin.
Brass is commonly selected for water-control valves because of its combination of mechanical strength, machinability, and corrosion resistance.
The float ball provides the buoyancy required to operate the valve.
Its position changes with the water level, allowing the valve to respond automatically to changes in basin water volume.
The float arm connects the float ball to the valve mechanism. It transfers the movement of the float to the valve.
The linkage assembly converts float movement into valve movement. Proper alignment and adjustment are important for reliable operation.
The valve is connected to the cooling tower makeup-water piping through the appropriate threaded or other specified connection.
The valve automatically responds to changes in basin water level, reducing the need for operators to manually control the makeup-water supply.
A conventional float valve does not require a separate electrical signal for basic opening and closing.
The brass valve body provides good mechanical durability and resistance to the wet environment commonly found around cooling towers.
The float arm and associated metal components can be manufactured from corrosion-resistant materials for long-term service in humid environments.
The mechanical structure is relatively simple, making inspection, adjustment, and replacement straightforward.
Depending on the valve design, the float arm and linkage can be adjusted to establish the desired basin operating level.
Maintaining the correct basin water level is essential for reliable cooling tower operation.
If the water level falls too low, the cooling tower may not maintain the required water inventory. Low water conditions can also create problems for associated circulating-water equipment.
If the basin level is too high, the system may consume unnecessary makeup water and potentially experience overflow.
A properly selected and adjusted cooling tower water level control valve helps maintain an appropriate balance.
Stable cooling tower basin water level
Automatic makeup-water replenishment
Reduced manual intervention
Better water management
Simple mechanical operation
Easy inspection and maintenance
Reliable operation under normal cooling tower conditions
The float valve is one component of a complete cooling tower water-management system.
A typical system may include:
Cooling tower basin
Makeup-water pipe
Float valve
Circulating-water pump
Blowdown valve
Overflow connection
Drain connection
Water treatment equipment
Water-level control components
The cooling tower makeup water valve specifically regulates the incoming water supply based on basin level.
In more advanced installations, a mechanical float valve may be supplemented or replaced by electronic level sensors, solenoid valves, modulating valves, or automated water-management systems.
The cooling tower float valve can be used in many evaporative cooling applications.
Factories and process plants often operate cooling towers for extended periods. Automatic makeup-water control helps maintain the required basin water level.
Commercial HVAC systems use cooling towers to reject heat from chilled-water or condenser-water systems. A float valve can maintain the appropriate basin water inventory.
Manufacturing processes may depend on stable cooling-water circulation. Reliable makeup-water control helps support continuous operation.
Hotels, office buildings, shopping centers, hospitals, and other facilities may use cooling towers as part of their central cooling systems.
A cooling tower replacement float valve can be installed when an existing valve becomes worn, damaged, corroded, or difficult to adjust.
A conventional mechanical float valve operates through buoyancy and mechanical movement. This makes it useful in applications where a simple water-level control solution is preferred.
The operating principle is straightforward. Maintenance personnel can visually inspect the float, arm, linkage, and valve.
Once properly installed and adjusted, the valve automatically responds to changing basin water levels.
The float and valve assembly can be installed within a relatively small area of the cooling tower basin and makeup-water connection.
For standard applications, a mechanical float valve can provide automatic water-level regulation without the complexity of a fully electronic control system.
Correct installation is essential for reliable performance.
Before installation, verify the valve's inlet connection and ensure it matches the makeup-water piping.
The valve must be suitable for the available water supply pressure. Excessive pressure can affect valve operation and sealing performance.
The float must have sufficient space to move freely.
It should not interfere with:
Basin walls
Pipes
Structural members
Water distribution components
Other internal cooling tower parts
Set the float position according to the required operating water level.
After installation, gradually introduce water and inspect all connections and the valve body for leakage.
Allow the basin water level to change and verify that the valve opens and closes at the desired levels.
The exact adjustment method depends on the valve design, but the basic process is similar.
Inspect the float and linkage.
Confirm that the float moves freely.
Check the valve connection and water supply.
Adjust the float arm or linkage as required.
Introduce makeup water gradually.
Observe the valve opening point.
Allow the basin level to rise.
Check the valve closing point.
Make fine adjustments if necessary.
Confirm stable operation.
The target water level should be based on the cooling tower manufacturer's operating requirements rather than an arbitrary setting.
Even a simple mechanical valve can develop problems over time
.
A valve that remains open may continuously add makeup water to the basin.
Potential causes include:
Debris in the valve
Damaged valve seat
Worn sealing components
Incorrect adjustment
Restricted float movement
Mechanical damage
If the valve does not open when the basin level falls, makeup water cannot enter normally.
Potential causes include:
Damaged linkage
Float obstruction
Internal valve blockage
Incorrect float adjustment
Insufficient water pressure
Water leakage after the valve is supposed to close may indicate:
Worn valve seat
Damaged seal
Foreign particles
Incorrect installation
Excessive operating pressure
The float arm may become bent, corroded, obstructed, or incorrectly adjusted.
This can cause unstable water-level control.
Routine inspection helps maintain reliable water-level control.
Check the float for:
Cracks
Deformation
Physical damage
Water ingress
Excessive surface deterioration
A damaged float may lose buoyancy and fail to operate the valve correctly.
Check for bending, corrosion, looseness, or interference with surrounding components.
Look for leakage, corrosion, blockage, and abnormal opening or closing behavior.
Compare the actual operating level with the required cooling tower operating range.
If water quality allows sediment or debris to enter the makeup-water system, periodic cleaning can help prevent valve blockage.
Both mechanical and electronic systems can be used to control cooling tower makeup water.
| Feature | Mechanical Float Valve | Electronic Level Control |
|---|---|---|
| Control method | Float and mechanical linkage | Sensor and controller |
| Electrical power | Normally not required | Required |
| Design | Simple | More complex |
| Installation | Relatively simple | Requires electrical/control installation |
| Maintenance | Mechanical inspection | Electrical and sensor inspection |
| Adjustment | Float/linkage | Electronic settings |
| Typical application | Standard water-level control | Advanced automated systems |
A mechanical float valve is particularly suitable when simplicity and straightforward maintenance are important.
Selecting the correct valve requires more than matching the external appearance.
Consider the following specifications.
The valve connection should match the makeup-water piping.
The valve should provide sufficient makeup-water flow to compensate for expected cooling tower water losses.
Verify that the valve is suitable for the pressure of the makeup-water supply.
The float needs sufficient buoyancy to operate the valve at the required pressure.
Valve and linkage materials should be suitable for the site's water quality and environmental conditions.
Check the orientation, arm length, float position, and available installation space.
The float arrangement should allow the valve to open and close at the required basin level.
A float valve may need replacement when it can no longer provide reliable water-level control.
Typical replacement indicators include:
Persistent water leakage
Valve fails to close
Valve fails to open
Damaged float
Bent float arm
Corroded linkage
Excessive mechanical wear
Unstable basin water level
When ordering a replacement cooling tower float valve, provide as much technical information as possible.
Useful information includes:
Existing valve photographs
Valve dimensions
Connection size
Float diameter
Float-arm length
Water pressure
Required flow rate
Cooling tower model
Existing component identification
This information helps determine whether a replacement component is suitable.
CoolingTowerPart.com provides cooling tower replacement parts for industrial, commercial, and HVAC cooling systems.
Our cooling tower component range includes:
Cooling tower float valves
Makeup water valves
Cooling tower nozzles
Cooling tower fills
Drift eliminators
Fan blades
Fan hubs
Fan shafts
Fan sheaves
V-belts
Motors
Gear reducers
Bearings
Louvers
Other cooling tower spare parts
We can supply compatible components according to drawings, dimensions, photographs, samples, or application requirements.
The makeup-water system plays an important role in cooling tower operation. A low-quality or incorrectly sized valve may result in leakage, unstable water levels, excessive water consumption, or insufficient makeup-water flow.
A properly selected cooling tower makeup water valve should provide:
Reliable opening and closing
Stable water-level regulation
Durable construction
Suitable pressure capacity
Smooth float movement
Appropriate flow capacity
Easy maintenance
Compatibility with the existing cooling tower system
Correct sizing and installation are therefore essential for long-term performance.
A cooling tower float valve automatically controls the flow of makeup water into the cooling tower basin. Its purpose is to maintain the required basin water level.
The float rises and falls with the basin water level. When the water level falls, the float moves downward and opens the valve. When the water level rises, the float moves upward and closes the valve.
A conventional mechanical float valve does not normally require electrical power. It operates through float buoyancy and mechanical linkage.
The valve body shown in this type of assembly is typically brass. The exact material should be confirmed against the specific product specification.
There is no universal replacement interval. Service life depends on water quality, operating pressure, usage, corrosion, maintenance, and component quality. Regular inspection is recommended.
Possible causes include debris, worn sealing components, a damaged valve seat, excessive water pressure, or incorrect adjustment. The valve should be inspected before deciding whether replacement is necessary.
A compatible replacement may be possible, but compatibility should be confirmed using dimensions, connection size, pressure rating, flow capacity, float configuration, and operating requirements.
A float valve is one type of makeup-water valve. It uses a float mechanism to automatically control incoming water according to the basin level.
