BAC
10-15 days

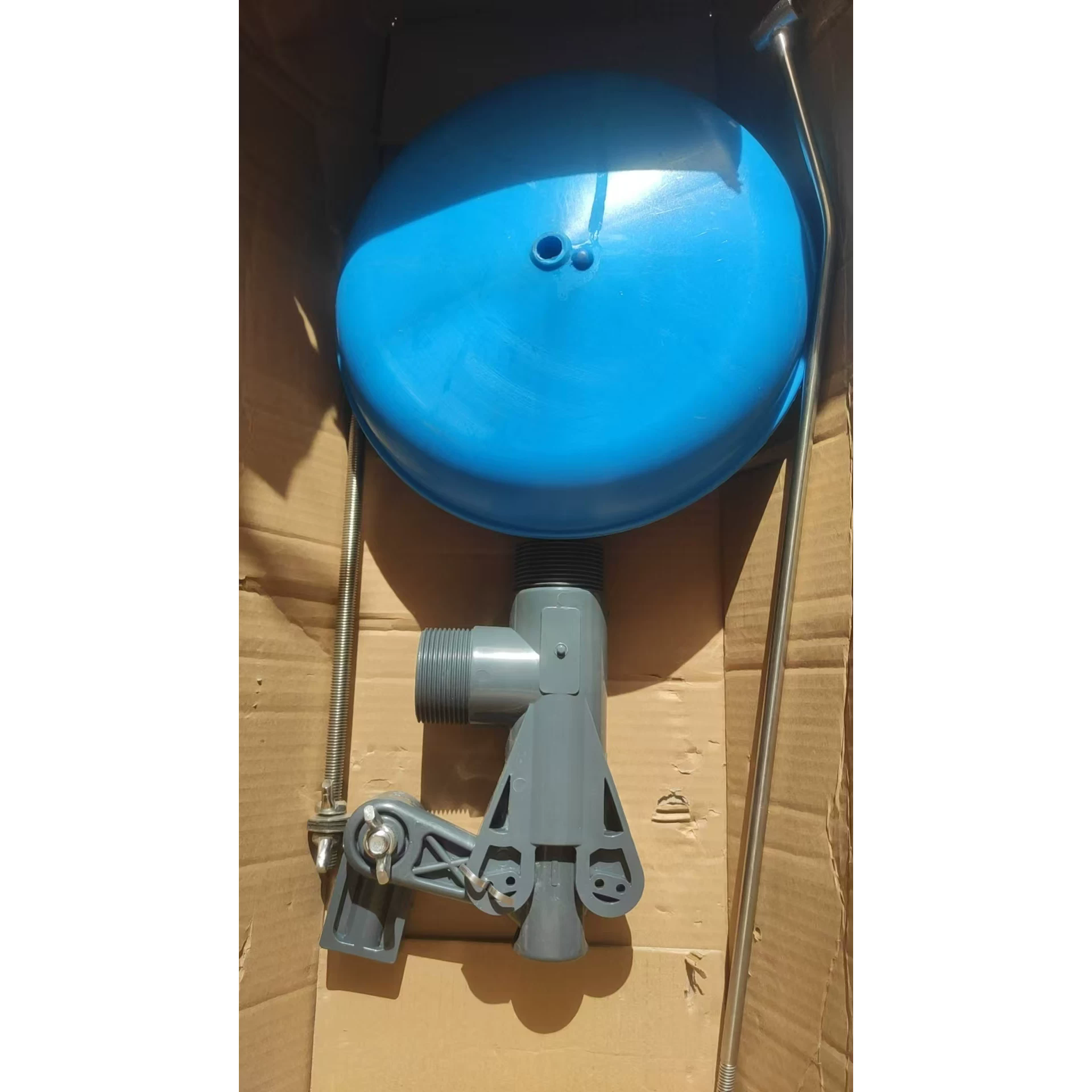

The BAC Cooling Tower Float Valve is a mechanical water-level control component designed for cooling tower basin makeup water systems. It automatically regulates the incoming water supply according to the water level in the cooling tower basin, helping maintain a stable operating level during continuous cooling tower operation.
The float valve assembly uses a large float ball, valve body, and mechanical linkage. As evaporation and water loss cause the basin level to fall, the float moves downward and opens the valve. Fresh makeup water then enters the basin. When the water reaches the preset level, the float rises and the valve closes.
This simple mechanical operating principle makes the cooling tower makeup water float valve an important component for maintaining reliable cooling tower operation without requiring a separate electrical control signal.
CoolingTowerPart.com supplies BAC-compatible cooling tower replacement parts and water-level control components for industrial, commercial, HVAC, and process cooling applications. The float valve can be selected according to valve connection, float size, installation arrangement, operating pressure, and required basin water level.
The cooling tower float valve is designed for reliable operation in wet and demanding cooling tower environments.
Automatic cooling tower basin water-level control
Mechanical float-operated design
Large float ball for reliable level detection
Durable valve construction
Corrosion-resistant linkage components
Adjustable operating water level
Simple installation and maintenance
No electrical power required for basic operation
Suitable for continuous cooling tower operation
Available as a replacement component for compatible systems
The exact materials, dimensions, connection sizes, and pressure ratings should be confirmed according to the required cooling tower application before ordering.
A cooling tower float valve is a water-level control valve installed in or near the cooling tower basin. Its primary function is to control the flow of makeup water entering the basin.
Cooling towers continuously lose water through several processes, especially evaporation. Additional water can also be lost through blowdown and drift. Therefore, a cooling tower needs a reliable makeup-water system to maintain an appropriate operating level.
The float valve provides a straightforward mechanical solution.
The float is positioned so that its movement corresponds to changes in basin water level. The float is connected to the valve through a mechanical arm or linkage. When the water level drops, the float falls and causes the valve to open. When the water level rises to the preset level, the float rises and closes the valve.
This automatic action helps prevent both excessively low and unnecessarily high basin water levels.
The working principle is relatively simple.
During normal cooling tower operation, water is continuously circulated through the system. Some water is lost through evaporation and other processes.
As the basin water level decreases, the float moves downward.
The movement of the float is transferred through the linkage to the valve mechanism. Once the water level reaches the valve's operating point, the valve begins opening.
Fresh makeup water flows through the connected water supply pipe and enters the cooling tower basin.
As makeup water enters the basin, the water level gradually increases and the float rises.
When the water reaches the predetermined level, the float reaches its upper position and the valve closes or significantly restricts the water flow.
The process repeats automatically as water is consumed during cooling tower operation.
Maintaining the correct basin water level is essential for cooling tower performance.
If the water level becomes too low, several problems can occur. The circulating-water pump may experience unfavorable operating conditions, and the system may not maintain the required water inventory.
If the water level is excessively high, unnecessary makeup water can be consumed and the basin may be more susceptible to overflow.
A properly adjusted cooling tower float valve helps maintain the balance between water consumption and makeup-water supply.
Stable cooling tower basin water level
Reliable makeup-water control
Reduced risk of low-water operation
Reduced unnecessary water consumption
Simple automatic operation
Reduced need for manual water-level adjustment
The float valve forms part of the cooling tower makeup water system.
A typical cooling tower water system may include:
Cooling tower basin
Circulating-water pump
Makeup-water piping
Float valve
Blowdown valve
Water treatment equipment
Level control components
Overflow connection
Drain connection
The float valve is specifically responsible for controlling makeup water based on the basin level.
For applications requiring more sophisticated water management, a mechanical float valve may work together with additional level switches, solenoid valves, automatic water treatment systems, or electronic controls.

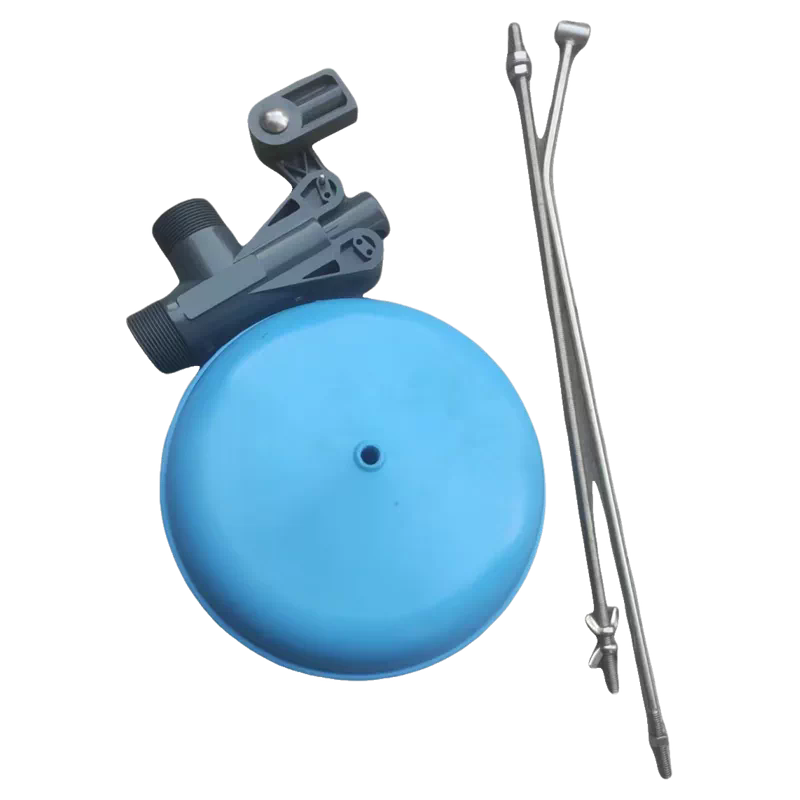

The pictured assembly consists of several functional components.
The large float ball provides buoyancy. Its position changes according to the basin water level.
A sufficiently sized float is important because the valve must generate enough mechanical force to operate against the incoming water pressure.
The valve body contains the internal mechanism responsible for regulating makeup-water flow.
The valve must be selected according to the water pressure, flow requirement, connection size, and application.
The linkage connects the float to the valve mechanism. When the float moves, the linkage transfers this movement to the valve.
Proper linkage adjustment is important for achieving the desired operating water level.
The valve body includes threaded or other appropriate connections for integration with the makeup-water piping.
The connection configuration should be verified before purchasing a replacement component.
Unlike electrically controlled water-level systems, a mechanical float valve can operate using the physical movement of the float and water pressure.
This makes the system relatively simple.
A basic mechanical float valve does not require a separate electrical power supply or level sensor to perform its fundamental opening and closing function.
The valve automatically responds to changes in basin water level, reducing the need for operators to manually control the makeup-water supply.
The mechanical design makes routine inspection relatively straightforward. Operators can inspect the float, linkage, valve body, connections, and sealing components during cooling tower maintenance.
A properly selected and maintained float valve can provide reliable makeup-water control throughout normal cooling tower operating cycles.
The BAC-compatible cooling tower float valve can be used in a variety of water-cooled systems, depending on the specific valve specifications.
Typical applications include:
Used for maintaining the water level in cooling tower basins serving commercial air-conditioning systems.
Industrial cooling systems often require continuous makeup-water control because of long operating hours and significant evaporation.
Manufacturing and process industries can use automatic basin level control to maintain stable cooling-water availability.
Cooling towers used in energy-related facilities may require reliable water-level management as part of their overall cooling-water system.
Cooling towers exposed to demanding operating environments benefit from durable and easy-to-maintain water-level control components.
Correct installation is important for reliable operation.
Before installation, check the following:
Valve connection size
Water supply pressure
Required makeup-water flow
Float dimensions
Float arm orientation
Installation location
Desired basin operating level
Piping configuration
The float should be positioned so that it can move freely through its full operating range.
It should not contact the basin wall, piping, structural members, or other components during normal operation.
After installation, the makeup-water supply should be opened gradually and the valve operation checked.
Float valve adjustment should be performed carefully.
The operating level is determined by the position and movement of the float and linkage. Depending on the valve design, the linkage or mounting position may be adjustable.
A typical adjustment procedure is:
Stop or isolate the relevant water supply when required.
Inspect the float and linkage.
Confirm that the float moves freely.
Check the valve and piping connections.
Adjust the float position according to the required basin level.
Restore the makeup-water supply.
Observe the valve opening and closing action.
Confirm that the basin reaches the desired operating level without overflow.
Always follow the applicable equipment and valve manufacturer's installation instructions.
Although float valves are relatively simple, several problems can affect their performance.
If the valve remains open, the basin may receive excessive makeup water.
Possible causes include:
Damaged valve mechanism
Incorrect adjustment
Debris inside the valve
Damaged sealing components
Restricted float movement
Excessive wear
If the valve does not open when the water level falls, the cooling tower basin may not receive sufficient makeup water.
Possible causes include:
Float linkage obstruction
Internal valve blockage
Incorrect adjustment
Damaged components
Water supply problems
A float should move smoothly throughout its operating range.
Inspect for:
Scale buildup
Corrosion
Mechanical interference
Damaged linkage
Incorrect installation
Continuous leakage may indicate valve-seat wear, damaged sealing components, debris, or excessive operating pressure.
Routine inspection can help prevent unexpected makeup-water problems.
Check for cracks, deformation, water ingress, or other visible damage.
Inspect the arm and connecting components for corrosion, bending, looseness, or mechanical interference.
Check the valve for leakage, blockage, and abnormal operation.
Inspect threaded or piping connections for leaks.
Confirm that the actual operating level corresponds with the required cooling tower operating condition.
Regular maintenance should be incorporated into the cooling tower's overall preventive maintenance program.
Both mechanical and electronic water-level control systems can be used in cooling tower applications.
| Feature | Mechanical Float Valve | Electronic Level Control |
|---|---|---|
| Operating principle | Float and valve mechanism | Sensor and control system |
| Electrical power | Generally not required | Usually required |
| Construction | Simple mechanical design | Electronic components |
| Installation | Relatively simple | More complex |
| Level adjustment | Mechanical | Controller/sensor based |
| Maintenance | Mechanical inspection | Sensor and electrical inspection |
| Application | Standard makeup-water control | Advanced automatic control |
A mechanical float valve is often attractive where simplicity, reliability, and straightforward maintenance are priorities.
Not every float valve is suitable for every cooling tower.
Before ordering a replacement, confirm:
The inlet connection must match the makeup-water piping or be compatible with the intended installation.
The valve must be suitable for the available water supply pressure.
The makeup-water valve needs sufficient capacity to compensate for expected water losses.
The float must provide sufficient buoyancy and mechanical force for the valve and operating pressure.
Check the valve orientation, float-arm arrangement, connection direction, and available installation space.
The valve and float assembly should be suitable for the water chemistry and environmental conditions of the cooling tower.
CoolingTowerPart.com provides cooling tower replacement parts and components for industrial and commercial cooling tower maintenance.
Our product range includes:
Cooling tower float valves
Cooling tower makeup water valves
Cooling tower nozzles
Cooling tower fills
Drift eliminators
Cooling tower fan blades
Fan hubs
Fan shafts
Aluminum alloy fan components
Cooling tower motors
V-belts
Belt drive components
Gear reducers
Bearings
Louvers
For a replacement BAC cooling tower float valve, customers can provide the existing valve dimensions, connection size, photographs, model information, or technical drawing. This helps confirm compatibility before production or shipment.
The makeup-water system directly affects cooling tower water availability and operating stability. A poor-quality valve may experience leakage, sticking, premature wear, or unstable water-level control.
A properly selected replacement float valve should provide:
Reliable opening and closing
Stable water-level control
Durable construction
Smooth float movement
Suitable pressure capacity
Correct connection dimensions
Long-term service performance
Choosing the correct component is therefore more important than simply selecting a valve based on appearance.
| Product | BAC Cooling Tower Float Valve |
|---|---|
| Product Type | Cooling Tower Makeup Water Float Valve |
| Application | Cooling Tower Basin |
| Control Method | Mechanical Float |
| Main Function | Automatic Water-Level Control |
| Float | Large Float Ball |
| Linkage | Mechanical Float Arm |
| Installation | Makeup-Water System |
| Application | HVAC, Industrial, Commercial, Process Cooling |
| Replacement | Compatible cooling tower replacement component |
| Customization | Dimensions and specifications can be confirmed according to requirements |
Actual dimensions, materials, pressure ratings, connection sizes, and other technical specifications should be confirmed for the specific valve model.
A BAC cooling tower float valve is a mechanical makeup-water control component used to maintain the water level in a cooling tower basin. It automatically opens and closes according to float movement.
When the basin water level decreases, the float falls and opens the valve. Makeup water enters the basin. As the water level rises, the float rises and causes the valve to close.
It is normally installed as part of the cooling tower basin's makeup-water supply system, with the float positioned where it can accurately respond to the basin water level.
A conventional mechanical float valve generally does not require electrical power for its basic operation. It uses buoyancy and mechanical linkage to operate the valve.
Possible causes include debris in the valve, damaged sealing components, valve-seat wear, excessive water pressure, or incorrect adjustment. The valve should be inspected and serviced before replacement.
There is no universal replacement interval. Service life depends on water quality, operating pressure, corrosion, usage, and maintenance. Regular inspection is more appropriate than replacing the valve solely according to a fixed time period.
A compatible replacement may be used when its dimensions, connection size, pressure rating, float arrangement, flow capacity, and other technical requirements match the application. Confirm these specifications before ordering.
The BAC Cooling Tower Float Valve is a simple but important component for maintaining cooling tower basin water levels. By automatically regulating makeup water according to float movement, it helps keep the cooling tower supplied with the water required for stable operation.
A durable cooling tower makeup water float valve can reduce manual water-level adjustment, support reliable cooling tower operation, and simplify maintenance. Proper selection should consider valve size, connection type, operating pressure, flow requirements, float dimensions, water chemistry, and installation configuration.
For replacement applications, CoolingTowerPart.com can supply compatible cooling tower float valves and other cooling tower spare parts according to customer requirements, drawings, dimensions, photographs, or existing component information.
