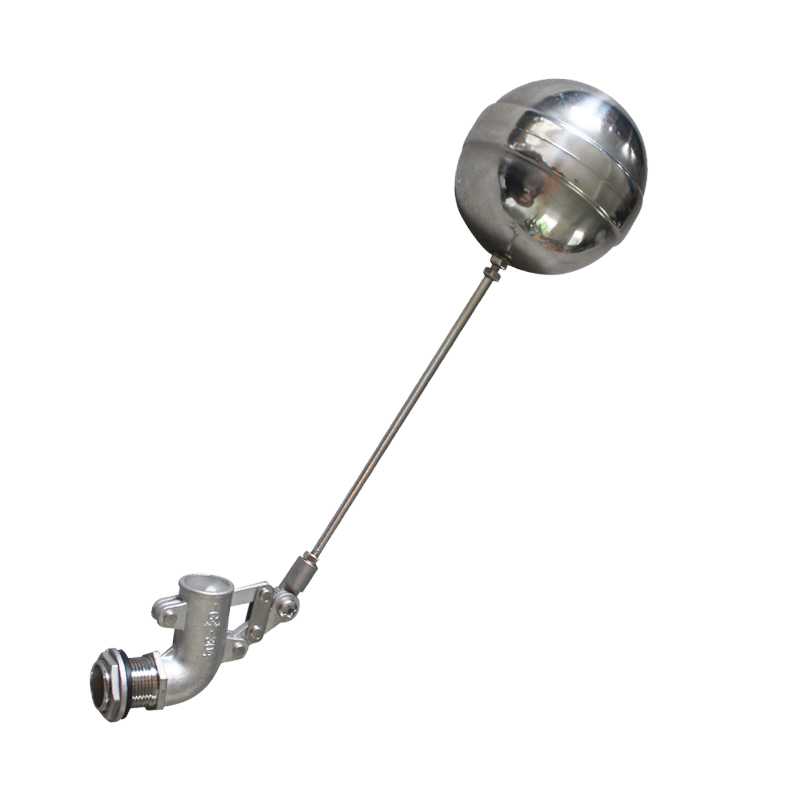

The stainless steel float ball of the cooling tower is made of refined 304/316 stainless steel material, which has excellent corrosion resistance, high temperature resistance, pressure resistance, and rust prevention performance. It is specially designed for water level control of the cooling tower. The floating ball is linked to the valve through a lever or connecting rod mechanism to monitor water level changes in real time, automatically adjust water replenishment or drainage, ensure stable water level in the cooling tower, and avoid overflow or dry burning.Th product has a sturdy structure, good sealing performance, and is suitable for high temperature, high humidity, and chemical corrosion environments. It does not deform or get stuck during long-term use. Suitable for industrial circulating water systems, central air conditioning cooling towers, boiler makeup water and other scenarios, it is a reliable component for automated water level control, effectively improving system operation efficiency and safety.
Stainless Steel Cooling Tower Water Float Feature
High quality material: Made of 304/316 stainless steel, it has strong corrosion resistance and can withstand chemical substances in cooling water (such as chloride ions, corrosion inhibitors, etc.) for a long time. It is suitable for acidic, alkaline and high-temperature environments.
Stable and durable: resistant to high temperatures, with a wide operating temperature range (-20 ℃~150 ℃), suitable for high-temperature steam environments in cooling towers.
Pressure resistance and deformation prevention: With precision welding technology, the structure is sturdy and can withstand water pressure fluctuations without deformation.
Accurate water level control: By using the principle of buoyancy lever to link valves, real-time response to water level changes, automatic opening and closing of water replenishment/drainage, avoiding overflow or idling. Adjustable design, supporting customized float volume and weight, adapting to different cooling tower capacity requirements.
Sealed and leak proof: EPDM/FKM rubber sealing rings are used internally to prevent leakage and ensure long-term use without failure. Fully enclosed structure, preventing impurities from jamming and reducing maintenance frequency.
Wide applicability: Compatible with mechanical and electronic water level control systems, suitable for various cooling towers, circulating water tanks, boilers and other equipment.
Provide multiple interface options for threads/flanges, with flexible installation.
Low maintenance and long service life: Stainless steel material is rust resistant, with no vulnerable parts, and can maintain a long service life even in harsh water quality, reducing operation and maintenance costs.
Stainless Steel Cooling Tower Water Float Specification
| Material | SS |
| Color | Silvery |
When To Replace Stainless Steel Water Float for Cooling Tower
1. Stainless Steel Float Ball Material Compatibility
2.Stainless Steel Float Ball Optimal Positioning
3.Stainless Steel Float Ball System Preparation
4.Stainless Steel Float Ball Sealing Protocol
5.Stainless Steel Float Ball Level Calibration
6.Stainless Steel Float BallMechanical Stroke Test
7. Stainless Steel Float Ball Water Level Calibration
8.Stainless Steel Float Ball Safety Measures
9.Stainless Steel Float Ball Redundancy Design
10.Stainless Steel Float Ball Maintenance Schedule
Monthly: Check float movement smoothness
Quarterly: Clean inlet strainers (if equipped)
Annually: Replace O-rings/seal kits
Important Notes
Vibration zones: Install spring-damped brackets
Seawater applications: Conduct monthly corrosion inspections
Post-installation: Perform 48-hour continuous test (acceptance criteria: ±15mm level fluctuation)
Stainless Steel Cooling Tower Water Float Application
Stainless steel float balls for cooling towers are mainly used for automated water level control to ensure stable operation of the cooling water system. Its main applications include:

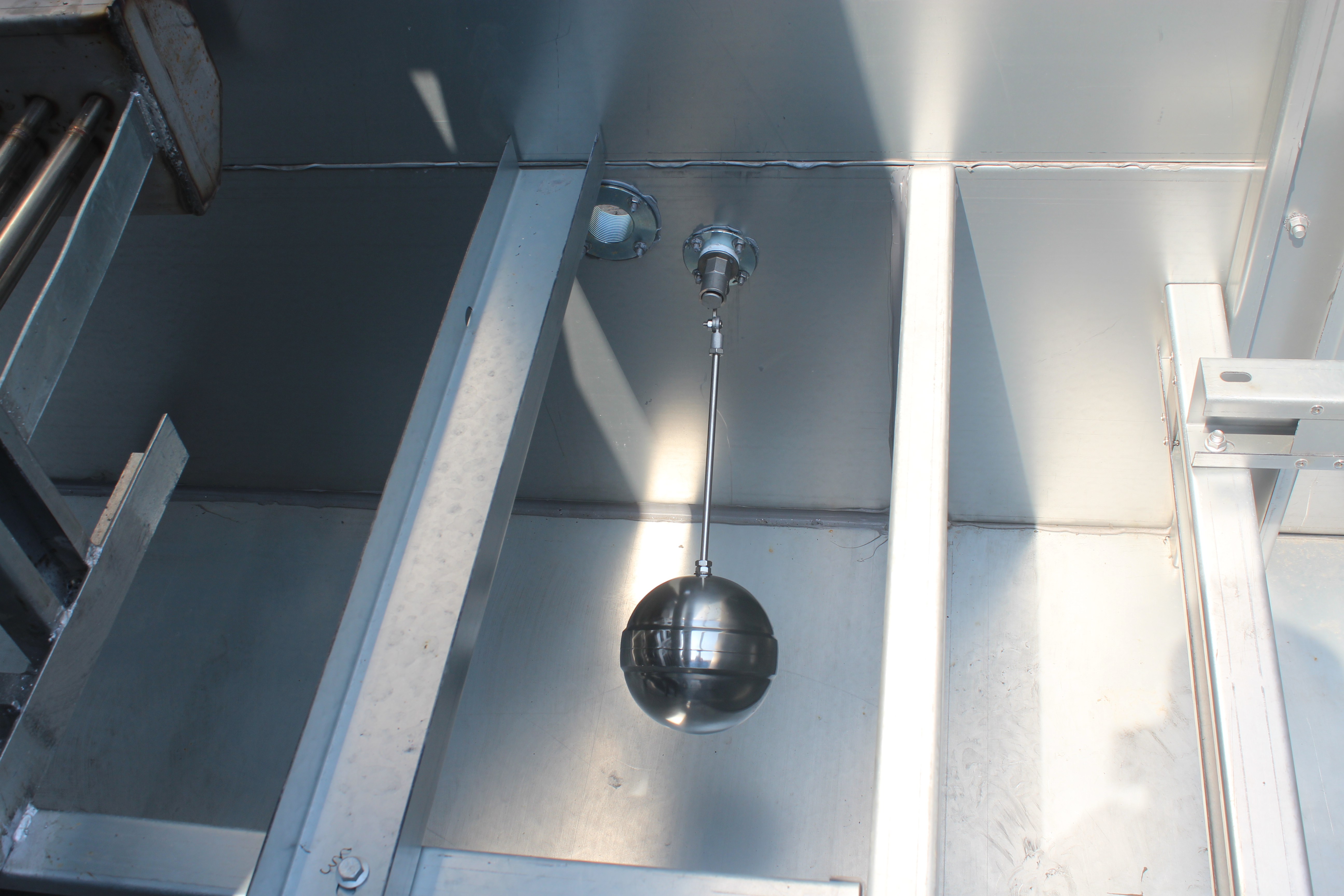

Water level regulation: Real time monitoring of the water level in the cooling tower collection tray or water tank, automatic water replenishment or drainage through linkage valves, to prevent low water level (causing the water pump to idle) or high water level (causing overflow waste).
Anti dry burning protection: In equipment such as boilers and evaporative cooling towers, it avoids dry burning damage caused by water shortage and improves safety.
Circulating water system management: suitable for industrial circulating water cooling towers, central air conditioning condensing systems, etc., to maintain water level balance and ensure heat exchange efficiency.
Chemical and power industries: Its corrosion resistance makes it suitable for cooling water treatment systems in power plants and chemical plants, and for water quality environments containing chemical agents.
Fire water tanks and storage facilities: Expand their application to scenarios such as fire water tanks and industrial water storage tanks, achieve automatic water level control, and reduce manual intervention.
Stainless Steel Cooling Tower Water Float FAQ
Q1.What is the working principle of the stainless - steel float ball of the cooling tower?
A1.The stainless - steel float ball of the cooling tower works based on the principle of buoyancy. When the water level rises, the float ball rises accordingly, and the internal mechanical structure is linked to close the water supply valve; when the water level drops, the float ball sinks, and the valve opens to replenish water, thereby maintaining a stable water level in the cooling tower and ensuring the normal operation of the equipment.
Q2. How to select the appropriate specification of the stainless - steel float ball?
A2.When selecting, factors such as the volume of the cooling tower water tank, the size of the pipe diameter, and the water level control range need to be considered. For water tanks with a large volume and thick pipe diameter, float balls with strong load - bearing capacity and large size are required; at the same time, according to the required water level control height, the stroke range of the float ball linkage structure should be determined to ensure accurate water level control.
Q3. Is it difficult to install the stainless - steel float ball? Do professional personnel need to be involved?
A3.The installation of the stainless - steel float ball is relatively simple, and it can generally be operated according to the instructions. However, for large and complex cooling tower systems, it is recommended to have professional personnel install it to ensure that the installation position of the float ball is accurate and the linkage structure is firmly connected, avoiding water leakage or control failure caused by improper installation.
Q4. How long can the stainless - steel float ball be used?
A4.Under normal use, due to its corrosion - resistance and high - strength properties, the service life of the stainless - steel float ball can reach 5 - 8 years. However, if the water quality is poor or the use environment is harsh, such as long - term exposure to strong acids and alkalis, its service life may be shortened.
Q5. What should I do if the float ball leaks?
A5.If water leakage is found in the float ball, immediately close the water supply valve, drain part of the water in the water tank, and take out the float ball for inspection. If the sealing element is aged and damaged, replace it with a sealing element of the same specification; if the main body of the float ball is cracked, replace the float ball with a new one in a timely manner. After replacement, re - commission it to ensure normal operation.
Q6. Why does the float ball have inaccurate water level control?
A6.Inaccurate water level control of the float ball may be caused by various reasons. For example, the float ball may be stuck by debris, affecting its normal up - and - down movement; the components of the linkage structure may be loose or worn, leading to control failure; or the float ball may be incorrectly selected, and its load - bearing capacity does not match the actual demand. Each of these factors needs to be investigated and resolved one by one.
Q7. Does the stainless - steel float ball require regular maintenance? How to maintain it?
A7.Regular maintenance is required. Every 3 - 6 months, check the surface of the float ball for corrosion and damage, and ensure that the linkage structure is flexible. Clean the debris attached to the float ball and its surrounding area. Test the sealing performance of the float ball once a year to ensure its good working condition.
Q8. Can stainless - steel float balls of different brands be used interchangeably?
A8.In theory, stainless - steel float balls of different brands can be used interchangeably if their specification parameters (such as size, interface, and linkage structure form) are exactly the same. However, due to differences in manufacturing processes and quality standards among brands, it is recommended to give priority to original factory products or products of the same specification from brands with a good reputation to ensure compatibility and reliability.
Q9. Can the stainless - steel float ball be used in a high - temperature environment?
A9.The stainless - steel float ball has certain high - temperature resistance and can generally withstand a water temperature of 60 - 80°C. However, if it is in a too high - temperature environment for a long time, the performance of its sealing elements and linkage structure may be affected. When using, it is necessary to ensure that the actual water temperature is within its tolerance range.
Q10. Will the failure of the float ball affect the normal operation of the cooling tower?
A10.The failure of the float ball will affect the operation of the cooling tower. If the float ball cannot control the water level normally, it may cause the water level in the water tank to be too high and overflow, resulting in water waste; or the water level may be too low, causing the cooling tower to be unable to dissipate heat due to lack of water, affecting the cooling effect and even damaging the cooling equipment.
