Marley cooling tower fan blades are critical components designed to deliver reliable airflow, energy efficiency, and stable operation in industrial cooling tower systems. As a key part of the cooling tower fan assembly, these blades generate the airflow required to remove heat from circulating water through evaporation.
High-quality Marley cooling tower fan blade replacements are widely used in power plants, HVAC systems, petrochemical facilities, manufacturing plants, and commercial cooling applications. Compatible replacement blades help restore cooling performance, reduce energy consumption, and extend the service life of cooling tower fan systems.
Marley cooling tower fan blades are aerodynamic components installed on cooling tower fans manufactured by Marley (SPX Cooling Technologies). They are engineered to move large volumes of air through the tower while maintaining low noise levels and efficient power consumption.
A complete cooling tower fan assembly typically includes:
Fan blades
Fan hub
Fan shaft
Gear reducer or motor drive system
Fan stack
Motor coupling system
The blades convert mechanical energy from the motor or gearbox into airflow. Proper blade design, angle adjustment, and balance directly affect cooling tower performance.
Marley fan blades use optimized airfoil profiles to maximize airflow while reducing resistance. The aerodynamic shape improves fan efficiency and helps achieve the required cooling capacity with lower motor power.
Benefits include:
Increased airflow volume
Reduced operating costs
Lower vibration
Improved cooling performance
Cooling tower environments contain moisture, chemicals, and temperature fluctuations. Marley-compatible fan blades are commonly manufactured from:
Aluminum alloy
FRP (fiberglass reinforced plastic)
Composite materials
These materials provide:
Excellent corrosion resistance
High mechanical strength
Long service life
Reduced maintenance requirements
Many Marley cooling tower fan systems use adjustable-pitch blades. The blade angle can be modified to optimize airflow according to operating conditions.
Correct blade pitch adjustment helps:
Match fan performance with motor capacity
Prevent motor overload
Improve energy efficiency
Maintain stable cooling performance
Cooling tower fans operate continuously at high speed. Unbalanced blades can cause:
Excessive vibration
Bearing damage
Gearbox wear
Fan motor problems
High-quality replacement blades are dynamically balanced to ensure smooth operation and reduce mechanical stress.

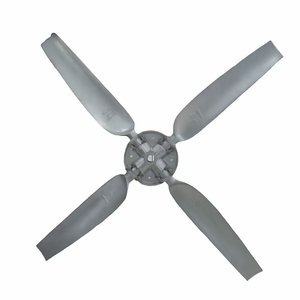

Aluminum blades are widely used in industrial cooling towers due to their strength-to-weight ratio.
Advantages:
Lightweight construction
Excellent corrosion resistance
High temperature resistance
Easy installation
Applications:
Power generation cooling towers
Large industrial cooling towers
HVAC cooling systems
FRP fan blades are popular aftermarket replacements because of their durability and corrosion resistance.
Advantages:
Chemical resistance
High fatigue strength
Low maintenance
Long operating life
They are especially suitable for harsh industrial environments.
Composite blades combine lightweight construction with advanced aerodynamic performance.
Features:
High efficiency
Low vibration
Reduced noise
Excellent fatigue resistance
Typical specifications include:
| Parameter | Description |
|---|---|
| Application | Marley cooling tower replacement fan |
| Material | Aluminum alloy / FRP / composite |
| Blade quantity | 4, 5, 6, 7, 8, 10 blades |
| Diameter range | Customized according to fan system |
| Blade pitch | Adjustable |
| Surface treatment | Anti-corrosion coating |
| Installation | Hub-mounted assembly |
| Operating temperature | Industrial cooling tower environment |
Specifications vary depending on cooling tower model and fan diameter.
Damaged or worn fan blades can reduce airflow and cooling efficiency. New replacement blades restore the designed airflow capacity.
Common signs of damaged blades:
Reduced cooling capacity
Higher operating temperature
Increased vibration
Abnormal fan noise
Fan systems account for a significant portion of cooling tower operating costs. Efficient blades reduce the required motor power.
Benefits:
Lower electricity consumption
Improved fan efficiency
Reduced operating expenses
Properly designed replacement blades reduce stress on:
Motors
Gear reducers
Bearings
Fan shafts
This helps prevent premature equipment failure.
Causes:
Long-term operation fatigue
Corrosion
Improper installation
Foreign object impact
Solution:
Replace damaged blades immediately to prevent fan imbalance.
Incorrect pitch adjustment may cause:
Low airflow
Motor overload
Reduced cooling performance
Solution:
Check and adjust blade pitch according to manufacturer specifications.
Possible causes:
Uneven blade weight
Improper blade installation
Loose hub connection
Blade deformation
Solution:
Perform fan balancing and inspect all components.
Before replacing blades:
Turn off power supply
Lock out electrical equipment
Confirm fan rotation has stopped
Safety procedures are essential.
Check:
Blade condition
Hub condition
Fasteners
Shaft alignment
Motor and gearbox condition
Remove mounting bolts carefully and inspect connection points for corrosion or wear.
During installation:
Install blades evenly
Maintain correct blade pitch
Tighten bolts according to specifications
Verify blade clearance
After installation:
Check fan balance
Measure vibration
Verify motor current
Confirm airflow performance
| Feature | Marley Compatible Blades | Standard Blades |
|---|---|---|
| Aerodynamic design | Optimized for cooling towers | General design |
| Efficiency | High | Medium |
| Compatibility | Marley fan systems | Various applications |
| Maintenance | Lower | May require adjustment |
| Performance stability | Excellent | Depends on quality |
Marley replacement fan blades are used in:
Power plants
Chemical processing facilities
Oil refineries
Steel plants
Data centers
Commercial HVAC systems
Manufacturing facilities
District cooling systems
Before purchasing replacement blades, consider:
Confirm:
Tower series
Fan diameter
Fan hub type
Number of blades
Evaluate:
Required airflow
Motor horsepower
Operating speed
Environmental conditions
Choose materials based on:
Corrosion level
Chemical exposure
Temperature conditions
Maintenance requirements
OEM-compatible replacement blades provide:
Accurate dimensional matching
Reliable performance
Easy installation
Long service life
Reduced downtime
For older Marley cooling towers, aftermarket replacement blades are often a cost-effective solution compared with complete fan replacement.
Replacement intervals depend on operating conditions, maintenance practices, and blade material. Regular inspection is recommended, especially for towers operating continuously.
Yes. High-quality aftermarket blades can be designed to match Marley fan assemblies, including diameter, pitch, hub connection, and airflow requirements.
Common materials include aluminum alloy, FRP, and composite materials. The best choice depends on operating conditions.
Damaged blades reduce airflow, increase vibration, increase motor load, and may decrease overall cooling capacity.
Efficiency can be improved through:
Correct blade pitch adjustment
Proper balancing
Regular cleaning
Timely replacement of damaged blades
