Spindle
10-15 days

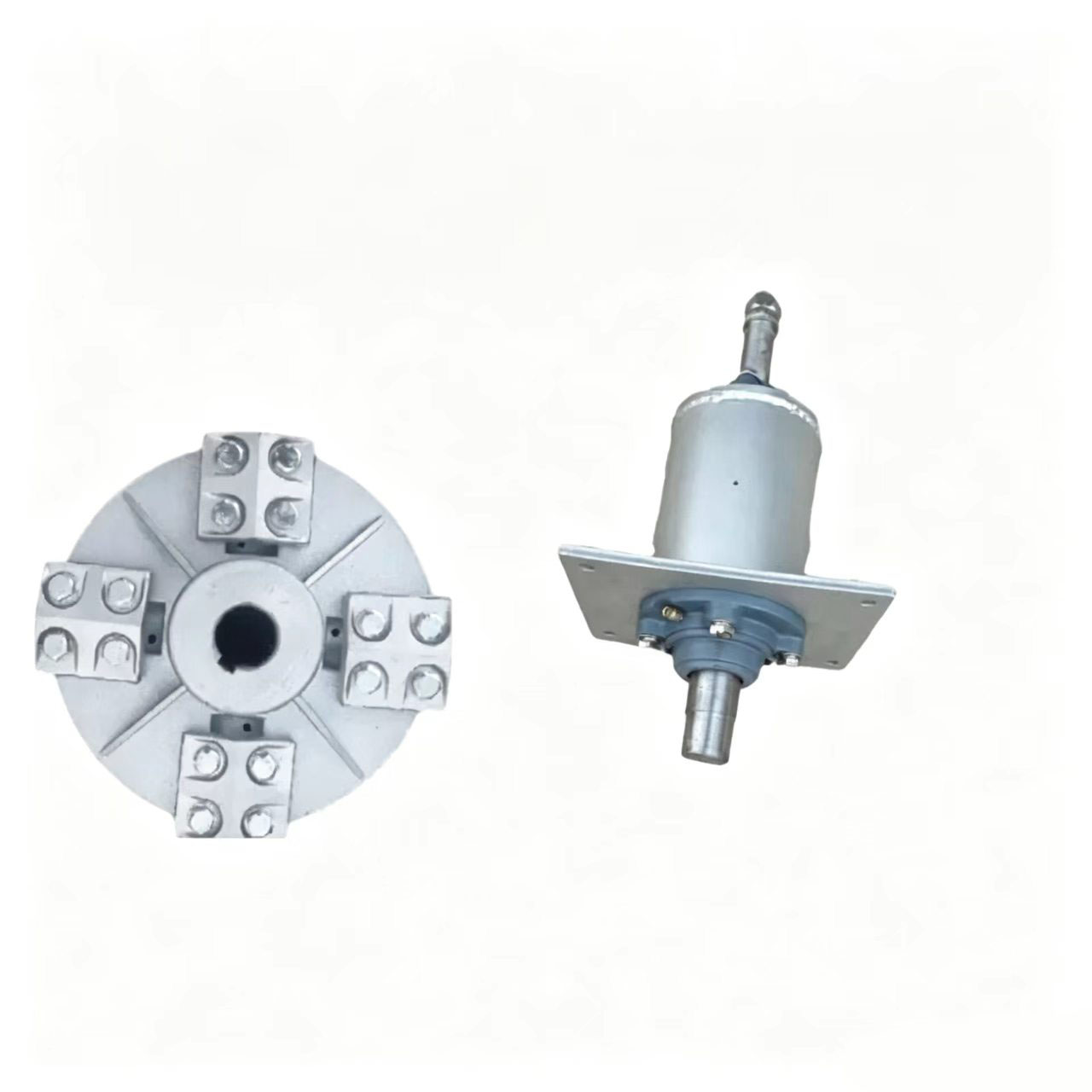

The Spindle Cooling Tower Fan Shaft Bearing Assembly is a precision-engineered component designed to support the rotating fan shaft in industrial cooling towers. Combining a heavy-duty bearing housing, precision shaft, and aluminum alloy fan hub, this assembly provides stable operation, minimizes vibration, and ensures efficient power transmission from the gearbox or motor to the cooling tower fan blades.
Designed for continuous operation in demanding environments, the bearing assembly offers excellent load-carrying capacity, corrosion resistance, and long service life. It is suitable for both new cooling tower installations and replacement projects across various industrial and commercial applications.
The integrated bearing housing is designed to withstand continuous radial and axial loads generated during cooling tower fan operation. It provides reliable shaft support while protecting the bearings from dust, moisture, and contaminants.
Stable shaft support
Reduced mechanical wear
Smooth fan rotation
Extended bearing life
Improved operational reliability
The fan shaft is manufactured from high-strength steel with precision machining to ensure excellent concentricity and alignment.
Features include:
High torque transmission
Excellent dimensional accuracy
Wear resistance
Long service life
Smooth rotation under continuous operation
The fan hub securely connects cooling tower fan blades to the rotating shaft. Manufactured from premium aluminum alloy, it offers an excellent balance of strength and lightweight performance.
Advantages include:
Corrosion resistance
Lightweight construction
High structural strength
Easy blade installation
Accurate blade positioning
Proper shaft alignment and precision manufacturing help minimize vibration throughout the fan drive system.
This results in:
Lower operating noise
Reduced stress on bearings
Longer gearbox life
Improved fan efficiency
Reduced maintenance costs
Cooling towers operate in humid environments where corrosion can shorten component life. The Spindle bearing assembly is designed with corrosion-resistant materials and protective surface treatments for long-term durability.
Suitable for:
Outdoor installations
High-humidity environments
Chemical processing facilities
Water treatment systems
Industrial cooling applications
| Item | Specification |
|---|---|
| Product Name | Spindle Cooling Tower Fan Shaft Bearing Assembly |
| Application | Industrial Cooling Tower Fan System |
| Fan Hub Material | Aluminum Alloy |
| Shaft Material | High-Strength Steel |
| Bearing Housing | Heavy-Duty Steel |
| Bearing Type | Precision Rolling Bearings |
| Installation | Vertical Fan Shaft Support |
| Surface Treatment | Anti-Corrosion Coating |
| Operating Environment | Wet & Outdoor Industrial Applications |
| Custom Service | Available |
The robust bearing housing effectively supports the fan shaft under continuous operation, maintaining stability even in demanding industrial environments.
Accurately machined components ensure smooth shaft rotation, reducing vibration and improving overall cooling tower performance.
Premium materials, quality bearings, and corrosion-resistant finishes help extend equipment life while reducing maintenance frequency.
The integrated design simplifies installation and replacement during cooling tower maintenance or system upgrades.
Smooth shaft rotation reduces mechanical losses, helping improve fan efficiency and lower energy consumption.
The Spindle Cooling Tower Fan Shaft Bearing Assembly is widely used in:
Induced Draft Cooling Towers
Counterflow Cooling Towers
Crossflow Cooling Towers
HVAC Cooling Systems
Power Plants
Chemical Plants
Petrochemical Facilities
Steel Mills
Food Processing Plants
Pharmaceutical Manufacturing
Data Centers
Industrial Refrigeration Systems
The bearing assembly works with various cooling tower components, including:
Cooling Tower Fan Blades
Fan Hubs
Gear Reducers
Electric Motors
Drive Shafts
Couplings
Fan Stacks
Motor Support Frames
Each Spindle Cooling Tower Fan Shaft Bearing Assembly undergoes strict quality control procedures, including:
Material inspection
Precision machining verification
Dimensional inspection
Bearing installation inspection
Dynamic balance verification
Rotation performance testing
Final product quality inspection
To maximize service life, regular maintenance is recommended:
Inspect bearing condition periodically.
Check shaft alignment and mounting bolts.
Lubricate bearings according to the maintenance schedule.
Monitor vibration and operating noise.
Replace worn seals promptly.
Inspect the fan hub and blade connections during routine maintenance.
Proper preventive maintenance helps reduce downtime and extends the life of the entire cooling tower fan system.
High-strength aluminum alloy fan hub
Precision-machined steel shaft
Heavy-duty bearing housing
Stable and low-vibration operation
Corrosion-resistant construction
Long service life
Easy installation and maintenance
Custom sizes and mounting configurations available
Suitable for industrial cooling tower replacement projects
Manufactured under strict quality standards
It is a complete assembly that supports the rotating fan shaft, houses the bearings, and connects the fan hub to the drive system, ensuring smooth and reliable fan operation.
The fan hub is manufactured from high-strength aluminum alloy, providing excellent strength, lightweight performance, and corrosion resistance.
Yes. Custom shaft diameters, mounting dimensions, and hub configurations can be supplied to match different cooling tower models.
A properly aligned bearing assembly reduces vibration, ensures stable shaft rotation, improves airflow efficiency, and helps extend the service life of the motor, gearbox, and fan blades.
Yes. The assembly is designed for continuous operation in humid, corrosive, and demanding industrial cooling tower environments.
