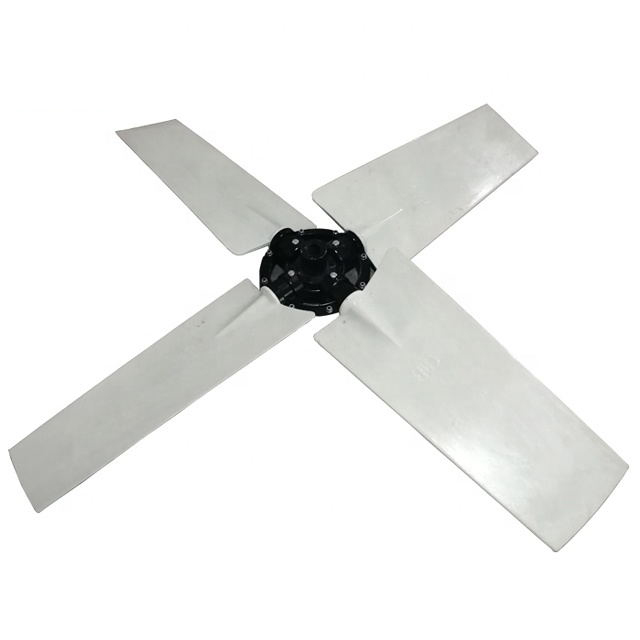

FRP Water Cooling Tower Fan

The FRP water cooling tower fan is a key component used in cooling tower systems, mainly responsible for promoting air circulation to achieve heat exchange and cooling functions. Fiberglass reinforced plastic (FRP) is the main material used for fiberglass fan blades, which have the advantages of lightweight, high strength, corrosion resistance, and stable performance. It is a widely used blade material in cooling tower fans.

FRP Water Cooling Tower Fan Features

I. FRP Water Cooling Tower Fan Material Characteristics

1. FRP Water Cooling Tower Fan Is High Strength and Lightweight

• FRP fan blades are made from fiberglass reinforced plastic, which offers high strength and low density. The glass fibers provide excellent mechanical strength, while the resin contributes to the toughness and corrosion resistance. This combination of high strength and lightweight design allows the fan blades to withstand significant wind forces and centrifugal forces during operation while reducing the load on the fan system.
• Compared to traditional metal fan blades, FRP fan blades are significantly lighter, thereby reducing the energy consumption of the motor. For instance, experiments have shown that FRP fan blades can reduce energy consumption by about 26% compared to traditional aluminum alloy fan blades, while also reducing weight by 27%.

2. FRP Water Cooling Tower Fan Corrosion Resistance

• FRP material is highly resistant to corrosion and can operate stably in harsh chemical environments such as acidic and alkaline conditions. The surface of FRP fan blades is typically coated with a gel coat, which further enhances their corrosion resistance and weather resistance. This characteristic makes FRP fan blades particularly suitable for industrial cooling towers, which often operate in humid environments that may contain corrosive substances.

3. FRP Water Cooling Tower Fan Good Insulation

• FRP fan blades possess excellent electrical insulation properties, which makes them very safe for use in environments where electrical isolation is required. This feature is crucial for preventing electrical short circuits and enhancing the safety of equipment operation.

II. Structural and Design Features of FRP Water Cooling Tower Fan

1. FRP Water Cooling Tower Fan Is Aerodynamic Design

• FRP fan blades are typically designed with an airfoil shape, which optimizes the airflow characteristics, reduces air resistance, and enhances the aerodynamic efficiency of the blades. By adjusting the angle and shape of the blades, higher air volume and pressure output can be achieved.
• The multi-blade design of FRP fan blades increases the swept area, further improving cooling efficiency. Additionally, the number of blades on FRP fan blades can be adjusted according to the specific requirements of the cooling tower to achieve the best cooling effect.

2. Manufacturing Process of FRP Water Cooling Tower Fan


• FRP fan blades are usually manufactured using the hand lay-up process. This method involves manually laying down layers of fiberglass and resin on a mold, followed by curing to form the final product. The advantage of the hand lay-up process is that it allows for flexible adjustment of blade shape and thickness according to specific needs.
• During the manufacturing process, a gel coat is applied to the surface of the fan blades to improve surface smoothness and weather resistance. This coating not only enhances the aesthetic appearance of the blades but also further improves their corrosion resistance and aging resistance.

3. Maintenance and Service Life of FRP Water Cooling Tower Fan

• Thanks to the corrosion resistance and high strength of FRP material, FRP fan blades have a significantly longer service life. Under normal operating conditions, FRP fan blades require almost no additional corrosion protection.
• FRP fan blades have low maintenance costs because they are less prone to damage and do not need to be replaced frequently. Additionally, the lightweight design of FRP fan blades reduces wear on mechanical components, further lowering maintenance costs.

III. FRP Water Cooling Tower Fan Performance Advantages

1. FRP Water Cooling Tower Fan Is High Efficiency and Energy Saving

• The high aerodynamic efficiency of FRP fan blades enables them to generate significant air volume and pressure at lower rotational speeds. This not only improves the cooling efficiency of the cooling tower but also significantly reduces the energy consumption of the motor.
• For example, experiments have shown that FRP fan blades can reduce energy consumption by about 26% compared to traditional aluminum alloy fan blades while increasing air volume by 15%. This energy-saving effect is significant for reducing the operating costs of industrial cooling towers.

2. FRP Cooling Tower Fan Is Low Noise Operation

• FRP fan blades operate with significantly lower noise levels compared to traditional metal fan blades. Their low noise characteristics are mainly due to their lightweight design and optimized aerodynamic performance. In noise-sensitive areas, such as residential or office zones, the low noise operation of FRP fan blades can reduce noise pollution to the surrounding environment.

3. FRP Water Cooling tower Fan Strong Adaptability

• FRP fan blades can adapt to various cooling tower operating conditions, including different air volume and pressure requirements. By adjusting the angle and shape of the blades, flexible regulation of air volume and pressure can be achieved.
• FRP fan blades can also be customized according to specific user requirements, including the number of blades, diameter, and angle range. This flexibility allows FRP fan blades to be widely used in various types of cooling towers.

IV. FRP Water Cooling Tower Fan Applications and Cost-effectiveness

1. FRP Water Cooling Twoer Fan Is Wide Application

• FRP fan blades are widely used in various types of industrial cooling towers, including crossflow, counterflow, and fill-free spray cooling towers. Their excellent corrosion resistance and high strength enable them to operate stably in harsh industrial environments over the long term.
• In addition to industrial cooling towers, FRP fan blades are also used in other equipment that requires efficient airflow control, such as ventilation systems and air conditioning systems.

2. FRP Water Cooling Tower Is Cost-effectiveness

• Although the initial investment for FRP fan blades may be slightly higher than that for traditional metal fan blades, their long-term operating costs are significantly reduced. The low energy consumption, long service life, and low maintenance costs of FRP fan blades give them a significant economic advantage.
• For example, FRP fan blades can reduce energy consumption by about 26% compared to traditional aluminum alloy fan blades, reduce weight by 27%, and significantly lower maintenance costs. These factors enable FRP fan blades to save users a considerable amount of money over the long term.

V. Summary Of FRP Water Cooling Tower Fan

FRP Water Cooling Tower Fan Size Measurement

PT supplys cooling tower replacement service for brand cooling towers. Inform us below required information so that we could offer correctly: 1. Fan Diameter,  2. Nos of Fan Blades ,  3. Blade Width ,  4. Hub diameter

To match your existing driving shaft, shaft diameter, key width and hub height are also required when placing orders.

FRP Water Cooling Tower Fan Application

FRP fan blades are widely used in different types of cooling towers, with 4 or 6 blades suitable for different working conditions and air flow conditions. Simultaneously providing customized services to global clients.

FRP Water Cooling Tower Fan Packing

Packing:

In bundle,wooden pallet or as your request.

Delivery time:

With in 10 days.

Selling units:

Single item.

Our Services Of FRP Water Cooling Tower Fan

-Pre-sale services

Based on the clients' requirements, we will offer product pictures, videos, quotation,information,

engineering drawings until you satisfied with it. Warmly welcome to visit our factory.

-Sale services

1 Providing production schedule photos to ensure you know every process.

2 Our experienced technician are available on the phone also internet, the clients can get instance

guidance by telephone,email, online service anytime, anywhere.

3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.

-After-sale services

Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients

to follow up the working condition of our machines, and offer support for maintenance.

Why choose us?

1. Highest quality

We are the manufacturer who adopts import raw materials. It is cheap price and guaranteed quality.

2. Most competitive price

We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.

3. Professional

We are specialized in producing and sells as development, methods and handling. We have 16 years experience.

4. Best service

Answering emails and solving questions timely. Delivery and update information on time.
Trust, good quality and service are the basic of long term business.
