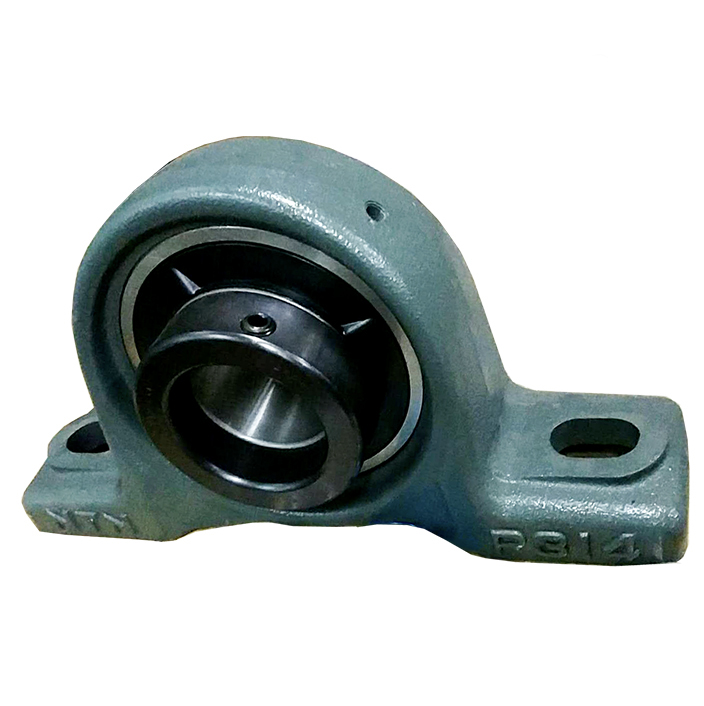

A pillow block bearing is a mounted bearing assembly consisting of a bearing insert housed inside a rigid support housing. The housing provides a convenient mounting structure, while the bearing supports the rotating shaft.
For cooling tower applications, pillow block bearings are commonly installed on the fan shaft or drive shaft to maintain shaft position and provide smooth rotation.
A properly selected bearing helps:
Support the cooling tower fan shaft
Maintain shaft alignment
Reduce rotational friction
Minimize vibration
Handle radial operating loads
Extend fan drive service life
Improve cooling tower operating reliability

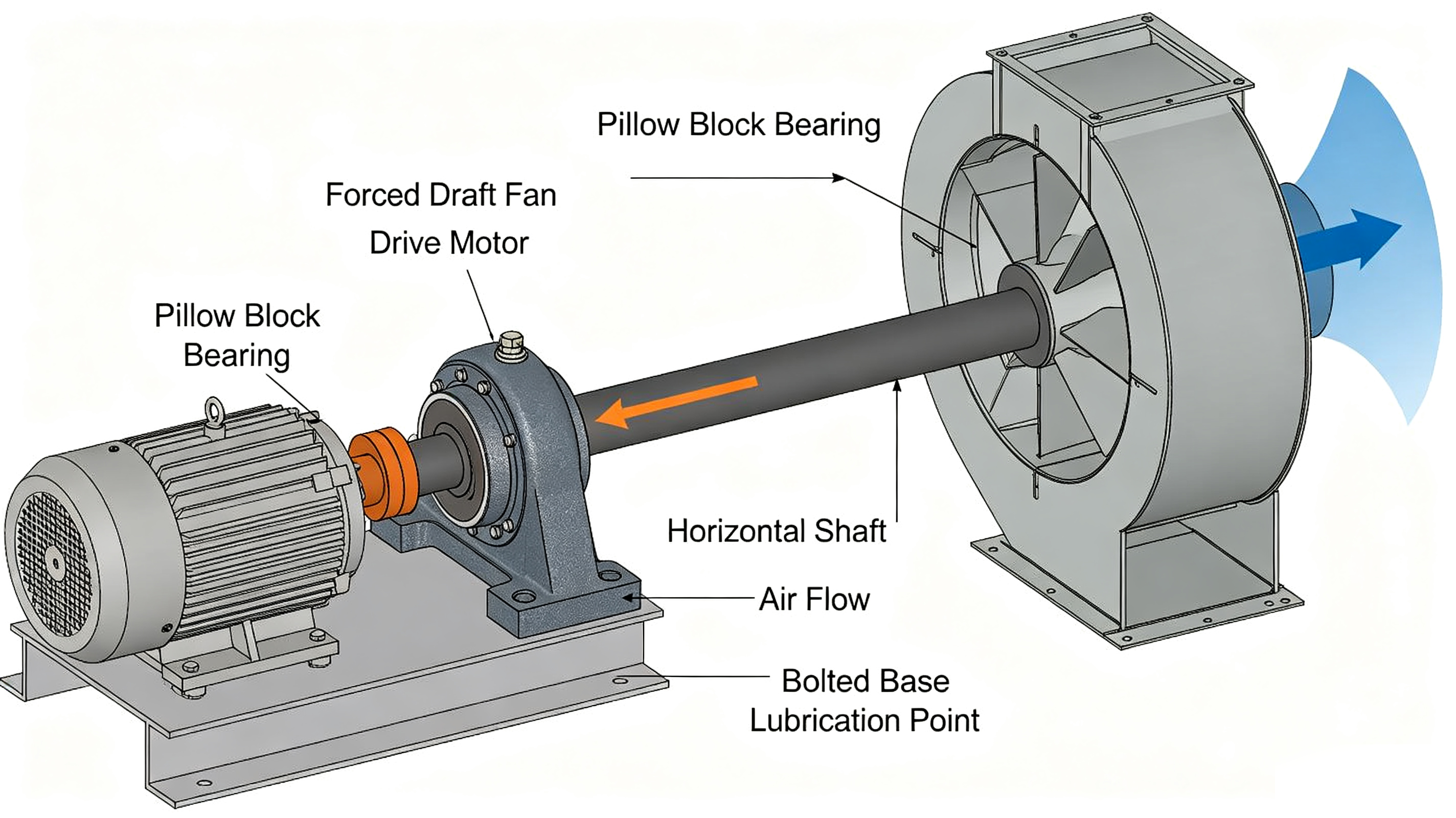

The fan drive system is one of the most mechanically demanding areas of a cooling tower. Depending on the tower design, the drive may include a motor, gearbox or speed reducer, drive shaft, couplings, sheaves, belts, fan hub, and bearings.
The pillow block bearing provides essential shaft support within this assembly.
During operation, the cooling tower fan can rotate continuously for thousands of hours. The bearing therefore needs to withstand:
Continuous rotation
Radial loading
Shaft misalignment
Moisture and humidity
Temperature variations
Fan vibration
Dust and airborne contaminants
Long operating cycles
Selecting a bearing with the correct shaft diameter, load capacity, sealing arrangement, lubrication requirements, and housing configuration is essential.
The bearing housing provides rigid support for the rotating shaft and helps maintain stable operation under continuous cooling tower service.
The bearing insert is designed to support the fan shaft while allowing smooth rotational movement.
Cooling towers operate in wet environments. Depending on the application, bearing assemblies can be supplied with materials and surface treatments selected for improved resistance to moisture and corrosion.
Sealed or protected bearing configurations help reduce contamination from water, dust, and other environmental particles.
Mounted pillow block bearing assemblies can simplify maintenance and replacement compared with rebuilding an entire fan drive assembly.
| Item | Specification |
|---|---|
| Product | Pillow Block Bearing |
| Application | Cooling Tower Fan Drive System |
| Bearing Type | Mounted bearing / pillow block bearing |
| Installation | Horizontal shaft support |
| Shaft | Available for various shaft diameters |
| Housing | Cast iron or other specified material |
| Bearing Insert | High-quality rolling bearing insert |
| Sealing | Sealed or protected configuration |
| Lubrication | Grease lubrication |
| Load | Designed according to shaft and fan operating conditions |
| Application | Induced-draft and forced-draft cooling towers |
| Service | OEM replacement and aftermarket applications |
| Customization | Shaft size, housing and bearing configuration available |
Final specifications should be confirmed according to the cooling tower model, shaft diameter, bearing arrangement, operating speed, and load.
Pillow block bearings are widely used in industrial cooling tower fan drive systems where fans operate continuously to reject process heat.
They can also be used in commercial and HVAC cooling tower fan assemblies, particularly during bearing replacement and preventive maintenance.
In an induced-draft tower, the fan is generally positioned near the top of the tower. Reliable shaft bearing support is essential for maintaining stable fan rotation.
For forced-draft configurations, pillow block bearings can be used as part of the fan shaft and drive arrangement.
The bearing can be supplied as an aftermarket replacement component for worn, noisy, overheated, or damaged fan shaft bearings.
Choosing a bearing based only on physical dimensions can result in premature failure. Several technical factors should be considered.
Measure the actual fan shaft diameter before ordering. The bearing bore must correctly match the shaft.
Confirm the fan's normal operating RPM. Bearing selection should be appropriate for the rotational speed and operating conditions.
The bearing must support the loads generated by the fan, shaft, drive components, and operating forces.
Check the shaft alignment and bearing mounting position. Excessive misalignment can create additional bearing loads and vibration.
Cooling tower bearings are exposed to moisture, humidity, chemical treatment residues, and airborne contaminants. Sealing and corrosion protection should therefore be considered.
Confirm the appropriate grease type, lubrication interval, and relubrication procedure for the selected bearing.
A deteriorating fan shaft bearing can produce several warning signs.
Grinding, squealing, rumbling, or knocking sounds may indicate lubrication problems, wear, contamination, or internal bearing damage.
Increasing fan vibration can be associated with bearing wear, shaft misalignment, fan imbalance, or other drive-system problems.
Excessive temperature may result from insufficient lubrication, excessive grease, incorrect bearing installation, overload, or misalignment.
Excessive radial or axial movement can indicate bearing wear or an improperly secured bearing assembly.
Contaminated, degraded, or leaking grease may indicate seal deterioration or an unsuitable lubrication condition.
Regular maintenance helps extend bearing and fan drive service life.
During scheduled cooling tower maintenance, inspect the bearing housing, mounting bolts, seals, shaft, and surrounding components.
Monitor fan and bearing vibration. A change from normal operating conditions can provide an early indication of developing mechanical problems.
Follow the bearing manufacturer's lubrication recommendations. Over-greasing can be just as problematic as insufficient lubrication.
Misalignment can place unnecessary loads on the bearing and accelerate wear.
Loose mounting bolts can cause movement, vibration, and alignment problems.
Before replacing a cooling tower fan drive bearing, the fan and drive system should be safely shut down and isolated.
A typical replacement process includes:
Shut down and isolate the cooling tower fan drive.
Apply the required lockout/tagout procedures.
Verify that the fan cannot rotate.
Inspect and document the existing bearing arrangement.
Remove the bearing mounting hardware.
Release the bearing from the shaft.
Inspect the shaft for wear or damage.
Clean the mounting surfaces.
Install the replacement pillow block bearing.
Align the bearing with the shaft and other drive components.
Secure the mounting hardware according to the applicable specifications.
Lubricate the bearing if required.
Check shaft rotation manually.
Run the fan and inspect vibration, noise, and temperature.
For large cooling tower fans, bearing replacement should be performed by qualified maintenance personnel using appropriate lifting and safety equipment.
CoolingTowerPart can supply OEM-compatible and aftermarket cooling tower fan drive bearings for maintenance and replacement applications.
When replacing an existing bearing, customers can provide:
Cooling tower manufacturer
Cooling tower model
Existing bearing part number
Shaft diameter
Bearing housing dimensions
Fan diameter
Fan speed
Photographs of the existing bearing
Existing equipment drawings, if available
This information helps determine the appropriate replacement configuration.
A worn bearing should not be ignored. Continued operation with a damaged bearing can increase mechanical vibration and place additional stress on the fan shaft, gearbox, motor, coupling, and other drive components.
Early bearing replacement can help prevent:
Unexpected cooling tower shutdown
Fan shaft damage
Drive-system vibration
Secondary component failures
Reduced airflow
Increased maintenance costs
For critical process cooling systems, maintaining reliable fan drive components is particularly important.
The pillow block bearing is a relatively small component compared with the cooling tower fan, but it plays an important role in the overall drive system. Correct bearing selection and installation help maintain shaft stability and smooth fan operation.
For replacement projects, it is important to match the bearing to the shaft size, housing arrangement, operating speed, load, lubrication system, and environmental conditions rather than selecting solely by appearance.
A pillow block bearing supports the rotating cooling tower fan shaft and helps maintain stable, low-friction rotation.
Yes. Mounted pillow block bearings are suitable for many cooling tower fan shaft and drive-system configurations when correctly selected for shaft size, load, speed, and environment.
The most important information includes the shaft diameter, bearing housing configuration, operating speed, and existing bearing part number. A photograph and equipment model can also help identify the replacement.
There is no universal replacement interval. Bearing life depends on load, speed, lubrication, alignment, contamination, operating hours, and maintenance conditions. Regular inspection is preferable to replacement based only on a fixed schedule.
Common causes include inadequate or excessive lubrication, shaft misalignment, contamination, excessive loading, vibration, improper installation, corrosion, and normal wear.
Replacement bearing assemblies can be selected for various cooling tower brands and fan drive configurations. Provide the existing bearing information, shaft dimensions, or equipment details for compatibility evaluation.
Depending on the project, bearing assemblies can be supplied in different housing and bore configurations. Technical dimensions should be confirmed before production or shipment.
For a cooling tower parts website, link this page naturally to related products and technical resources:
Cooling Tower Fan Blades – connect the bearing with the fan assembly.
Cooling Tower Fan Shaft – explain the shaft-bearing relationship.
Cooling Tower Gearbox / Speed Reducer – link to the complete mechanical drive system.
Cooling Tower Drive Shaft – support related shaft and coupling searches.
Cooling Tower V-Belts – connect belt-drive applications.
Cooling Tower Fan Sheave – relevant for belt-driven fan systems.
Cooling Tower Fan Motor – connect the bearing to the complete drive train.
Cooling Tower Spare Parts – capture broader replacement-part searches.
A reliable pillow block bearing for cooling tower fan drive systems is essential for supporting the fan shaft, controlling vibration, and maintaining stable cooling tower operation. Choosing the correct bearing based on shaft diameter, load, speed, alignment, lubrication, and environmental conditions can significantly improve service reliability.
Whether you need a replacement for an existing cooling tower bearing or are sourcing components for a new fan drive assembly, providing the equipment model and bearing or shaft dimensions is the best way to ensure the correct configuration.
A pillow block bearing for cooling tower fan drive systems is a critical mechanical component used to support and align the fan shaft while allowing smooth, continuous rotation. In induced-draft and forced-draft cooling towers, the fan drive assembly operates for long periods under demanding conditions, making reliable shaft bearings essential for stable airflow, low vibration, and efficient heat rejection.
