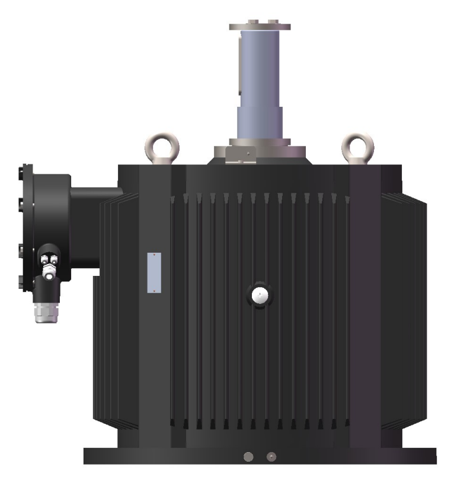

Direct drive permanent magnet motors are an advanced motor technology designed to improve the efficiency, reliability, and operating performance of modern cooling tower fan systems. By combining permanent magnet synchronous motor technology with a direct drive structure, these motors eliminate traditional mechanical transmission components such as gearboxes, belts, shafts, and couplings.
For industrial cooling towers operating continuously in power plants, chemical factories, HVAC systems, manufacturing facilities, and process industries, energy efficiency and maintenance reduction are critical factors. A direct drive permanent magnet motor for cooling towers provides an effective solution by delivering high torque at low speed while minimizing mechanical losses.
Compared with conventional induction motors connected to gear reducers, direct drive PM motors offer higher efficiency, lower noise, fewer maintenance requirements, and longer service life.
CoolingTowerPart.com supplies high-performance cooling tower permanent magnet motors compatible with various cooling tower fan systems and retrofit applications.
A direct drive permanent magnet motor (PM motor) is an electric motor that uses permanent magnets embedded in the rotor to generate magnetic fields and produce torque without requiring additional excitation power.
Unlike traditional cooling tower fan motors that require a gearbox or belt drive to reduce speed, a direct drive PM motor operates at the required fan speed and connects directly to the fan assembly.
The direct drive design removes unnecessary mechanical components, creating a simpler and more efficient cooling tower fan drive system.
The main components include:
Permanent magnet rotor
High-efficiency stator winding
Motor housing
Bearings
Cooling structure
Control system interface
This advanced design allows the motor to achieve excellent performance in low-speed, high-torque cooling tower applications.
Cooling tower fans consume a significant amount of electricity during continuous operation. Traditional drive systems often lose energy through mechanical transmission components.
A direct drive permanent magnet motor improves system efficiency by transferring motor power directly to the fan.
Permanent magnet motors provide higher efficiency compared with conventional induction motors because they reduce:
Rotor copper losses
Mechanical transmission losses
Gearbox friction losses
Belt slip losses
Many PM motors achieve IE4 or IE5 efficiency levels, helping industrial facilities reduce operating costs and energy consumption.
Traditional cooling tower fan systems commonly use:
AC motor
Gear reducer
Drive shaft
Coupling
Fan assembly
Each additional component requires maintenance and creates potential failure points.
A direct drive cooling tower fan motor eliminates the gearbox completely.
Benefits of gearless operation:
No gearbox oil replacement
No gear tooth wear
No belt tension adjustment
Reduced vibration
Lower maintenance costs
Simplified installation
For cooling towers installed in harsh industrial environments, this design significantly improves reliability.
Cooling tower fans typically require large airflow volumes at relatively low rotational speeds. Direct drive permanent magnet motors are specifically designed for this operating condition.
Key performance advantages:
High starting torque
Stable low-speed operation
Smooth fan rotation
Excellent speed regulation
Improved part-load efficiency
This makes PM motors ideal for:
Counterflow cooling towers
Crossflow cooling towers
Industrial induced draft cooling towers
HVAC cooling towers
Large process cooling systems
Cooling tower fans often operate thousands of hours per year. Even small improvements in motor efficiency can create substantial energy savings.
A direct drive PM motor can reduce energy consumption through:
Gearboxes and belts normally consume additional power due to friction and mechanical losses.
Direct drive technology transfers energy directly from the motor to the fan.
When combined with a variable frequency drive (VFD), PM motors can automatically adjust fan speed according to cooling demand.
Advantages:
Reduced electricity usage during low-load conditions
Better temperature control
Lower peak power demand
Improved system efficiency
Higher motor efficiency means less electrical energy is converted into heat.
Lower operating temperatures help:
Extend bearing life
Protect insulation systems
Improve motor durability
Permanent magnet motors provide excellent electromagnetic performance and maintain high efficiency across a wide operating range.
Features:
IE4/IE5 efficiency options
High power factor
Low energy consumption
Stable operation
Because no gearbox is required, the complete cooling tower drive system becomes smaller and lighter.
Advantages:
Saves installation space
Reduces structural load
Simplifies maintenance access
Gearboxes and belt systems often generate mechanical noise.
Direct drive PM motors operate with:
Lower vibration
Reduced mechanical noise
Smooth torque output
This makes them suitable for commercial HVAC applications where noise control is important.
The simplified mechanical structure reduces wear points.
Long-term benefits:
Fewer replacement parts
Reduced downtime
Lower maintenance expenses
Increased operational reliability
Direct drive permanent magnet motors are widely used in various cooling applications.
Common industries include:
Power generation plants
Petrochemical facilities
Oil refineries
Steel production
Cement plants
Chemical processing plants
These industries require reliable cooling systems operating continuously under demanding conditions.
PM motors are also suitable for:
Office buildings
Shopping malls
Hospitals
Airports
Data centers
Benefits include:
Quiet operation
Reduced energy costs
Smart control compatibility
Many existing cooling towers use older belt drive or gearbox systems.
Replacing traditional drive systems with direct drive PM motors can provide:
Improved efficiency
Reduced maintenance
Longer equipment life
Lower operating costs
| Feature | Direct Drive PM Motor | Traditional Motor + Gearbox |
|---|---|---|
| Drive system | Direct connection | Mechanical transmission |
| Efficiency | High | Lower |
| Gearbox required | No | Yes |
| Maintenance | Minimal | Regular maintenance required |
| Noise | Low | Higher |
| Vibration | Reduced | More mechanical vibration |
| Energy loss | Very low | Higher |
| Installation | Compact | Complex |
Typical specifications:
| Parameter | Details |
|---|---|
| Motor Type | Permanent Magnet Synchronous Motor |
| Drive Method | Direct Fan Drive |
| Power Range | Customized according to application |
| Voltage | 380V / 400V / 415V / 460V / 690V |
| Frequency | 50Hz / 60Hz |
| Protection Grade | IP55 / IP56 / IP65 |
| Insulation Class | F/H |
| Cooling Method | Air Cooling / Customized Cooling |
| Control | VFD Compatible |
| Application | Cooling Tower Fan System |
Customized solutions are available according to fan diameter, airflow requirements, and operating conditions.
Before selecting a PM motor replacement, engineers should evaluate:
Important parameters include:
Fan diameter
Fan blade angle
Required airflow
Static pressure
Operating speed
Ambient temperature
Correct motor sizing ensures maximum efficiency.
The replacement motor should match:
Fan hub connection
Shaft dimensions
Mounting arrangement
Rotation direction
Electrical requirements
Professional selection helps avoid installation problems.
Permanent magnet motors normally operate with suitable VFD controllers.
A compatible drive system provides:
Smooth starting
Accurate speed regulation
Motor protection
Energy optimization
CoolingTowerPart.com provides reliable direct drive permanent magnet motors for cooling tower fan systems designed for industrial and commercial applications.
Our advantages include:
High-efficiency motor solutions
OEM compatible designs
Custom specifications available
Cooling tower application experience
Global supply capability
Technical support for replacement projects
Whether upgrading an existing cooling tower or installing a new energy-saving fan system, direct drive PM motors provide a reliable and efficient solution.
A direct drive permanent magnet motor is a high-efficiency motor that uses permanent magnets and connects directly to the driven equipment without using a gearbox or belt system.
Yes. Cooling tower fans require high torque at low speed, making permanent magnet motors an excellent choice for reliable and energy-efficient operation.
Yes. Many existing gearbox-driven cooling towers can be upgraded with direct drive PM motors after checking mechanical and electrical compatibility.
Yes. PM motors reduce electrical losses and eliminate mechanical transmission losses, resulting in improved energy efficiency.
Most cooling tower PM motors are designed to work with VFD systems for better speed control and energy optimization.
Cooling Tower Maintenance Services
Direct drive permanent magnet motors represent the next generation of cooling tower fan drive technology. By eliminating gearboxes and improving motor efficiency, they provide significant advantages in energy savings, reliability, noise reduction, and maintenance reduction.
For industrial facilities seeking a more efficient cooling tower operation, upgrading to a direct drive permanent magnet motor for cooling tower fans is a practical solution for improving long-term performance and reducing operating costs.
