The cast iron motor of the cooling tower is one of the very important equipment in the operation of the cooling tower, responsible for driving the fan to promote air circulation, thereby achieving cooling of the cooling water.

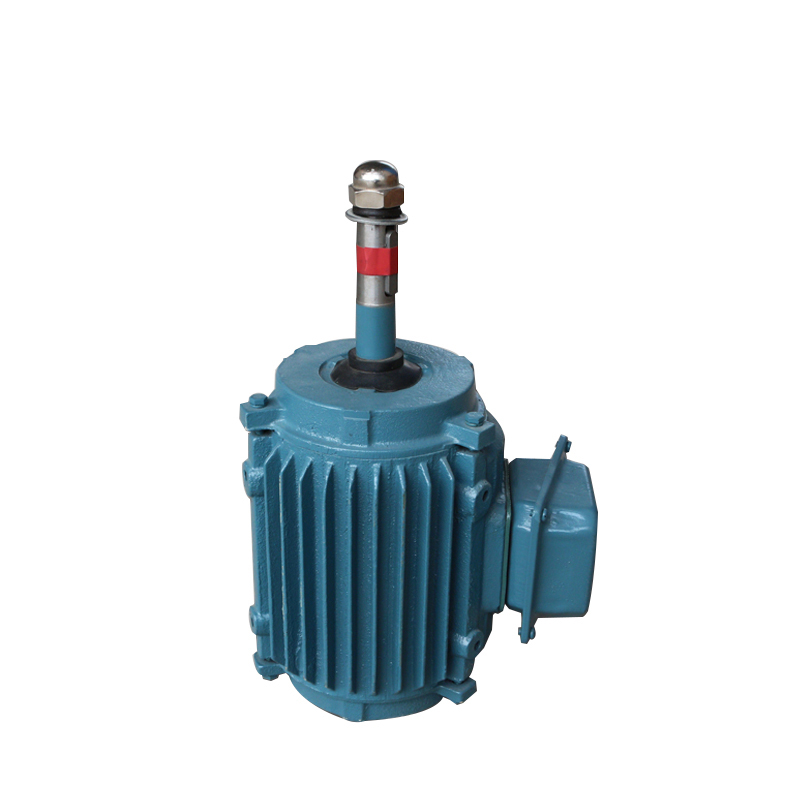

Cast Iron Cooling Tower Motor Specification
| Protection Class | IP55/IP56 |
| Cooling Type | IC0041 |
| Insulation Class | B |
| Reted Voltage | 380V or customized |
| Retad Frequency | 50HZ or customized |
| Retad Output | 0.18KW-30KW |
Cast Iron Cooling Tower Motor Size Measurement
How To Select Cooling Tower Motor
I. Cast Iron Cooling Tower Motor Types
(1) Cast Iron Cooling Tower Motor External Cooling Tower Motors
External Cast Iron Cooling Tower Motors are installed outside the cooling tower, making them easy to install and maintain. They also allow for more convenient maintenance and repair of the motor. However, since external cooling tower motors are exposed to the elements such as wind and sunlight, it is important to consider their protection level when selecting them.
(2) Cast Iron Cooling Tower Motor Internal Cooling Tower Motors
Internal cooling tower motors are installed inside the cooling tower, which requires higher stability in operation. When selecting these motors, it is necessary to consider parameters such as torque, speed, and power.
II.Cast Iron Cooling Tower Motor Key Considerations for Selecting Cooling Tower Motors
(1) Cast Iron Cooling Tower Motor Understanding Cooling Tower Parameters
Before selecting a motor, it is essential to understand the parameters of the cooling tower, such as water flow rate, water temperature, air flow rate, and air pressure. This information helps determine the power and speed of the motor. If the motor power is too high or too low, it will affect the normal operation of the cooling tower.
(2) Cast Iron Cooling Tower Motor Determining Motor Power and Speed
When selecting a motor, it is necessary to determine its power and speed. Typically, internal motors have lower power and speed, while external motors have higher power and speed. Additionally, it is important to consider the motor's efficiency and power factor to ensure high energy efficiency.
(3) Cast Iron Cooling Tower Motor Considering Motor Protection Level
The protection level of cooling tower motors should be IP55 or higher to ensure that the motor is not affected by external factors such as moisture.
(4) Cast Iron Cooling Tower Motor Considering Motor Corrosion Resistance
Since the internal environment of a cooling tower is relatively complex, it is necessary to choose a motor with good corrosion resistance. Generally, cooling tower motors should be made of corrosion-resistant materials to ensure long-term stable operation.
III. Cast Iron Cooling Tower Motor Performance Parameters of Cooling Tower Motors
(1) Cast Iron Cooling Tower Motor Power
Power is one of the most important parameters of a motor. The power of a cooling tower motor is usually expressed in kilowatts (kW). The higher the power, the greater the torque of the motor, allowing it to handle larger loads. It is necessary to select the appropriate power based on the cooling tower's working load and speed. If the power is too low, the motor may not meet the cooling tower's requirements, while too much power will waste energy and resources.
(2) Cast Iron Cooling Tower Motor Speed
Speed is another important parameter of a motor. The speed of a cooling tower motor is usually expressed in revolutions per minute (RPM). The higher the speed, the higher the efficiency of the motor, but it will also generate more noise and vibration. It is necessary to select the appropriate speed based on the cooling tower's working load and speed. If the speed is too high, the motor may produce excessive noise and vibration, affecting the working environment and employee health.
(3) Cast Iron Cooling Tower Motor Noise
Choosing a cooling tower motor with low noise levels can reduce the impact of noise on workers and is also beneficial for the company's image.
(4) Cast Iron Cooling Tower Motor Durability
Choosing a cooling tower motor with a long lifespan can reduce replacement and maintenance costs and is also beneficial for saving company costs.
IV. Cast Iron Cooling Tower Motor Maintenance and Care of Cooling Tower Motors
(1) Cast Iron Cooling Tower Motor Regularly Check Motor Operation
Regularly check the temperature, noise, vibration, protection level, and lubrication of the motor.
(2) Cast Iron Cooling Tower Motor Regularly Check Electrical Connections
Regularly check the electrical connections of the motor, such as whether the cable connections are loose and whether the grounding is good.
(3) Cast Iron Cooling Tower Motor Regularly Replace Motor Lubricant
Regularly replace the motor lubricant to ensure the motor's lubrication performance.
(4) Cast Iron Cooling Tower Motor Regularly Clean the Inside of the Cooling Tower
Regularly clean the inside of the cooling tower to ensure the motor's heat dissipation performance.
V. Cast Iron Cooling Tower Motor Suggestions for Purchasing Cooling Tower Motors
(1) Cast Iron Cooling Tower Motor Purchase Motors with High Quality
High-quality cooling tower motors have the advantages of high efficiency, low noise, and durability. To purchase high-quality cooling tower motors, you can refer to the reviews of other users or choose products from well-known brands.
(2) Cast Iron Cooling Tower Motor Purchase Motors with Appropriate Power
When purchasing a cooling tower motor, it is necessary to consider the actual usage of the equipment. If the cooling tower is small, purchasing a motor with appropriate power can meet the equipment's needs while also reducing energy consumption and costs.
(3) Cast Iron Cooling Tower Motor Purchase Motors Suitable for the Operating Environment
When purchasing a cooling tower motor, it is necessary to consider the operating environment of the equipment, such as temperature and humidity. The performance and quality of cooling tower motors can vary in different operating environments. Therefore, it is important to select a cooling tower motor that is suitable for the operating environment.
(4) Cast Iron Cooling Tower Motor Purchase Motors with Reasonable Prices
A cooling tower motor that is too expensive may increase costs, while one that is too cheap may affect the quality and lifespan of the equipment. Therefore, it is important to choose a cooling tower motor with a reasonable price.
Cast Iron Cooling Tower Motor Features
1. Cast Iron Cooling Tower Motor High mechanical strength:
The cast iron shell has high hardness and strong impact resistance, and can withstand possible mechanical impacts or vibrations in the cooling tower environment.
2. Cast Iron Cooling Tower Motor Good corrosion resistance:
Although cast iron is not as corrosion-resistant as stainless steel, its corrosion resistance can meet most cooling tower environmental requirements after surface treatment (such as painting or coating).
3. Cast Iron Cooling Tower Motor Good heat dissipation performance:
Cast iron material has good thermal conductivity, which helps the motor dissipate heat during high load operation.
4. Cast Iron Cooling Tower Motor Moderate cost:
The manufacturing cost of cast iron motors is lower than that of stainless steel motors, making them suitable for application scenarios that require high cost-effectiveness.
Cast Iron Cooling Tower Motor Application
Cast iron motors for cooling towers are mainly used for driving fans in small and medium-sized cooling towers. Common scenarios include:
1. Industrial cooling tower: places that require large-scale water cooling, such as power plants and chemical plants.
2. Commercial cooling tower: used for circulating cooling water in central air conditioning systems.
3. Agriculture and manufacturing: suitable for industrial processes that require efficient water cooling.
Cooling Tower Cast Iron Motor Packing
Cast Iron Cooling Tower Motor Packing:
Wooden,cartons,custom package
Cast Iron Cooling Tower Motor Delivery time:
With in 10 days.
Our Services Of Cooling Tower Cast Iron Motor
-Pre-sale services of Cast Iron Cooling Tower Motor
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services of Cast Iron Cooling Tower Motor
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services of Cast Iron Cooling Tower Motor
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
Why choose us?
1. Highest quality
We are the manufacturer who adopts import raw materials. It is cheap price and guaranteed quality.
2. Most competitive price
We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.
3. Professional
We are specialized in producing and sells as development, methods and handling. We have 16 years experience.
4. Best service
Answering emails and solving questions timely. Delivery and update information on time.
Trust, good quality and service are the basic of long term business.
