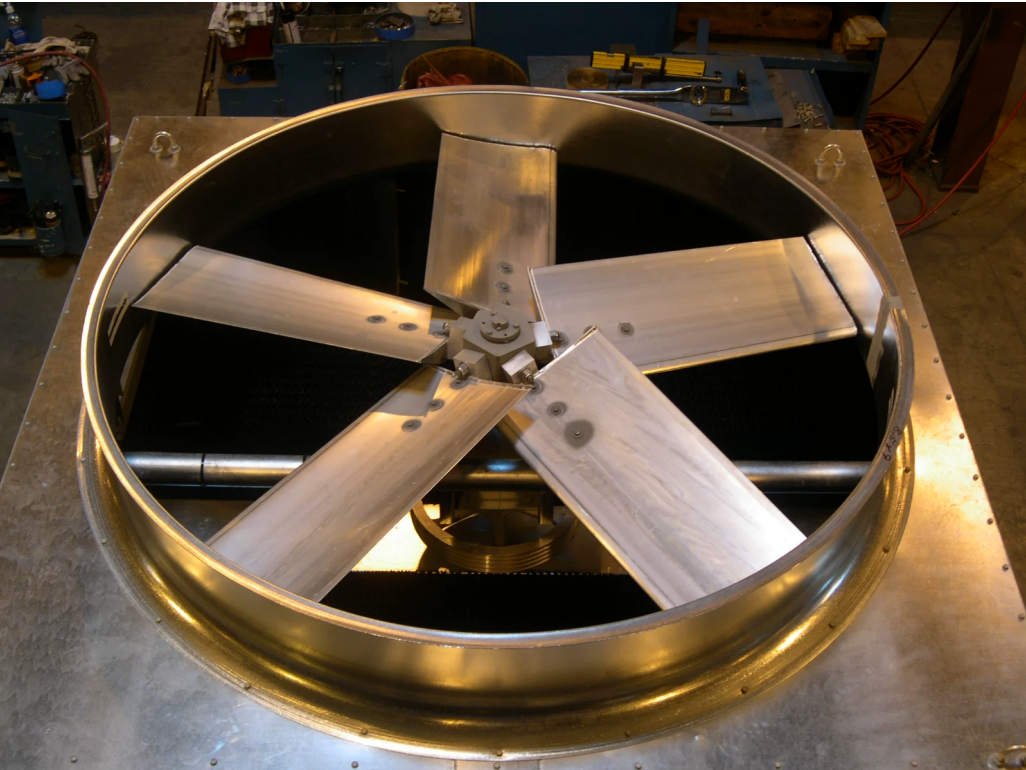

The Evapco Cooling Tower Fan Drive System is one of the most important mechanical assemblies in an evaporative cooling tower. It transfers power from the motor to the fan, generating the airflow required to remove heat from circulating water. A properly designed and maintained fan drive system ensures stable cooling performance, improves energy efficiency, and reduces unexpected equipment downtime.
Cooling towers operate continuously in demanding environments where moisture, vibration, temperature changes, and corrosion can affect mechanical components. The fan drive system must therefore provide excellent durability, accurate power transmission, and reliable long-term operation.

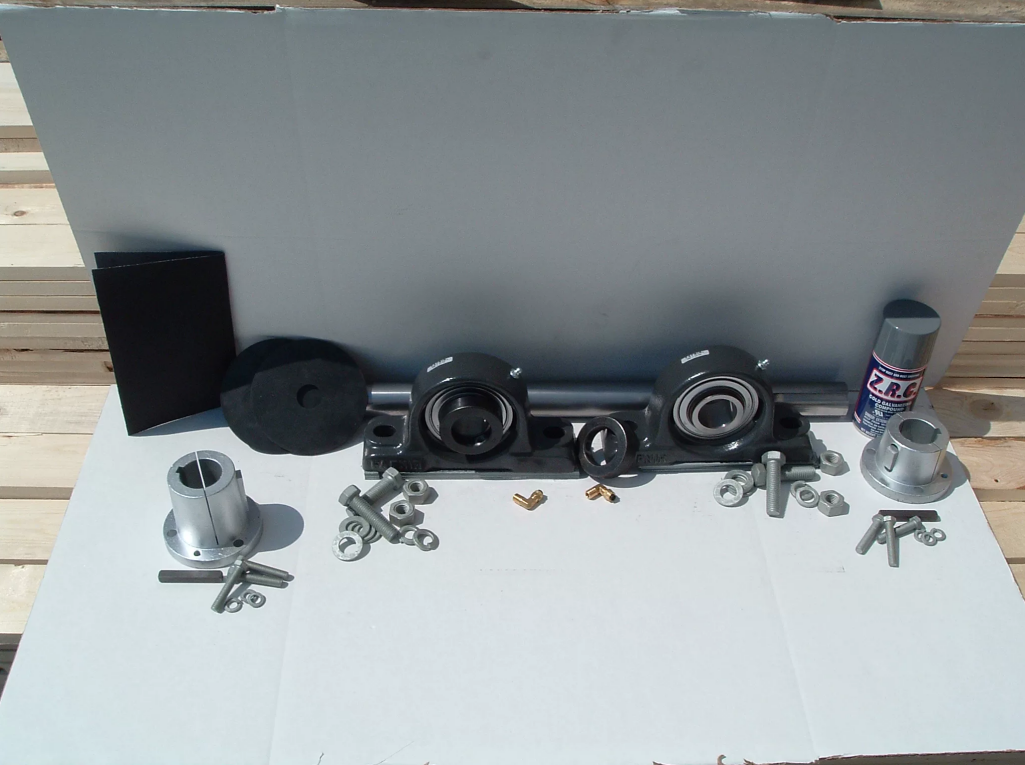

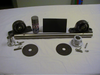

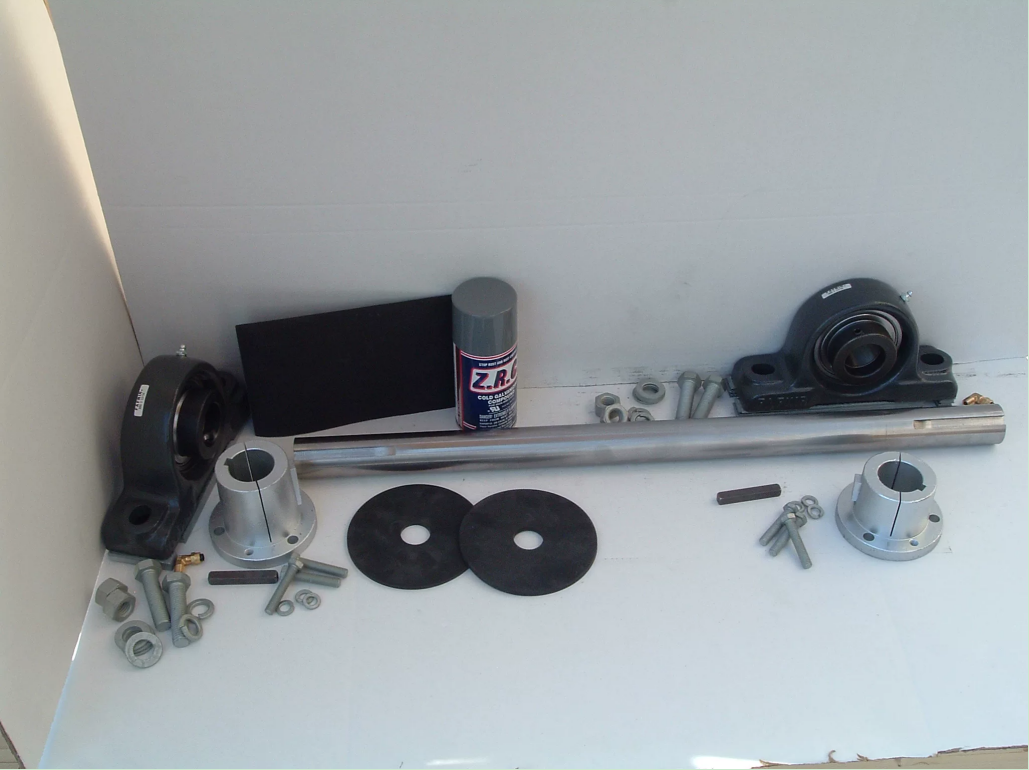

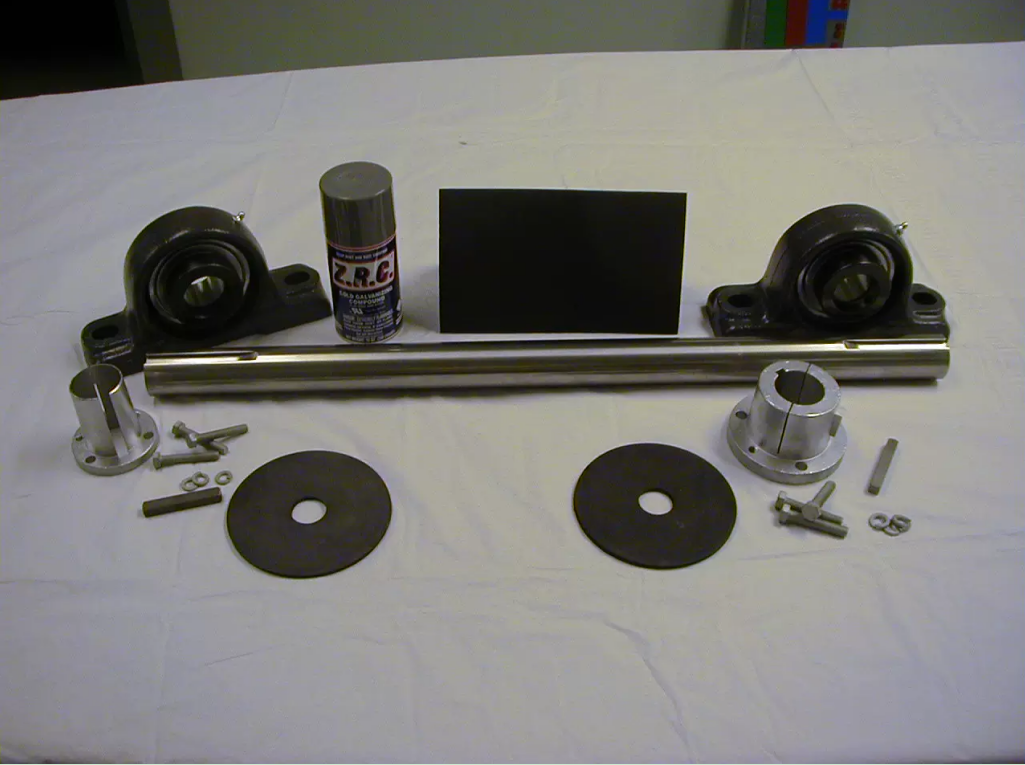

CoolingTowerPart.com supplies high-quality Evapco compatible cooling tower fan drive system components, including belt drive assemblies, fan shafts, fan sheaves, pulleys, bearings, couplings, and related mechanical replacement parts for industrial cooling tower applications.
A cooling tower fan drive system is the mechanical power transmission assembly responsible for rotating the fan blades. The fan creates airflow through the tower, allowing hot water to exchange heat with moving air and return to the cooling process at a lower temperature.
The main purpose of the drive system is to:
Transfer motor power efficiently
Maintain correct fan speed
Reduce mechanical losses
Support continuous cooling operation
Improve overall tower efficiency
Depending on the cooling tower model and capacity, Evapco cooling towers may use belt-driven or gear-driven fan systems.
The motor provides the energy required to rotate the cooling tower fan. Cooling tower motors are designed specifically for harsh operating environments where humidity and continuous operation are common.
High-quality cooling tower motors provide:
Reliable continuous-duty operation
High energy efficiency
Moisture-resistant protection
Stable torque output
Reduced operating costs
A properly selected motor ensures that the fan operates at the required speed while maintaining efficient airflow.

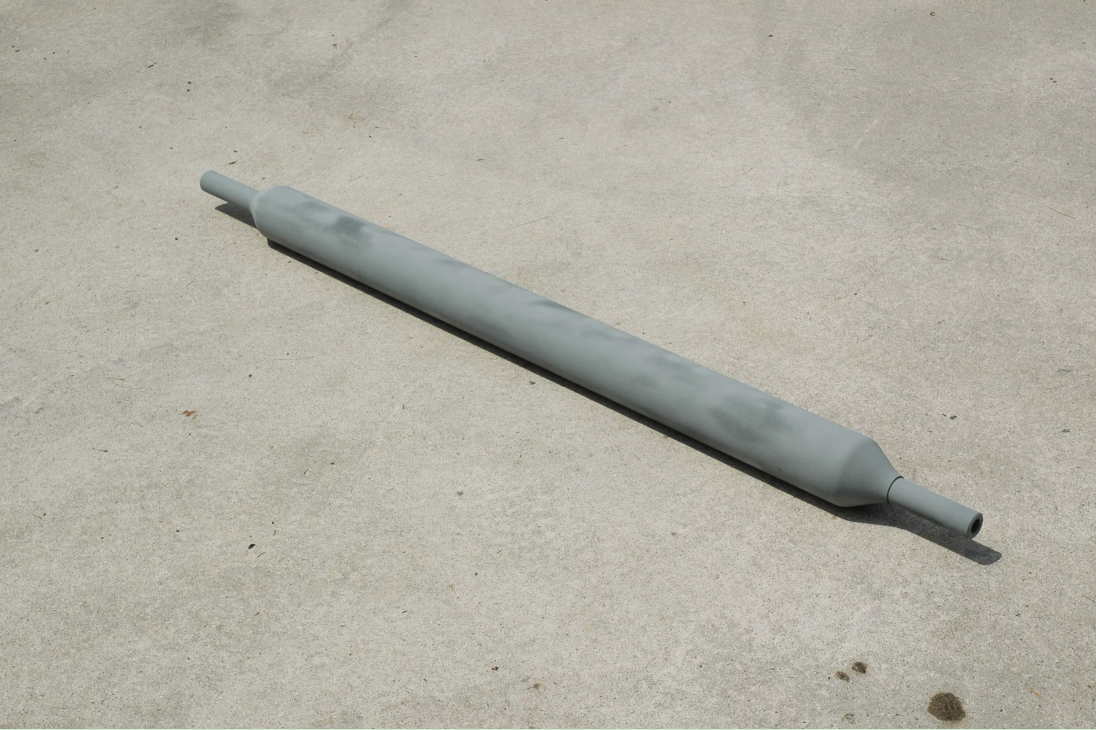

The fan shaft is a critical rotating component that connects the drive system to the fan assembly. It transfers mechanical power and maintains stable fan rotation.
A high-performance cooling tower fan shaft should provide:
High mechanical strength
Accurate machining tolerance
Corrosion resistance
Excellent balance
Long service life
A damaged or misaligned fan shaft may cause excessive vibration, increased bearing wear, and reduced cooling performance.
Many Evapco cooling tower models use a belt-driven fan system. The belt drive transfers motor power through a series of pulleys and sheaves to rotate the fan.
The belt drive assembly typically includes:
Drive belts
Motor pulley
Fan sheave
Bushings
Belt tensioning components
Advantages of a cooling tower belt drive system include:
Simple maintenance
Easy replacement
Smooth power transmission
Lower initial cost
Reliable operation
Regular belt inspection is essential because worn or improperly tensioned belts can reduce fan speed and increase energy consumption.
The fan sheave is responsible for transferring rotational power from the belt system to the fan shaft. It directly influences fan speed, efficiency, and mechanical reliability.
Evapco compatible aluminum alloy fan sheaves are designed with:
Lightweight aluminum construction
Excellent corrosion resistance
Precision machining
Reduced rotating weight
High operational reliability
Compared with traditional steel components, aluminum alloy sheaves help reduce corrosion problems in wet cooling tower environments.
Large industrial cooling towers may use gear reducer systems instead of belt drives. A gear drive reduces motor speed while increasing torque output to operate large fan assemblies.
Cooling tower gear drive systems provide:
High torque transmission
Stable fan rotation
Long service intervals
Reliable industrial performance
Gear drive systems are commonly used in:
Power generation facilities
Petrochemical plants
Large manufacturing sites
Process cooling applications
The fan drive system directly affects airflow performance. A properly operating drive assembly allows the fan to maintain the correct operating speed, improving heat transfer efficiency.
Industrial cooling towers often operate continuously throughout the year. Durable fan drive components help reduce unexpected shutdowns and maintenance interruptions.
High-quality replacement components minimize wear problems and extend maintenance intervals.
Cooling towers operate in wet environments where corrosion can shorten component life. Materials such as aluminum alloy and corrosion-resistant coatings improve durability.
Compatible components are manufactured according to common cooling tower specifications, making maintenance and replacement easier.
Belt slippage is one of the most common cooling tower drive problems.
Possible causes:
Incorrect belt tension
Worn belts
Damaged sheaves
Poor alignment
Solutions:
Adjust belt tension
Replace damaged belts
Check pulley alignment
High vibration may indicate:
Fan imbalance
Shaft misalignment
Bearing damage
Loose connections
Regular inspection helps identify problems before major equipment failure occurs.

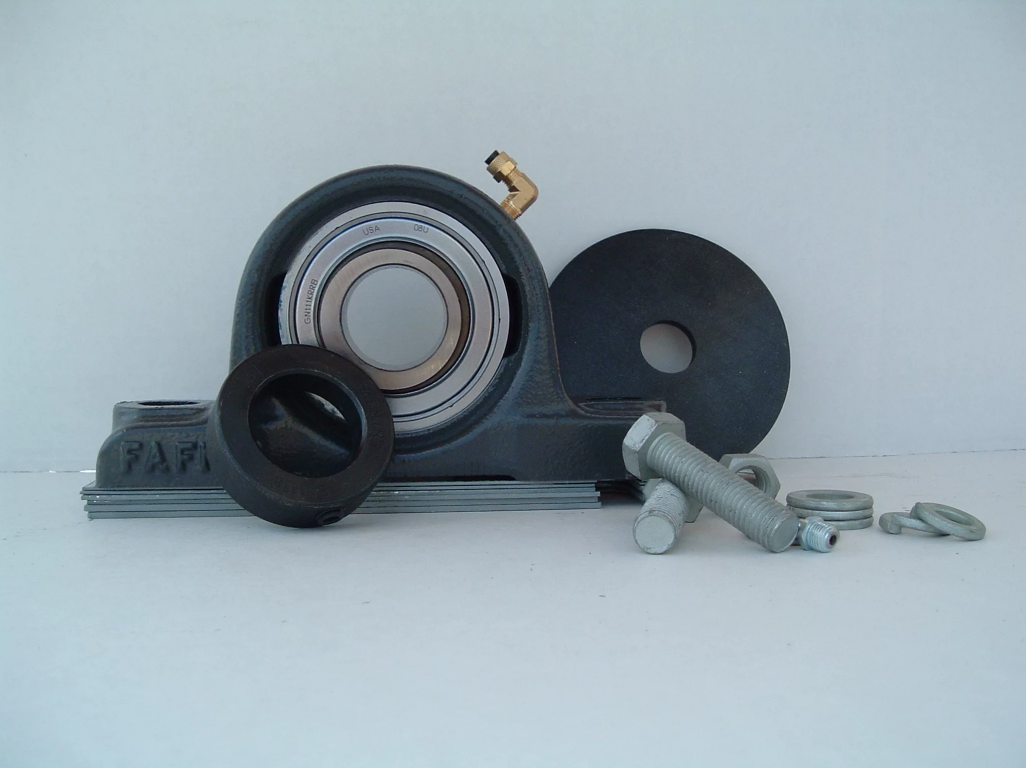

Bearings support rotating components and reduce friction. Failure may result in:
Increased operating temperature
Noise
Fan instability
Proper lubrication and scheduled replacement are essential.
A worn sheave can reduce belt contact and cause inefficient power transfer.
Inspection should include:
Groove condition
Surface wear
Alignment accuracy
Operators should check:
Fan rotation condition
Abnormal noise
Belt appearance
Loose bolts
Unusual vibration
Recommended checks:
Belt tension adjustment
Shaft alignment
Bearing lubrication
Fan balance inspection
Drive component condition
Annual service should include:
Complete drive system inspection
Replacement of worn components
Motor performance testing
Gear drive inspection
Mechanical alignment verification
Evapco compatible fan drive components are widely used in:
Cooling towers support temperature control in steel, automotive, and machinery production.
Large cooling systems require reliable fan drive assemblies for continuous heat rejection.
Stable cooling performance is essential for process safety and efficiency.
Shopping centers, office buildings, and large facilities use cooling towers for centralized air conditioning.
Cooling towers help maintain reliable operating temperatures for critical equipment.
CoolingTowerPart.com specializes in supplying professional cooling tower replacement components for global industrial customers.
Our advantages include:
Wide range of cooling tower mechanical parts
Evapco compatible replacement solutions
Quality materials and manufacturing processes
Competitive factory pricing
Export experience worldwide
Technical assistance for component selection
Whether you need a cooling tower belt drive assembly, fan shaft, sheave, bearing, or other mechanical component, CoolingTowerPart.com provides reliable solutions to restore cooling tower performance.
The fan drive system transfers motor power to the cooling tower fan, allowing the fan to generate airflow for heat rejection.
Main components include motors, fan shafts, belts, sheaves, pulleys, bearings, couplings, and gear drives.
Routine inspections should be performed monthly, with detailed maintenance checks every three to six months depending on operating conditions.
Yes. Properly manufactured compatible replacement parts can provide reliable performance when specifications, dimensions, and materials match the original components.
Drive problems can reduce fan speed, decrease airflow, increase energy consumption, and lower overall cooling capacity.
