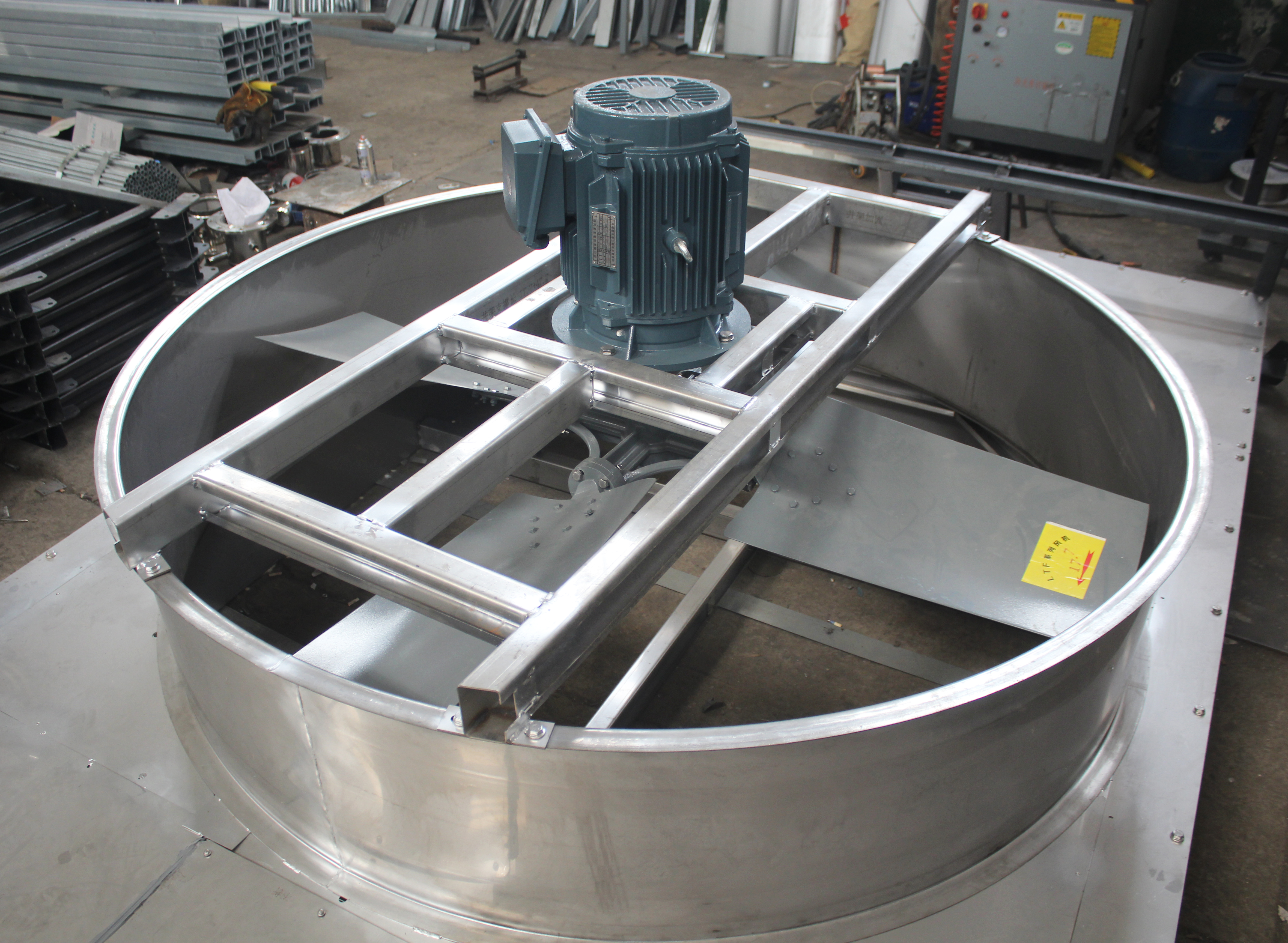

Below is a clear, practical guide for replacing a cooling-tower fan motor — what to check, how to remove the old unit, and how to install/align the new one. I’ll keep it very field-friendly.
Before touching anything:
* Shut down the cooling tower.
* Open the motor disconnect and lock it out.
* Verify zero voltage at the motor terminals.
Check that the new motor matches:
* HP / kW rating
* Voltage and phase (e.g., 460V 3Ø)
* RPM (e.g., 900, 1140, 1750)
* Service factor
* Enclosure type — cooling towers usually use
TEFC, TENV, Washdown, or Cooling-Tower Duty / Totally Enclosed
* Shaft size and length
* Mount type: belt drive / gear drive / direct drive
* Rotation direction (CW or CCW when viewed from top)
* Frame size (e.g., 182T, 215T, 324T)
* Label each conductor (T1, T2, T3).
* Note any space heater or RTD wiring.
* Loosen conduit to free the connection box.
Belt drive:
* Loosen motor slide base bolts
* Push inward to release belt tension
* Remove belts
Gear drive:
* Remove coupling guard
* Mark coupling hub positions
* Loosen coupling bolts
* Separate coupling halves
* Support the motor with a hoist, chain fall, or two people.
* Remove the hold-down bolts.
* Lift the motor straight up.
* Place it on the base or motor rail.
* Insert all bolts loosely first.
* Ensure the base is clean and flat (no shims unless needed).
Proper alignment extends bearing and gearbox life.
For belt drives:
* Align motor pulley to fan/gear pulley using a straightedge.
* Set correct belt tension (moderate deflection force; don’t overtension).
* Perform angular and parallel alignment using:
* Dial indicators, or
* Feeler gauges + straightedge
* Typical tolerance:
* Parallel misalignment < 0.005–0.010"
* Angular misalignment < 0.003–0.005" per inch of radius
(Follow gearbox manufacturer guidelines.)
* Pull conductors into the motor junction box.
* Make new connections per nameplate diagram:
* Low voltage vs high voltage connection matters.
* Tighten all lugs to torque spec.
* Reconnect:
* Space heater
* RTD or thermistor sensors
* Grounding conductor
* Seal conduit to prevent moisture ingress.
Before fully coupling or tensioning:
1. Bump start the motor (VERY short jog).
2. Verify:
* Rotates correct direction (usually upward/induced draft).
* If incorrect, swap any two phases.
Only after correct rotation:
* Tighten belts OR fully couple gearbox.
* Secure all guards (belt guards, coupling guards).
* Reinstall fan deck screens if removed.
* Remove LOTO and start the tower.
* Abnormal vibration
* High motor amps
* Gearbox noise or heat
* Belt squeal
* Any rubbing or misalignment
* Running current should be ≤ nameplate amps adjusted by service factor.
* If amps are high:
* Incorrect rotation?
* Fan blade pitch too aggressive
* Gearbox issue
* Belt tension incorrect
* Air density or tower load high
* Belt tension (belts stretch during break-in)
* Motor mounting bolts
* Coupling alignment (if gear-driven)
* Motor amps
