A Marley Cooling Tower Belt Pulley is a critical drive component used in belt-driven cooling tower fan systems. It transfers rotational power from the cooling tower motor to the fan shaft through V-belts, ensuring stable fan operation, efficient airflow generation, and reliable heat rejection performance.

Designed for compatibility with Marley cooling towers (SPX Cooling Technologies), replacement belt pulleys are commonly used in cooling tower maintenance, refurbishment projects, and aftermarket spare parts replacement.

What Is a Cooling Tower Belt Pulley?

A cooling tower belt pulley, also called a cooling tower sheave or fan drive pulley, is a rotating mechanical component installed on the motor shaft and fan shaft of belt-driven cooling towers.

The pulley system works together with:

• Cooling tower motor

• Fan shaft assembly

• V-belts

• Bearings

• Belt tensioning system

The motor pulley drives the belt, which transfers torque to the larger fan pulley. This speed reduction allows the cooling tower fan to operate at the required RPM while maintaining high airflow efficiency.

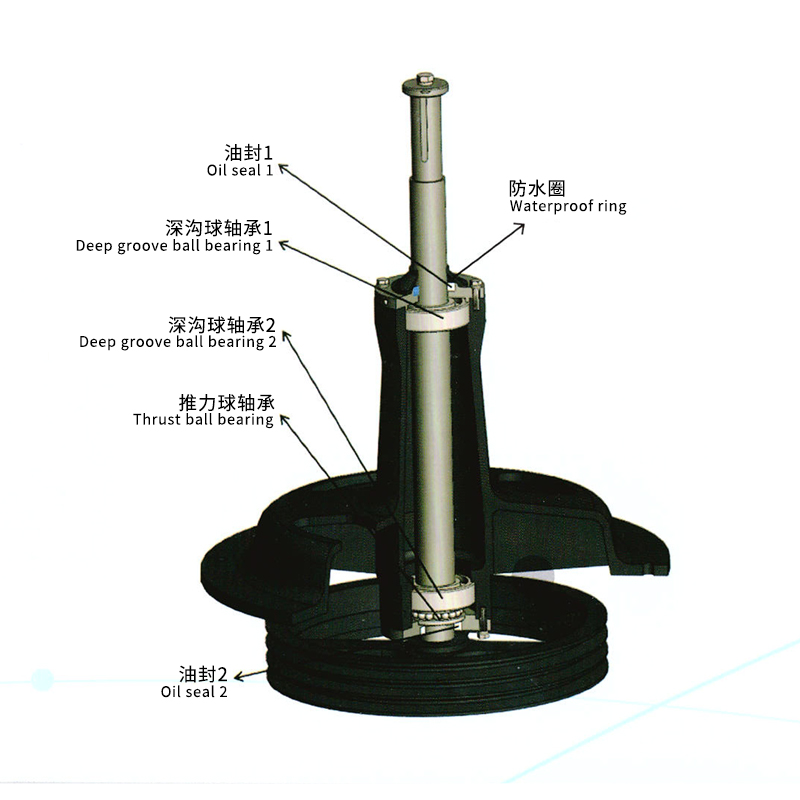

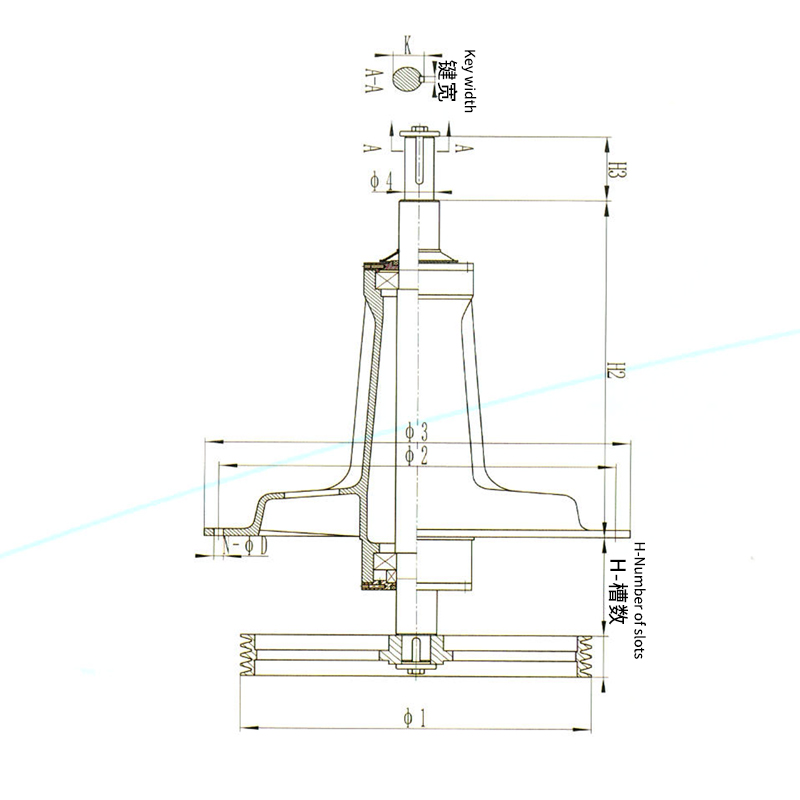

Belt box model	φ1 mm	φ2   mm	φ3   mm	φ4   mm	N-φD  mm	H-Number of slots	H1   mm	H2   mm	H3   mm	Key widt hmm	K mm
8#-456-3B	456	540	590	38	4-φ14	63.1-3	55	480	105	8	41
8#-456-3SPA	456	540	590	38	4-φ14	63-3	55	480	105	8	41
8#-456-3SPB	456	540	590	38	4-φ14	63.1-3	55	480	105	8	41
8#-456-4SPA	456	540	590	38	4-φ14	82-4	55	480	105	8	41
8#-456-4SPB	456	540	590	38	4-φ14	82.15-4	55	480	117	8	41
10#-456-4B	456	540	590	50	4-φ14	82.15-4	55	480	117	12	53
10#-456-4SPA	456	540	590	50	4-φ14	82-4	55	480	117	12	53
10#-456-4SPB	456	540	590	50	4-φ14	82.15-4	55	480	117	12	53
10#-608-4SPA	608	540	590	50	4-φ14	82-4	55	480	117	12	53
10#-608-4SPB	608	540	590	50	4-φ14	82.15-4	55	480	117	12	53
12#-660-4SPA	608	688	738	50	4-φ16	82-4	205	700	117	12	53
12#-660-4SPB	608	688	738	50	4-φ16	82.15-4	205	700	117	12	53
12#-660-6SPB	608	688	738	50	4-φ16	120.25-6	205	700	117	12	53

Marley Cooling Tower Belt Pulley Features

1. OEM Compatible Design

Marley replacement belt pulleys are manufactured according to cooling tower drive system specifications, ensuring proper fit, alignment, and performance.

Compatible applications include:

• Marley NC Series cooling towers

• Marley MD Series cooling towers

• Marley Class 100 cooling towers

• Marley Series 10 cooling towers

• Other Marley belt-driven cooling tower models




2. High Strength Aluminum or Cast Alloy Construction

Cooling tower pulleys are commonly manufactured from:

• Aluminum alloy

• Cast aluminum

• Ductile iron

• Cast iron

Material selection depends on load requirements, operating environment, and cooling tower model.

Advantages include:

• Lightweight construction

• Corrosion resistance

• Reduced shaft load

• Long service life




3. Precision Machined Grooves

The pulley grooves are accurately machined to ensure:

• Proper V-belt engagement

• Reduced belt slipping

• Lower vibration

• Improved power transmission efficiency

Incorrect groove dimensions may cause premature belt wear and reduced fan performance.

4. Corrosion Resistance for Harsh Environments

Cooling towers operate in humid and chemically exposed environments. Quality Marley belt pulleys are designed to withstand:

• Moisture

• Cooling water chemicals

• Outdoor weather conditions

• Continuous operation

Surface treatments may include:

• Protective coatings

• Anodizing

• Anti-corrosion finishes




Marley Cooling Tower Belt Pulley Working Principle

The belt drive system operates as follows:

1. The electric motor rotates the motor pulley.

2. The motor pulley transfers torque through V-belts.

3. The belts rotate the larger fan pulley.

4. The fan shaft turns the cooling tower fan.

5. The fan generates airflow through the fill section to improve heat transfer.

The pulley ratio determines the final fan speed:

Fan Speed = Motor Speed × Motor Pulley Diameter ÷ Fan Pulley Diameter

Proper pulley sizing is essential for achieving the designed airflow and cooling capacity.

Common Marley Cooling Tower Belt Pulley Problems

Belt Slippage

Causes:

• Incorrect belt tension

• Worn pulley grooves

• Oil contamination

• Incorrect pulley alignment

Solutions:

• Check belt tension

• Replace damaged pulleys

• Realign drive components




Pulley Wear

Signs include:

• Grooves becoming polished

• Uneven belt wear

• Excessive vibration

• Reduced fan speed

Replacement is recommended when pulley grooves are significantly worn.

Pulley Misalignment

Misalignment can result in:

• Increased belt wear

• Higher motor load

• Noise and vibration

• Reduced cooling efficiency

Laser alignment tools or straight-edge checks are commonly used during maintenance.

Marley Cooling Tower Belt Pulley Replacement Guidelines

Before replacing a pulley:

1. Shut down and isolate the cooling tower power supply.

2. Inspect belts and shaft condition.

3. Check pulley dimensions.

4. Verify bore size and keyway specifications.

5. Install the new pulley correctly.

6. Adjust belt tension.

7. Test fan operation and vibration levels.




Belt Pulley Maintenance Tips

Regular inspection helps extend cooling tower drive system life.

Recommended maintenance:

Marley Cooling Tower Belt Pulley Specifications

Typical specifications include:

Why Choose a Replacement Marley Cooling Tower Belt Pulley?

A high-quality replacement pulley provides:

• Reliable power transmission

• Reduced maintenance frequency

• Improved fan efficiency

• Longer belt service life

• Lower operating costs

• Compatibility with existing Marley cooling tower systems

For industrial cooling tower operators, selecting the correct pulley size, material, and groove profile is essential to maintaining stable cooling performance.
