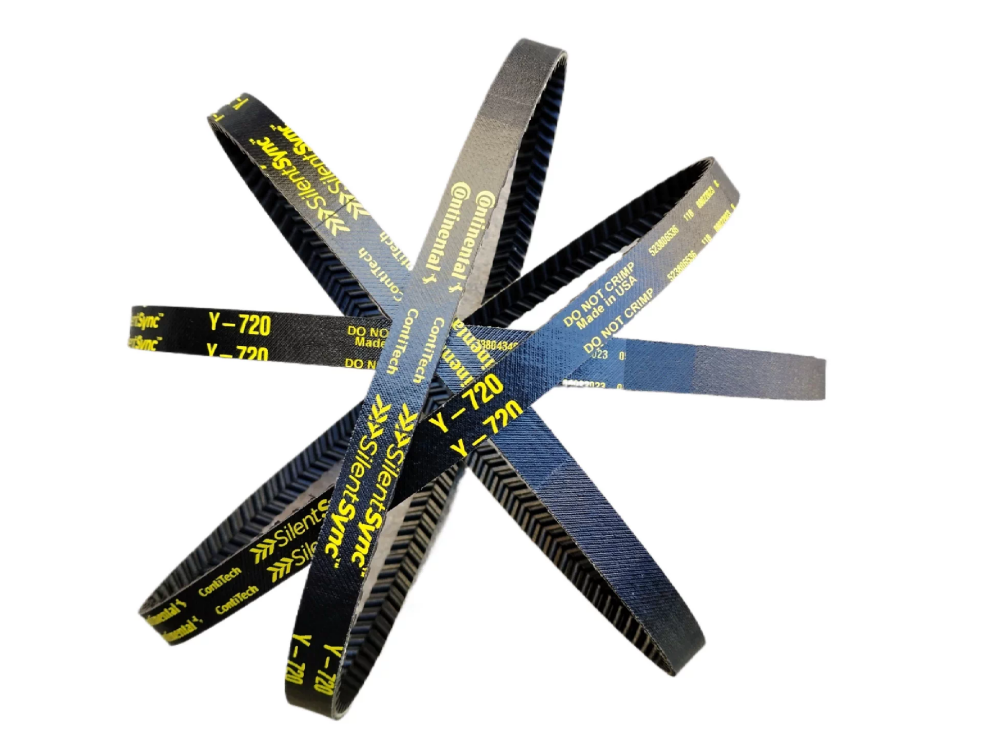

A Marley cooling tower belt is a critical transmission component used in belt-driven Marley cooling towers to transfer power from the motor to the cooling tower fan assembly. Designed for reliable operation in demanding industrial environments, Marley fan belts provide efficient power transmission, stable fan speed control, and long service life under continuous cooling tower operation.
Cooling tower belts operate under harsh conditions, including moisture, heat, vibration, and chemical exposure. Selecting a high-quality replacement belt helps prevent fan performance issues, reduces unexpected downtime, and maintains the thermal efficiency of the cooling tower system.
A Marley cooling tower belt is a specially designed V-belt or banded V-belt drive belt installed between the cooling tower motor pulley and fan pulley. The belt transfers rotational power generated by the motor to the fan shaft, allowing the fan to move air through the cooling tower fill and improve heat transfer.
Unlike standard industrial belts, cooling tower belts are engineered for:
Continuous-duty operation
High humidity environments
Variable temperature conditions
Resistance to stretching and wear
Stable power transmission
Reduced maintenance requirements
Marley cooling tower belts are commonly used in:
Marley induced draft cooling towers
Marley crossflow cooling towers
Marley NC Series cooling towers
Marley MD Series cooling towers
Industrial HVAC cooling tower systems
Commercial building cooling towers
Power generation and process cooling applications
Quality Marley replacement belts use reinforced materials such as:
Polyester tensile cords
EPDM rubber compounds
Oil-resistant rubber layers
Heat-resistant materials
These materials provide excellent tensile strength and minimize belt stretching during long-term operation.
Cooling tower belts are exposed to:
Water spray
Humidity
UV radiation
Temperature fluctuations
Chemical treatment agents
A properly designed cooling tower V-belt maintains performance even in wet operating environments.
A worn or improperly sized belt can cause:
Reduced fan RPM
Lower airflow
Poor cooling performance
Increased motor load
A Marley cooling tower belt ensures efficient torque transmission between the motor and fan shaft.
High-quality cooling tower drive belts reduce:
Frequent belt replacement
Adjustment frequency
Fan downtime
Maintenance labor costs
Typical specifications include:
| Parameter | Description |
|---|---|
| Product Name | Marley Cooling Tower Belt |
| Type | V-Belt / Banded V-Belt |
| Application | Cooling tower fan drive system |
| Material | EPDM rubber, reinforced polyester cord |
| Drive Type | Motor to fan pulley transmission |
| Operating Environment | High humidity, industrial cooling applications |
| Compatible Brands | Marley, SPX, BAC, Evapco, Liang Chi and others |
| Installation | Cooling tower fan drive assembly |
Single V-belts are commonly used for smaller cooling tower fan systems.
Advantages:
Simple installation
Easy replacement
Cost-effective solution
Suitable for moderate horsepower applications
Applications:
Small commercial cooling towers
HVAC cooling systems
Light industrial cooling equipment
Banded V-belts combine multiple V-belts into one connected belt structure.
Advantages:
Prevents belt whipping
Improves load distribution
Reduces vibration
Provides better stability for high-power drives
Banded belts are commonly used in larger Marley cooling towers where fan loads are higher.
Regular inspection is important because belt failure can stop the cooling tower fan completely.
Common signs of belt replacement include:
Rubber cracking indicates aging and loss of flexibility.
Symptoms include:
Reduced fan speed
Belt squealing noise
Overheating pulley surfaces
A stretched belt cannot maintain proper tension and may slip under load.
Edge damage usually indicates:
Misalignment
Incorrect tension
Pulley wear
If the cooling tower cannot achieve the required temperature reduction, a worn belt may be the cause.
Recommended inspection points:
Belt cracks
Surface wear
Belt tension
Pulley alignment
Signs of oil contamination
Many cooling tower manufacturers recommend checking belts monthly during operation.
Incorrect tension can create problems:
Causes:
Belt slipping
Reduced fan speed
Excess heat generation
Premature belt failure
Causes:
Excess motor bearing load
Fan shaft stress
Reduced bearing life
Always follow manufacturer tension specifications.
Misaligned pulleys can cause:
Uneven belt wear
Excess vibration
Reduced belt lifespan
Use proper alignment tools during installation.
For multiple-belt systems, replace belts as a matched set.
Mixing old and new belts can result in:
Uneven load sharing
Different belt speeds
Premature failure
Typical replacement steps:
Shut down and isolate power supply
Lock out the cooling tower equipment
Remove belt guard
Loosen motor mounting bolts
Reduce belt tension
Remove old belts
Inspect pulleys and shafts
Install new Marley compatible belts
Adjust belt tension
Check pulley alignment
Run test operation
Reinstall belt guard
When purchasing a replacement belt, consider:
Important measurements include:
Belt length
Belt section
Width
Height
Number of belts required
Confirm compatibility with:
Marley NC Series
Marley MD Series
Marley Series 10
Marley Class 600/800 systems
Higher horsepower applications require stronger belt designs.
Consider:
Ambient temperature
Humidity
Chemical exposure
Operating hours
| Feature | Marley Cooling Tower Belt | Standard Industrial Belt |
|---|---|---|
| Designed for cooling towers | Yes | No |
| Humidity resistance | High | Medium |
| Continuous operation | Excellent | General |
| Vibration resistance | High | Medium |
| Fan drive application | Specialized | General |
| Service life | Longer in cooling tower environments | Shorter |
A damaged belt can lead to:
Cooling capacity reduction
Increased operating temperature
Fan shutdown
Motor overload
Higher energy consumption
Production interruption
For industrial facilities, preventive belt replacement is usually more economical than emergency repairs.
Professional cooling tower parts suppliers provide:
Marley compatible V-belts
Banded V-belts
Cooling tower fan belts
Motor pulleys
Fan pulleys
Belt tensioning accessories
Complete Marley replacement drive components
OEM-compatible cooling tower belts are widely available for Marley and other major cooling tower brands including:
SPX Marley
BAC
Evapco
Hamon
Liang Chi
Most Marley cooling towers use industrial-grade V-belts or banded V-belts designed specifically for fan drive applications.
Replacement frequency depends on operating conditions, but belts should typically be inspected monthly and replaced when cracking, stretching, or wear appears.
Standard belts may not provide the required durability. Cooling tower-specific belts are recommended because they are designed for wet and continuous-duty environments.
Measure the belt section, outside length, inside length, width, and confirm the cooling tower model and fan drive specifications.
Common causes include:
Incorrect tension
Pulley misalignment
Wrong belt size
Excessive fan load
Poor-quality replacement belts
