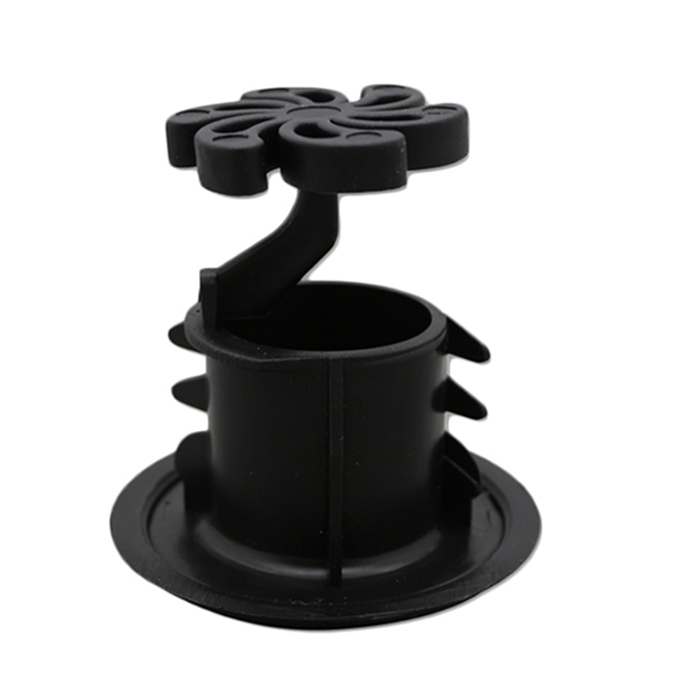

The ABS marley cooling tower nozzle is made of ABS plastic by one-time injection molding, which has high strength and long service life. The nozzle distributes water evenly, and the working water pressure is low (the working pressure at the nozzle outlet is only 0.6H20), and the pressure adaptation range is wide, so it is not easy to block. Because it has a specially designed locking and anti-loosening device, it can be firmly connected with the water distribution pipe without falling off, which can ensure the long-term safe operation of the water distribution system. Under normal conditions, the service life of the head is 20 years.
The Following Are Some Situations When The ABS Marley Cooling Tower Nozzle Need To Be Replaced:
ABS Marley Cooling Tower Nozzle Clogging
-
Cause: Over long-term operation, impurities, scale, and microorganisms in the water can adhere to the inside of the nozzles or the spray holes, leading to clogging.
-
Symptoms: Insufficient spray water volume and uneven distribution, resulting in reduced cooling efficiency.
-
Solution: If the nozzles are severely clogged and cannot be cleaned and unblocked, they need to be replaced.
ABS Marley Cooling Tower Nozzle Wear or Damage
-
Cause: The nozzles may wear out or get damaged due to long-term exposure to water flow impact and corrosion.
-
Symptoms: The spray shape and water flow of the nozzles change, failing to meet the designed water distribution requirements.
-
Solution: Regularly inspect the condition of the nozzles. If they are severely worn or damaged, they should be replaced promptly.
ABS Marley Cooling Tower Nozzle Aging
-
Cause: The durability of nozzle materials is limited. When exposed to high temperatures and high humidity for a long time, the nozzles will gradually age.
-
Symptoms: The performance of the nozzles declines, such as reduced water flow and altered spray angles.
-
Solution: Even if the nozzles do not show obvious damage, they should be replaced regularly based on their service life and actual operating conditions.
ABS Marley Cooling Tower Uneven Water Distribution
-
Cause: Nozzle blockage, damage, aging, and deformation of the water distribution pipes can all lead to uneven water distribution.
-
Symptoms: The heat exchange effect of the cooling tower packing layer deteriorates. Some parts of the packing do not have enough water coverage, resulting in dry spots.
-
Solution: Inspect the condition of the nozzles, clean or replace the clogged or damaged ones, and check whether the water distribution pipes are tilted or deformed. If necessary, repair or replace them.
ABS Marley Cooling Tower Reduced Cooling Efficiency
-
Cause: Problems with the nozzles lead to poor water flow, distribution, and spray effect of the spray water, affecting the heat exchange efficiency of the cooling tower.
-
Symptoms: The temperature of the cooled water does not meet the design requirements, and the system operating efficiency decreases.
-
Solution: Inspect the nozzles for blockages, wear, or aging. If problems are found, replace the nozzles promptly.
ABS Marley Cooling Tower Nozzle Material Not Suitable for Water Quality
-
Cause: If the water quality of the cooling tower is poor and contains a large amount of corrosive substances, and the nozzle material is not corrosion-resistant, the nozzles will be corroded and damaged.
-
Symptoms: Cracks, holes, or deformation appear in the nozzles.
-
Solution: Replace the nozzles with materials that have better corrosion resistance, such as stainless steel or engineering plastics.
ABS Marley Cooling Tower Nozzle Specification
ABS Marley Cooling Tower Nozzle Features
Marley nozzles are high-performance nozzles specifically designed for cooling towers and are widely used in industrial cooling systems. The following are the main features of Marley nozzles, detailing their design advantages, material selection, performance, and maintenance convenience:
1. ABS Marley Cooling Tower Nozzle Efficient Water Distribution
Marley nozzles are renowned for their exceptional water distribution performance. Whether it is counterflow or crossflow nozzles, Marley nozzles ensure that water is evenly distributed across the cooling tower packing, thereby achieving efficient heat exchange. For example, the Marley NS series counterflow nozzles feature a “full-cone” distribution pattern, which ensures uniform water distribution even at the edges of the spray area. This design reduces the need for spray overlap, further enhancing cooling efficiency.
2. ABS Marley Cooling Tower Nozzle Anti-Clogging Design
The design of Marley nozzles fully takes into account the need for anti-clogging. The nozzle orifices are relatively large (1" - 31/2"), and there are no complex internal components or narrow passages, making them highly resistant to clogging. For instance, the internal channels and orifices of the NS series nozzles are all larger than 1 inch, ensuring stable long-term operation even with poor water quality. Additionally, the diffuser rings attached to the nozzles do not retain fibrous debris, further reducing the risk of clogging.
3. ABS Marley Cooling Tower Nozzle Strong Corrosion Resistance
Marley nozzles are typically manufactured from polypropylene, a material known for its excellent corrosion resistance. Even in harsh water conditions, the nozzles will not corrode or decay, thereby extending their service life. This material choice not only enhances the durability of the nozzles but also reduces maintenance costs associated with corrosion.
4. ABS Marley Cooling Tower Nozzle Easy Installation and Maintenance
Marley nozzles are very easy to install, requiring no tools. The nozzles are simply screwed onto the fitting pipe and locked in place, and the diffuser rings can be easily snapped into position. This design not only facilitates installation but also makes the removal and replacement of the nozzles quick and convenient. Moreover, the nozzles have a simple structure with no moving parts, reducing maintenance requirements.
5. ABS Marley Cooling Tower Nozzle Strong Adaptability
Marley nozzles can operate effectively across a wide range of water pressures, maintaining good spray performance even at low pressures (such as 2 feet of water pressure). This adaptability allows the nozzles to be used in various cooling tower configurations, meeting diverse industrial needs. Additionally, the nozzle design allows for maintenance while the system is in operation, reducing downtime.
6. ABS Marley Cooling Tower Nozzle Diverse Model Options
Marley nozzles come in a variety of models and sizes to meet different cooling tower configurations and performance requirements. For example, the Spiral Target crossflow nozzles are available in three lengths and 13 different nozzle cap diameters. This diverse range of options allows engineers to select the most suitable nozzle model for specific applications.
7. ABS Marley Cooling Tower Nozzle Precision Engineering
Marley nozzles are precision-engineered original components, specifically designed for the efficient operation of cooling towers. Compared to nozzles from other suppliers, Marley nozzles offer higher performance and reliability. Additionally, Marley nozzles are designed to meet the standards of the Cooling Technology Institute (CTI), ensuring high quality and performance in industrial applications.
8. ABS Marley Cooling Tower Nozzle Energy Conservation
The efficient water distribution performance of Marley nozzles not only enhances cooling efficiency but also indirectly reduces the energy consumption of the cooling tower. By ensuring uniform water distribution, the nozzles minimize cooling inefficiencies caused by uneven water distribution, thereby lowering the operating costs of the cooling tower.
9. ABS Marley Cooling Tower Nozzle Environmental Performance
Marley nozzles are also designed with environmental considerations in mind. For example, their efficient water distribution reduces drift losses from the cooling tower, minimizing environmental impact. Additionally, the corrosion resistance and long service life of the nozzles reduce waste generated from nozzle replacements.
10. ABS Marley Cooling Tower Nozzle Comprehensive Performance Optimization
Marley nozzles not only excel in water distribution and anti-clogging but also integrate seamlessly with other cooling tower components (such as packing and drift eliminators). This comprehensive performance optimization ensures the overall efficiency and reliability of the cooling tower.
In summary, Marley nozzles, with their efficient, durable, easy-to-maintain, and adaptable features, have become an indispensable key component in cooling tower systems. Their outstanding performance and reliability make them widely used in industrial cooling applications.
ABS Marley Cooling Tower Nozzle Application
The application range is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation, Tannery, Electric furnace, Freezing Series, Air conditioning cooling system
ABS Marley Cooling Tower Nozzle Shippment
Packing:
Wooden pallet.
Delivery time:
With in 10 days.
