Product Description

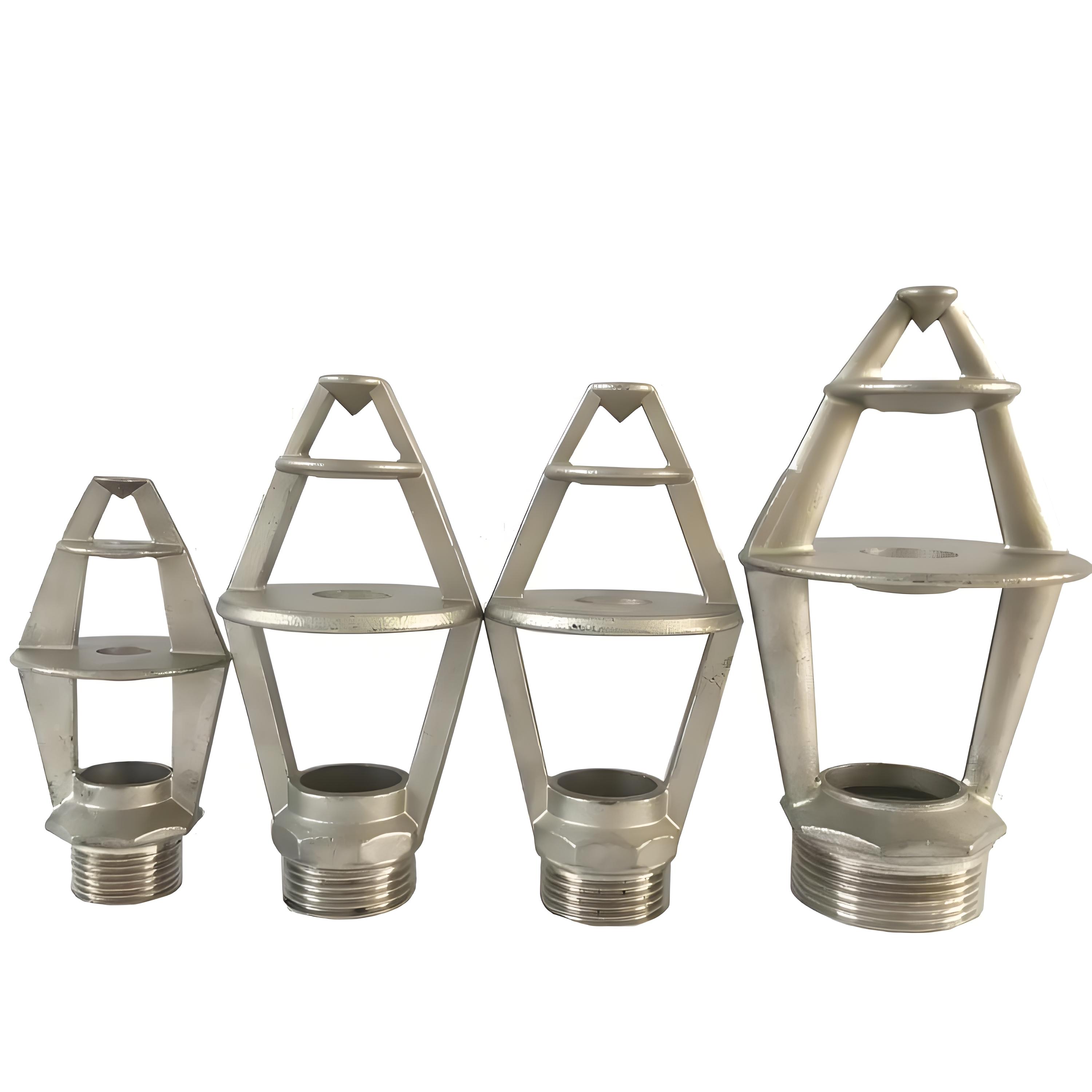

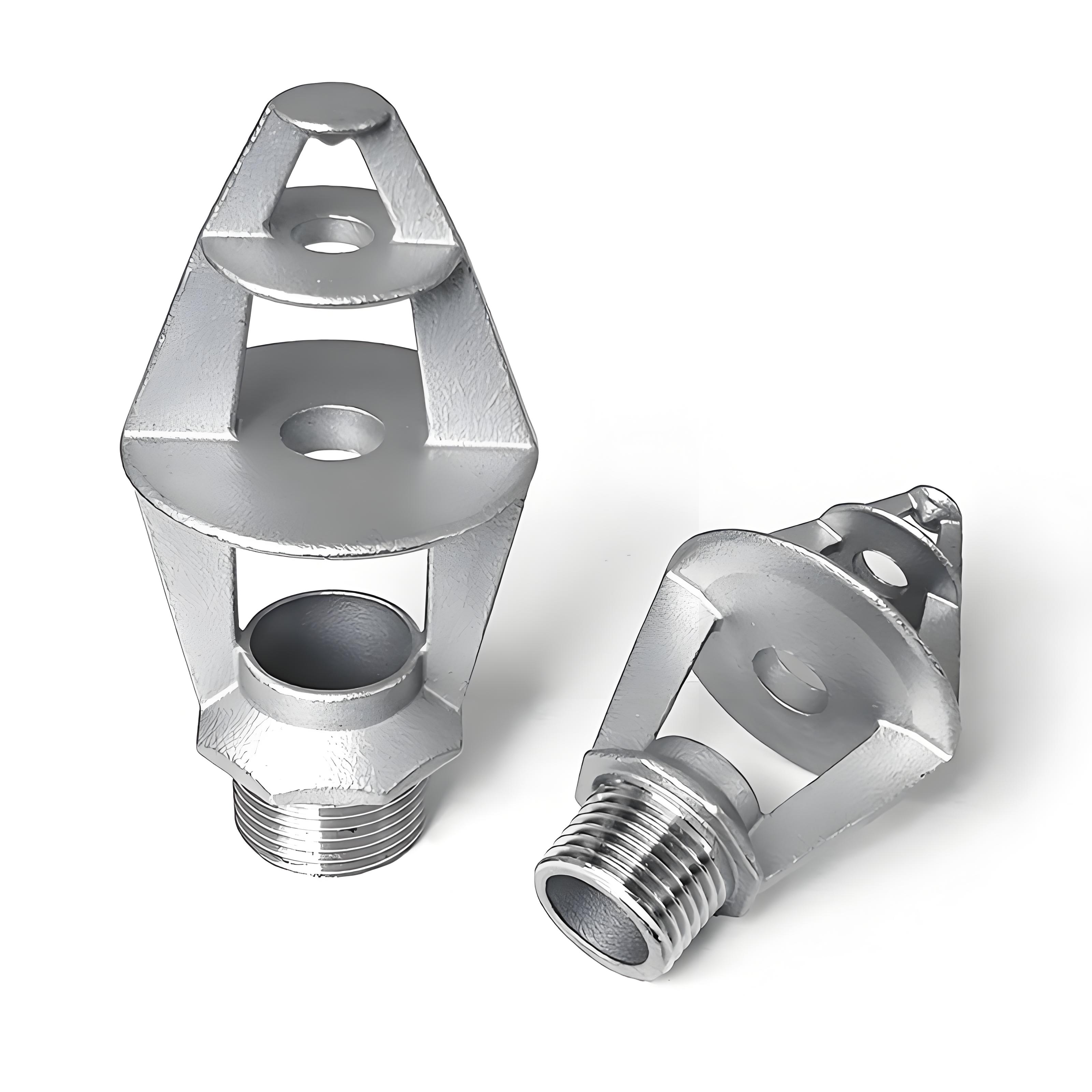

The stainless steel nozzle of the cooling tower is a key component of industrial cooling systems, made of 304/316 stainless steel material, which has characteristics such as corrosion resistance, high temperature resistance, and wear resistance. It is suitable for circulating water cooling systems in industries such as chemical, power, and metallurgy. The nozzle adopts precision fluid design, which can form uniform and fine water mist or jet water flow, improve heat exchange efficiency, and reduce energy consumption.
Cooling tower stainless steel nozzles are crafted from premium materials such as 304 and 316 stainless steel. Thanks to the dense passive film formed by alloying elements like chromium and nickel, these nozzles can effectively resist chemical corrosion when exposed to corrosive media containing chlorine, acids, or alkalis. Compared with ordinary metal nozzles, their service life is extended several times over. They are especially suitable for highly corrosive environments like industrial circulating water systems, ensuring long-term stable operation of the equipment.
Stainless steel exhibits excellent high-temperature stability. In the high-temperature circulating water conditions of cooling towers, these nozzles can withstand temperatures ranging from 60°C to 80°C or even higher without softening, deforming, or degrading in performance. They maintain structural integrity and stable spraying performance at all times, providing reliable support for cooling systems in high-temperature environments.
The high strength of stainless steel endows these nozzles with excellent impact resistance. Even under complex working conditions with fluctuating circulating water pressure and scouring by impurities, they are not prone to breakage or cracking. They can effectively withstand the high-speed impact of water flow and collisions with particulate impurities, maintaining normal spraying functions and reducing the risk of equipment failures.
Employing precision machining techniques, the internal flow channels of these nozzles are scientifically designed. Through precise control of the spraying angle, flow rate, and atomization effect, a uniform and stable spraying state is achieved. The moderately sized mist droplets come into full contact with the air, significantly enhancing the heat exchange efficiency. Compared with traditional nozzles, the cooling efficiency of the cooling tower can be increased by 10% - 15%.
The unique large-diameter flow channels and smooth internal contours, combined with optimized flow-guiding structures, effectively reduce the adhesion and accumulation of scale and impurities. Additionally, some nozzles feature anti-clogging nozzle designs, such as spiral tangential inlets and special flow-guiding vanes, which minimize the risk of blockages, ensure smooth water flow, and reduce maintenance frequency.
To meet the installation requirements of different cooling towers, stainless steel nozzles offer various installation interfaces and methods, including threaded connections, flange connections, and snap-in connections. They are adaptable to various tower structures, whether circular or square. The installation process is convenient, requiring no complex tools or professional skills, thus saving both installation time and costs.
A wide range of specifications and models are available, covering everything from fine spray nozzles with tiny flow rates to powerful spray nozzles with large flow rates. These nozzles are suitable for cooling tower systems of different scales and types. Whether it's a small industrial cooling tower or a large power station cooling tower, the appropriate nozzle model can be found to meet diverse working conditions.
Due to the corrosion resistance and abrasion resistance of stainless steel, as well as the anti-clogging design, the daily maintenance workload of stainless steel nozzles is significantly reduced. There is no need for frequent replacement or cleaning, which cuts down on labor costs for maintenance and expenses for spare parts replacement. At the same time, the downtime for maintenance is reduced, improving the overall operating efficiency and economic viability of the cooling tower.
Precise spray control and high cooling efficiency enable the cooling tower to meet cooling requirements while reducing the consumption of circulating water and the energy consumption of fans, minimizing water waste and energy consumption. Moreover, stainless steel is recyclable, meeting environmental protection requirements and helping enterprises achieve their green production goals.
Stainless steel has a smooth and attractive surface that is not prone to rusting or discoloration, enhancing the appearance of the cooling tower while ensuring functionality. A strict quality inspection system is in place, covering every aspect from raw material inspection upon arrival to finished product performance testing. Every nozzle undergoes rigorous control at each stage, ensuring stable and reliable quality and providing users with a solid guarantee.
Material | SS |
Color | Grey |
Confirm model matching: Check the specifications, interface types (such as NPT/BSP threads), and flow parameters of the old nozzle to ensure full compatibility with the new nozzle and avoid water leakage or performance discrepancies after installation.
System shutdown and pressure relief: Before replacement, be sure to turn off the cooling tower water pump and drain the pipeline to prevent high-pressure water splashing or accidental start-up causing injury.
Cleaning pipeline interface: After disassembling the old nozzle, use a soft cloth or brush to remove scale, rust, or residual sealant from the interface, ensuring that the new nozzle is tightly sealed during installation.
Use leak proof sealing materials: When installing a new nozzle, it is recommended to wrap it with polytetrafluoroethylene tape (PTFE) or apply thread sealant to prevent leakage after operation.
Test operation and observation: after replacement, start the water pump at low speed first, check whether the nozzle spray is even and whether there is water leakage at the interface, and then run at full load after confirming that it is normal.
Tip: If the water quality of the cooling tower is poor, it is recommended to regularly disassemble and inspect the nozzle to prevent blockage and extend its service life!
In thermal power plants, nuclear power stations, and other power facilities, cooling towers are large-scale and crucial for cooling circulating water to ensure the safe and stable operation of units. Circulating water operates under long-term high-temperature and high-load conditions, with complex water quality containing various minerals and chemical agents. Stainless steel nozzles for cooling towers, with their excellent high-temperature resistance and corrosion resistance, can work stably at 60°C to 80°C or even higher temperatures. They resist erosion from acids, alkalis, and chloride ions in circulating water, ensuring uniform spraying, improving cooling efficiency, effectively reducing the operating temperature of power generation equipment, and guaranteeing the continuity and safety of power production.
In chemical production, cooling towers face harsher working conditions, as the circulating water often contains highly corrosive chemicals such as sulfuric acid, hydrochloric acid, and sodium hydroxide. The high corrosion resistance of stainless steel nozzles makes them an ideal choice for chemical cooling towers. Whether in petrochemical, coal chemical, or fine chemical fields, they can withstand the corrosion of strong acids and alkalis, prevent uneven spraying caused by nozzle damage, maintain the normal heat exchange efficiency of cooling towers, ensure the stable operation of chemical production equipment, and avoid production accidents due to cooling system failures.
In metallurgical production processes like steel smelting, a large amount of high-temperature gas and liquid is generated, requiring cooling through cooling towers. The high strength and impact resistance of stainless steel nozzles play a key role here, as they can withstand the scouring of high-temperature water flow and circulating water containing metal particles without breakage or deformation. Meanwhile, their precise spraying effect can effectively reduce the temperature of metallurgical equipment, ensuring the smooth progress of steel rolling, forging, and other processes, and improving product quality and production efficiency.
In central air conditioning systems of large commercial buildings, office buildings, hotels, and data centers, cooling towers are used to cool the circulating water of refrigeration units. Stainless steel nozzles excel in their anti-clogging structural design and flexible installation methods. On one hand, they prevent blockages caused by dirt from impurities and microorganisms in the water, ensuring stable spraying; on the other hand, multiple specifications and installation interfaces adapt to different types of cooling towers, making installation convenient. Additionally, their high cooling efficiency helps reduce the energy consumption of air conditioning systems, achieving energy-saving operation and saving operating costs for users.
The food and beverage production has extremely high requirements for hygiene and safety. The water quality of cooling towers must be strictly controlled to avoid product contamination. Stainless steel nozzles are made of safe and non-toxic materials, which will not chemically react with circulating water to produce harmful substances. Their smooth surface is not prone to bacterial growth and dirt accumulation, facilitating cleaning and maintenance, and ensuring that the cooling water quality meets food production standards. Meanwhile, their stable spraying performance provides reliable cooling for food processing equipment, safeguarding production environment and product quality safety.
The pharmaceutical industry has almost rigorous requirements for the environment and equipment. As a key auxiliary device, the operational stability and water quality purity of cooling towers are crucial. Stainless steel nozzles are widely used in cooling towers of pharmaceutical factories due to their corrosion resistance and pollution-free properties, effectively avoiding the impact on circulating water quality caused by nozzle materials and preventing drug production from being contaminated. Their precise spraying and efficient cooling capabilities create a stable working environment for pharmaceutical equipment, helping drug production meet strict quality standards.
The textile and dyeing process requires a large amount of hot water, and cooling towers are used to cool and recycle the hot water. Circulating water contains dyes, auxiliaries, and other chemical substances, which are corrosive to some extent. Stainless steel nozzles have strong corrosion resistance, adapting to this complex water quality and ensuring long-term stable operation. Meanwhile, their uniform spraying effect can quickly reduce water temperature, meeting the cooling needs of textile and dyeing equipment, improving water resource utilization, and reducing production costs.
In seawater desalination plants, cooling towers need to handle seawater or concentrated brine with extremely high salt content, and nozzles made of ordinary materials are 极易 (easily) corroded and damaged. Stainless steel nozzles, with their excellent resistance to seawater corrosion, still maintain good structural strength and spraying performance in high-salt environments, effectively cooling seawater desalination equipment, ensuring the normal operation of the desalination process, and providing reliable support for solving water shortage problems.
![]() | ![]() |
Stainless Steel Cooling Tower Nozzle Packing
Wooden,cartons,custom package.
With in 10 days.
