The ABS Triple Splash Industrial Water Spray Nozzles is made of ABS plastic by one-time injection molding, which has high strength and long service life. The nozzle distributes water evenly, and the working water pressure is low (the working pressure at the nozzle outlet is only 0.6H20), and the pressure adaptation range is wide, so it is not easy to block. Because it has a specially designed locking and anti-loosening device, it can be firmly connected with the water distribution pipe without falling off, which can ensure the long-term safe operation of the water distribution system. Under normal conditions, the service life of the head is 20 years.

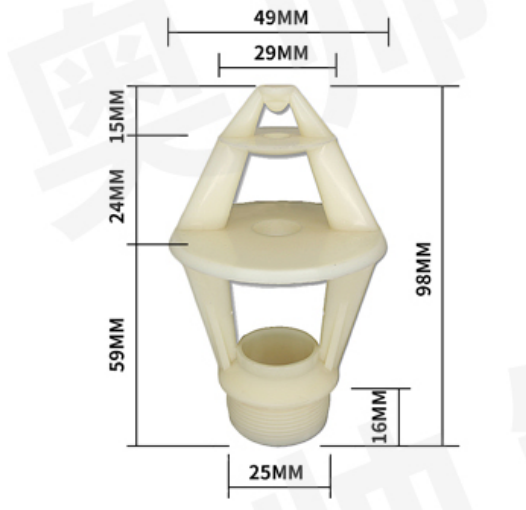

ABS Triple Splash Industrial Water Spray Nozzles Specification
When ABS Triple Splash Industrial Water Spray Nozzles Need To Be Replaced:
ABS Triple Splash Industrial Water Spray Nozzles Clogging
Cause: Over long-term operation, impurities, scale, and microorganisms in the water can adhere to the inside of the nozzles or the spray holes, leading to clogging.
Symptoms: Insufficient spray water volume and uneven distribution, resulting in reduced cooling efficiency.
Solution: If the nozzles are severely clogged and cannot be cleaned and unblocked, they need to be replaced.
ABS Triple Splash Industrial Water Spray Nozzles Wear or Damage
Cause: The nozzles may wear out or get damaged due to long-term exposure to water flow impact and corrosion.
Symptoms: The spray shape and water flow of the nozzles change, failing to meet the designed water distribution requirements.
Solution: Regularly inspect the condition of the nozzles. If they are severely worn or damaged, they should be replaced promptly.
ABS Triple Splash Industrial Water Spray Nozzles Aging
Cause: The durability of nozzle materials is limited. When exposed to high temperatures and high humidity for a long time, the nozzles will gradually age.
Symptoms: The performance of the nozzles declines, such as reduced water flow and altered spray angles.
Solution: Even if the nozzles do not show obvious damage, they should be replaced regularly based on their service life and actual operating conditions.
ABS Triple Splash Industrial Water Spray Nozzles Uneven Water Distribution
Cause: Nozzle blockage, damage, aging, and deformation of the water distribution pipes can all lead to uneven water distribution.
Symptoms: The heat exchange effect of the cooling tower packing layer deteriorates. Some parts of the packing do not have enough water coverage, resulting in dry spots.
Solution: Inspect the condition of the nozzles, clean or replace the clogged or damaged ones, and check whether the water distribution pipes are tilted or deformed. If necessary, repair or replace them.
ABS Triple Splash Industrial Water Spray Nozzles Reduced Cooling Efficiency
Cause: Problems with the nozzles lead to poor water flow, distribution, and spray effect of the spray water, affecting the heat exchange efficiency of the cooling tower.
Symptoms: The temperature of the cooled water does not meet the design requirements, and the system operating efficiency decreases.
Solution: Inspect the nozzles for blockages, wear, or aging. If problems are found, replace the nozzles promptly.
ABS Triple Splash Industrial Water Spray Nozzles Material Not Suitable for Water Quality
Cause: If the water quality of the cooling tower is poor and contains a large amount of corrosive substances, and the nozzle material is not corrosion-resistant, the nozzles will be corroded and damaged.
Symptoms: Cracks, holes, or deformation appear in the nozzles.
Solution: Replace the nozzles with materials that have better corrosion resistance, such as stainless steel or engineering plastics.
ABS Triple Splash Industrial Water Spray Nozzles Features
ABS Triple Splash Industrial Water Spray Nozzles Structure and Design
-
ABS Triple Splash Industrial Water Spray Nozzles Multi-layer splash plate structure:

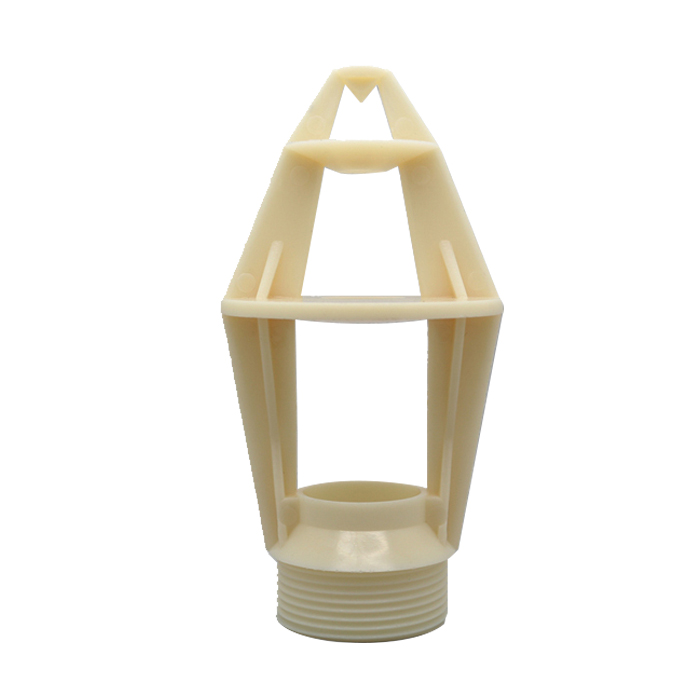

The three-splash nozzle typically consists of a large splash plate, a small splash plate, and a conical water-splashing head. Water is sprayed from the conical nozzle and impacts the splash plate, forming uniformly distributed mist-like small droplets. -
ABS Triple Splash Industrial Water Spray Nozzles Integrated design:
The nozzle is made of materials such as ABS or modified polypropylene and is integrally injection-molded. It has no narrow internal passages, making it less prone to clogging. -
ABS Triple Splash Industrial Water Spray Nozzles Anti-loosening design:
The nozzle is equipped with a special locking anti-loosening device for connection with the water supply pipe, effectively preventing detachment and ensuring long-term stable operation of the system.
ABS Triple Splash Industrial Water Spray Nozzles Water Distribution Performance
-
ABS Triple Splash Industrial Water Spray Nozzles Uniform water distribution:
The nozzle can evenly distribute the water flow over the cooling tower packing, with no obvious umbrella film or hollow phenomenon. The water quantity decreases radially in a gradual manner. -
ABS Triple Splash Industrial Water Spray Nozzles Strong adaptability:
It has a high adaptability to hydraulic load. Even when the operating load reaches 130% or drops to 70%, the uniformity of water distribution remains unaffected.
ABS Triple Splash Industrial Water Spray Nozzles Operating Parameters
-
ABS Triple Splash Industrial Water Spray Nozzles Low water pressure operation:
The working water pressure is low. The normal operating pressure at the nozzle outlet is only 0.6 meters of water column (approximately 0.06 MPa), which saves energy. -
ABS Triple Splash Industrial Water Spray Nozzles Large splash radius:
Even at low water pressure, the nozzle has a large splash radius, effectively covering the cooling tower packing area.
ABS Triple Splash Industrial Water Spray Nozzles Service Life and Maintenance
-
ABS Triple Splash Industrial Water Spray Nozzles Durable material:
Made of high-strength plastic materials such as ABS, it is resistant to high temperatures and corrosion, with a long service life of generally 15-20 years. -
ABS Triple Splash Industrial Water Spray Nozzles Maintenance-free design:
The simple internal structure of the nozzle makes it less prone to clogging. The water distribution system is also designed with drainage points for easy maintenance.
ABS Triple Splash Industrial Water Spray Nozzles Heat Dissipation Effect
-
ABS Triple Splash Industrial Water Spray Nozzles Good atomization effect:
The nozzle can atomize the water flow into fine droplets, increasing the contact area between water and air and improving heat dissipation efficiency. -
ABS Triple Splash Industrial Water Spray Nozzles Suitable for various cooling towers:
Crossflow Cooling Towers
Reason for Suitability: In crossflow cooling towers, the water flows perpendicular to the airflow. The nozzles need to evenly distribute hot water onto the fill media to achieve efficient heat exchange. The uniform water distribution performance of ABS plastic nozzles meets this requirement well.
Features: ABS plastic nozzles typically feature a spiral target design, which can evenly spray hot water onto the fill media, preventing localized overcooling or overheating and thereby improving cooling efficiency.
Counterflow Cooling Towers
Reason for Suitability: In counterflow cooling towers, the water flows in the opposite direction to the airflow. The nozzles need to evenly distribute hot water into the cooling tower fill while avoiding clogging. The clog-free design and good high-temperature resistance of ABS plastic nozzles make them an ideal choice.
Features: These nozzles are usually injection-molded, with a simple structure that makes installation and replacement convenient. They also have a broad hydraulic load adaptability.
Hybrid Flow Cooling Towers
Reason for Suitability: Hybrid flow cooling towers combine the advantages of crossflow and counterflow types and have higher performance requirements for nozzles. ABS plastic nozzles can adapt to complex water and airflow conditions, ensuring the even distribution of cooling water.
Features: The high mechanical strength of ABS nozzles allows them to operate stably even in the complex environment of hybrid flow cooling towers.
Cooling Towers in Special Environments
Reason for Suitability: When dealing with media containing corrosive substances, such as sulfuric acid or hydrochloric acid, the corrosion resistance of ABS material is a significant advantage, extending the nozzle's service life.
Features: The smooth surface of ABS nozzles is less likely to accumulate scale, which helps improve cooling efficiency and reduces maintenance costs.
Other Cooling Towers
Reason for Suitability: ABS plastic nozzles are also suitable for small cooling towers or applications where cost control is a priority. The one-time injection molding process keeps production costs low while ensuring product quality.
Features: These nozzles are easy to install and come with locking anti-loosening devices to ensure a secure connection with the water distribution pipe, guaranteeing the long-term stable operation of the water distribution system.
ABS Triple Splash Industrial Water Spray Nozzles Application
The application range is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation, Tannery, Electric furnace, Freezing Series, Air conditioning cooling system
ABS Triple Splash Industrial Water Spray Nozzles Shippment
Packing:
Wooden,cartons,custom package.
Delivery time:
With in 10 days.
