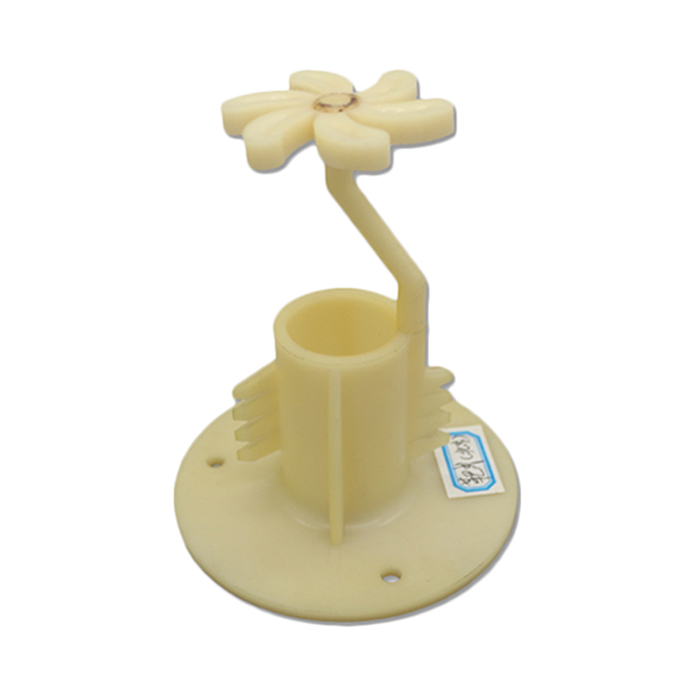

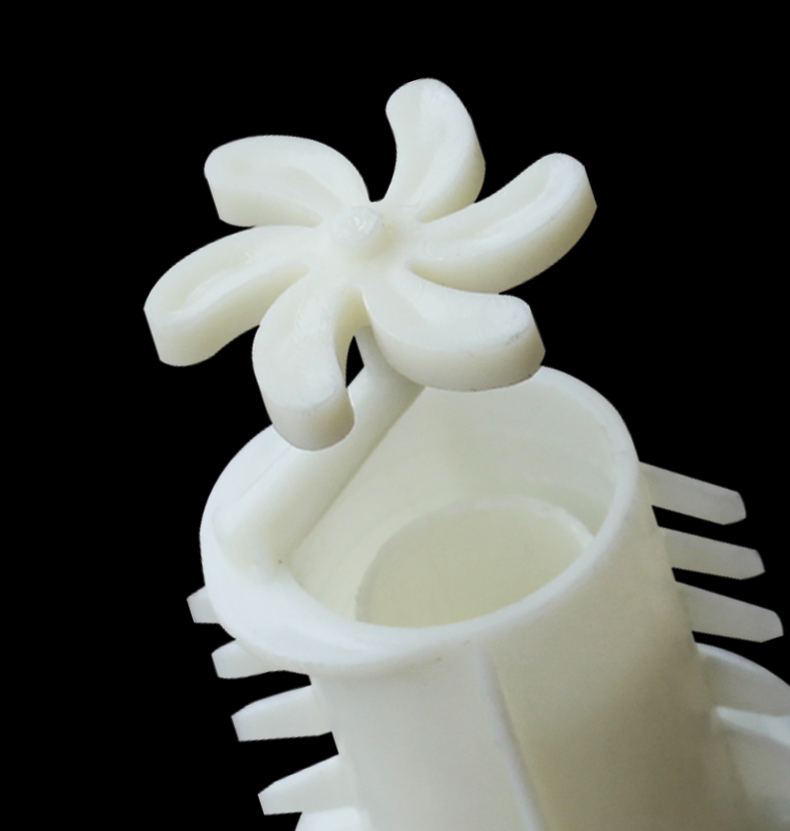

ABS Target Type Cooling Tower Hot Deck Nozzle

The nozzle is made of ABS plastic by one-time injection molding, which has high strength and long service life.
  • APZ7

  • PT

  • 10 days

Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Product Description

The ABS Target Type Cooling Tower Hot Deck Nozzle is made of ABS plastic by one-time injection molding, which has high strength and long service life. The nozzle distributes water evenly, and the working water pressure is low (the working pressure at the nozzle outlet is only 0.6H20), and the pressure adaptation range is wide, so it is not easy to block. Because it has a specially designed locking and anti-loosening device, it can be firmly connected with the water distribution pipe without falling off, which can ensure the long-term safe operation of the water distribution system. Under normal conditions, the service life of the head is 20 years.


When ABS Target Type Cooling Tower Hot Deck Nozzle Need To Be Replaced:


ABS Target Type Cooling Tower Hot Deck Nozzle Clogging

  • Cause: Over long-term operation, impurities, scale, and microorganisms in the water can adhere to the inside of the nozzles or the spray holes, leading to clogging.

  • Symptoms: Insufficient spray water volume and uneven distribution, resulting in reduced cooling efficiency.

  • Solution: If the nozzles are severely clogged and cannot be cleaned and unblocked, they need to be replaced.

ABS Target Type Cooling Tower Hot Deck Nozzle Wear or Damage

  • Cause: The nozzles may wear out or get damaged due to long-term exposure to water flow impact and corrosion.

  • Symptoms: The spray shape and water flow of the nozzles change, failing to meet the designed water distribution requirements.

  • Solution: Regularly inspect the condition of the nozzles. If they are severely worn or damaged, they should be replaced promptly.

ABS Target Type Cooling Tower Hot Deck Nozzle Aging

  • Cause: The durability of nozzle materials is limited. When exposed to high temperatures and high humidity for a long time, the nozzles will gradually age.

  • Symptoms: The performance of the nozzles declines, such as reduced water flow and altered spray angles.

  • Solution: Even if the nozzles do not show obvious damage, they should be replaced regularly based on their service life and actual operating conditions.

ABS Target Type Cooling Tower Hot Deck Nozzle Uneven Water Distribution

  • Cause: Nozzle blockage, damage, aging, and deformation of the water distribution pipes can all lead to uneven water distribution.

  • Symptoms: The heat exchange effect of the cooling tower packing layer deteriorates. Some parts of the packing do not have enough water coverage, resulting in dry spots.

  • Solution: Inspect the condition of the nozzles, clean or replace the clogged or damaged ones, and check whether the water distribution pipes are tilted or deformed. If necessary, repair or replace them.

ABS Target Type Cooling Tower Hot Deck Nozzle Reduced Cooling Efficiency

  • Cause: Problems with the nozzles lead to poor water flow, distribution, and spray effect of the spray water, affecting the heat exchange efficiency of the cooling tower.

  • Symptoms: The temperature of the cooled water does not meet the design requirements, and the system operating efficiency decreases.

  • Solution: Inspect the nozzles for blockages, wear, or aging. If problems are found, replace the nozzles promptly.

ABS Target Type Cooling Tower Hot Deck Nozzle Material Not Suitable for Water Quality

  • Cause: If the water quality of the cooling tower is poor and contains a large amount of corrosive substances, and the nozzle material is not corrosion-resistant, the nozzles will be corroded and damaged.

  • Symptoms: Cracks, holes, or deformation appear in the nozzles.

  • Solution: Replace the nozzles with materials that have better corrosion resistance, such as stainless steel or engineering plastics.


ABS Target Type Cooling Tower Hot Deck Nozzle Specification


Material ABS
Color White


ABS Target Type Cooling Tower Hot Deck Nozzle Features


1.ABS Target Type Cooling Tower Hot Deck Nozzle Structural Design


ABS Target Type Cooling Tower Hot Deck Nozzle typically consist of multiple components, including a first nozzle, a second nozzle, and a reflective element. These components are designed to be detachably connected, facilitating easy cleaning and maintenance. The internal passages form a reflective channel, which includes sections for hydraulic flow distribution, contraction, transition, and reflection. This design effectively guides and accelerates fluid flow, and the reflection mechanism enhances atomization.

2. ABS Target Type Cooling Tower Hot Deck Nozzle Atomization Performance

ABS Target Type Cooling Tower Hot Deck Nozzle utilizes internal reflectors and sub-reflectors to repeatedly reflect and fragment the fluid, creating fine atomized droplets. This design not only improves atomization efficiency but also effectively prevents nozzle clogging, making it particularly suitable for fluids containing solid particles.

3. ABS Target Type Cooling Tower Hot Deck Nozzle Material and Durability

ABS Target Type Cooling Tower Hot Deck Nozzle are usually manufactured from high-strength materials, such as stainless steel or engineering plastics. These materials offer excellent corrosion resistance and impact strength, extending the service life of the nozzle. For example, the reflector block has a maximum diameter greater than 1 mm, a length greater than 2 mm, and a thickness between one-third and one-half of the maximum diameter. These design details ensure the structural integrity and durability of the nozzle.

4. ABS Target Type Cooling Tower Hot Deck Nozzle Maintenance Convenience

The detachable design of the ABS Target Type Cooling Tower Hot Deck Nozzle makes maintenance very convenient. When the nozzle needs cleaning or becomes clogged, simply disassemble the first and second nozzles, remove the debris, and reassemble. This design greatly simplifies the use and maintenance process of the nozzle.

5. ABS Target Type Cooling Tower Hot Deck Nozzle Application Scenarios

ABS Target Type Cooling Tower Hot Deck Nozzle are suitable for a wide range of industrial applications, including cooling, drying, cleaning, and moving objects on conveyor belts. The design generates a high-impact velocity planar fan-shaped airflow, suitable for applications requiring uniform airflow coverage. Additionally, reflective nozzles can be combined with multiple nozzles or installed on manifold pipes to achieve broader coverage.

6. ABS Target Type Cooling Tower Hot Deck Nozzle Performance Optimization

The ABS Target Type Cooling Tower Hot Deck Nozzle's internal reflective channel design effectively enhances fluid atomization and reduces the likelihood of nozzle clogging. The cone angles of the contraction section, reflection section, and reflector blocks are typically between 10° and 30°, which helps accelerate fluid flow and achieve better atomization.

7. ABS Target Type Cooling Tower Hot Deck Nozzle Size and Specifications

The inlet diameter of ABS Target Type Cooling Tower Hot Deck Nozzle usually ranges from 10 mm to 20 mm, and the length of the transition section is greater than 3 mm. These dimensional parameters can be selected and adjusted according to specific application requirements to meet diverse industrial needs.

8. ABS Target Type Cooling Tower Hot Deck Nozzle Compatibility

The design of ABS Target Type Cooling Tower Hot Deck Nozzle typically considers compatibility with other equipment. For example, the outer wall may be equipped with external threads for easy connection to other components, such as pipe clamps. This design ensures the nozzle's versatility and ease of use in different systems.

9. ABS Target Type Cooling Tower Hot Deck Nozzle Noise Control

ABS Target Type Cooling Tower Hot Deck Nozzle are designed with noise control in mind. The generated airflow is uniform and has low noise emissions, making them advantageous in environments where low-noise operation is required.

10. ABS Target Type Cooling Tower Hot Deck Nozzle Operating Temperature and Pressure

ABS Target Type Cooling Tower Hot Deck Nozzle have a wide range of operating temperatures and pressures. For example, some models can operate at temperatures up to 110°C and pressures up to 15 bar. This broad applicability allows them to function stably in various industrial environments.


In summary, ABS Target Type Cooling Tower Hot Deck Nozzle, with their unique structural design, efficient atomization performance, and maintenance convenience, are an ideal choice for many industrial applications.


ABS Target Type Cooling Tower Hot Deck Nozzle Application


The application range is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation,  Tannery,  Electric furnace,  Freezing Series,  Air conditioning cooling system


ABS Target Type Cooling Tower Hot Deck Nozzle Shippment


Packing:

Wooden pallet.

Delivery time:

With in 10 days.

未标题-1

Our Services Of The ABS Target Type Cooling Tower Hot Deck Nozzle


-Pre-sale services


Based on the clients' requirements, we will offer product pictures, videos, quotation,information,

engineering drawings until you satisfied with it. Warmly welcome to visit our factory.



-Sale services


1 Providing production schedule photos to ensure you know every process.

2 Our experienced technician are available on the phone also internet, the clients can get instance

guidance by telephone,email, online service anytime, anywhere.

3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.


-After-sale services


Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients

to follow up the working condition of our machines, and offer support for maintenance.


Why choose us?


1. Highest quality


We are the manufacturer who adopts import raw materials. It is cheap price and guaranteed quality.

2. Most competitive price


We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.

3. Professional


We are specialized in producing and sells as development, methods and handling. We have 16 years experience.

4. Best service


Answering emails and solving questions timely. Delivery and update information on time.
Trust, good quality and service are the basic of long term business.
