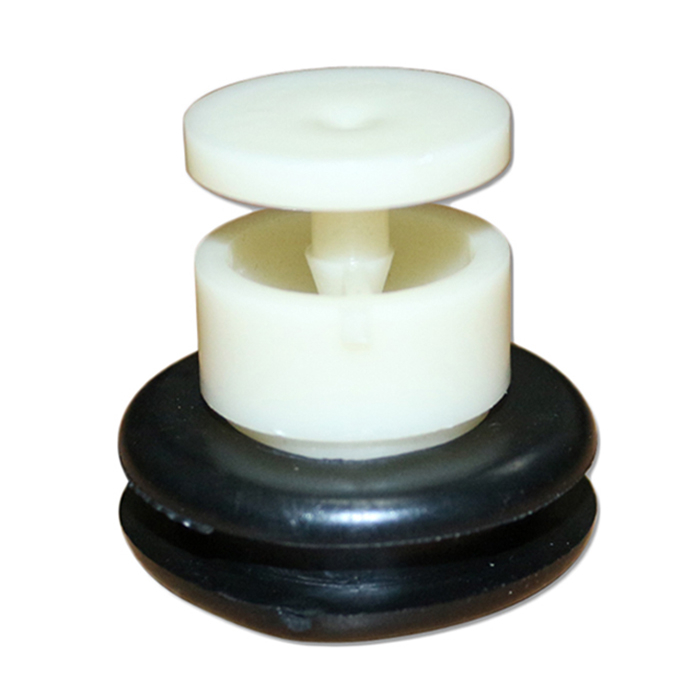

Cosed-circuit cooling tower nozzles are designed to meet the specific requirements of closed-loop cooling systems, where water is recirculated and not exposed to the external environment. These nozzles play a crucial role in ensuring efficient heat transfer and maintaining the overall performance of the cooling tower. The ABS Cooler Nozzle For Closed Cooling Tower is made of ABS plastic by one-time injection molding, which has high strength and long service life. The nozzle distributes water evenly, and the working water pressure is low (the working pressure at the nozzle outlet is only 0.6H20), and the pressure adaptation range is wide, so it is not easy to block. Because it has a specially designed locking and anti-loosening device, it can be firmly connected with the water distribution pipe without falling off, which can ensure the long-term safe operation of the water distribution system. Under normal conditions, the service life of the head is 20 years.
When The ABS Cooler Nozzle For Closed Cooling Tower Need To Be Replaced:
ABS Cooler Nozzle For Closed Cooling Tower Clogging
Cause: Over long-term operation, impurities, scale, and microorganisms in the water can adhere to the inside of the nozzles or the spray holes, leading to clogging.
Symptoms: Insufficient spray water volume and uneven distribution, resulting in reduced cooling efficiency.
Solution: If the nozzles are severely clogged and cannot be cleaned and unblocked, they need to be replaced.
ABS Cooler Nozzle For Closed Cooling Tower Wear or Damage
Cause: The nozzles may wear out or get damaged due to long-term exposure to water flow impact and corrosion.
Symptoms: The spray shape and water flow of the nozzles change, failing to meet the designed water distribution requirements.
Solution: Regularly inspect the condition of the nozzles. If they are severely worn or damaged, they should be replaced promptly.
ABS Cooler Nozzle For Closed Cooling Tower Aging
Cause: The durability of nozzle materials is limited. When exposed to high temperatures and high humidity for a long time, the nozzles will gradually age.
Symptoms: The performance of the nozzles declines, such as reduced water flow and altered spray angles.
Solution: Even if the nozzles do not show obvious damage, they should be replaced regularly based on their service life and actual operating conditions.
ABS Cooler Nozzle For Closed Cooling Tower Uneven Water Distribution
Cause: Nozzle blockage, damage, aging, and deformation of the water distribution pipes can all lead to uneven water distribution.
Symptoms: The heat exchange effect of the cooling tower packing layer deteriorates. Some parts of the packing do not have enough water coverage, resulting in dry spots.
Solution: Inspect the condition of the nozzles, clean or replace the clogged or damaged ones, and check whether the water distribution pipes are tilted or deformed. If necessary, repair or replace them.
ABS Cooler Nozzle For Closed Cooling Tower Reduced Cooling Efficiency
Cause: Problems with the nozzles lead to poor water flow, distribution, and spray effect of the spray water, affecting the heat exchange efficiency of the cooling tower.
Symptoms: The temperature of the cooled water does not meet the design requirements, and the system operating efficiency decreases.
Solution: Inspect the nozzles for blockages, wear, or aging. If problems are found, replace the nozzles promptly.
ABS Cooler Nozzle For Closed Cooling Tower Material Not Suitable for Water Quality
Cause: If the water quality of the cooling tower is poor and contains a large amount of corrosive substances, and the nozzle material is not corrosion-resistant, the nozzles will be corroded and damaged.
Symptoms: Cracks, holes, or deformation appear in the nozzles.
Solution: Replace the nozzles with materials that have better corrosion resistance, such as stainless steel or engineering plastics.
ABS Cooler Nozzle For Closed Cooling Tower Specification
ABS Cooler Nozzle For Closed Cooling Tower Features
-
The ABS Cooler Nozzle For Closed Cooling Tower Uniform Water Distribution:
The ABS Cooler Nozzle For Closed Cooling Tower can effectively ensure uniform water distribution. They can achieve a water distribution deviation of no more than 5% of the average value in 95% of the distribution area. This uniform distribution ensures that the heat exchange coils inside the cooling tower are fully wetted, thereby improving heat exchange efficiency. -
The ABS Cooler Nozzle For Closed Cooling Tower Strong Anti-Clogging Performance:
The nozzles are usually made of materials such as PVC, which have good corrosion resistance and are less prone to clogging. Their special design, such as the absence of internal components that could cause blockages, effectively prevents the nozzles from being blocked by impurities or scale buildup, ensuring the long-term stable operation of the system. -
The ABS Cooler Nozzle For Closed Cooling Tower Excellent Atomization:
The nozzles can achieve good atomization at relatively low operating pressures, forming fine water droplets. These small droplets fully contact the rising air as they fall, increasing the contact area between water and air and extending the heat exchange time, thereby improving cooling efficiency. -
The ABS Cooler Nozzle For Closed Cooling Tower High Corrosion Resistance:
The The ABS Cooler Nozzle For Closed Cooling Tower is typically made of materials with good corrosion resistance, such as PVC or polypropylene. These materials can withstand the corrosion from chemicals and impurities in the cooling water, extending the service life of the nozzles and reducing equipment maintenance costs. -
The ABS Cooler Nozzle For Closed Cooling Tower Easy Maintenance:
The The ABS Cooler Nozzle For Closed Cooling Tower's caps are detachable, facilitating inspection and cleaning. This design allows for easy disassembly and cleaning of the nozzles when maintenance is required, ensuring that they remain in good working condition. -
The ABS Cooler Nozzle For Closed Cooling Tower Energy and Water Conservation:
The ABS Cooler Nozzle For Closed Cooling Tower optimize the distribution and utilization efficiency of the spray water, reducing unnecessary water waste. At the same time, their efficient atomization and water distribution capabilities help improve cooling efficiency, thereby reducing system energy consumption.
ABS Cooler Nozzle For Closed Cooling Tower Application
ABS Cooler Nozzle For Closed Cooling Tower Practical Application Suggestions
-
ABS Cooler Nozzle For Closed Cooling Tower Optimize Design:
Choose the appropriate nozzle type and arrangement based on the specific conditions of the cooling tower to achieve the best cooling effect and economic benefits. -
ABS Cooler Nozzle For Closed Cooling Tower Regular Maintenance:
Regularly check the wear and blockage of the nozzles, and replace damaged nozzles in time to ensure the normal operation of the cooling tower. -
ABS Cooler Nozzle For Closed Cooling Tower Adapt to Operating Conditions:
In the winter with low load or low circulation water volume, the uniformity of water distribution can be guaranteed by adjusting the number of running water pumps or using bypass pipes.
By choosing and arranging the nozzles reasonably, the cooling tower can achieve efficient cooling effects while reducing energy consumption and maintenance costs.
ABS Cooler Nozzle For Closed Cooling Tower Advantages in Practical Applications
-
ABS Cooler Nozzle For Closed Cooling Tower Improved Cooling Efficiency:
By ensuring uniform water distribution and efficient heat exchange, closed-circuit cooling tower nozzles significantly enhance the performance of cooling systems. -
ABS Cooler Nozzle For Closed Cooling Tower Reduced Operating Costs:
The low blockage risk and energy-efficient design of the nozzles reduce maintenance frequency and energy consumption, thereby lowering system operating costs. -
ABS Cooler Nozzle For Closed Cooling Tower Extended Equipment Life:
The durability and corrosion resistance of the nozzles reduce system failures caused by nozzle damage, extending the service life of the cooling tower.
The frequency of nozzle inspections should be tailored to the specific conditions and requirements of your system. For critical applications or systems with poor water quality, daily or weekly inspections are recommended. For less critical systems with good water quality, monthly or quarterly inspections may be sufficient. By following these guidelines and best practices, you can ensure that your nozzles remain in optimal condition, reducing the risk of system failure and extending the lifespan of your equipment.
ABS Cooler Nozzle For Closed Cooling Tower Shippment
Packing:
Wooden,cartons,custom package.
Delivery time:
With in 10 days.
Our Services Of ABS Cooler Nozzle For Closed Cooling Tower
-Pre-sale services
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
Why choose us?
1. Highest quality
We are the manufacturer who adopts import raw materials. It is cheap price and guaranteed quality.
2. Most competitive price
We can adjustment the price according to your market demand’s changes,and also can launch a series of promotional activities in a bad economic environment.
3. Professional
We are specialized in producing and sells as development, methods and handling. We have 16 years experience.
4. Best service
Answering emails and solving questions timely. Delivery and update information on time.
Trust, good quality and service are the basic of long term business.
