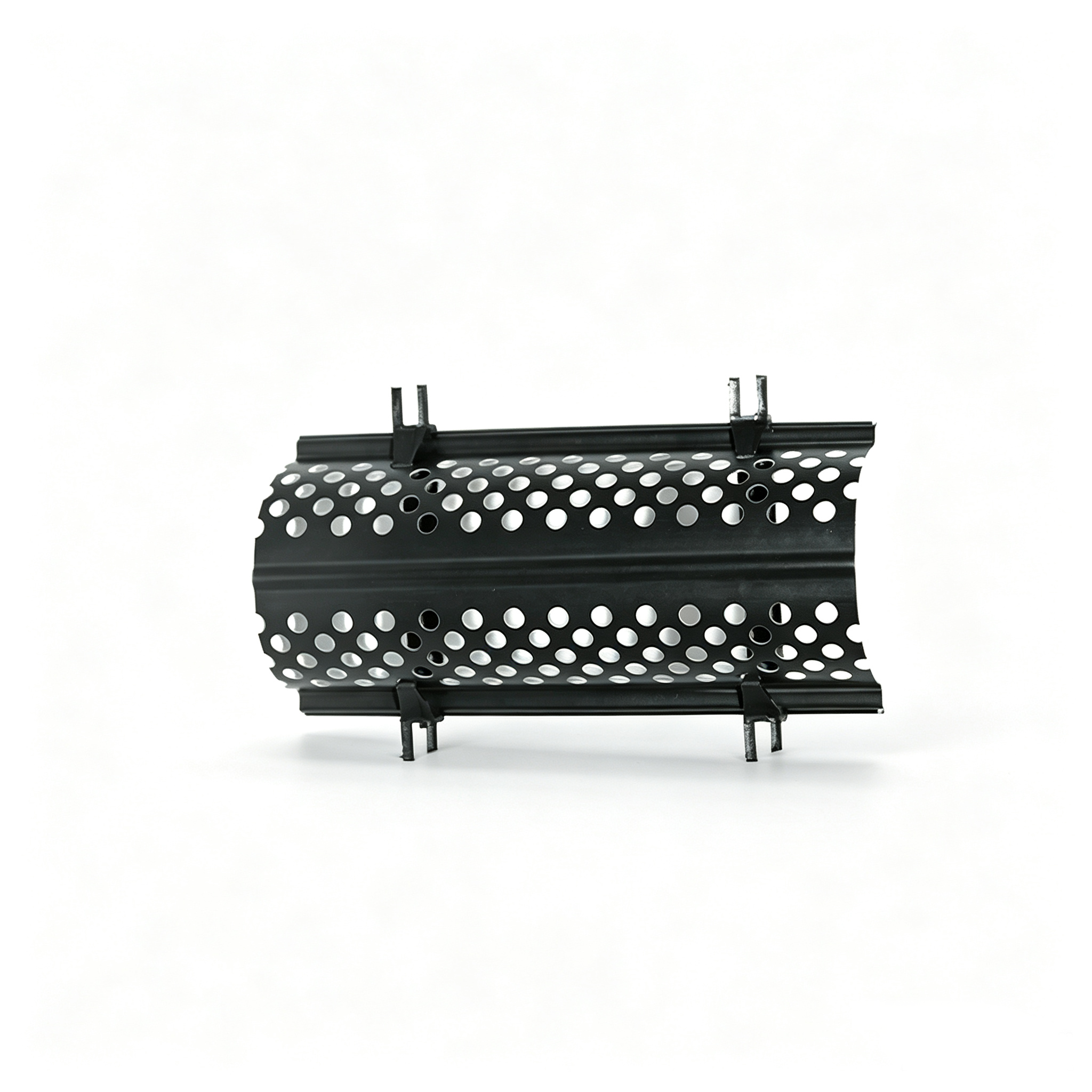

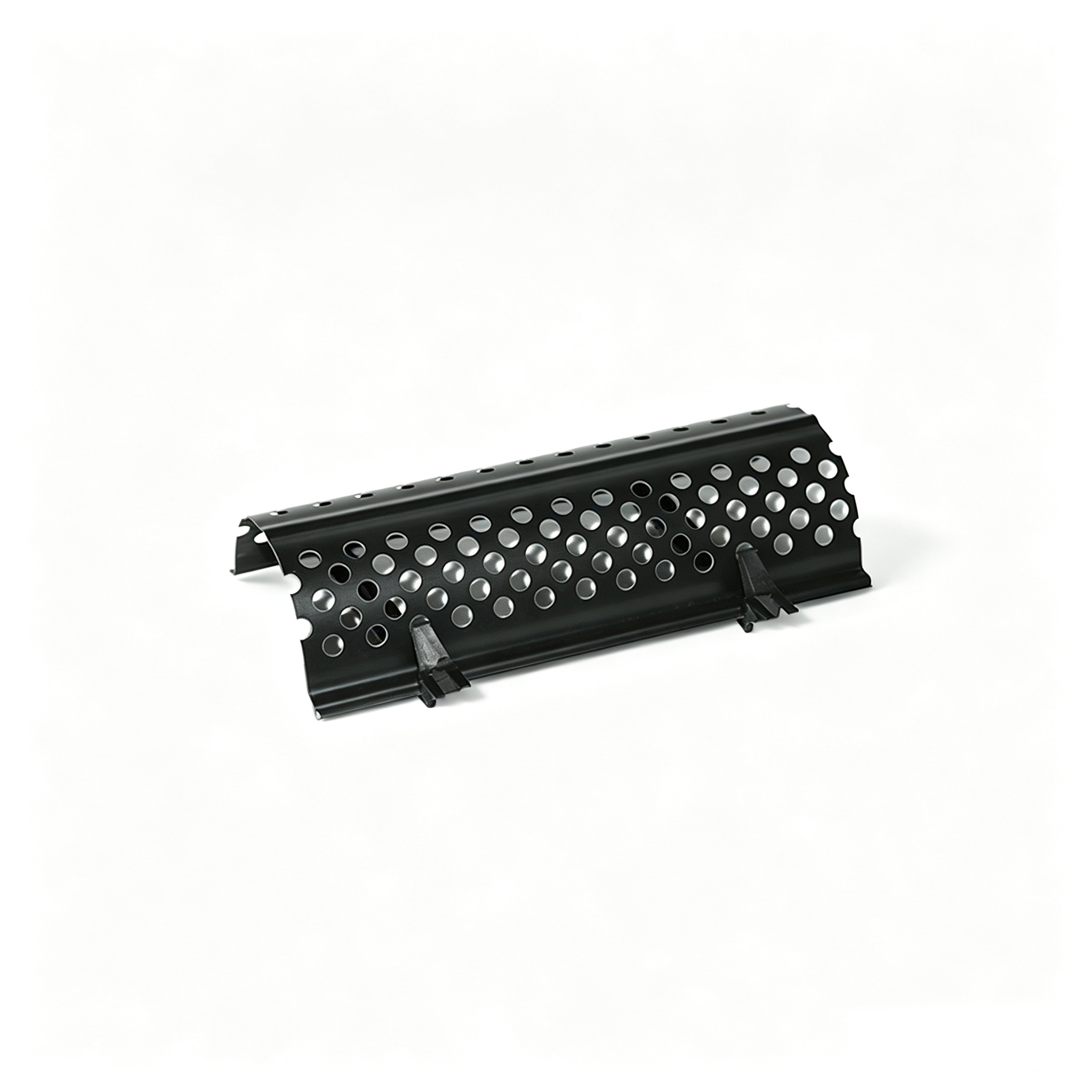

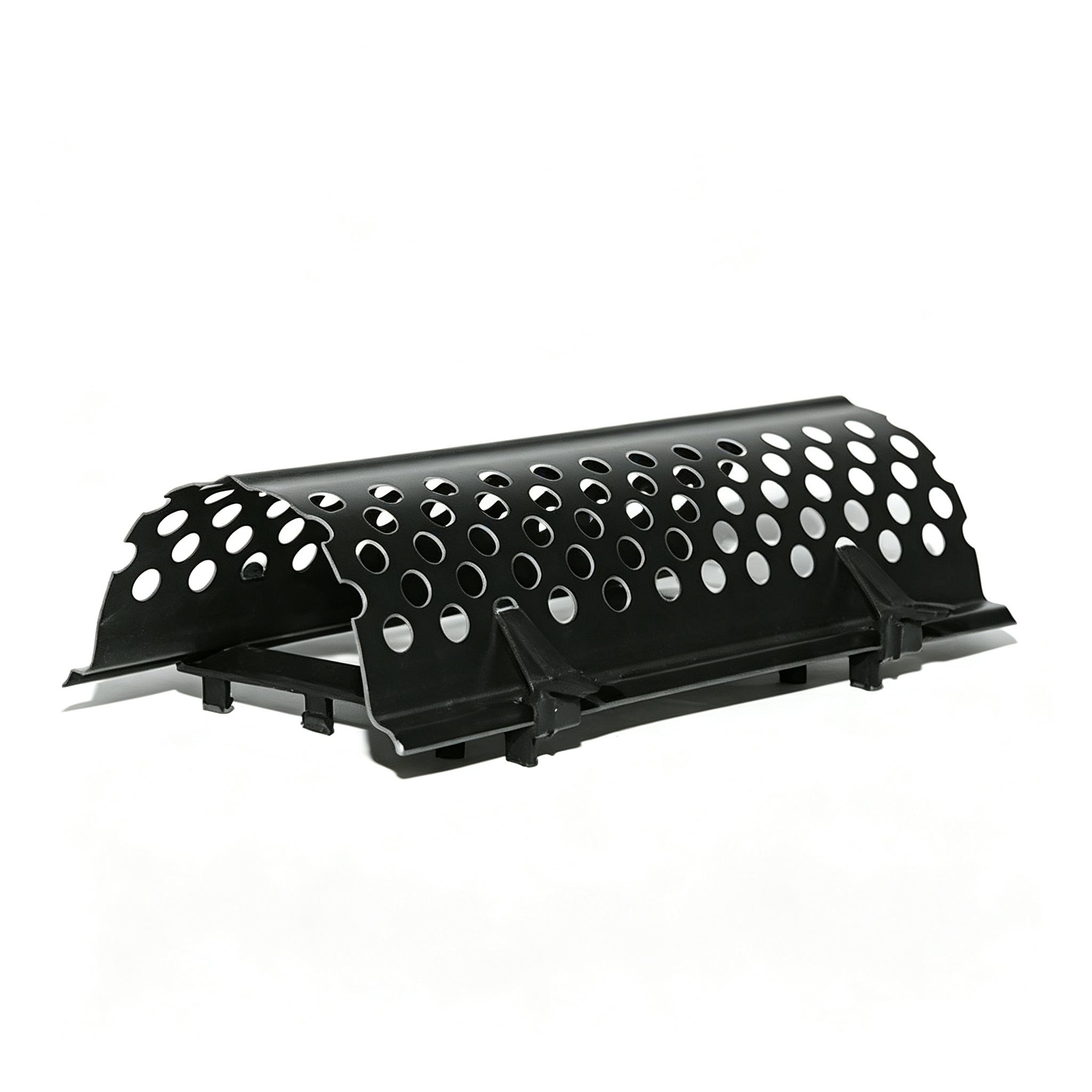

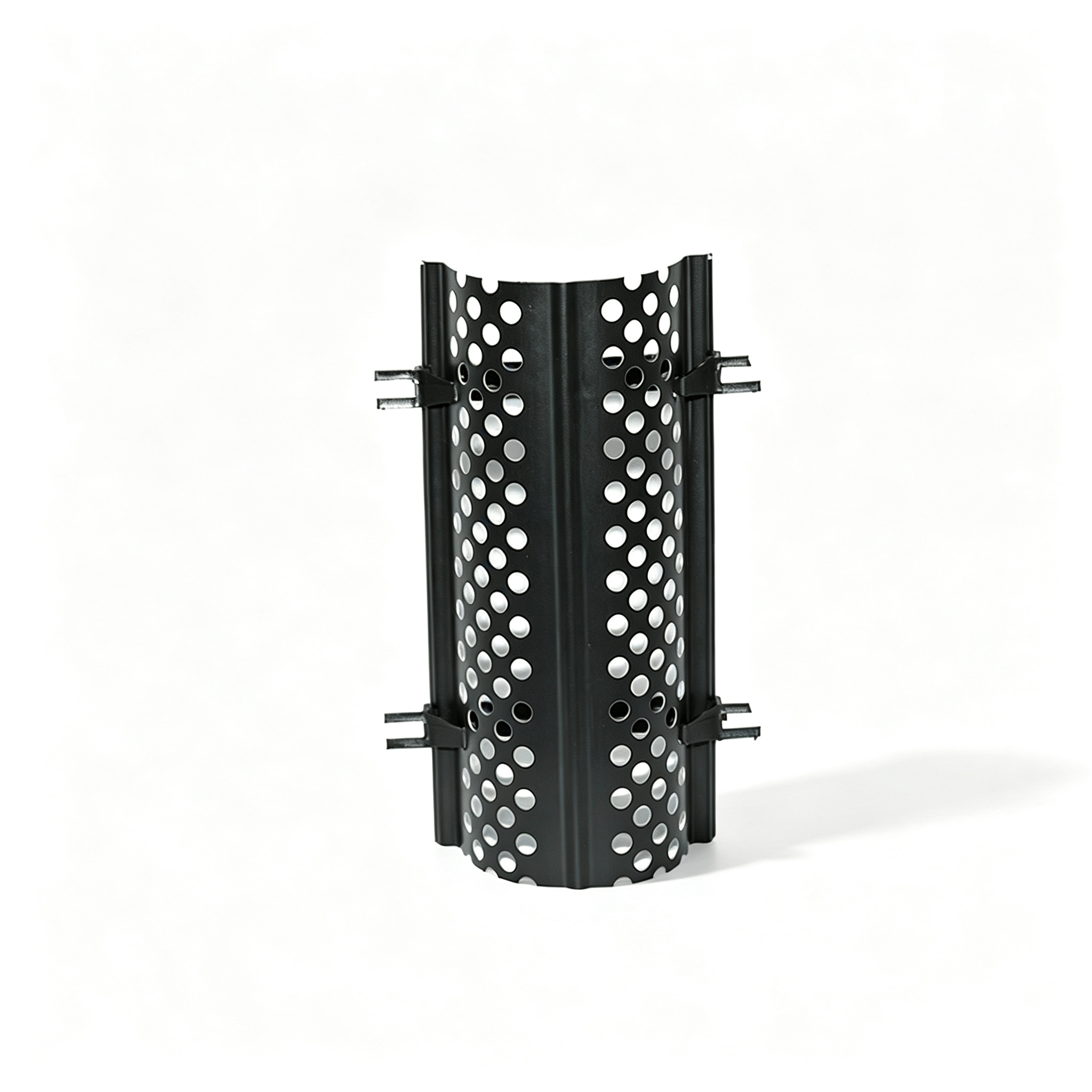

Marley Omega Splash Fill is a high-performance splash fill for crossflow cooling towers, designed to provide reliable heat transfer while offering excellent resistance to fouling, clogging, and suspended solids. It is an ideal cooling tower fill solution for industrial cooling applications where circulating water quality may make conventional film fill difficult to maintain.
Designed for use in Marley/SPX-style crossflow cooling towers, Omega-type splash fill increases air-water contact by repeatedly breaking falling water into droplets. Its open splash configuration helps maintain airflow and water distribution while reducing the risk of blockage caused by debris and scale.
CoolingTowerPart.com supplies Marley-compatible cooling tower splash fill for replacement, refurbishment, and cooling tower maintenance projects. Custom dimensions and configurations can be evaluated according to the existing tower structure and operating requirements.
Splash fill designed for crossflow cooling towers
Excellent resistance to fouling and clogging
Suitable for circulating water containing suspended solids
Open structure promotes airflow through the fill
Provides effective water-to-air contact
Suitable for industrial and process cooling
Available for cooling tower replacement and refurbishment
Can be supplied in customized dimensions
Suitable for Marley-compatible cooling tower applications
Designed for long-term operation in demanding environments

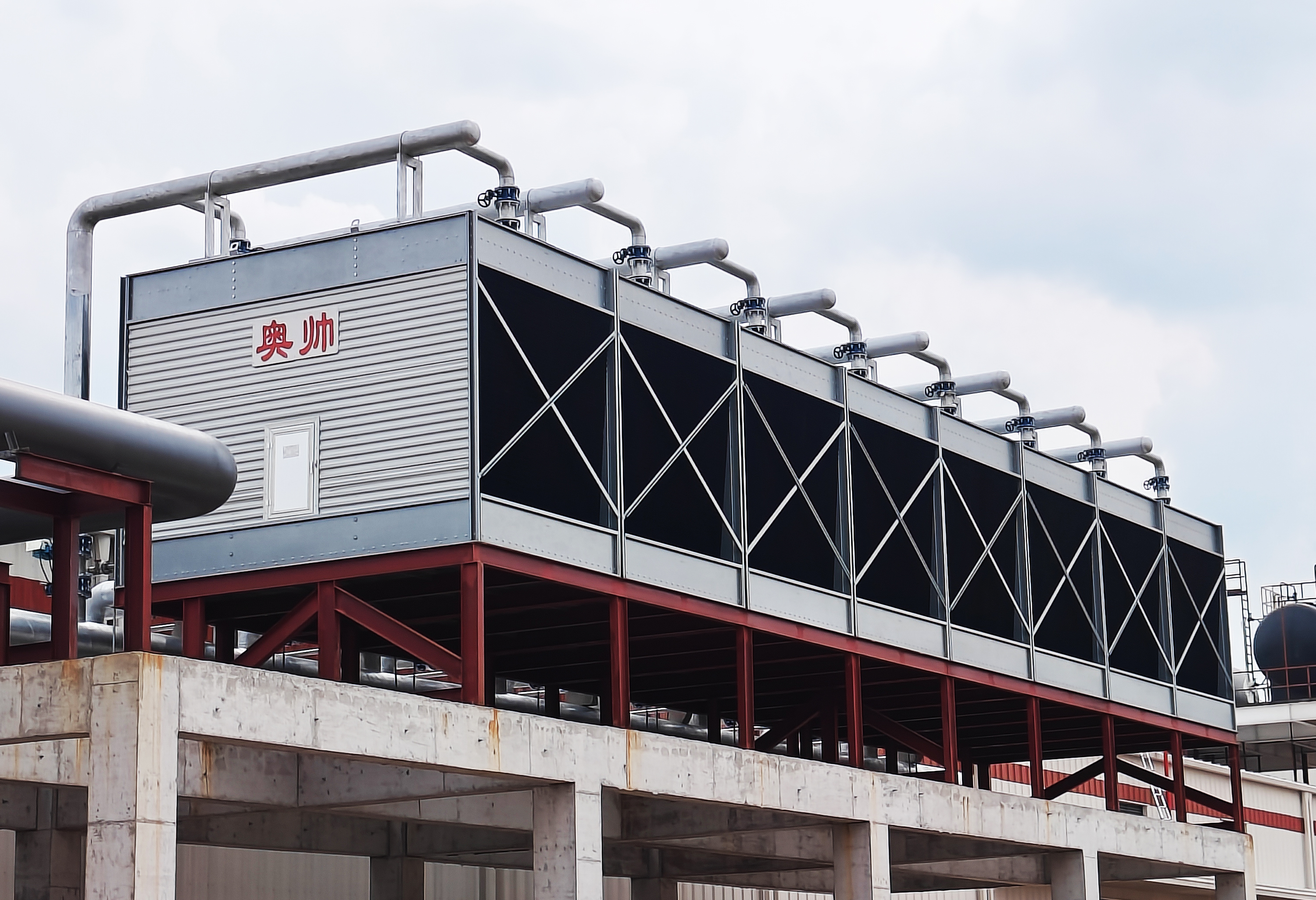

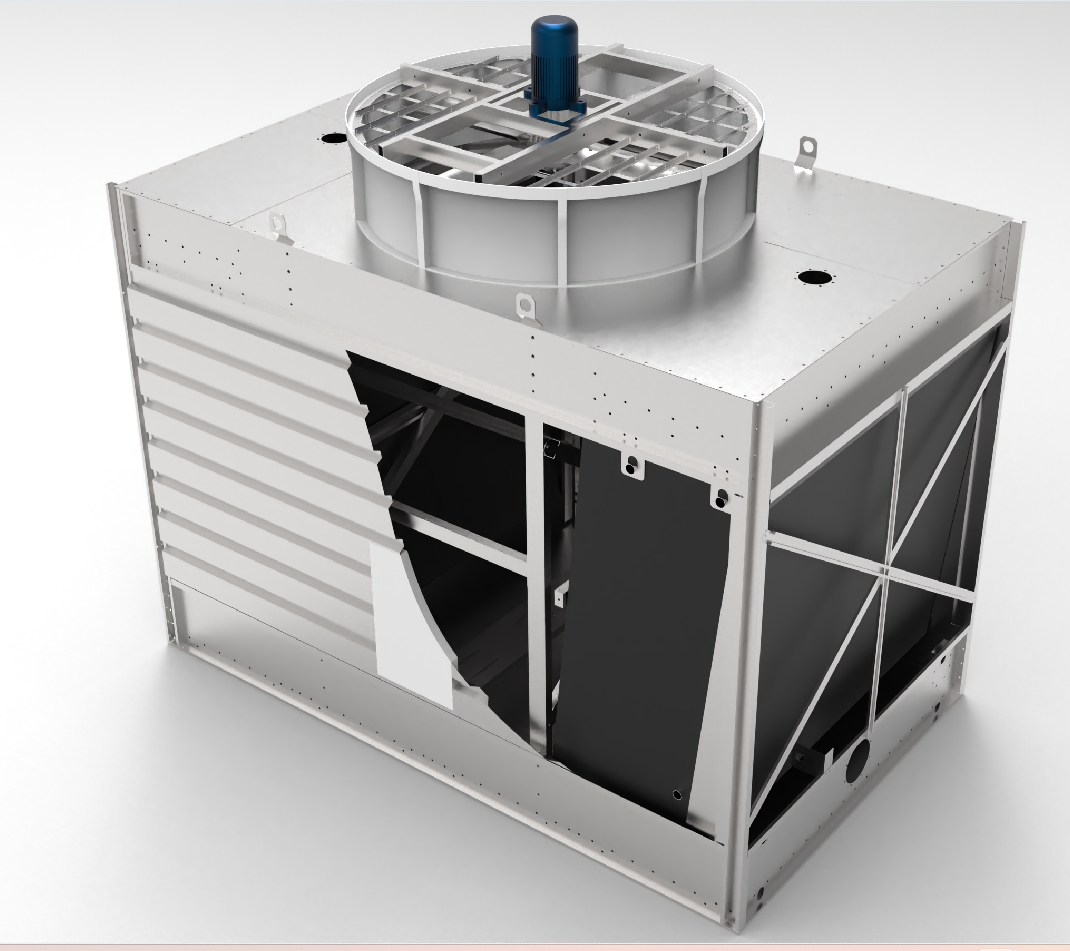

In a typical crossflow cooling tower, hot water is distributed from the upper water basin or distribution system and flows downward through the fill. At the same time, air moves horizontally through the fill section.
The splash fill repeatedly disrupts the falling water, creating droplets and increasing the available water-air interface.
The basic cooling process is:
Hot circulating water → water distribution → splash fill → air-water contact → evaporation → cooled water basin
A small portion of the circulating water evaporates. The latent heat required for evaporation is transferred from the remaining water to the air, reducing the temperature of the circulating water.
The main advantage of splash fill is its ability to provide reliable cooling performance without relying on extremely narrow passages.
For towers operating with relatively clean water, film fill can provide excellent thermal performance. However, industrial systems may experience conditions such as suspended solids, scale, dirt, algae, process contamination, or inadequate water treatment.
In these environments, an open splash configuration can offer important maintenance advantages.
The open structure allows contaminants to pass through more easily than tightly packed film-fill channels.
Large flow passages help minimize blockage caused by debris and suspended particles.
Splash fill is frequently considered for industrial cooling towers where maintaining very clean circulating water is difficult.
The open configuration can help maintain airflow through the fill section when compared with heavily fouled or blocked film-fill surfaces.
The physical structure can make inspection and cleaning easier during cooling tower maintenance.

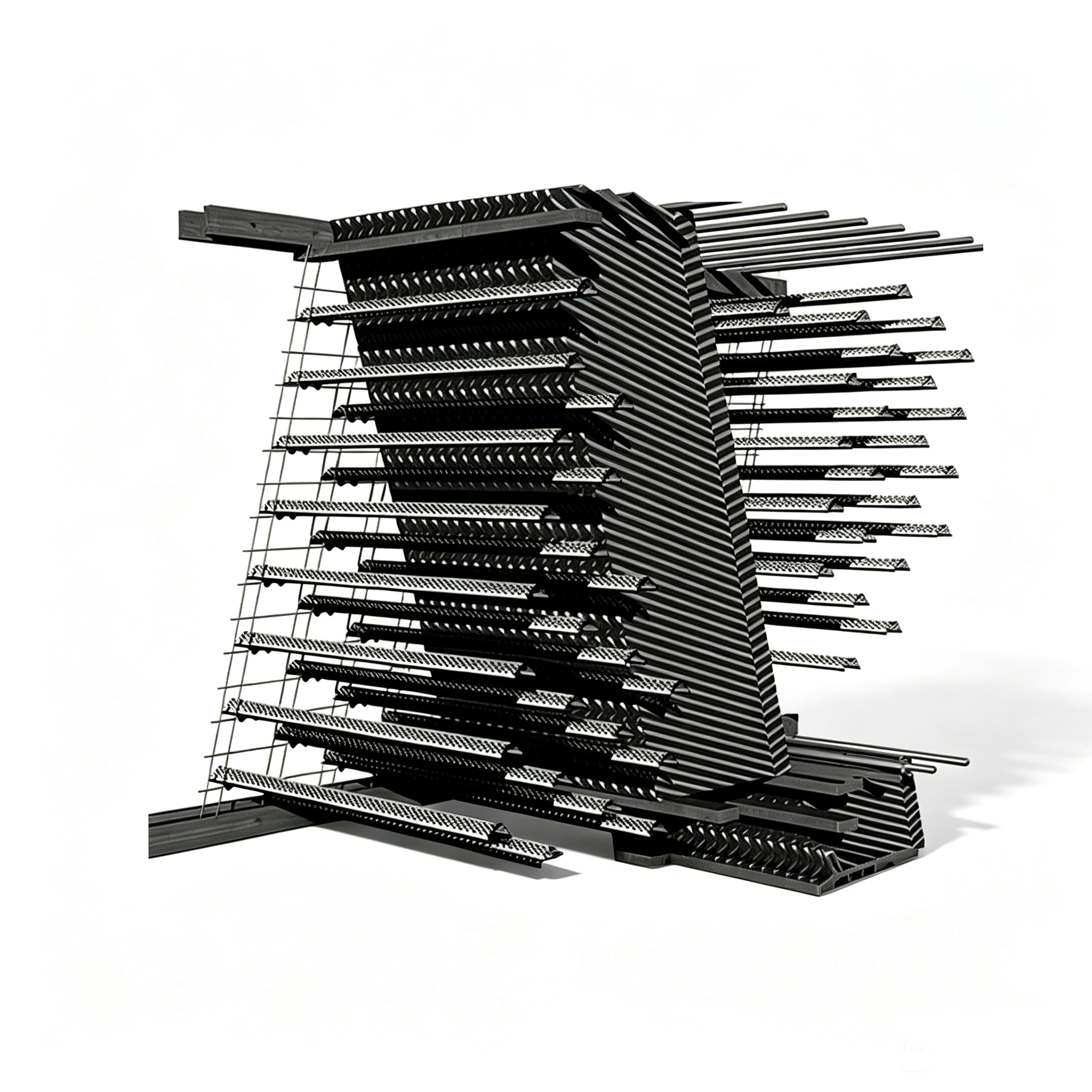

The splash arrangement provides repeated water breakup as water passes through the fill, promoting evaporation and heat transfer.
The relatively open design is well suited to applications where dirt, suspended solids, and biological deposits can affect cooling tower performance.
The product is intended for crossflow cooling tower applications, including replacement and refurbishment projects where the existing fill arrangement is suitable.
Splash fill is appropriate for demanding applications such as manufacturing, process cooling, power generation, chemical processing, and other industrial facilities.
Cooling tower fill often needs to match the original support system and tower dimensions. Replacement splash fill can therefore be evaluated according to required length, width, height, support arrangement, and installation configuration.
| Item | Specification |
|---|---|
| Product Name | Marley Omega Splash Fill |
| Product Type | Cooling Tower Splash Fill |
| Tower Type | Crossflow Cooling Tower |
| Application | Industrial & Process Cooling |
| Fill Configuration | Splash Type |
| Material | Engineering plastic / application-specific material |
| Water Flow | Vertical downward flow |
| Air Flow | Horizontal crossflow |
| Primary Function | Heat Transfer |
| Key Advantage | Fouling and clogging resistance |
| Installation | Cooling tower fill support structure |
| Replacement | Marley-compatible / custom replacement |
| Custom Size | Available according to project requirements |
| Application Temperature | Confirm according to operating conditions |
| Water Quality | Suitable for applications requiring fouling-resistant fill |
Actual material, dimensions, loading, thermal performance, and operating limits should be confirmed against the specific cooling tower design and project requirements.
Both splash fill and film fill are used to increase water-air contact in mechanical cooling towers, but their operating characteristics are different.
| Feature | Splash Fill | Film Fill |
| Water Distribution | Droplets | Thin water film |
| Passage Structure | Relatively open | Closely spaced |
| Fouling Resistance | Excellent | More sensitive to fouling |
| Suspended Solids | Better suited | Requires better water quality |
| Clogging Resistance | High | Lower when heavily contaminated |
| Typical Application | Industrial/process cooling | Clean-water applications |
| Maintenance | Generally easier in dirty-water service | Requires effective water treatment |
| Thermal Efficiency | Application dependent | Typically high with clean water |
The best choice depends on water quality, thermal duty, airflow, hydraulic loading, tower configuration, and maintenance requirements.
Marley Omega-type splash fill can be used in a wide range of cooling tower applications.
Manufacturing plants often require continuous cooling for production equipment and process systems. Splash fill can be advantageous where circulating water contains contaminants.
Cooling towers used in power generation require reliable heat rejection and consistent operation. Fouling-resistant fill can support stable cooling performance when water quality is challenging.
Chemical plants may operate cooling systems under demanding conditions. Properly selected splash fill can provide a robust heat-transfer surface for industrial cooling.
Industrial processes involving furnaces, rolling equipment, casting systems, and hydraulic equipment may require continuous cooling.
For suitable crossflow cooling tower designs, splash fill can also be used in HVAC cooling applications where water quality and maintenance requirements favor an open fill configuration.
Splash fill is suitable for systems where cooling tower performance must be maintained under variable water conditions.
Aged or damaged cooling tower fill can significantly affect tower performance.
Common problems include:
Broken or deformed fill
Scale accumulation
Biological growth
Dirt and sediment buildup
Reduced airflow
Uneven water distribution
Reduced heat-transfer performance
Increased approach temperature
Higher fan energy requirements
Water distribution problems
Replacing deteriorated fill with properly selected cooling tower splash fill can help restore the effective heat-transfer area and improve cooling tower operating reliability.
When replacing Marley cooling tower fill, selecting the correct product is more important than simply matching the appearance of the existing material.
Before ordering replacement fill, engineers should check:
Cooling tower manufacturer
Cooling tower model
Crossflow or counterflow configuration
Existing fill dimensions
Fill height
Fill support arrangement
Water loading
Airflow requirements
Circulating water temperature
Water quality
Suspended solids concentration
Existing spray or distribution system
Providing photographs and measurements of the existing fill can also help determine the appropriate replacement configuration.
Every cooling tower replacement project may have different dimensional requirements. CoolingTowerPart.com can evaluate custom-size cooling tower splash fill based on project information.
Typical customization information includes:
Length
Width
Height
Fill module configuration
Support spacing
Material requirements
Installation orientation
Tower model
Required quantity
For replacement projects, customers should provide the original fill dimensions or cooling tower drawings whenever available.
Proper installation is essential for achieving the intended cooling tower performance.
Before installation:
Shut down and isolate the cooling tower.
Drain or lower the water level as required.
Remove damaged or deteriorated fill.
Inspect the fill support structure.
Clean accumulated sediment and debris.
Check the water distribution system.
Inspect nozzles, pipes, and spray headers.
Verify the replacement fill dimensions.
Install the fill according to the intended orientation.
Confirm that water can distribute evenly across the fill.
Inspect the installation before restarting the tower.
The fill should be properly supported without excessive compression or unsupported spans.
Although splash fill is designed for demanding water conditions, regular maintenance remains important.
Inspect the fill periodically for:
Scale
Dirt
Biological growth
Physical damage
Broken splash elements
Blocked passages
Uneven water distribution
Cleaning frequency depends on water quality and operating conditions. Appropriate cleaning procedures should be selected based on the fill material and type of deposits.
Effective cooling tower water treatment remains important even when using fouling-resistant splash fill. Proper control of scale, corrosion, microbiological growth, and suspended solids helps extend the service life of the entire cooling tower system.
CoolingTowerPart.com provides replacement and aftermarket components for cooling towers, including cooling tower fill, splash fill, film fill, drift eliminators, nozzles, fan blades, gearboxes, motors, belts, louvers, and other cooling tower spare parts.
For Marley-compatible splash fill projects, we can evaluate requirements based on:
Tower manufacturer
Tower model
Existing fill type
Fill dimensions
Operating conditions
Water quality
Required quantity
Delivery requirements
Our goal is to help customers identify a practical replacement solution for cooling tower maintenance, refurbishment, and performance improvement projects.
To request a quotation, provide the following information:
1. Cooling Tower Brand: Marley/SPX or other manufacturer
2. Tower Model: If available
3. Fill Type: Omega splash or existing fill type
4. Fill Dimensions: Length × Width × Height
5. Required Quantity: Number of modules or cubic volume
6. Application: HVAC, industrial, process cooling, power plant, etc.
7. Water Conditions: Clean, recycled, high-solids, process water, etc.
8. Photos: Photos of the existing fill and tower structure are recommended.
This information helps determine the appropriate Marley-compatible cooling tower splash fill for your project.
Marley Omega Splash Fill is a splash-type cooling tower fill designed for crossflow cooling tower applications. It promotes heat transfer by breaking falling water into droplets while providing an open structure with good resistance to fouling.
Yes. Omega-type splash fill is intended for crossflow cooling tower applications where the circulating water flows downward and air moves horizontally through the fill.
Splash fill breaks water into droplets to increase air-water contact, while film fill spreads water into a thin film over closely spaced surfaces. Splash fill is generally more tolerant of suspended solids and fouling, while film fill can provide high thermal performance when water quality is well controlled.
Splash fill is commonly considered for applications with suspended solids or poorer water quality because its open structure provides greater resistance to clogging than tightly spaced film fill. The suitability should be evaluated based on the actual water chemistry and solids loading.
Yes. Replacement fill can be evaluated according to the dimensions and support configuration of the existing cooling tower.
The selection should consider the cooling tower model, tower type, fill dimensions, water loading, airflow, operating temperatures, circulating-water quality, and existing fill support structure.
There is no universal replacement interval. Service life depends on water treatment, operating conditions, UV exposure, temperature, fouling, chemical exposure, and physical damage. Regular inspection is the best way to determine when replacement is necessary.
If the original fill is damaged, heavily fouled, collapsed, or deteriorated, replacing it can restore effective air-water contact and help recover cooling tower performance. Actual improvement depends on the overall condition and design of the tower.
