10-15 days
Product Type: Counterflow cooling tower grid packing
Fill Type: Splash / grid fill
Typical Material: PP polypropylene
Available Materials: PP, PVC and other engineering plastics upon request
Tower Type: Counterflow cooling tower
Structure: Rigid open-grid lattice
Installation: Modular stacking or frame-supported installation
Application: Industrial, commercial HVAC and process cooling
Water Quality: Suitable for applications where fouling resistance is important
Customization: Size, thickness, module configuration and material available

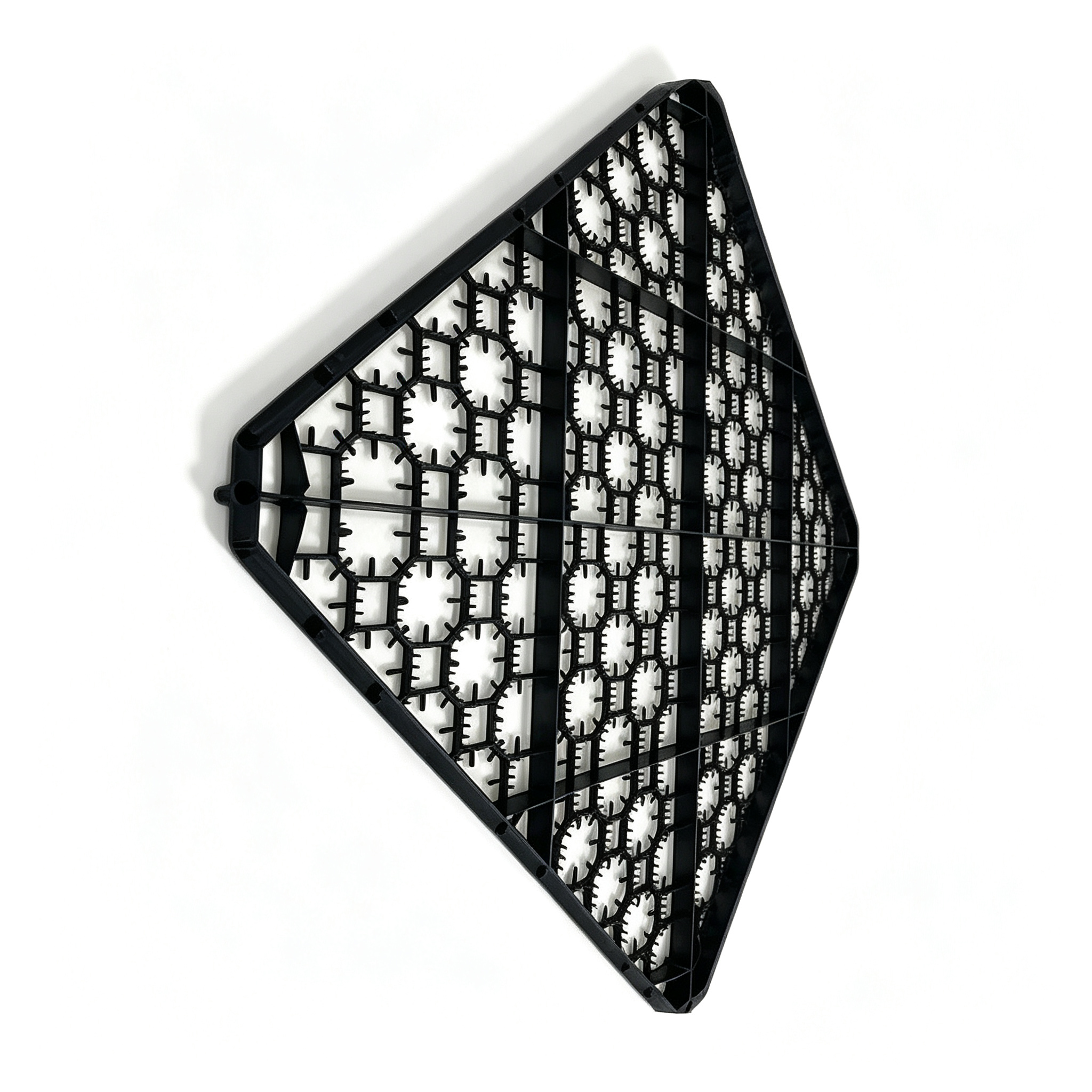

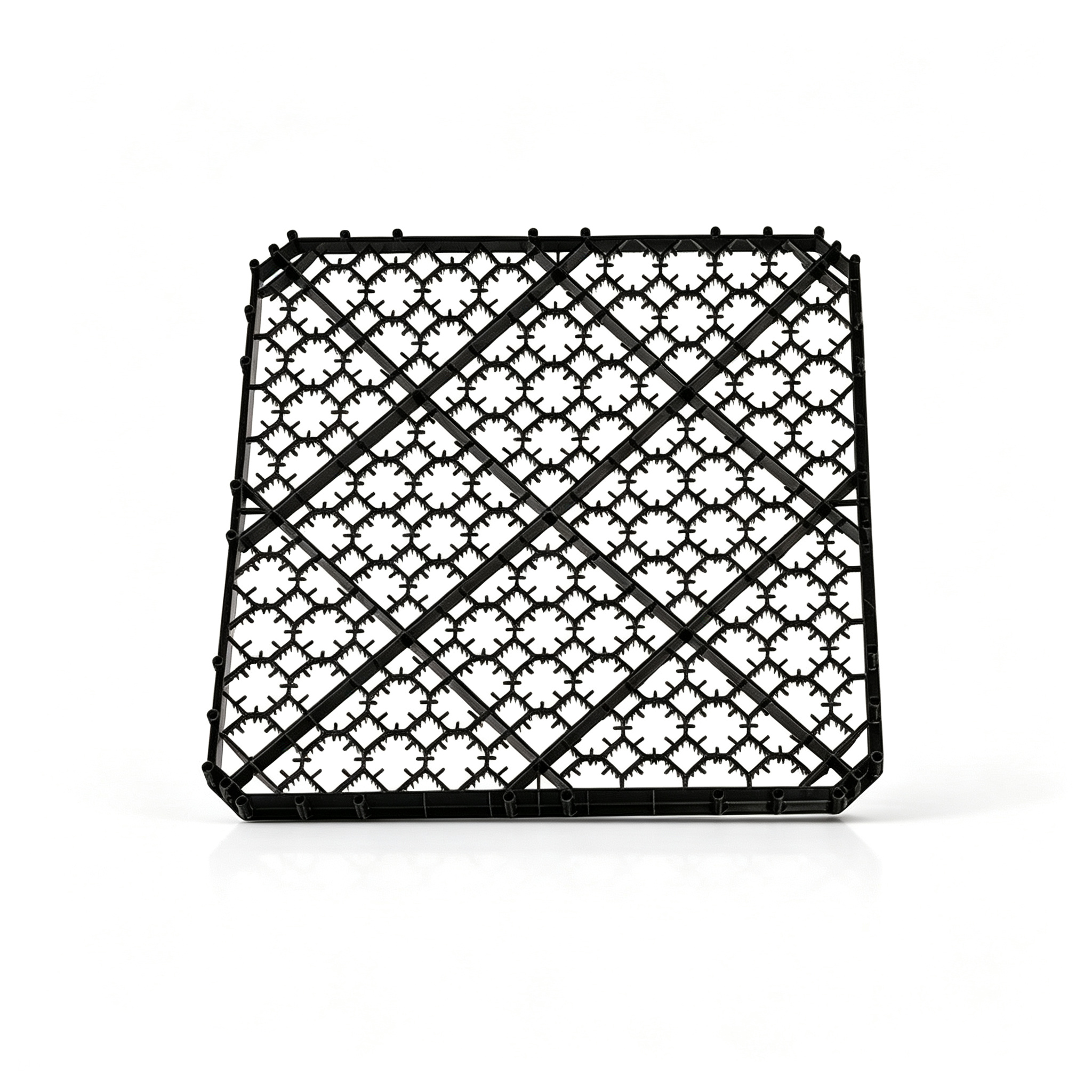

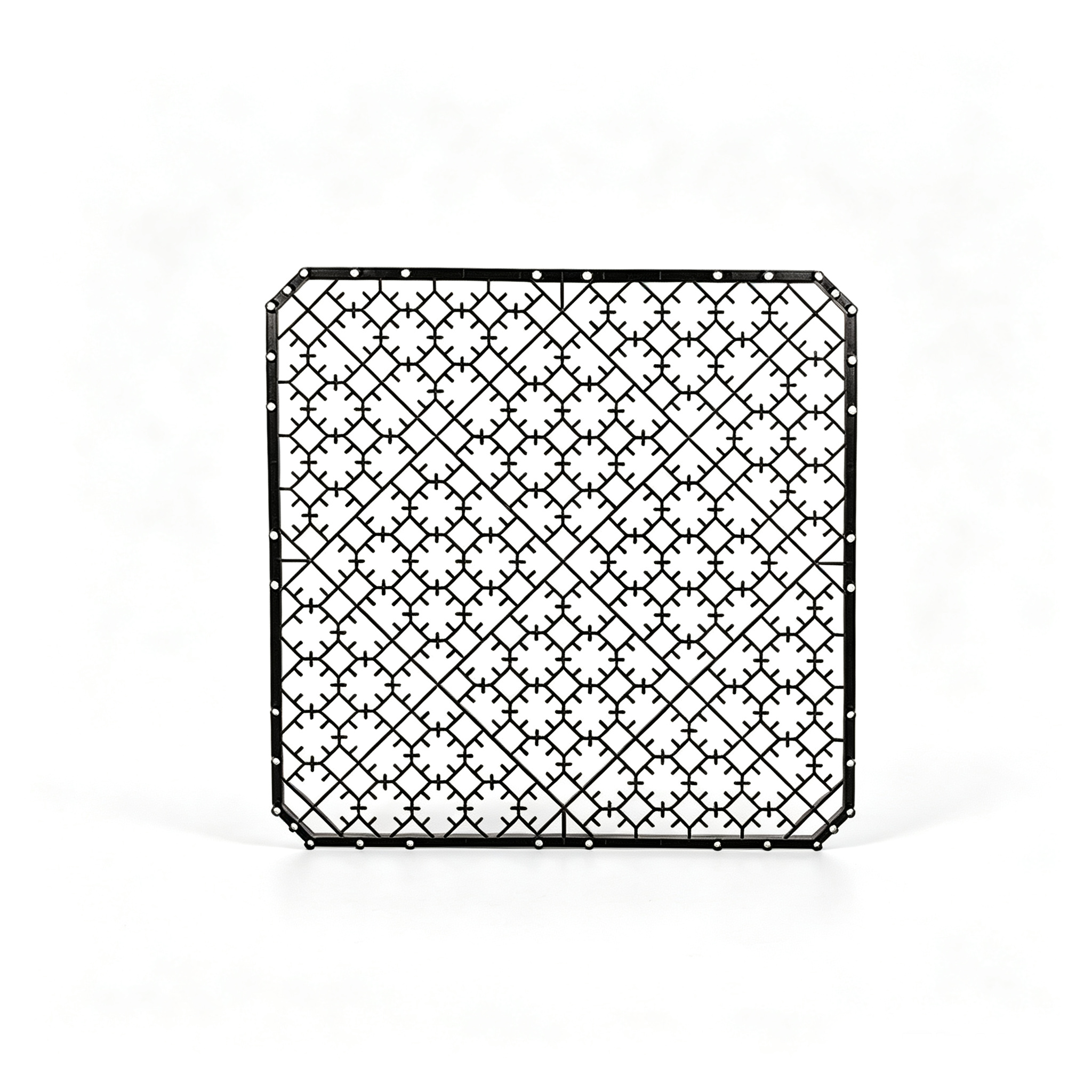

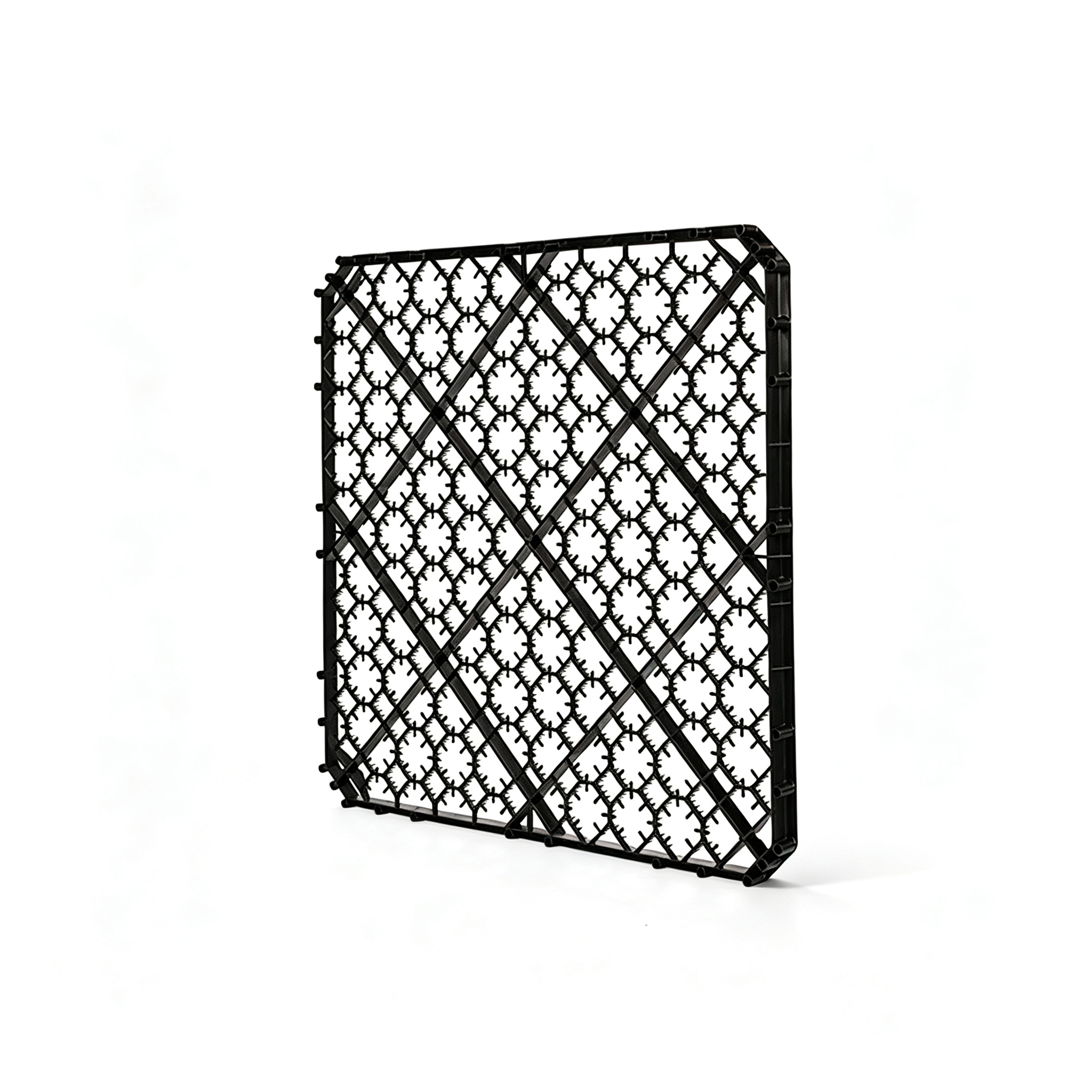

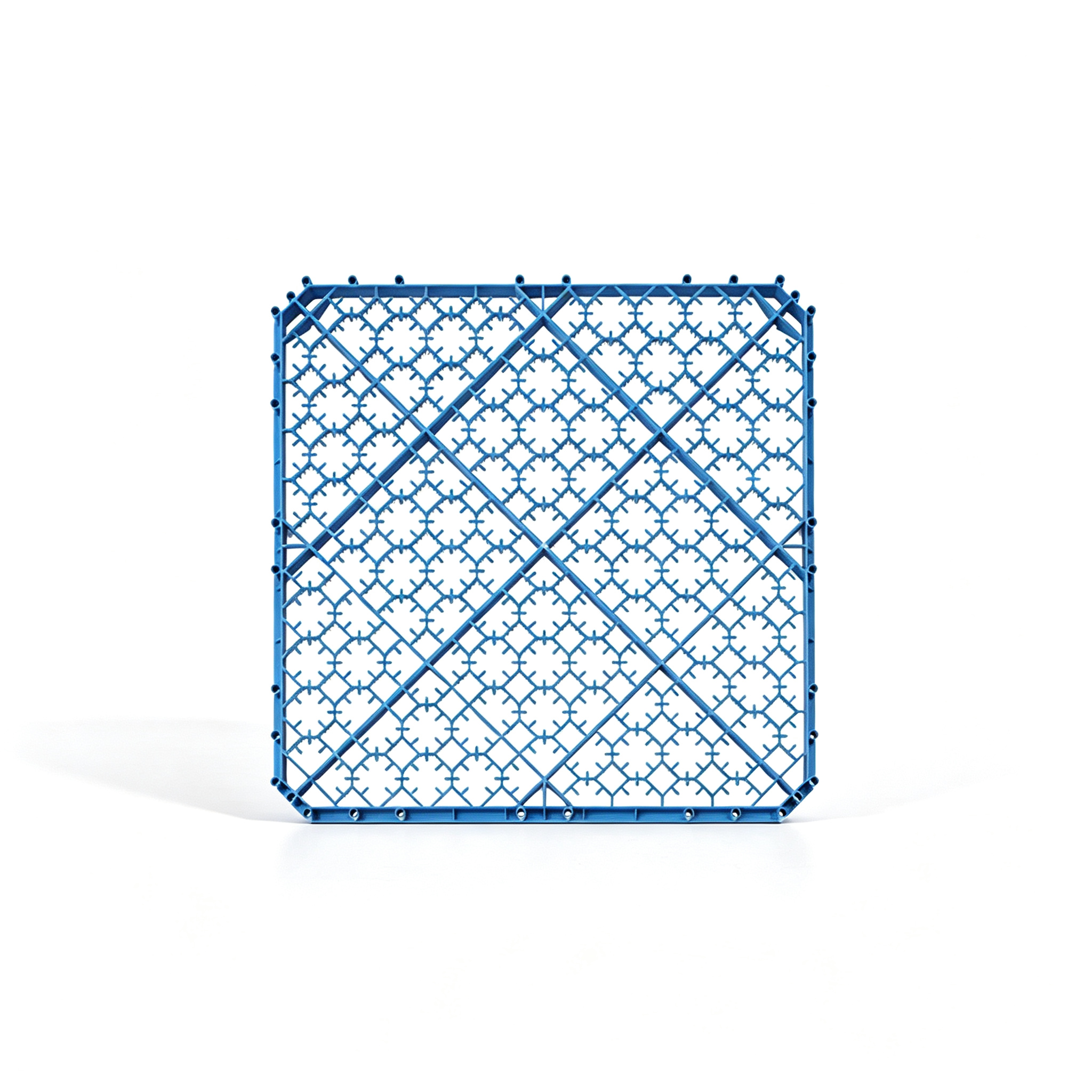

Counterflow cooling tower grid packing is a type of cooling tower splash fill installed inside a counterflow cooling tower to improve the contact between hot circulating water and upward-moving air.
Unlike conventional film fill, which attempts to maintain a continuous thin water film across a large surface area, grid packing uses a series of intersecting surfaces to break, redirect, and redistribute falling water.
As hot water passes through the grid packing, the lattice structure causes the water to splash and form smaller droplets. At the same time, air moves upward through the open passages. This creates repeated water-air contact and promotes evaporative cooling.
The result is improved cooling performance while maintaining an open passage structure that can be advantageous in applications with dirt, debris, algae, or higher levels of suspended solids.
The operating principle is straightforward:
Hot circulating water enters the cooling tower through the water distribution system.
Spray nozzles or distribution pipes spread the water over the upper section of the fill.
Water falls downward through the grid packing.
The grid surfaces repeatedly break and redirect the water.
The cooling tower fan draws or pushes air upward through the fill.
Increased water-air contact promotes evaporation.
Heat is transferred from the circulating water to the air.
Cooled water collects in the cold-water basin and returns to the cooling system.
The open geometry of the packing helps maintain airflow passages while providing multiple opportunities for water redistribution.
The intersecting grid structure breaks falling water into droplets and redirects the flow several times as it passes through the packing.
This repeated splashing increases the interaction between air and water and supports effective evaporative cooling.
One of the main advantages of grid-type cooling tower fill is its relatively open structure.
Compared with closely spaced film-fill channels, grid packing provides larger water and airflow passages. This makes it a practical choice for cooling towers operating with water containing suspended solids or contaminants.
PP is widely used for cooling tower components because it combines good mechanical strength with resistance to moisture and many common chemicals.
The material can maintain its structural integrity under demanding cooling tower operating conditions when properly selected for the water chemistry and operating temperature.
The open lattice design provides relatively large passages for air movement.
Lower resistance can help reduce the energy required to move air through the fill section and may be particularly useful when airflow and fan energy consumption are important design considerations.
Grid packing can be used in a wide range of industrial cooling applications, including process cooling systems, power-related equipment, manufacturing facilities, chemical plants, and HVAC installations.

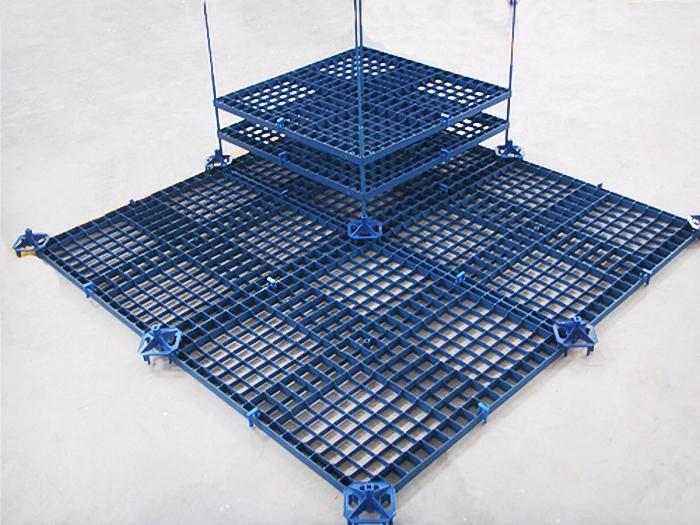

Cooling tower grid fill can be supplied in modular sections that are installed and supported inside the tower.
Modular construction simplifies transportation, installation, replacement, and maintenance.
The correct cooling tower fill depends on water quality, thermal requirements, airflow, tower design, operating temperature, and maintenance conditions.
| Feature | Grid / Splash Fill | Film Fill |
|---|---|---|
| Operating principle | Breaks water into droplets | Spreads water into thin films |
| Passage size | Relatively open | Generally narrower |
| Fouling resistance | High | Application-dependent |
| Suspended solids tolerance | Generally good | More sensitive to clogging |
| Airflow resistance | Generally low | Depends on flute geometry |
| Heat-transfer area | Lower than high-efficiency film fill | High |
| Maintenance | Relatively easy | Requires attention to fouling |
| Typical application | Industrial/process water | Clean water applications |
| Mechanical structure | Rigid grid | Corrugated/sheet pack |
For clean circulating water and maximum compact heat-transfer efficiency, film fill may be preferred. For applications where fouling resistance, open passages, and durability are priorities, grid or splash fill can be a better solution.
This grid packing is suitable for many cooling tower applications.
Industrial cooling systems often operate under demanding conditions, including variable water quality, high heat loads, and continuous operation. Grid fill provides an open structure that can help reduce the risk of rapid blockage.
The packing can also be used in commercial and HVAC cooling tower systems where reliable heat rejection is required.
Manufacturing processes frequently require continuous removal of heat from production equipment. Counterflow grid packing can be incorporated into process cooling towers to support stable thermal performance.
Where cooling water may contain contaminants or suspended material, open splash packing can provide an alternative to tightly spaced film fill.
Cooling towers used for industrial energy systems can utilize grid packing where robust construction and resistance to fouling are important considerations.
Some applications require cooling of water with relatively high contamination levels. The larger openings of grid packing can help maintain water and air passages compared with more restrictive fill geometries.
Polypropylene (PP) is one of the most common materials used for industrial cooling tower splash and grid packing.
PP provides a combination of:
Good mechanical strength
Lightweight construction
Moisture resistance
Good chemical resistance
Good dimensional stability
Resistance to many common cooling-water chemicals
Long service life when properly selected
PVC and other thermoplastics may also be available depending on the operating requirements.
Material selection should consider water chemistry, operating temperature, chemical concentration, ultraviolet exposure, and tower operating conditions.
Actual dimensions and performance should be selected according to the cooling tower design.
| Specification | Typical Description |
| Product Name | Counterflow Cooling Tower Grid Packing |
| Fill Type | Splash / Grid Fill |
| Material | PP / PVC |
| Structure | Rigid open lattice |
| Tower Configuration | Counterflow |
| Installation | Modular or supported grid arrangement |
| Water Distribution | Spray nozzle or distribution system |
| Airflow Direction | Upward |
| Water Flow Direction | Downward |
| Application | Industrial and HVAC cooling towers |
| Custom Size | Available |
| Custom Thickness | Available |
| Replacement Service | Available |
Note: Dimensions, material grade, operating temperature, loading, and thermal performance should be confirmed against the specific cooling tower design before ordering.
Selecting the right cooling tower packing has a direct impact on tower performance and maintenance.
Grid packing offers a practical balance between heat transfer, water distribution, airflow, fouling resistance, and mechanical durability.
For cooling towers where water contains debris or suspended solids, using an excessively fine fill structure may increase the risk of blockage. The open grid design provides larger passages through which water and air can move.
This makes the product particularly useful for industrial cooling tower refurbishment and replacement projects.
When replacing existing cooling tower packing, the new fill should not be selected based on dimensions alone.
Before ordering replacement grid fill, check:
Existing fill dimensions
Tower type
Counterflow or crossflow configuration
Water loading
Airflow rate
Fill height
Operating temperature
Water quality
Existing support structure
Spray nozzle arrangement
Fan capacity
Available installation space
Matching the replacement fill to the existing cooling tower is important for maintaining proper water distribution and airflow.
Our cooling tower grid packing can be manufactured or supplied according to customer-provided dimensions and application requirements.
Different cooling towers require different packing configurations. We can provide customized solutions based on the existing fill dimensions or cooling tower drawings.
Customization may include:
Length and width
Fill height
Grid geometry
Material
Sheet or module thickness
Module configuration
Support arrangement
Packing density
Installation method
Customers can provide photographs, drawings, existing fill dimensions, cooling tower model information, or required operating parameters for product selection.
Proper installation is essential for achieving reliable cooling performance.
Before installation, inspect the fill support beams, grids, and structural components. Remove damaged or heavily corroded supports where necessary.
Remove old packing, sludge, scale, debris, and accumulated deposits from the tower.
Inspect spray nozzles, distribution pipes, and headers. Uneven water distribution can reduce the effectiveness of even a high-quality fill.
Place the modules according to the manufacturer's recommended arrangement. Ensure that the packing is properly supported and does not obstruct required airflow passages.
Confirm that the fill does not collapse, shift, or create unnecessary airflow restrictions.
Run the circulating-water system and inspect the distribution pattern before returning the tower to full operation.
Regular inspection helps extend the service life of cooling tower packing.
Recommended maintenance includes:
Inspecting for scale buildup
Removing accumulated debris
Checking for biological growth
Inspecting damaged or deformed modules
Checking fill supports
Inspecting spray nozzles
Monitoring water distribution
Checking for excessive pressure drop
Cleaning according to the tower water-treatment program
Cleaning methods should be selected according to the fill material and the nature of the deposits.
Aggressive chemicals, excessive water pressure, or unsuitable cleaning methods may damage plastic packing.
Cooling tower packing may need replacement when you observe:
Severe deformation
Broken grid sections
Excessive scale accumulation
Significant biological fouling
Persistent blockage
Uneven water distribution
Reduced cooling capacity
Increased approach temperature
Abnormal airflow resistance
Structural deterioration
Replacing severely damaged fill can restore proper water distribution and improve overall cooling tower operation.
We supply counterflow cooling tower grid packing and splash fill for new cooling tower projects, tower refurbishment, maintenance, and replacement applications.
Our products are available for customers looking for:
Cooling tower fill replacement
PP cooling tower grid packing
Counterflow cooling tower fill
Industrial cooling tower splash fill
Cooling tower packing suppliers
Custom-size cooling tower fill
Cooling tower spare parts
OEM-compatible cooling tower components
For replacement projects, customers can send the tower model, existing fill dimensions, photographs, drawings, water flow rate, or required fill height so that the appropriate packing configuration can be recommended.
Counterflow cooling tower grid packing is an open-structure splash fill installed in counterflow cooling towers. It breaks falling water into droplets and increases water-air contact for evaporative heat transfer.
Most industrial grid fills are manufactured from thermoplastics such as polypropylene (PP). PVC and other materials can also be used depending on the application.
Grid fill uses an open lattice structure to splash and redistribute water, while film fill spreads water into thin films across corrugated sheets. Grid fill generally offers larger passages and better resistance to fouling, while film fill can provide higher heat-transfer surface area.
Grid packing is often selected for applications with relatively high levels of suspended solids because its open passages are less restrictive than many fine-channel film-fill designs. However, proper water treatment and filtration remain important.
Yes. Dimensions, module configuration, material, thickness, and other characteristics can be customized according to the cooling tower design and replacement requirements.
Yes. The product shown is designed as a counterflow cooling tower grid/splash packing configuration, where water flows downward while air travels upward through the fill.
Provide the existing fill dimensions, fill height, tower type, water flow, operating temperature, water quality, and photographs or drawings. These details help determine the appropriate replacement packing.
Service life depends on water chemistry, temperature, UV exposure, mechanical loading, biological growth, and maintenance. Regular inspection and effective cooling-water treatment can significantly extend packing life.
Improve the reliability of your cooling tower with durable PP counterflow grid packing designed for effective splash distribution, open airflow, and industrial cooling applications.
Whether you are replacing damaged cooling tower fill, upgrading an existing tower, or sourcing packing for a new project, we can provide standard and custom-size cooling tower grid packing according to your requirements.
Contact us with your cooling tower model, fill dimensions, required quantity, or project specifications for a quotation and product recommendation.
