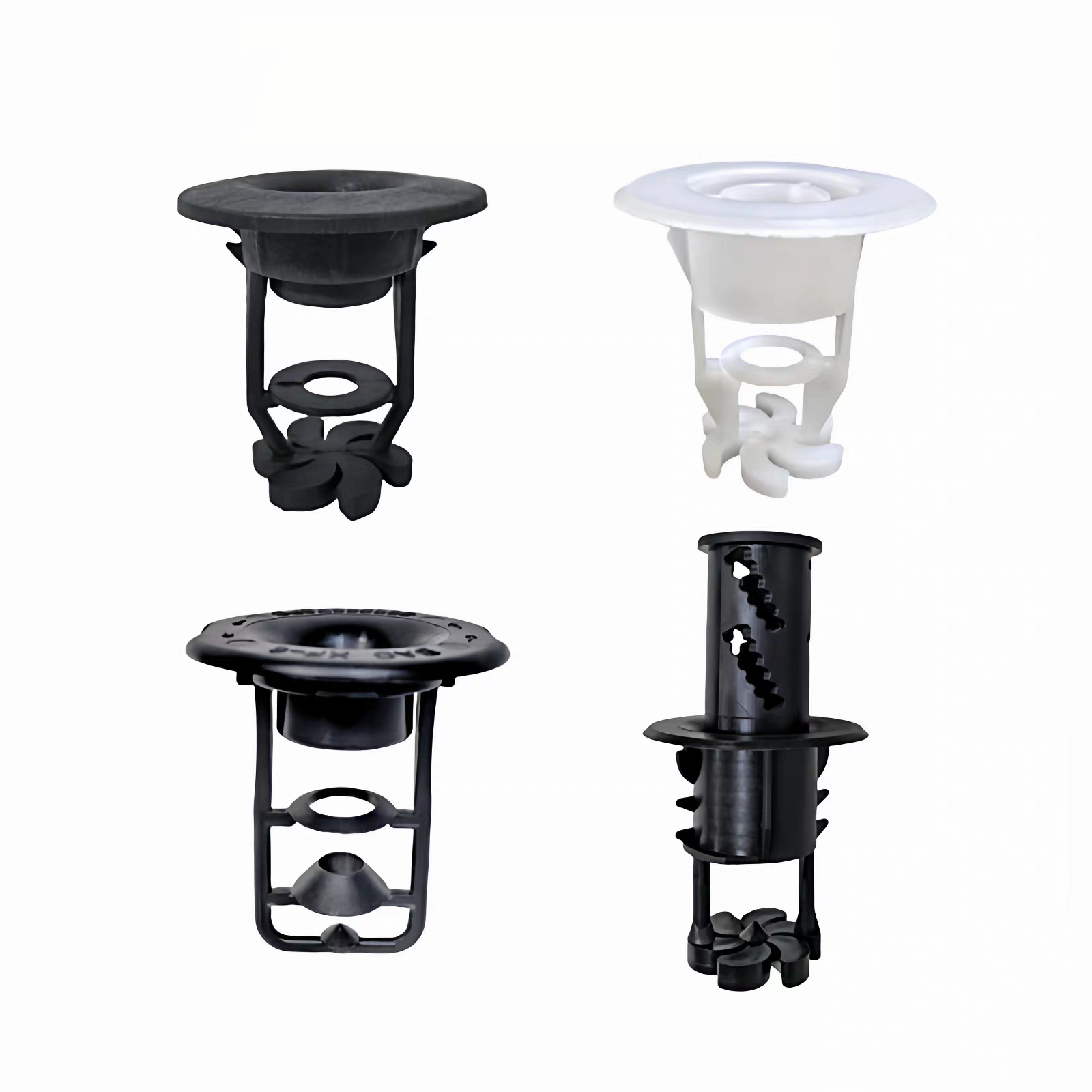

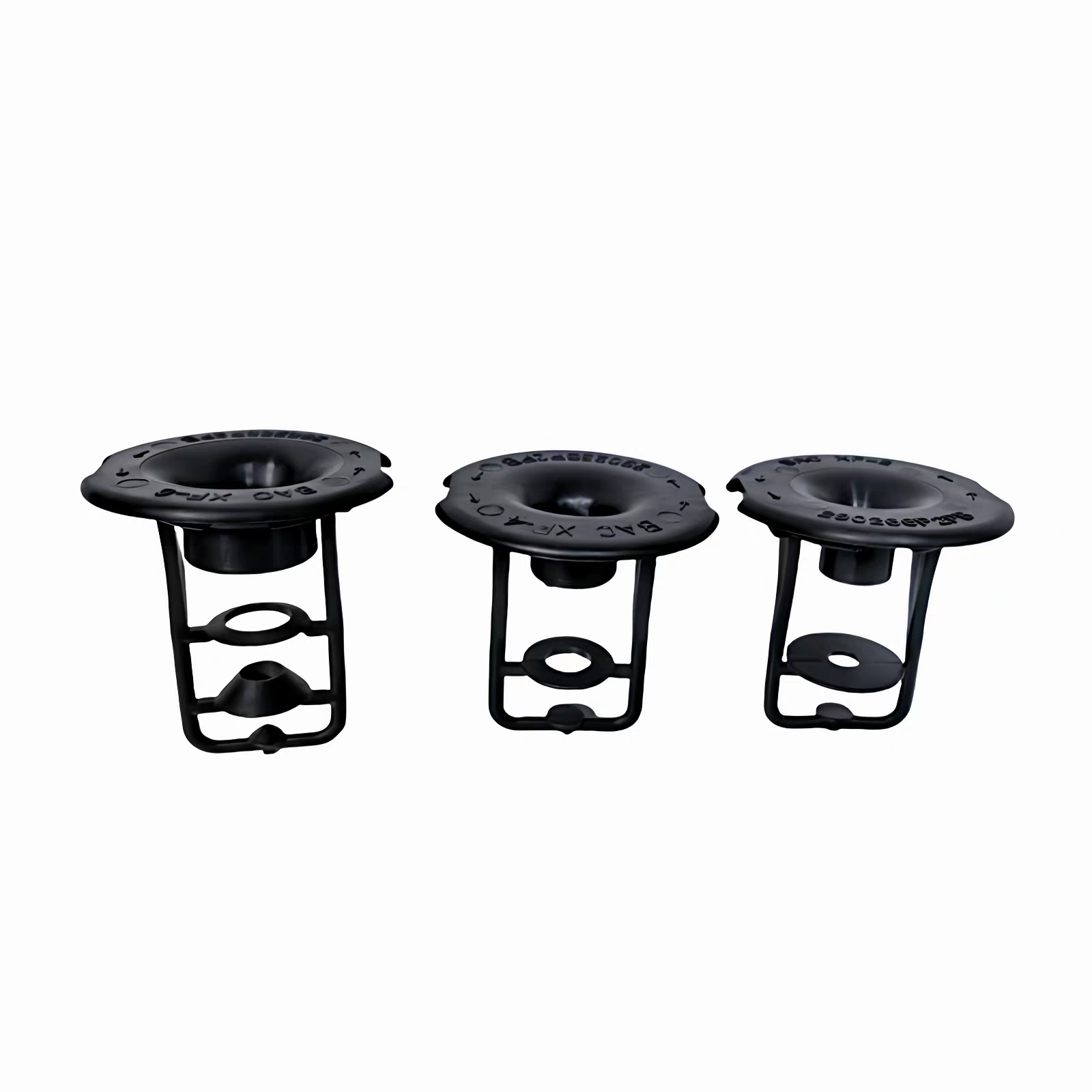

The BAC Cross Flow Cooling Tower Nozzle is an essential water distribution component designed to provide uniform water flow across cooling tower fill media. By delivering consistent spray coverage, this nozzle improves heat transfer efficiency, reduces dry spots in the fill area, and helps maintain stable cooling tower performance.
Used in BAC cross flow cooling towers, this high-performance spray nozzle is engineered for reliable operation in commercial HVAC systems, industrial cooling applications, power plants, manufacturing facilities, and process cooling systems.
CoolingTowerPart.com supplies high-quality BAC compatible cooling tower nozzles manufactured with durable materials, accurate flow design, and excellent resistance to corrosion, scaling, and long-term water exposure.
In a cross flow cooling tower, water distribution plays a major role in determining cooling efficiency. The cooling tower nozzle distributes warm circulating water evenly over the fill surface, allowing maximum contact between water and moving air.
The BAC cross flow cooling tower nozzle provides:
Uniform water spray distribution
Stable cooling tower operation
Improved heat exchange efficiency
Reduced water channeling
Long service life
Easy installation and replacement
A properly functioning nozzle system ensures that every section of the cooling tower fill receives sufficient water coverage, maximizing the tower’s thermal performance.
A cross flow cooling tower nozzle is a spray distribution device installed in the water distribution basin or piping system of a cross flow cooling tower.
Unlike counter flow cooling towers where water flows downward against upward air movement, cross flow cooling towers use horizontal airflow across vertically falling water. The nozzle must therefore provide a wide and balanced spray pattern to cover the fill surface effectively.
The main functions of a cooling tower nozzle include:
Controlling water flow rate
Creating an even spray pattern
Preventing uneven fill wetting
Improving heat transfer
Reducing operating problems caused by poor distribution
The most important function of a cooling tower nozzle is achieving consistent water coverage.
The optimized nozzle design provides:
Wide spray coverage
Stable water flow
Reduced dry areas
Improved fill utilization
Uniform water distribution allows cooling tower fills to operate at maximum efficiency.
BAC compatible cooling tower nozzles are commonly manufactured from engineering plastics such as ABS or PP.
Material advantages:
Excellent corrosion resistance
Resistance to chemical attack
Lightweight construction
Long service life
Reduced maintenance requirements
Compared with metal nozzles, plastic cooling tower nozzles are less affected by rust and mineral corrosion.
Cooling tower water often contains impurities, suspended solids, and minerals that may cause blockage.
The nozzle structure is designed to reduce clogging risks through:
Smooth internal passages
Optimized flow channels
Easy cleaning design
Stable spray performance
This helps maintain consistent cooling performance over long operating periods.
A properly designed nozzle reduces unnecessary pressure loss while maintaining effective spray coverage.
Benefits include:
Lower pump energy consumption
Reduced operating costs
Improved cooling efficiency
Stable hydraulic performance
BAC cross flow cooling tower nozzles are designed for convenient installation and maintenance.
Advantages:
Simple connection structure
Quick replacement
Reduced maintenance downtime
Compatible with existing cooling tower systems

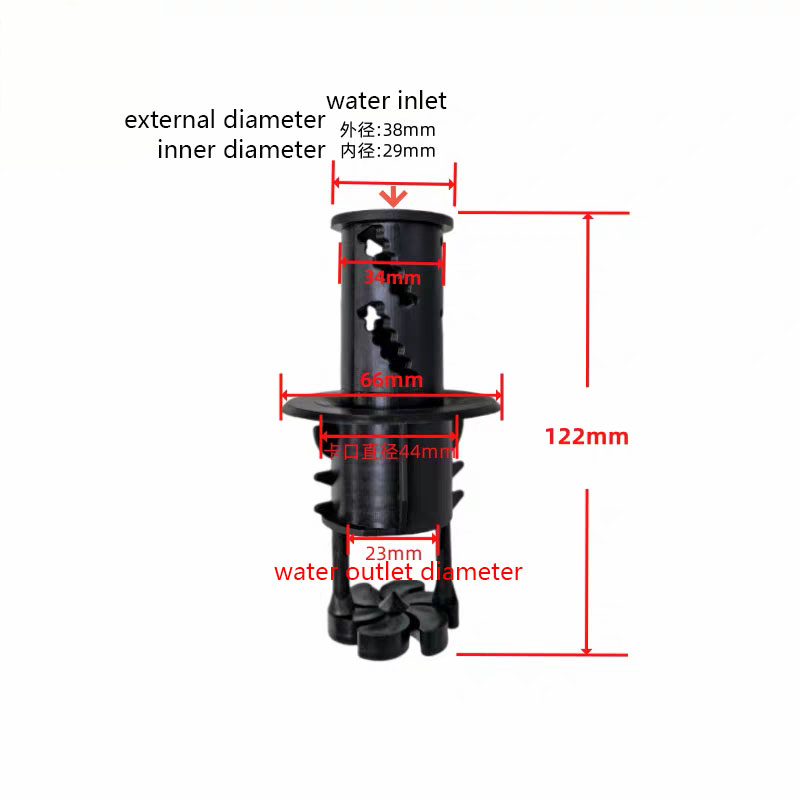

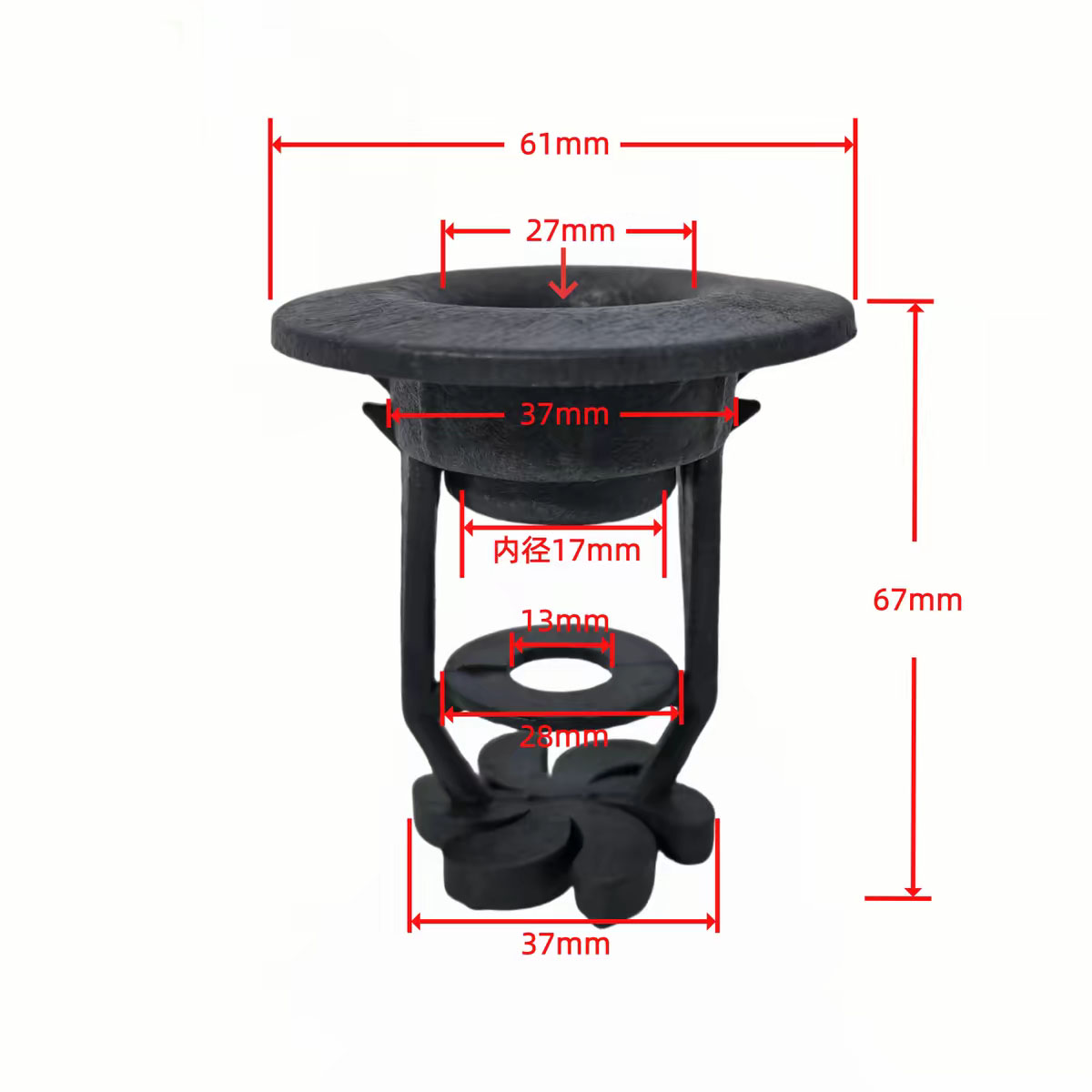

| Item | Description |
|---|---|
| Product Name | BAC Cross Flow Cooling Tower Nozzle |
| Application | Cross Flow Cooling Tower Water Distribution |
| Material | ABS / PP Engineering Plastic |
| Color | Black / Customized |
| Spray Type | Splash Distribution / Spray Pattern |
| Installation | Basin or Distribution Pipe Installation |
| Water Flow | Customized According to Model |
| Operating Temperature | Suitable for Cooling Water Applications |
| Compatibility | BAC Cooling Tower Systems |
Specifications can be customized according to cooling tower model, water flow requirements, and installation conditions.

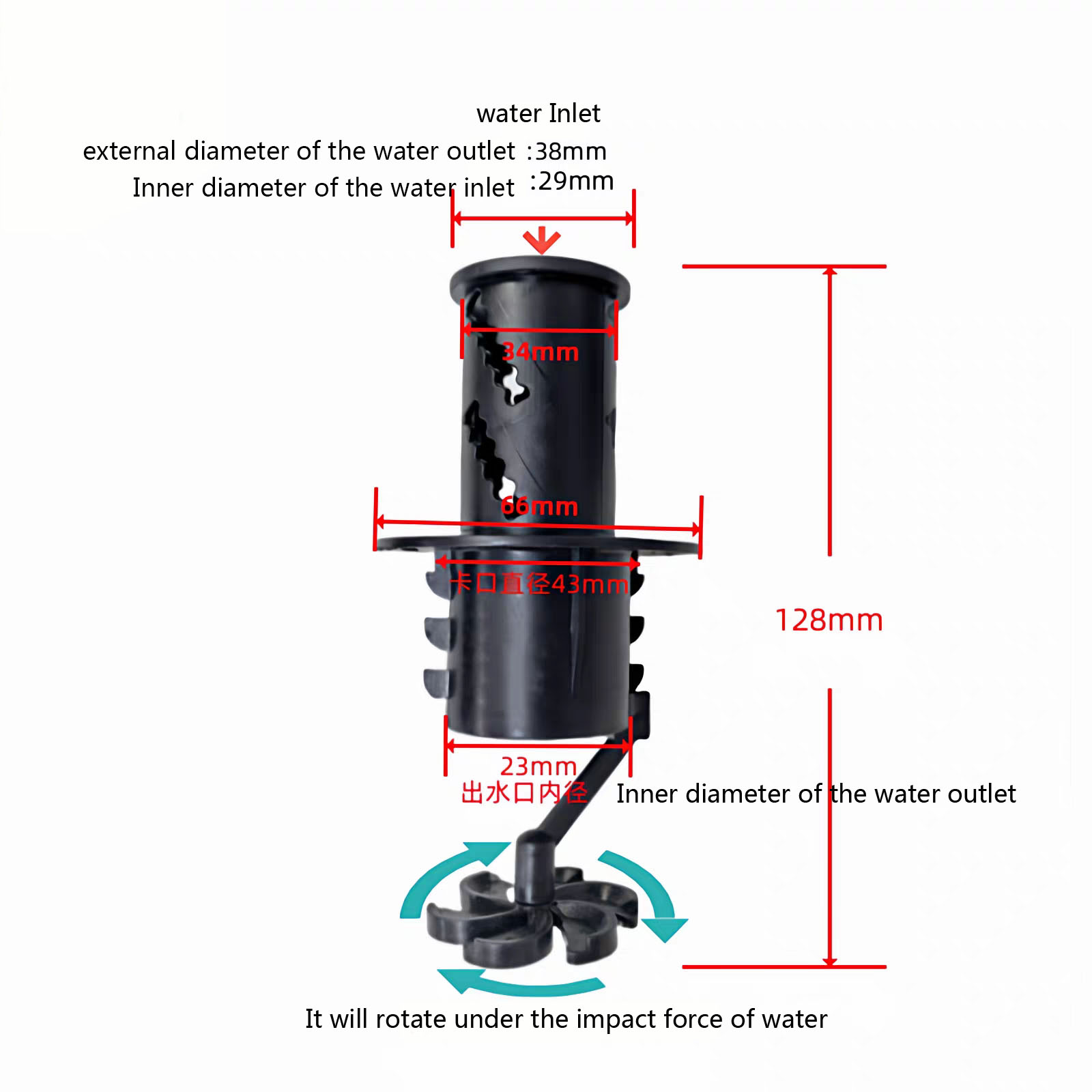

The cooling tower nozzle operates by converting pressurized circulating water into an evenly distributed spray pattern.
The working process includes:
Warm process water enters the cooling tower distribution system through pipes or the water basin.
The nozzle controls the water velocity and direction through its internal structure.
Water exits through the nozzle opening and creates a uniform spray pattern over the fill media.
Water spreads across the fill surface while air passes horizontally through the tower, removing heat through evaporation and convection.
Cooled water collects in the basin and returns to the industrial or HVAC system.
Uniform water distribution ensures maximum contact between air, water, and fill material, improving heat transfer efficiency.
A properly designed nozzle minimizes:
Uneven spraying
Excessive splash
Water accumulation
Poor fill coverage
Even water distribution prevents localized scaling and reduces stress on fill materials.
Durable materials and anti-clogging designs reduce cleaning frequency and replacement requirements.
Dirt accumulation
Mineral deposits
Poor water filtration
Reduced water flow
Uneven fill wetting
Lower cooling capacity
Clean nozzle openings
Improve water filtration
Replace damaged nozzles
Incorrect nozzle installation
Damaged nozzle body
Incorrect water pressure
Check installation position
Verify operating pressure
Replace worn components
Long-term operation may cause:
Plastic degradation
Cracking
Flow changes
Regular inspection helps maintain reliable cooling tower performance.
BAC cross flow cooling tower nozzles are widely used in:
Applications include:
Office buildings
Hotels
Shopping centers
Large facilities
Used in:
Manufacturing plants
Steel mills
Chemical industries
Food processing plants
Reliable water distribution is essential for large cooling towers used in power facilities.
Check:
Spray pattern
Water distribution uniformity
Visible blockage
Nozzle condition
Recommended actions:
Remove deposits
Clean distribution pipes
Check nozzle alignment
Inspect fill wetting condition
Perform:
Complete nozzle inspection
Replace damaged nozzles
Clean water distribution system
Evaluate cooling performance
CoolingTowerPart.com specializes in supplying professional cooling tower replacement parts for global customers.
Our product range includes:
BAC cooling tower nozzles
Evapco cooling tower nozzles
Marley cooling tower nozzles
Cooling tower fills
Drift eliminators
Cooling tower fan blades
Cooling tower motors
Cooling tower drive systems
✔ High-quality cooling tower components
✔ Competitive factory pricing
✔ Customized specifications available
✔ Global export experience
✔ Technical support for replacement selection
A BAC cross flow cooling tower nozzle distributes circulating water evenly over the fill media to improve heat transfer efficiency.
Replacement frequency depends on water quality, operating conditions, and maintenance practices. Regular inspection is recommended.
Most cooling tower nozzles are made from ABS, PP, or other engineering plastics because of their corrosion resistance and durability.
Selection depends on:
Cooling tower model
Required water flow
Spray pattern
Connection size
Operating pressure
Yes. Compatible replacement nozzles can be used when specifications, dimensions, and flow characteristics match the original design.
