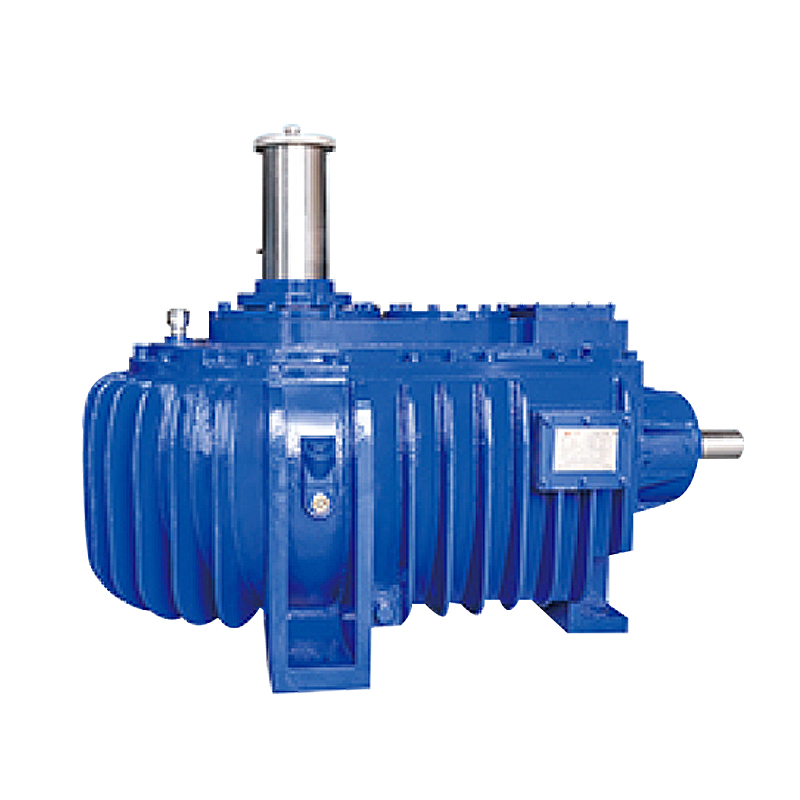

Right Angle Axis Cooling Tower Gearbox

Right Angle Axis Cooling Tower Gearbox is an important part of the cooling tower, used to drive the cooling tower fan operation. Its main function is to convert the high-speed rotation of the motor into a low-speed and high-torque rotation suitable for the cooling tower fan by decelerating and increasing the torque, so as to ensure the efficient operation of the cooling tower fan. The following is a detailed introduction of the cooling tower gear reducer:

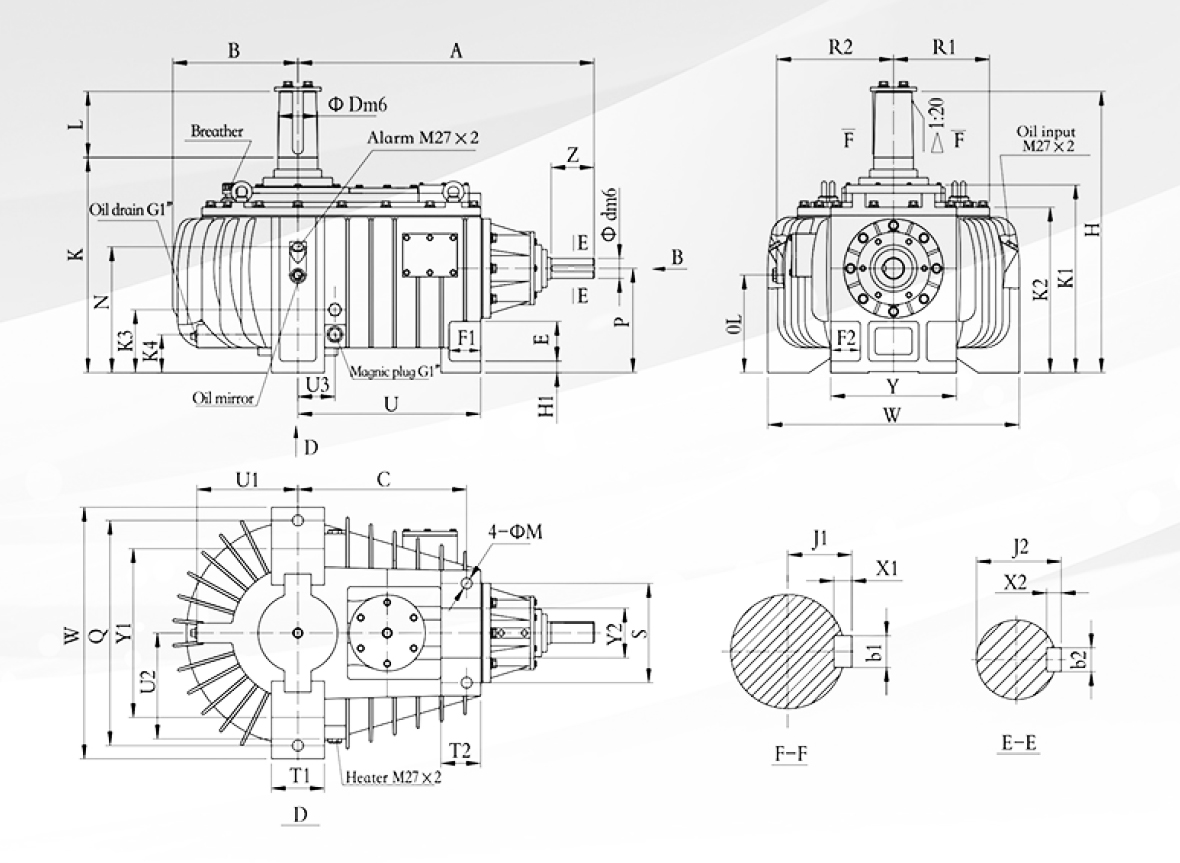

Right Angle Axis Cooling Tower Gearbox Size Measurement

Note: If the data of D L J1 X1 b1 d z j2 X2 b2 is needed, please contact with us.

Introduction Of Right Angle Axis Cooling Tower Gearbox

1. Right Angle Axis Cooling Tower Gearbox Performance Features

   1.1 This series of reducers is a low-speed heavy-duty gear reducer.
   1.2 The reducer adopts a series of design methods such as center distance, speed ratio, and tooth profile optimization, enhancing the strength of various components.
   1.3 The input and output shafts are cross-arranged, which increases the bearing life and improves operation stability.
   1.4 The optimized gear structure design increases the heat dissipation area, enhancing the heat dissipation performance and increasing the heat dissipation rate.
   1.5 All gears are made of high-quality alloy steel,carburizing and quenching treatment, with tooth surface hardness above 58HRC.
   1.6 The gear housing is made of cast iron, with a one-time precision casting process.
   1.7 The reducer has high precision, compact size, light weight, and strong load capacity; smooth transmission, low noise, and long service life.
   1.8 The reducer operates at a low temperature rise, suitable for cooling tower environments.
   1.9 XLJ(B) XLDJ(B2) XLDJ reducers can be equipped with reversing devices, heating, cooling, and alarm sensors.
   1.10 XYJ XCJ XDJ reducers can be equipped with alarm sensors.
   1.11 XKJ(B) XGJ reducers can be equipped with reversing devices, heating, cooling, and alarm sensors.
   1.12 XKJ(B) XGJ is equipped with an oil cooler control system, oil filter, and magnetic plug.
   1.13 XKJ(B) XGJ is equipped with an oil pressure switch, and the motor stops when the oil pressure is below the set value.
   1.14 XKJ(B) XGJ is equipped with an oil pressure relief valve, which opens the relief valve to protect the oil pump when the oil pressure exceeds the set value.
   1.15 XLJ(B) XLDJ(B2) reducers use a flying splash lubrication method.
   1.16 XCJ XDJ reducers use an oil bath lubrication method.
   1.17 XYJ XFJ reducers use an oil immersion and oil injection lubrication method.
   1.18 XKJ(B) XGJ reducers use a gear end lubrication method, with the oil circuit inside.
   1.19 All reducers use oil types of ISO VG220 or L-CKD220, with a base oil of 3#.
   1.20 The oil temperature of the reducer should not exceed 95°C, and the synthetic oil should not exceed 105°C.
   1.21 The reducers use rolling bearings, which are convenient for maintenance and repair.
   1.22 The reducers should take cooling measures if the operating environment temperature is too high.

2. Right Angle Axis Cooling Tower Gearbox Technical Parameters

   2.1 The reducers have complete specifications and manufacturing drawings.
   2.2 Each reducer has various technical parameters, such as power, speed, weight, and lubrication.
   2.3 For size, connection, and other technical conditions, please refer to the reducer confirmation diagram.
   2.4 For detailed requirements and explanations, please refer to the service manual of the reducer.




Right Angle Axis Cooling Tower Gearbox Application

1. Right Angle Axis Cooling Tower Gearbox Applications

• Right Angle Axis Cooling Tower Gearbox Industrial Cooling Towers:

  In large - scale industrial cooling towers, such as those in power plants, chemical plants, and steel mills, the cooling towers often need to dissipate large amounts of heat. The fans are typically large and have heavy loads. Gear reducers can provide high - torque output to ensure stable operation of the fans at low speeds.

• Right Angle Axis Cooling Tower Gearbox Large - Scale Central Air - Conditioning Cooling Towers:

  In central air - conditioning systems for large commercial buildings or industrial parks, cooling towers need to operate efficiently and reliably. The high precision and reliability of gear reducers make them ideal transmission devices.

• Right Angle Axis Cooling Tower Gearbox High - Temperature and High - Humidity Environments:

  In environments with high temperatures, high humidity, or corrosive conditions, gear reducers can be designed with sealing and corrosion - resistant features to ensure long - term stable operation under harsh conditions.

2. Right Angle Axis Cooling Tower Gearbox Advantages of Cooling Tower Gear Reducers

• Right Angle Axis Cooling Tower Gearbox High Torque Output:

  Gear reducers amplify torque through gear meshing, enabling them to output high torque at low speeds, which is suitable for driving large fans.

• Right Angle Axis Cooling Tower Gearbox High Transmission Efficiency:

  Gear reducers typically have high transmission efficiency, reducing energy loss and lowering operating costs.

• Right Angle Axis Cooling Tower Gearbox Compact Structural Design:

  Gear reducers are compact and take up little space, making them suitable for installation in cooling towers with limited space.

• Right Angle Axis Cooling Tower Gearbox High Reliability:

  The gears and bearings of gear reducers are precision - machined and strictly quality - controlled, resulting in a long service life and high reliability.

• Right Angle Axis Cooling Tower Gearbox Adaptability:

  Gear reducers can be adjusted for different gear ratios to meet various motor speeds and fan requirements, offering great flexibility.

3. Right Angle Axis Cooling Tower Gearbox Considerations for Using Cooling Tower Gear Reducers

• Right Angle Axis Cooling Tower Gearbox Lubrication and Maintenance:

  Gear reducers need to have their lubricating oil changed regularly to maintain good lubrication of the gears and bearings. Additionally, it is important to periodically inspect the wear of the gears and the operating condition of the bearings, and carry out maintenance and replacements in a timely manner.

• Right Angle Axis Cooling Tower Gearbox Installation Precision:

  During installation, it is necessary to ensure the coaxiality of the motor, gear reducer, and fan to avoid vibrations and noise caused by improper installation.

• Right Angle Axis Cooling Tower Gearbox Environmental Adaptability:

  In high - temperature, high - humidity, or corrosive environments, it is necessary to select gear reducers with sealing and corrosion - resistant features to extend their service life.

• Right Angle Axis Cooling Tower Gearbox Overload Protection:

  Although gear reducers have a high load - carrying capacity, they can still be damaged under overload conditions. Therefore, it is necessary to equip them with overload protection devices, such as overload relays or torque limiters.

4. Right Angle Axis Cooling Tower Gearbox Selection of Cooling Tower Gear Reducers

• Right Angle Axis Cooling Tower Gearbox Based on Fan Requirements:

  Select the appropriate gear reducer model according to the speed, torque, and power requirements of the cooling tower fan.

• Right Angle Axis Cooling Tower Gearbox Considering Environmental Factors:

  Choose a gear reducer with the corresponding protection level according to the installation environment of the cooling tower.

• Right Angle Axis Cooling Tower Gearbox Considering Maintenance Costs:

  Select a gear reducer that is easy to maintain and replace to reduce long - term operating costs.
