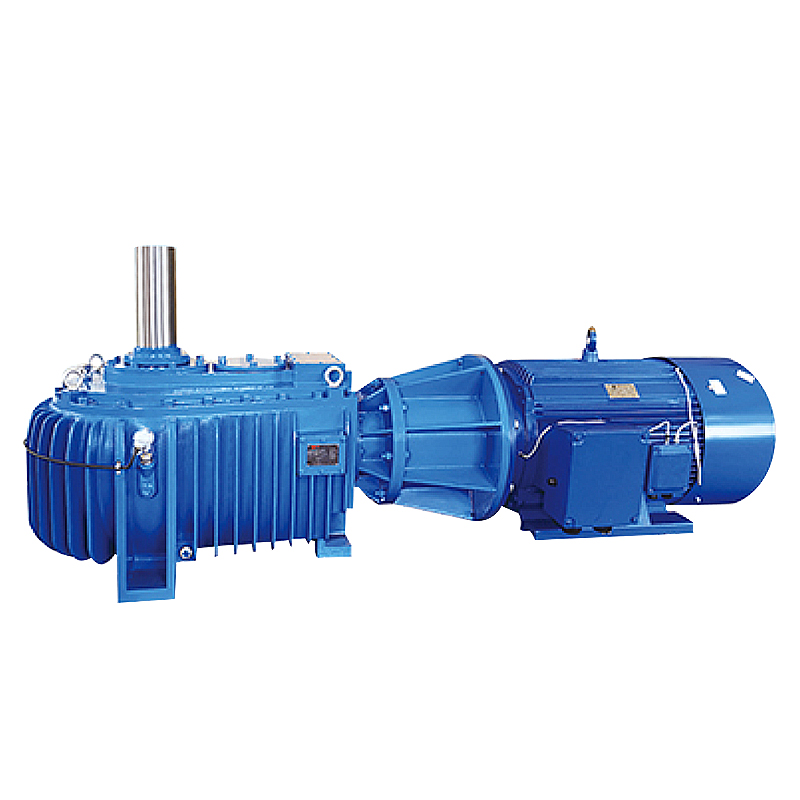

Right Angle Axis Cooling Tower Fan Gearbox Performance Features
1.1 This series of reducers is a low-speed heavy-duty gear reducer.
1.2 The reducer adopts a series of design methods such as center distance, speed ratio, and tooth profile optimization, enhancing the strength of various components.
1.3 The input and output shafts are cross-arranged, which increases the bearing life and improves operation stability.
1.4 The optimized gear structure design increases the heat dissipation area, enhancing the heat dissipation performance and increasing the heat dissipation rate.
1.5 All gears are made of high-quality alloy steel,carburizing and quenching treatment, with tooth surface hardness above 58HRC.
1.6 The gear housing is made of cast iron, with a one-time precision casting process.
1.7 The reducer has high precision, compact size, light weight, and strong load capacity; smooth transmission, low noise, and long service life.
1.8 The reducer operates at a low temperature rise, suitable for cooling tower environments.
1.9 XLJ(B) XLDJ(B2) XLDJ reducers can be equipped with reversing devices, heating, cooling, and alarm sensors.
1.10 XYJ XCJ XDJ reducers can be equipped with alarm sensors.
1.11 XKJ(B) XGJ reducers can be equipped with reversing devices, heating, cooling, and alarm sensors.
1.12 XKJ(B) XGJ is equipped with an oil cooler control system, oil filter, and magnetic plug.
1.13 XKJ(B) XGJ is equipped with an oil pressure switch, and the motor stops when the oil pressure is below the set value.
1.14 XKJ(B) XGJ is equipped with an oil pressure relief valve, which opens the relief valve to protect the oil pump when the oil pressure exceeds the set value.
1.15 XLJ(B) XLDJ(B2) reducers use a flying splash lubrication method.
1.16 XCJ XDJ reducers use an oil bath lubrication method.
1.17 XYJ XFJ reducers use an oil immersion and oil injection lubrication method.
1.18 XKJ(B) XGJ reducers use a gear end lubrication method, with the oil circuit inside.
1.19 All reducers use oil types of ISO VG220 or L-CKD220, with a base oil of 3#.
1.20 The oil temperature of the reducer should not exceed 95°C, and the synthetic oil should not exceed 105°C.
1.21 The reducers use rolling bearings, which are convenient for maintenance and repair.
1.22 The reducers should take cooling measures if the operating environment temperature is too high.
Right Angle Axis Cooling Tower Fan Gearbox Technical Parameters
2.1 The reducers have complete specifications and manufacturing drawings.
2.2 Each reducer has various technical parameters, such as power, speed, weight, and lubrication.

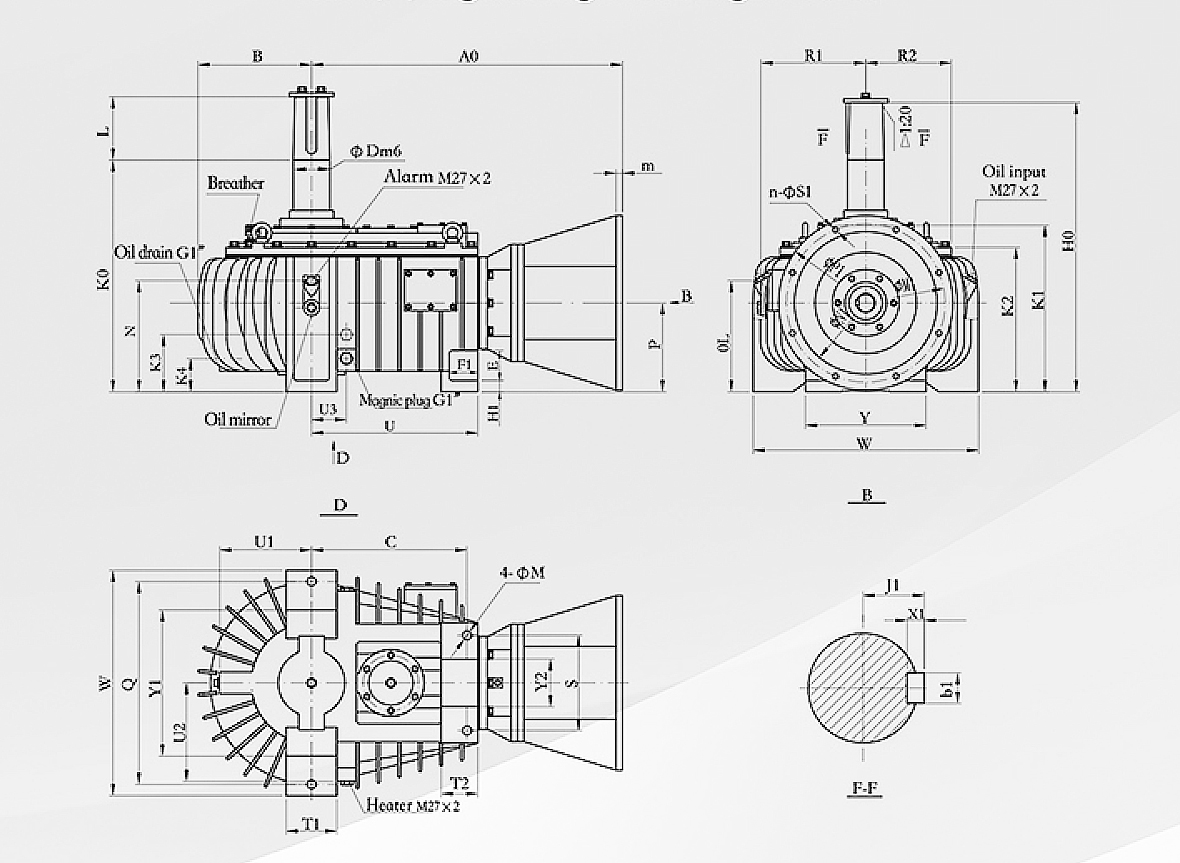

2.3 For size, connection, and other technical conditions, please refer to the reducer confirmation diagram.
2.4 For detailed requirements and explanations, please refer to the service manual of the reducer.
