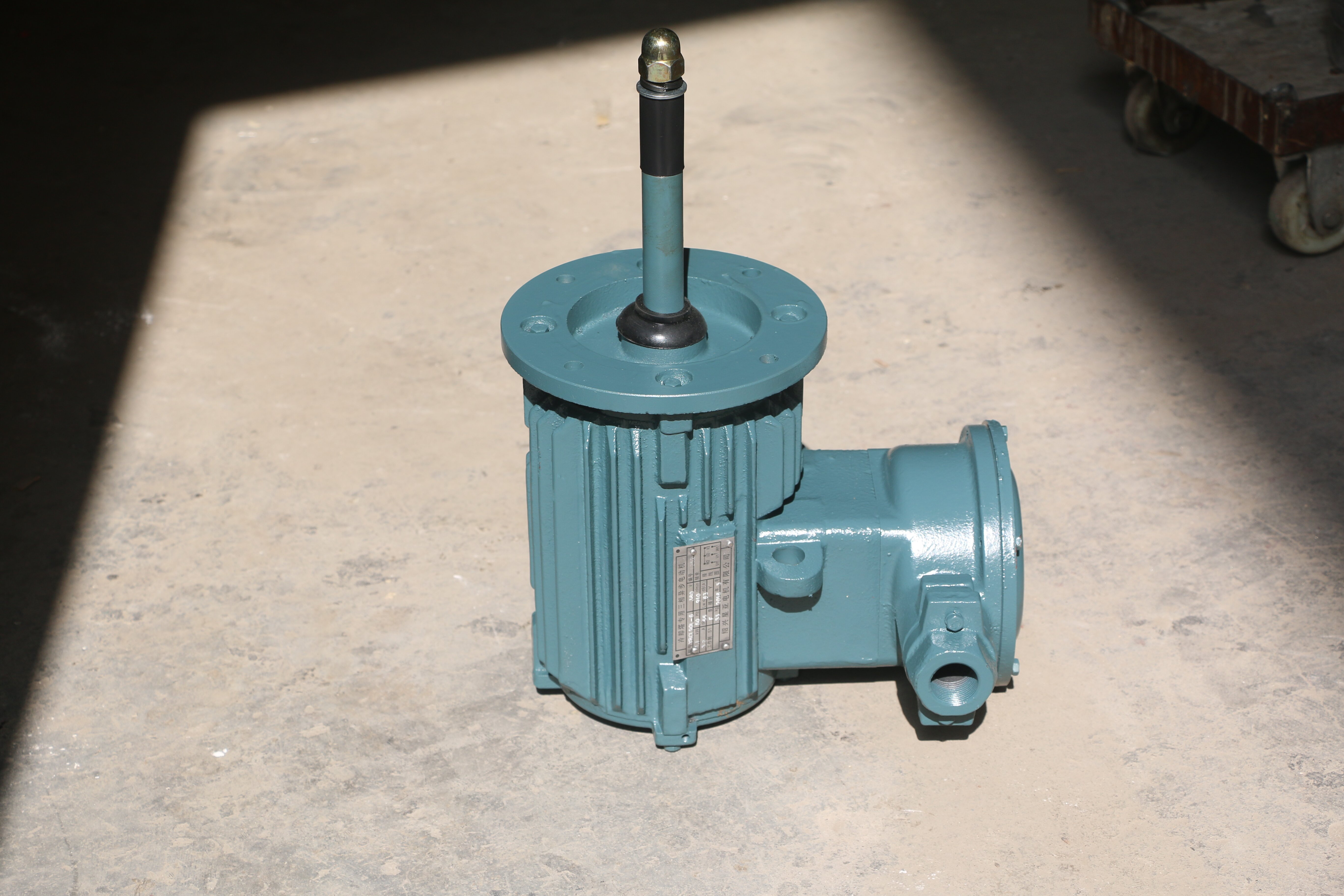

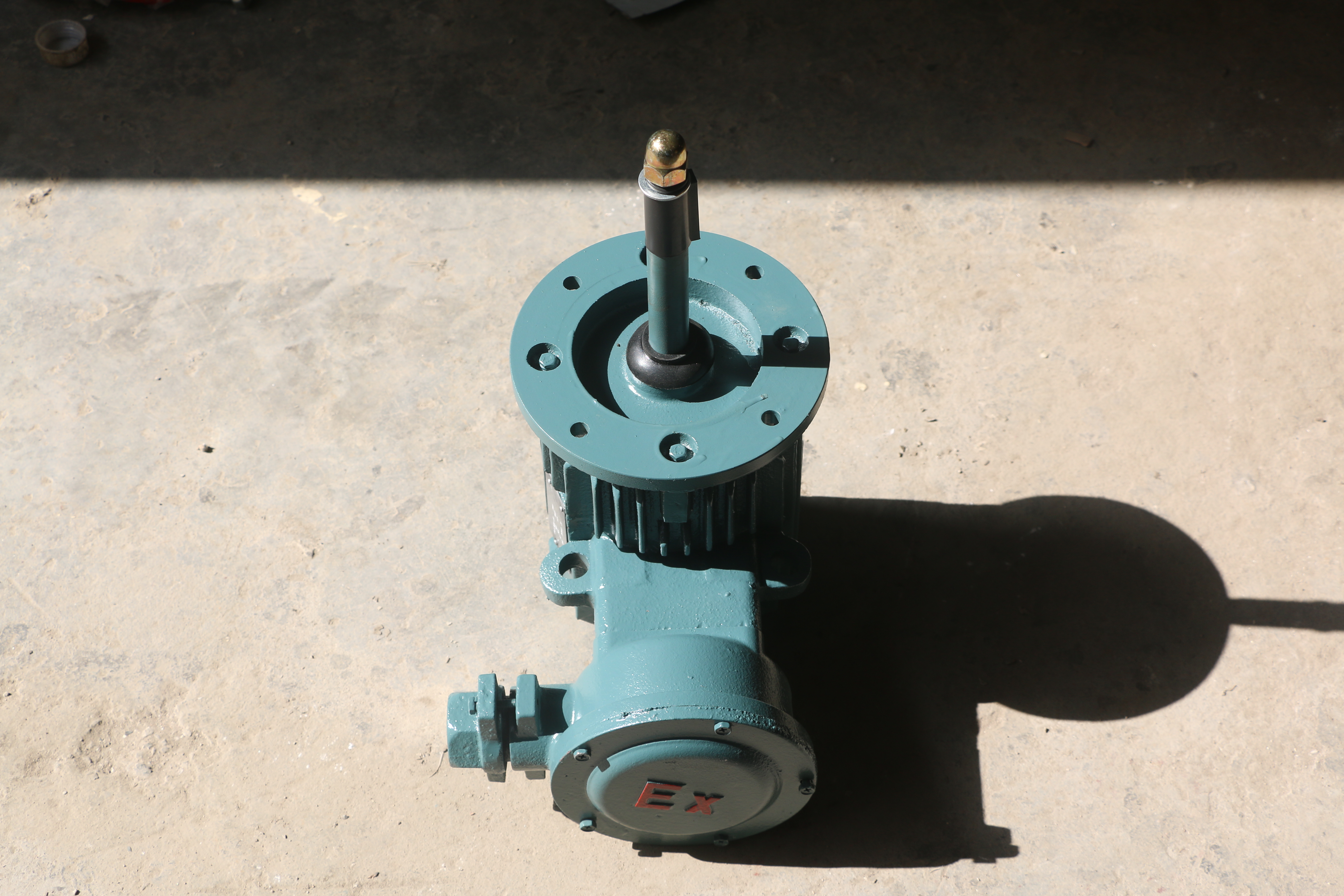

Five Key Parameters for Selecting A Cooling Tower Motor

In the world of cooling towers, motors are not "the bigger, the better", but "just enough and long-lasting". A wrong selection can lead to a doubling of electricity bills at best and the scrapping of two bearings in a year at worst. The following five parameters quantify "sufficiency" into verifiable hard indicators, and the verification can be completed on the spot within ten minutes.

I.COOLING TOWER MOTOR:Rated power - First calculate the "wind shaft power", and then leave a 10% margin

The required shaft power P(kW) for the cooling tower =Q×Δp÷(3600×ηfan×1000), where Q represents the air volume (m³/h), Δp represents the total pressure (Pa), and ηfan represents the fan efficiency (0.55 to 0.72). Multiply the calculated shaft power by 1.1, and you will get the lower limit of the motor's rated power. It is strictly forbidden to directly copy the "power distribution" on the nameplate. The data on the nameplate is often the "safety value" for high-altitude, high-humidity and easily overloaded conditions. In plain projects, this will result in "a big horse pulling a small cart", and the efficiency will drop sharply under low load.

II.COOLING TOWER MOTOR:Protection level - In a humid and hot environment, look at the "second characteristic number"

The  cooling tower motor is constantly exposed to 100% saturated humid air. In the IEC standard, the "5" in IP55 can only prevent water spray but not fog. When the inlet air temperature is ≥32 ℃ and the relative humidity is ≥ 85%, IP56 or IP65 should be selected, and it is mandatory to have a triple structure of "water flinging ring + labyrinth + nitrile oil seal" at the shaft extension. Inspection method: Use a spray bottle to continuously spray water on the shaft extension on site for 30 minutes. Stop the machine and disassemble for inspection. Only when there are no water droplets on the surface of the winding can it be considered passed.

III.COOLING TOWER MOTOR:Insulation system - F class is the bottom line, and H class is the safety

The cooling tower starts and stops 2 to 4 times a day. The windings undergo a "condensation - reheating" cycle, which makes them highly prone to "respiratory moisture absorption". The theoretical service life of F-class (155 ℃) insulation is approximately 10 years at an ambient temperature of 80 ℃ and a hot spot margin of 10 ℃. If H-class (180 ℃) is selected, the hot spot margin is increased to 35 ℃, and the service life can be extended to 18 years. Converted to hourly operating cost, it actually decreases by 8%. By adding the "secondary vacuum impregnation" process, the moisture-proof capacity is enhanced by an order of magnitude, while the cost only increases by 3%.

IV.COOLING TOWER MOTOR:Starting torque and frequency conversion range - directly determine the belt life

The inertia J of the cooling tower fan is large, and it is required that Tst≥1.8TN during startup. If frequency conversion is adopted, the minimum operating frequency of constant torque should not be lower than 20 Hz; otherwise, the fan will enter the "stall zone", with a sudden drop in air volume and belt slippage and overheating. When selecting the model, ask the manufacturer to provide the "torque-frequency" curve to confirm that the torque is still ≥1.3TN at 20Hz. At the same time, add "belt slippage monitoring" - attach reflective strips to the driven wheel and use proximity switches to measure the speed difference. If it exceeds 5%, an alarm will be triggered and the machine will stop. This can extend the belt replacement cycle from 9 months to 24 months.

V.COOLING TOWER MOTOR:Energy efficiency and cooling methods - IE3 is the threshold, IC416 is the key to "longevity"

GB 30254-2020 lists cooling tower motors as "key energy-consuming equipment", and those with a power of 7.5kW or more must have IE3(≥ 91.2%). However, high efficiency equals high loss density. If the traditional IC411(fan self-cooling) is still used, the winding temperature rise will increase by 5 to 7 K instead. The solution is IC416(independent cooling fan). The cooling air volume is not affected by the main motor speed. Even when operating at variable frequency and low speed, it still maintains 80 m³/min air cooling. The winding temperature rise is reduced by 12 K, the bearing temperature is reduced by 8 K, and the grease life is doubled. The initial investment increases by approximately 12%, and the electricity bill savings over two years can recover the cost.

Make the above five parameters into a "selection verification table" and print it on an A4 sheet of paper. It takes no more than ten minutes to select them on the spot, but it can increase the lifespan of the cooling tower motor from an average of 3.5 years to over 8 years, and reduce electricity bills by 8% to 12%. The truly expensive motor is not the one with the highest price, but the one that looks cheap but quietly shortens its lifespan in a humid and hot environment.
