10-15 days
PVC Counterflow Cooling Tower Film Fill is a structured heat-transfer media designed specifically for counterflow cooling towers. The specially formed corrugated surface distributes circulating water into thin films while allowing upward airflow to pass through the fill pack, maximizing water-to-air contact and improving evaporative heat transfer.
Manufactured from durable PVC material, this counterflow cooling tower filler provides a large effective surface area in a compact volume. It is widely used in industrial cooling towers, HVAC systems, power plants, chemical processing facilities, manufacturing plants, and cooling tower refurbishment projects.
The fill sheets can be supplied as individual sheets or assembled into customized counterflow cooling tower fill packs according to tower dimensions, water flow, airflow, operating temperature, and thermal performance requirements.
Designed for counterflow cooling towers
High-efficiency PVC film fill construction
Corrugated surface promotes water spreading and redistribution
Large effective water-to-air contact area
Supports efficient heat and mass transfer
Lightweight and easy to install
Suitable for cooling tower replacement and refurbishment
Available in customized sheet and pack dimensions
Suitable for industrial and commercial cooling applications
Available for OEM-compatible and aftermarket applications
| Item | Specification |
|---|---|
| Product Name | Counterflow Cooling Tower Film Fill |
| Product Type | PVC Film Fill Sheet |
| Application | Counterflow Cooling Tower |
| Material | PVC |
| Structure | Corrugated / Structured Film Fill |
| Color | Black / Dark Gray, typically |
| Function | Heat and Mass Transfer |
| Installation | Fill Pack |
| Water Flow Direction | Downward |
| Air Flow Direction | Upward |
| Supply Form | Individual Sheets or Assembled Packs |
| Application | Industrial, HVAC, Process Cooling |
| Customization | Available |
| Replacement | Suitable for Cooling Tower Refurbishment |
Final material grade, dimensions, thickness, flute configuration, and operating temperature should be confirmed according to the specific cooling tower application.
Counterflow cooling tower fill is the heat-transfer media installed inside a counterflow evaporative cooling tower.
In a counterflow tower, hot water enters the upper portion of the tower and flows downward through the fill. At the same time, air is drawn upward through the fill by the cooling tower fan. Because the water and air move in opposite directions, the system is known as a counterflow cooling tower.
The film fill provides a large structured surface over which water can spread. Instead of allowing water to fall freely as large droplets, the fill encourages the formation of thin water films.
This significantly increases the contact area between the water and air.
The basic cooling process is:
Hot Water → Water Distribution → PVC Film Fill → Water-Air Contact → Evaporation → Cooled Water
The cooled water then collects in the cold-water basin and is returned to the process or HVAC system.
The main purpose of cooling tower film fill is to increase the effective contact between circulating water and air.
When hot water is distributed over the top of the fill pack, it flows downward along the structured PVC surfaces. The corrugated geometry causes the water to spread, divide, and redistribute across the fill.
Meanwhile, the cooling tower fan moves air upward through the channels between the fill sheets.
As the water and air come into contact, a small portion of the water evaporates. The evaporation process removes heat from the circulating water.
The fill therefore helps provide:
Greater water-air contact area
Improved water distribution
Longer contact time
Better turbulence
Enhanced evaporation
Efficient heat transfer within a compact tower volume
The actual thermal performance depends on the complete cooling tower design, including water flow, airflow, entering and leaving temperatures, fill geometry, ambient wet-bulb temperature, and water distribution.

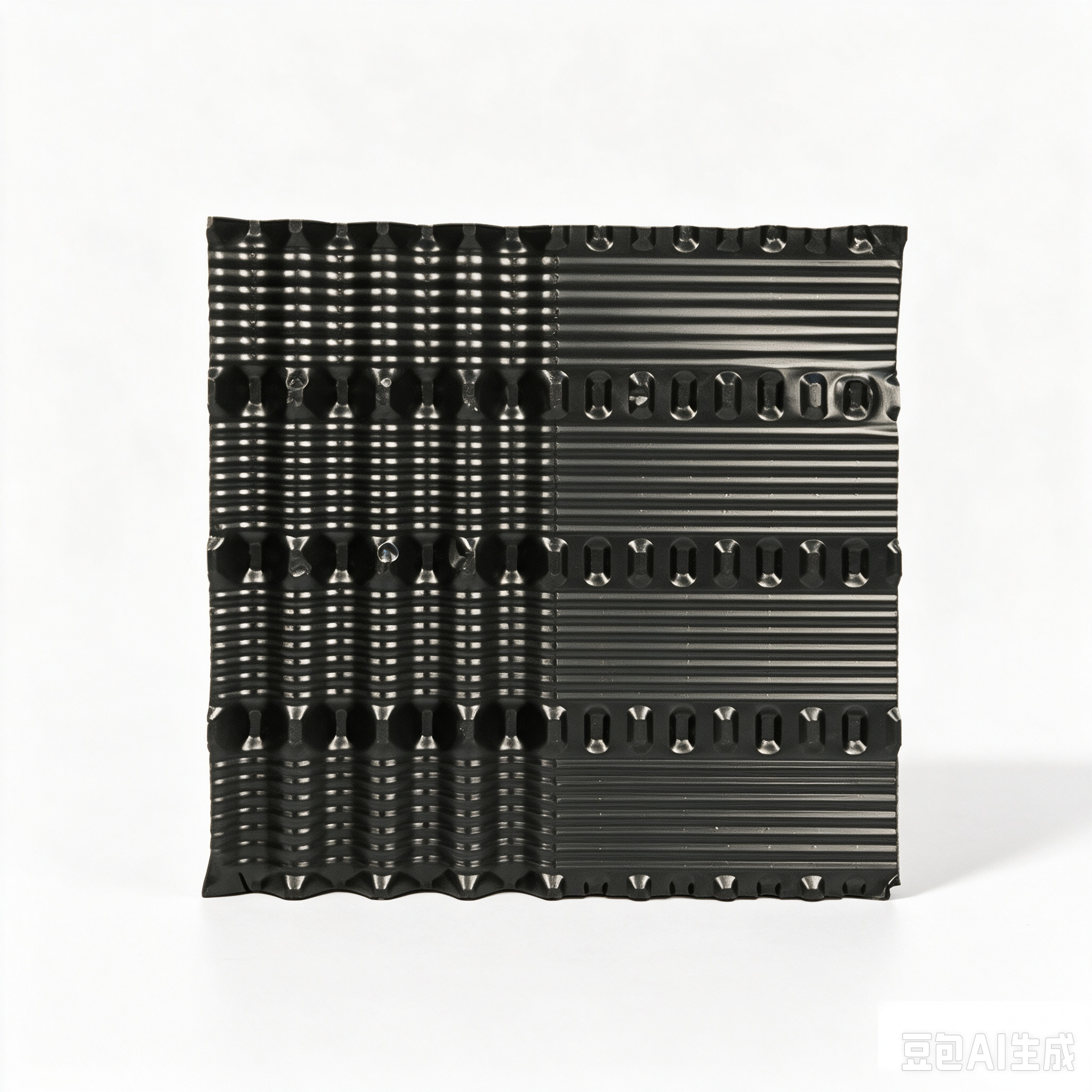

The appearance of the fill sheet is characterized by a series of structured corrugations and surface patterns.
These features are engineered to encourage water to spread over the surface while maintaining passages for upward airflow.

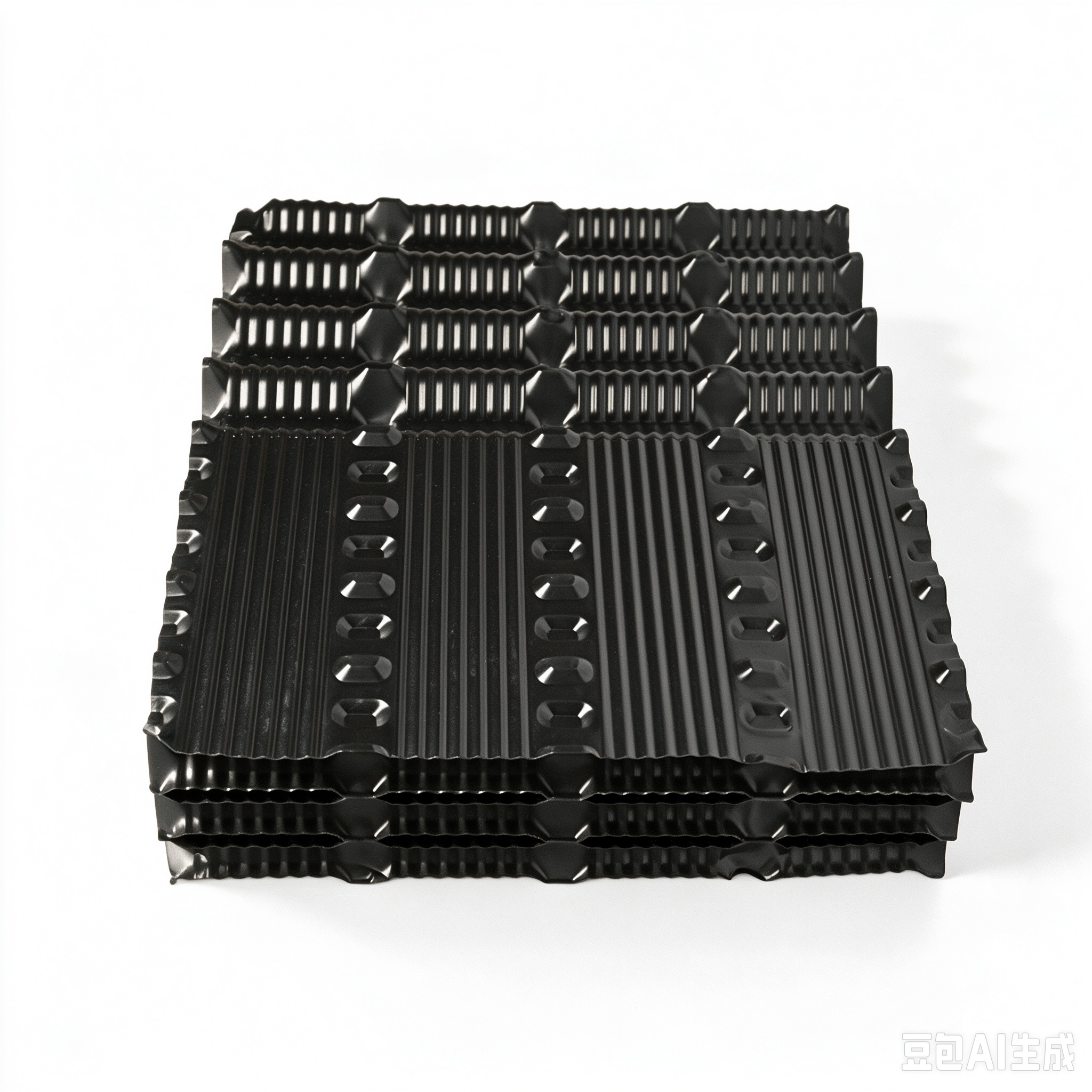

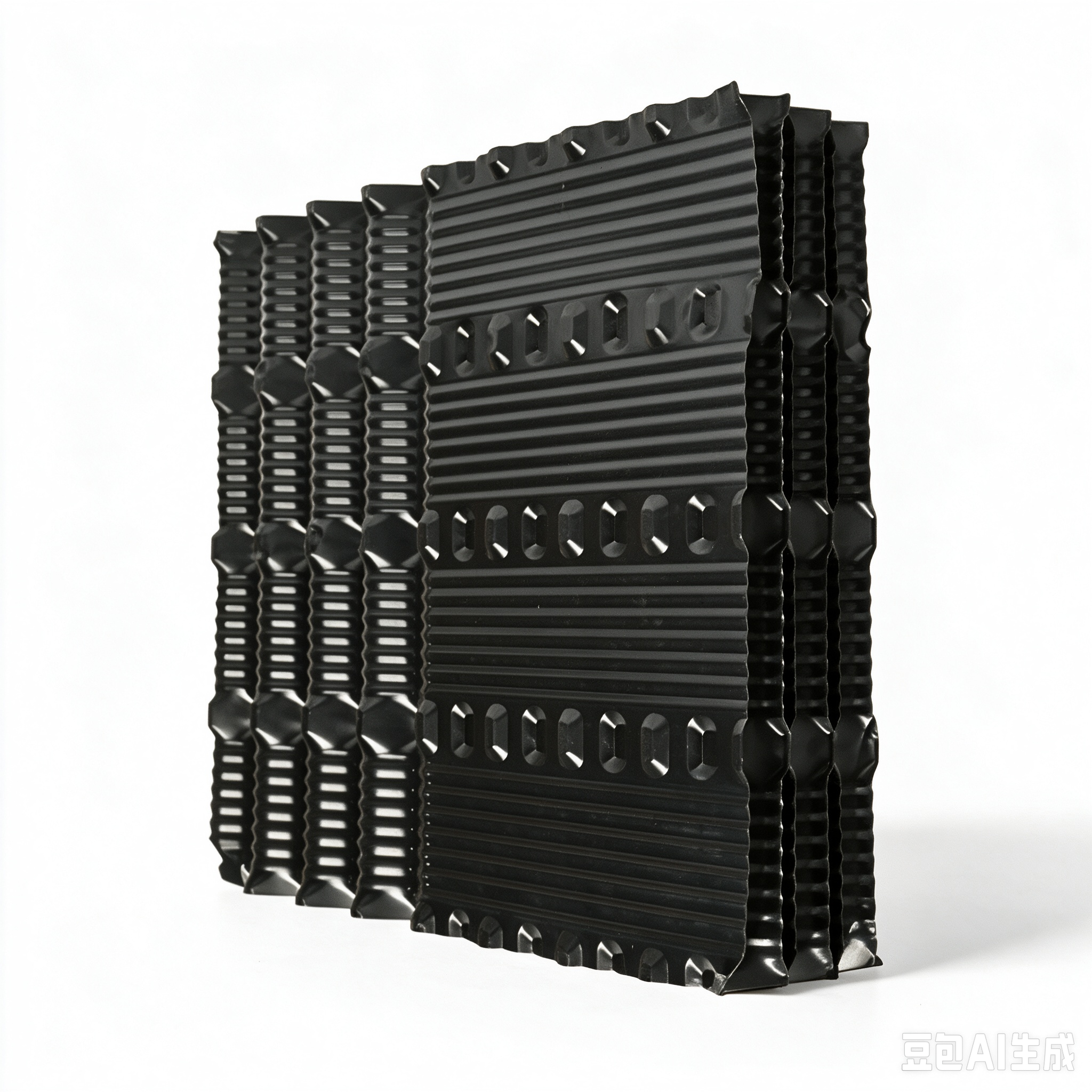

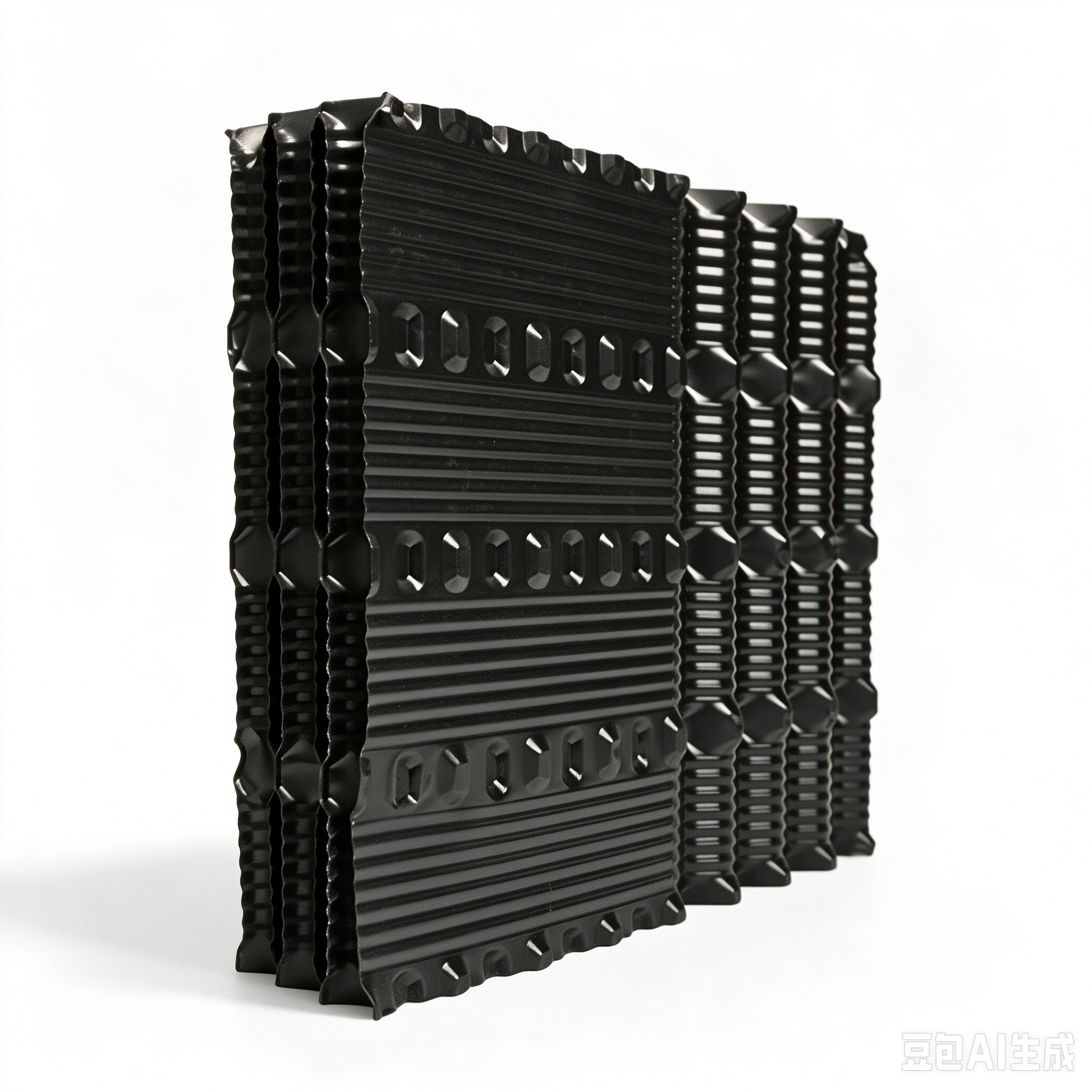

When multiple sheets are installed together, they form a three-dimensional network of water and air passages.
This structure provides the cooling tower with a large effective heat-transfer area without requiring an excessively large tower footprint.
The exact surface geometry is important because it affects:
Water distribution
Airflow resistance
Pressure drop
Heat-transfer performance
Fouling characteristics
Fill pack density
For this reason, replacement fill should be selected according to the cooling tower's original design rather than based only on sheet dimensions.
PVC is widely used for cooling tower film fill because it offers a practical combination of durability, weight, manufacturability, and resistance to many common cooling-water environments.
Compared with heavier metallic heat-transfer components, PVC fill is lightweight and can be handled relatively easily during installation and replacement.
Depending on the material grade and operating environment, PVC film fill can provide good resistance to:
Moisture
Continuous water exposure
Humid environments
Many common cooling-water conditions
Biological fouling when appropriate water treatment is maintained
Material compatibility should always be evaluated against the actual cooling-water chemistry and operating temperature.
This PVC film fill is suitable for a wide range of counterflow cooling tower applications.
Industrial facilities use counterflow cooling towers to remove heat from process water, production equipment, compressors, heat exchangers, and other industrial systems.
Efficient fill helps maintain the required cooling-water temperature while making effective use of the available tower volume.
Commercial HVAC systems frequently use cooling towers to reject heat from water-cooled chillers.
Replacement counterflow film fill can help restore the thermal performance of aging HVAC cooling towers.
Typical applications include:
Office buildings
Hotels
Shopping centers
Hospitals
Data centers
Commercial facilities
Large industrial HVAC systems
Cooling towers used in chemical and process industries require reliable heat-transfer components.
PVC film fill can be selected for suitable applications where the water chemistry and operating temperature are compatible with the material.
Cooling towers in power-generation facilities require continuous and reliable heat rejection.
Properly selected film fill helps maintain the water-air contact area required for evaporative cooling.
Manufacturing facilities often use cooling towers to remove heat from production processes and machinery.
Counterflow fill can be used for both new tower installations and replacement projects.
Cooling tower fill is continuously exposed to water, air, temperature changes, suspended solids, biological deposits, and water-treatment chemicals.
Over time, the fill can become fouled, damaged, or deformed.
Common signs of deteriorated cooling tower fill include:
Increased cold-water temperature
Reduced cooling capacity
Excessive scale
Blocked airflow passages
Biological deposits
Cracked or brittle sheets
Deformed fill packs
Collapsed sections
Uneven water distribution
Increased airflow resistance
When the fill no longer provides adequate water-air contact, replacing the fill can be an important part of cooling tower refurbishment.
Installing new film fill can help restore the internal heat-transfer surface of an aging cooling tower.
New fill provides a clean and properly structured surface for water distribution and air-water contact.
The structured fill encourages water to spread across the available heat-transfer area.
Removing heavily fouled or collapsed fill can help restore airflow through the tower.
When the original fill has deteriorated significantly, replacement can help recover cooling performance.
New fill can eliminate problems associated with collapsed, cracked, or severely blocked media.
Cooling tower fill is generally divided into two major categories: film fill and splash fill.
Film fill uses structured sheets to spread water into thin films over a large surface area. This provides a high effective contact area within a relatively compact volume.
Splash fill uses bars, grids, or other structures to repeatedly break falling water into droplets.
Advantages include:
High effective surface area
Compact fill volume
Efficient heat transfer
Suitable for many clean-water applications
Commonly used in counterflow cooling towers
Advantages may include:
Greater tolerance of certain water conditions
Reduced sensitivity to some types of suspended solids
Suitable for applications where fouling is a concern
The correct choice depends on water quality, thermal requirements, tower design, maintenance practices, and operating conditions.
Selecting the correct fill requires more than matching the physical dimensions.
Confirm that the existing tower is a counterflow cooling tower and determine its configuration.
The fill must be suitable for the tower's circulating-water loading.
The fill geometry influences airflow resistance and pressure drop. It should be compatible with the tower fan and air-distribution system.
Water containing high concentrations of suspended solids, scale-forming minerals, oil, or biological contaminants may require special consideration when selecting film fill.
The PVC material should be appropriate for the actual operating temperature.
Measure the existing fill pack carefully, including:
Length
Width
Height
Sheet thickness
Flute configuration
Pack arrangement
The replacement should meet the required cooling duty rather than simply fitting physically inside the tower.
We supply custom-size counterflow cooling tower film fill for replacement, refurbishment, and new cooling tower projects.
Depending on the project requirements, customized solutions may include:
Fill sheet dimensions
Fill pack dimensions
Sheet thickness
Flute geometry
Fill pack height
Fill pack width
Fill pack length
Material selection
Pack configuration
For replacement projects, customers can provide the existing fill dimensions, photographs, cooling tower model, or drawings.
This information helps ensure that the replacement PVC counterflow cooling tower fill is suitable for the existing installation.
Proper installation is important to achieve the expected performance.
Before installing new fill:
Shut down the cooling tower safely.
Isolate the circulating-water system.
Drain the tower where necessary.
Remove old or damaged fill.
Clean the fill support structure.
Inspect the support beams and internal components.
Check spray nozzles and water distribution.
Install the new fill packs according to the specified orientation.
Ensure the fill is properly supported.
Check for excessive gaps or airflow bypass.
Inspect the water distribution system.
Restart the cooling tower and monitor performance.
The correct fill orientation is particularly important because the flute direction and sheet arrangement affect water flow and airflow.
Regular maintenance can significantly extend the useful life of cooling tower fill.
Recommended practices include:
Monitor circulating-water quality
Control scale formation
Maintain appropriate biological treatment
Remove sediment and debris
Inspect fill regularly
Check spray nozzles
Inspect fill support structures
Monitor cooling-water temperatures
Check for blocked airflow passages
Replace severely damaged fill
Cleaning procedures should be selected carefully to avoid damaging the PVC sheets.
Not every performance problem requires complete fill replacement.
The fill may need cleaning when you observe:
Surface deposits
Scale buildup
Mud or sediment accumulation
Biological growth
Reduced water distribution
Increasing pressure drop
Declining cooling performance
If the fill remains structurally sound, appropriate cleaning may restore performance.
However, severely brittle, cracked, collapsed, or permanently deformed fill should generally be evaluated for replacement.
We provide PVC counterflow cooling tower film fill for industrial cooling tower replacement and refurbishment projects.
Our cooling tower fill solutions are suitable for customers looking for:
Counterflow cooling tower fill
PVC film fill
Cooling tower filler
Counterflow fill sheets
Counterflow fill packs
Industrial cooling tower fill
Cooling tower replacement media
Custom cooling tower fill
OEM-compatible replacement fill
We can support both standard and customized requirements based on the customer's cooling tower specifications.
Choosing the right fill supplier is important because cooling tower fill directly affects the tower's heat-transfer performance.
Our product offering focuses on:
Application-Specific Design
Fill is selected according to counterflow cooling tower requirements.
Custom Dimensions
Fill sheets and packs can be supplied according to project dimensions.
Replacement Support
Suitable for cooling tower refurbishment and replacement projects.
Industrial Applications
Designed for use in a wide range of commercial and industrial cooling systems.
Bulk Supply
Suitable for individual replacement requirements as well as larger cooling tower projects.
Counterflow cooling tower fill is a structured heat-transfer medium installed inside a counterflow cooling tower. It spreads downward-flowing water over a large surface area while upward-moving air passes through the fill.
PVC film fill is a plastic heat-transfer media manufactured into structured sheets. The sheets are assembled together to form a cooling tower fill pack that increases water-air contact.
In a counterflow cooling tower, water flows downward while air flows upward in the opposite direction. In a crossflow cooling tower, air generally moves horizontally across the falling water. Fill geometry and installation arrangements are designed accordingly.
Yes. This product is designed as counterflow cooling tower film fill and should be selected according to the specific tower design, water loading, airflow, and operating conditions.
Yes. Custom-size sheets and assembled fill packs can be supplied according to the required dimensions and application.
Service life varies significantly depending on water quality, operating temperature, chemical treatment, UV exposure, cleaning practices, and mechanical conditions. Regular inspection is necessary to determine when replacement is required.
Minor issues may sometimes be addressed during maintenance, but cracked, brittle, heavily deformed, or collapsed fill is generally better evaluated for replacement.
Properly selected film fill increases the effective water-air contact area, supporting evaporation and heat transfer. However, overall tower efficiency also depends on airflow, water distribution, ambient conditions, fan performance, and water quality.
