A cooling tower drift eliminator is one of the most important components installed at the air outlet section of a cooling tower. Its main function is to capture water droplets carried by the exhaust airflow and return them back into the cooling tower system.
During cooling tower operation, hot water is sprayed over the fill media while air moves through the tower. A small amount of water becomes suspended in the airflow as tiny droplets, known as drift. Without an effective drift eliminator, these droplets can escape into the surrounding environment, causing water loss, chemical discharge, and operational problems.
Modern industrial cooling towers rely on high-efficiency drift eliminators to:
Reduce water consumption
Improve environmental protection
Maintain cooling efficiency
Prevent corrosion of nearby equipment
Control chemical emissions
CoolingTowerPart.com supplies high-quality PVC and PP cooling tower drift eliminators designed for industrial cooling towers, HVAC systems, and replacement applications.

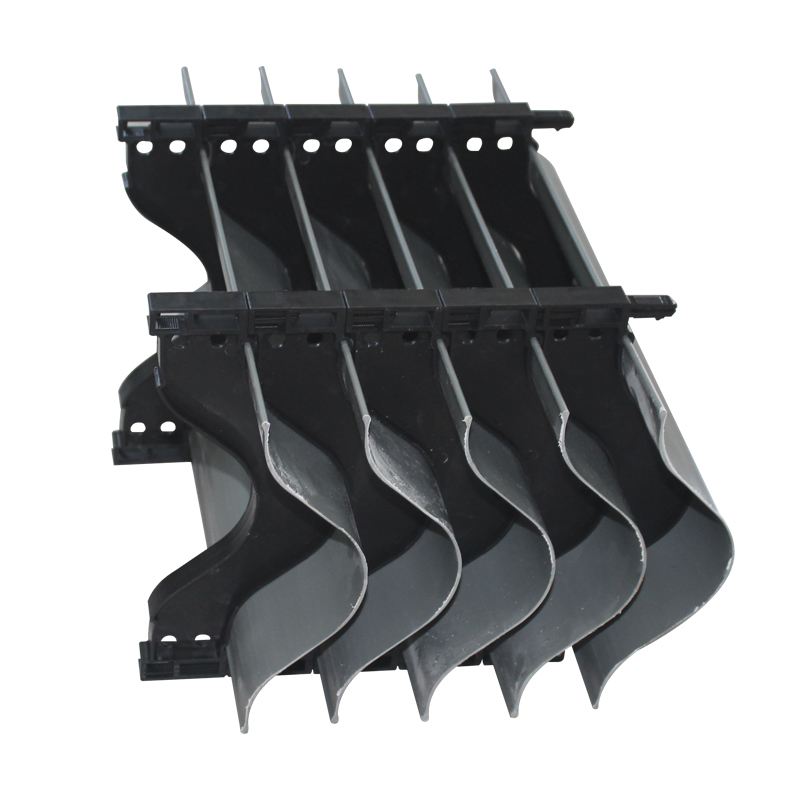

A cooling tower drift eliminator is an air separation device installed above the fill or water distribution system.
Its structure usually consists of multiple angled blades or channels that force moist air to change direction several times before leaving the tower.
The basic design includes:
Corrugated PVC or PP sheets
Multiple airflow passages
Water collection surfaces
Modular assembly sections
When humid air passes through the drift eliminator, water droplets collide with the surfaces, combine into larger droplets, and fall back into the cooling tower basin.
The primary function of a cooling tower drift eliminator is minimizing water loss.
During operation, airflow can carry tiny droplets outside the tower. These droplets contain:
Cooling water
Dissolved minerals
Treatment chemicals
A high-efficiency drift eliminator captures these droplets and returns them to the basin.
Benefits include:
Lower makeup water requirements
Reduced operating costs
Improved water conservation
Cooling tower drift may contain chemical additives used for water treatment.
Without proper drift control, discharged droplets may affect:
Nearby buildings
Equipment
Vegetation
Water sources
Drift eliminators help reduce the release of:
Chemical residues
Mineral deposits
Contaminated water droplets
This supports environmental compliance.
Although drift eliminators do not directly perform heat exchange, they improve overall system performance by maintaining proper water circulation.
Benefits include:
Better water recovery
Stable operating conditions
Reduced water consumption
A properly designed drift eliminator helps cooling towers operate efficiently.
Escaped water droplets may cause corrosion on:
Steel structures
Electrical equipment
Nearby machinery
By reducing drift emissions, cooling tower drift eliminators protect surrounding facilities.
This is especially important in:
Chemical plants
Power stations
Coastal industrial facilities
The operating principle is based on inertial separation.
The process includes:
Moist air containing water droplets moves upward through the eliminator.
The specially designed blades force airflow to change direction multiple times.
Due to inertia, heavier water droplets cannot follow the airflow path and collide with the eliminator surface.
Collected droplets combine and flow back into the cooling tower.
The discharged air contains significantly fewer water droplets.
PVC drift eliminators are the most common type used in industrial cooling towers.
Advantages:
Lightweight
Cost-effective
Good corrosion resistance
Easy installation
Applications:
HVAC cooling towers
Industrial cooling systems
Replacement projects
Polypropylene (PP) drift eliminators provide improved durability.
Advantages:
Higher temperature resistance
Better chemical resistance
Longer service life
Applications:
Chemical plants
High-temperature cooling systems
Chevron drift eliminators use a zig-zag blade structure.
Advantages:
High drift removal efficiency
Low pressure drop
Compact design
Film-type designs use thin structured sheets.
Advantages:
Efficient droplet capture
Smooth airflow performance
Industrial cooling towers often operate under demanding conditions.
A high-quality drift eliminator helps:
By recovering water droplets:
Less water replacement is required
Chemical consumption decreases
Reduced drift minimizes:
Chemical exposure
Slip hazards
Equipment corrosion
Many industries require strict drift control levels.
Applications include:
Power generation
Petrochemical plants
Manufacturing facilities
Data centers
The material affects:
Durability
Chemical resistance
Temperature capability
Common materials:
PVC
PP
FRP
Effective designs provide:
Multiple airflow changes
High droplet capture efficiency
Low pressure loss
Excessive airflow velocity may reduce separation efficiency.
Proper design balances:
Fan performance
Air pressure drop
Drift reduction
Incorrect installation may cause:
Air bypass
Reduced efficiency
Water leakage
Proper installation ensures full coverage.
Blocked or damaged drift eliminators reduce performance.
Regular inspection is recommended.
| Material | Advantages | Applications |
|---|---|---|
| PVC | Economical, corrosion resistant | Standard cooling towers |
| PP | High temperature and chemical resistance | Industrial applications |
| FRP | High strength and durability | Special environments |
Proper installation steps:
Inspect support structures.
Confirm eliminator dimensions.
Install sections according to airflow direction.
Ensure no gaps between modules.
Secure panels properly.
Test cooling tower operation.
Correct installation improves drift removal efficiency.
Recommended maintenance includes:
Check:
Cracks
Deformation
Missing sections
Remove:
Dust
Scale
Algae
Debris
Replace drift eliminators when:
Material becomes brittle
Blades are damaged
Drift levels increase
| Problem | Cause | Solution |
|---|---|---|
| Increased water loss | Damaged eliminator | Replace sections |
| High pressure drop | Dirt buildup | Clean surface |
| Poor drift control | Incorrect installation | Reinstall correctly |
| Material cracking | Aging or chemical attack | Replace with suitable material |
A reliable supplier should provide:
Confirm:
PVC/PP material quality
Manufacturing standards
Durability testing
Professional suppliers should offer:
OEM dimensions
Custom designs
Replacement solutions
Choose manufacturers experienced in:
Cooling tower parts
Fill media
Water distribution systems
Fan components
A cooling tower drift eliminator captures water droplets from exhaust air and returns them to the cooling tower basin, reducing water loss and environmental impact.
It is usually installed at the air outlet section above the fill or water distribution area.
PVC and polypropylene are the most common materials because they provide good corrosion resistance and durability.
Replacement depends on operating conditions, water quality, and maintenance. Regular inspection helps determine replacement timing.
The cooling tower drift eliminator is a critical component that improves water conservation, environmental protection, and cooling tower efficiency. By capturing water droplets carried by airflow, it reduces water loss, prevents chemical discharge, and protects surrounding equipment.
Selecting the correct drift eliminator material, design, and supplier is essential for reliable industrial cooling tower operation.
CoolingTowerPart.com provides high-quality cooling tower drift eliminators, PVC drift eliminators, PP drift eliminators, and OEM replacement cooling tower parts for customers worldwide, supporting HVAC, power plants, chemical industries, and industrial cooling applications.
