Cooling tower fan blade pitch adjustment is an important part of cooling tower operation, maintenance, and performance optimization. The blade pitch angle directly affects airflow volume, fan power consumption, motor load, vibration, and overall heat rejection capacity. When the blade angle is not properly adjusted, even a high-quality cooling tower fan may fail to deliver its expected performance.
However, adjusting cooling tower fan blade pitch is not simply a matter of increasing or decreasing the angle. Incorrect measurements, inconsistent blade settings, improper tightening, and neglecting motor operating limits can create serious operational problems.
Understanding the common mistakes in cooling tower fan blade pitch adjustment helps maintenance teams avoid unnecessary equipment damage, improve operating stability, and maintain reliable cooling performance.
This guide explains the most frequent adjustment mistakes, their consequences, and practical methods for achieving accurate and safe blade pitch settings.
 |  |
The blade pitch angle determines how the fan interacts with the surrounding air. A properly adjusted blade creates the airflow required by the cooling tower while keeping the fan within its designed operating limits.
The pitch angle influences the aerodynamic loading of each fan blade. Changing the angle changes the amount of air the fan can move under a given operating condition.
An excessively small pitch may result in insufficient airflow.
An excessively large pitch may increase aerodynamic resistance and motor load.
Uneven pitch settings may cause airflow imbalance and vibration.
Incorrect adjustment may reduce the overall cooling tower efficiency.
The relationship between blade pitch and airflow depends on fan diameter, blade profile, rotational speed, air density, and system resistance.
Fan performance and energy consumption are closely related. When blade pitch is increased, the fan may move more air, but it can also require more power.
If the motor operates beyond its rated capacity, excessive current, overheating, and premature component failure may occur.
A suitable blade pitch should therefore balance airflow requirements, cooling performance, and motor operating limits rather than simply maximize airflow.
All blades in a fan assembly should follow the manufacturer's specified pitch setting.
If one blade has a different angle from the others, the fan may produce uneven aerodynamic forces. This can increase vibration, create fluctuating loads, and reduce operating stability.
Understanding these mistakes is essential for technicians, maintenance contractors, and cooling tower operators.
One of the most common mistakes is using an arbitrary blade angle without consulting the fan manufacturer's technical documentation.
Different cooling tower fans have different aerodynamic designs. A blade angle suitable for one fan may be unsuitable for another.
The correct pitch depends on several design parameters:
Fan diameter and rotational speed
Blade profile and material
Motor power and rated current
Required airflow and static pressure
Fan cylinder or stack configuration
Operating temperature and air density
Before making adjustments, obtain the manufacturer's recommended blade pitch, measurement reference, and adjustment procedure.
Never assume that all cooling tower fan blades should use the same angle.
Another frequent mistake is measuring the blade angle at an inconsistent position.
The aerodynamic characteristics of a fan blade vary along its length. Many fan blades have different geometric characteristics from the root to the tip.
Measuring different blades at different radial positions can produce misleading results. Even when the readings appear close, the actual blade settings may not be consistent.
Identify the measurement position specified by the manufacturer.
Use the same reference point for every blade.
Keep the measuring instrument properly aligned.
Record each blade's reading separately.
Compare the results with the manufacturer's recommended value.
Depending on the fan design, technicians may use:
Digital angle gauges
Mechanical pitch gauges
Straightedges and reference fixtures
Manufacturer-specific blade angle templates
Using the correct measuring reference is just as important as using an accurate instrument.
All blades in a cooling tower fan assembly should generally have consistent pitch settings unless the manufacturer specifies otherwise.
Some technicians adjust each blade independently without checking the entire fan assembly.
Different blade angles may create unequal aerodynamic loading.
Potential consequences include:
Uneven airflow distribution
Increased fan vibration
Additional mechanical stress
Reduced operating efficiency
Increased noise during operation
Measure every blade using the same procedure and compare the results.
If the readings differ, inspect the blade mounting positions, adjustment mechanisms, and hub assembly before operating the fan.
Increasing the blade pitch may appear to be an easy way to improve cooling tower performance. However, excessive adjustment can create additional problems.
A larger pitch angle can increase aerodynamic resistance and fan power requirements.
If the fan requires more power than the motor can safely provide, several problems may occur:
Motor current exceeds the allowable operating range.
Motor temperature rises.
Gearbox loading increases.
Fan vibration becomes more noticeable.
Energy consumption increases significantly.
Make adjustments in accordance with the manufacturer's approved procedure.
After adjustment, verify motor current, fan speed, vibration, and cooling tower operating conditions.
The objective should be to achieve the required airflow without exceeding the rated operating limits of the equipment.
A common mistake is checking only the fan's airflow while ignoring the electrical load.
A cooling tower fan may appear to operate normally even when its motor is drawing excessive current.
After changing the blade pitch, check:
Motor operating current
Voltage and phase balance
Motor temperature
Fan rotational speed
Vibration levels
Gearbox operating temperature, where applicable
Motor current provides useful information about the electrical load.
If the current exceeds the motor nameplate rating or the manufacturer's allowable operating limit, the fan may be overloaded.
Technicians should investigate the cause instead of continuing to operate the equipment under excessive load.

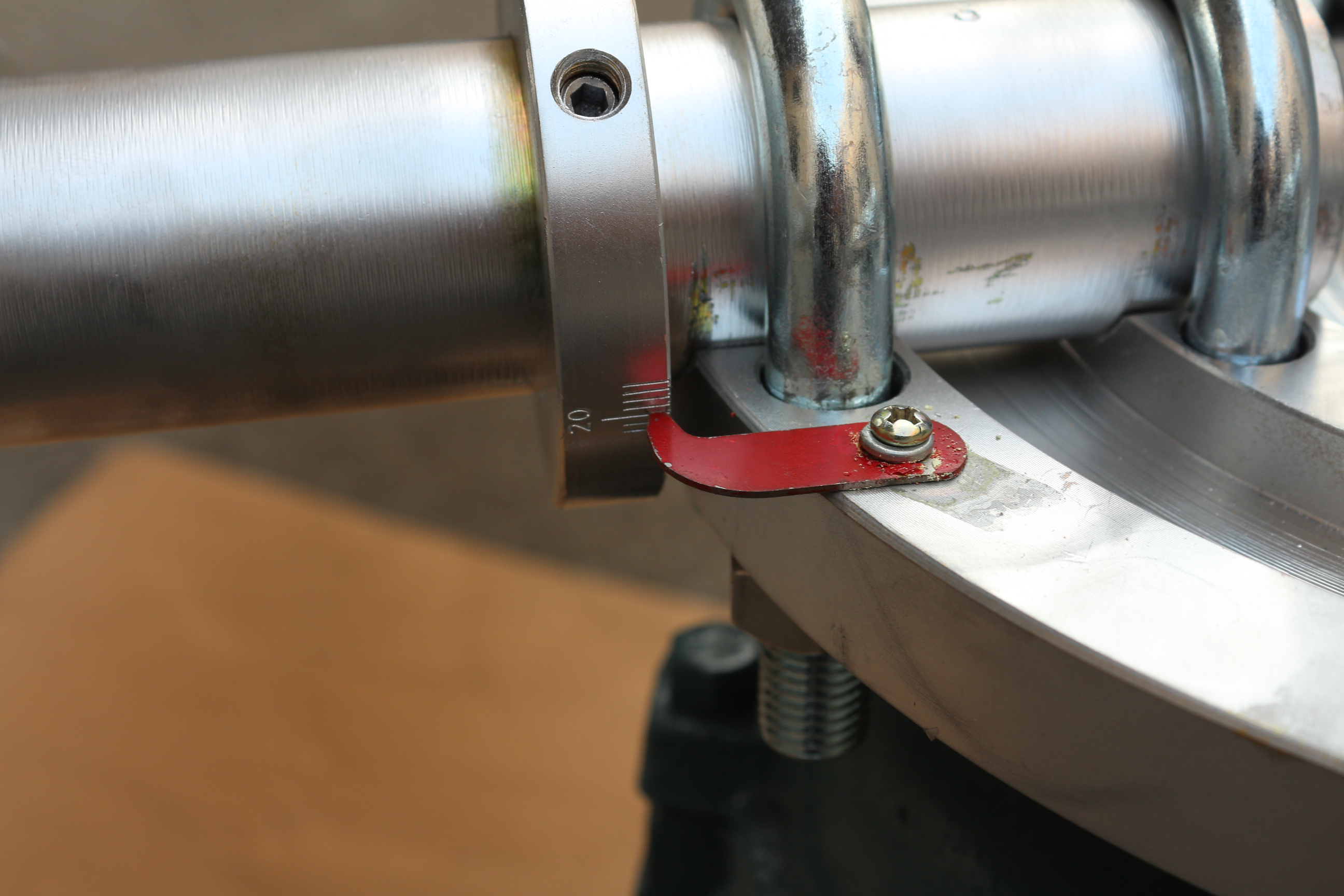

The fan hub connects the blades to the rotating shaft or drive assembly. Its condition directly affects the safety and reliability of the fan system.
Adjusting blade pitch without inspecting the hub can overlook loose fasteners, corrosion, cracks, or worn adjustment components.
Before adjustment, inspect:
Blade mounting brackets
Hub bolts and nuts
Threaded adjustment components
Corrosion and surface damage
Cracks around mounting points
Signs of previous movement or deformation
A damaged or loose hub may prevent blades from maintaining their intended positions.
Even if the blade pitch is initially correct, mechanical looseness can cause the setting to change during operation.
Improper tightening is another important mistake during cooling tower fan blade pitch adjustment.
Loose fasteners may allow blades to move under aerodynamic forces. Excessive tightening may damage threads, mounting surfaces, or composite components.
Follow the manufacturer's specified torque values.
Use a calibrated torque wrench when required.
Tighten fasteners in the recommended sequence.
Check locking devices and retaining components.
Reinspect the mounting assembly before restarting.
Not necessarily. Different fastener sizes, materials, and mounting designs may require different torque specifications.
Always use the values provided for the specific fan and hub assembly.
Some maintenance teams focus entirely on pitch measurements without inspecting the physical condition of the blades.
However, damaged blades cannot be corrected simply by changing their angles.
Common problems include:
Cracks near the blade root
Surface erosion
Deformation or bending
FRP delamination
Corrosion of metallic components
Damaged mounting holes
A damaged blade may have different aerodynamic characteristics from the remaining blades.
It can also create an uneven mass distribution, leading to vibration and additional mechanical stress.
Damaged blades should be evaluated and repaired or replaced according to the manufacturer's recommendations before pitch adjustment.
Blade pitch adjustment and fan balancing are related to fan performance, but they are not the same process.
Blade pitch adjustment changes the aerodynamic orientation of the blades to achieve the required airflow and loading.
Fan balancing addresses uneven mass distribution in the rotating assembly to reduce vibration.
A fan can have identical blade pitch settings but still be unbalanced because of differences in blade mass, deposits, or component positioning.
Likewise, a balanced fan may still have incorrect blade pitch settings.
Inspect blade condition, verify pitch consistency, and perform balancing when required.
If vibration remains after pitch correction, investigate mechanical alignment, shaft condition, bearings, gearbox condition, and fan balance rather than repeatedly changing blade angles.
After completing the adjustment, some technicians restart the fan immediately without checking the entire assembly.
This can allow installation errors or loose components to go unnoticed.
A final inspection should include:
Blade pitch consistency
Fastener tightness
Hub condition
Blade clearance
Fan cylinder clearance
Motor and gearbox mounting
Electrical connections
Removal of tools and foreign objects
Only qualified personnel should authorize the restart after confirming that the equipment is safe to operate.
Avoiding common mistakes requires a systematic adjustment procedure. The following steps provide a practical reference for maintenance teams. The fan manufacturer's instructions always take priority.
Before beginning any adjustment, shut down the fan and isolate its power supply.
Disconnect the electrical power.
Apply lockout/tagout devices.
Verify that the fan cannot restart unexpectedly.
Wait until all rotating components have completely stopped.
Confirm that the working area is safe.
Never measure or adjust blade pitch while the fan is rotating.
Examine the blades, hub, mounting brackets, fasteners, and surrounding fan cylinder.
Look for visible damage, looseness, corrosion, and abnormal wear.
If structural damage is found, resolve it before proceeding with the pitch adjustment.
Consult the fan manufacturer's documentation to determine:
Recommended pitch setting
Measurement location
Measurement reference plane
Required measuring instrument
Adjustment sequence
Fastener torque requirements
Different fan designs may use different pitch measurement conventions. Therefore, technicians should not compare readings unless they use the same reference method.
Use the specified measuring instrument to check each blade at the designated radial position.
Record the readings in a maintenance sheet.
A simple inspection table can help organize the results:
| Blade Number | Measured Pitch | Manufacturer's Target | Status |
|---|---|---|---|
| Blade 1 | Record value | Specified value | Check |
| Blade 2 | Record value | Specified value | Check |
| Blade 3 | Record value | Specified value | Check |
| Blade 4 | Record value | Specified value | Check |
| Blade 5 | Record value | Specified value | Check |
The table is an inspection template, not a recommended universal pitch specification.
If the measured pitch differs from the specified setting, adjust the blade according to the manufacturer's procedure.
Maintain consistent measurement positions and avoid making arbitrary changes.
For adjustable fan systems, the blade mounting design may use clamps, brackets, or other positioning mechanisms.
Once the correct setting has been achieved, tighten the fasteners using the specified torque.
Measure the pitch again to confirm that tightening has not changed the blade position.
Repeat the inspection for every blade.
After completing the mechanical inspection, remove tools and confirm that all personnel are clear of the equipment.
Restore power following the approved operating procedure.
Monitor the following parameters:
Motor current
Fan rotational speed
Vibration
Abnormal noise
Gearbox temperature
Airflow and cooling performance
Compare operating results with the equipment's baseline data and allowable operating limits.
Incorrect blade pitch may produce several operational symptoms. However, these symptoms can also be caused by other mechanical or electrical problems.
If the cooling tower cannot achieve the required outlet water temperature, insufficient airflow may be one possible cause.
Other factors should also be checked, including fill condition, water distribution, ambient wet-bulb temperature, and heat load.
A sudden increase in motor current after pitch adjustment may indicate excessive fan loading.
Compare the measured current with the motor nameplate and operating limits.
Uneven pitch, damaged blades, loose fasteners, or fan imbalance can contribute to abnormal vibration.
A vibration measurement and mechanical inspection are recommended before making further adjustments.
Unexpected changes in fan speed, noise, or motor load may indicate that the fan is operating outside its intended conditions.
Check the fan, drive system, and control settings to identify the actual cause.
Blade material can influence the inspection and adjustment procedure.
FRP fan blades are widely used in industrial cooling towers because of their corrosion resistance and relatively low weight.
Inspect the blade surface for cracks, delamination, and damage around the root section.
Avoid applying excessive clamping force because it may damage composite materials.
Use the manufacturer's specified mounting and tightening procedures.

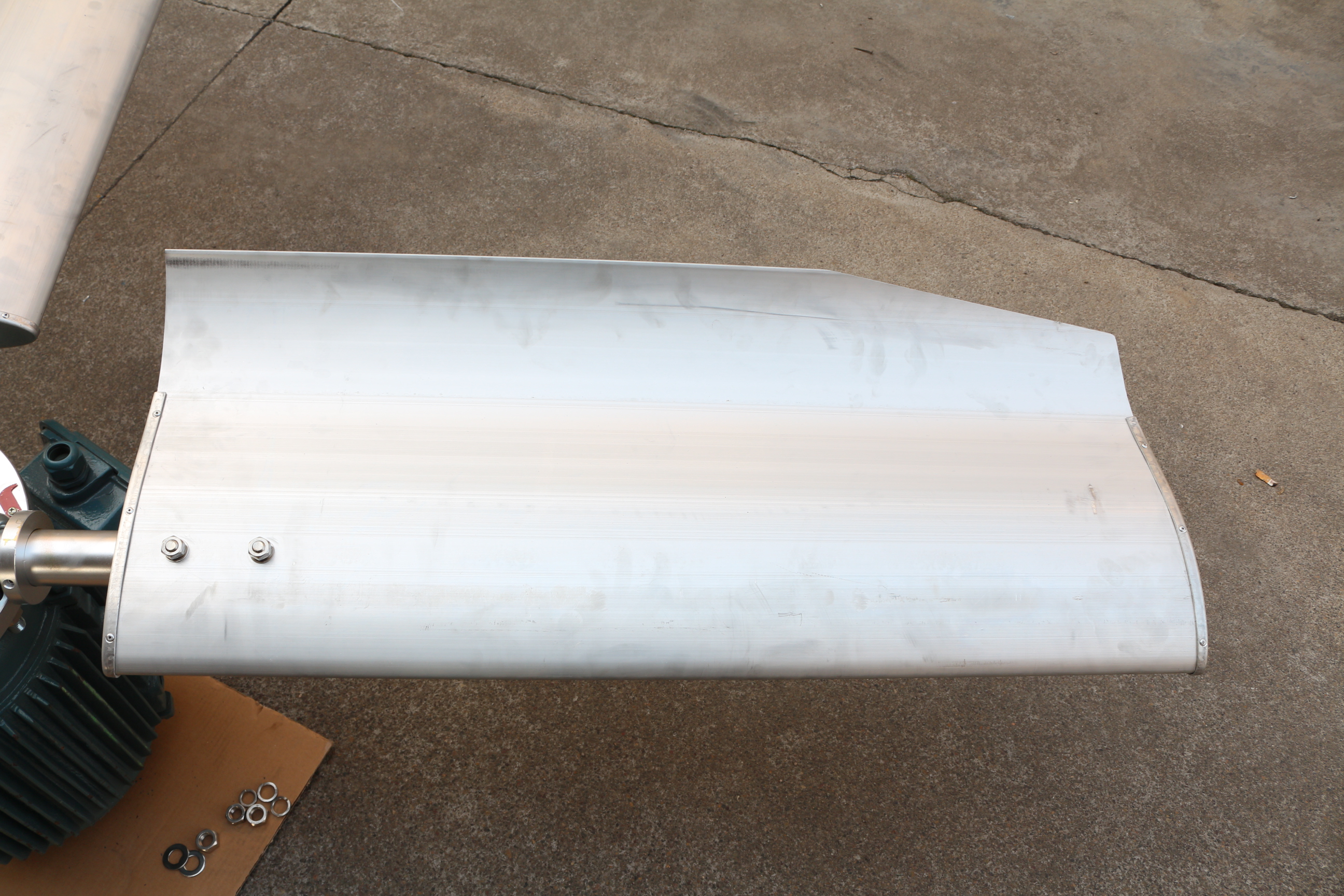

Aluminum blades are valued for their lightweight construction and corrosion-resistant characteristics when properly selected and protected.
Inspect for deformation, corrosion, cracks, and damage around mounting holes.
Ensure that all blades are positioned consistently and that the hub assembly is secure.
Metal fan blades may be used in specialized industrial applications.
Check for corrosion, fatigue, deformation, and fastener condition. The adjustment procedure should follow the requirements of the specific fan design.
There is no universal inspection interval for every cooling tower fan. Inspection frequency depends on operating hours, environmental conditions, fan design, and manufacturer recommendations.
Technicians should check for visible blade damage, loose fasteners, abnormal vibration, and changes in motor current.
Blade pitch should be verified whenever blades, hubs, mounting brackets, or related components have been removed or replaced.
Changes in cooling load, fan speed, motor current, or cooling performance may justify a detailed inspection.
For cooling towers operating seasonally, inspect the fan assembly before returning the equipment to service.
A reliable cooling tower fan blade manufacturer can help reduce adjustment problems through proper engineering, manufacturing quality, and technical support.
A professional manufacturer should understand fan diameter, blade profile, pitch requirements, rotational speed, and operating conditions.
Different cooling towers have different airflow and installation requirements.
Custom fan blade solutions should consider the existing fan hub, fan cylinder, motor capacity, and system operating conditions.
The manufacturer should provide suitable materials for the operating environment.
For example, FRP blades may be appropriate for corrosive environments, while aluminum blades may be selected for applications requiring lightweight construction.
Important quality-control procedures may include:
Dimensional inspection
Blade pitch verification
Surface quality inspection
Material testing
Mounting compatibility checks
Rotational balance testing when specified
A reliable supplier should be able to provide installation guidance, blade pitch information, replacement recommendations, and relevant technical documentation.
This support is particularly important for older cooling towers or customized fan systems.
Increasing blade pitch may increase airflow under certain operating conditions, but it can also increase motor load and energy consumption.
The correct setting must be determined according to fan design, required airflow, and motor operating limits.
For most conventional adjustable fan assemblies, all blades should be set consistently according to the manufacturer's specifications.
Specialized designs may have different requirements, so the manufacturer's instructions should always be followed.
Common tools include a digital angle gauge, mechanical pitch gauge, appropriate hand tools, and a calibrated torque wrench.
The exact tools depend on the fan and hub design.
Yes. An excessively large pitch angle can increase aerodynamic loading and motor power requirements.
If the motor current exceeds its allowable operating range, the fan may experience overheating or overload protection trips.
Yes. New blades should be installed and checked according to the manufacturer's specified pitch setting.
Technicians should also verify blade consistency, mounting security, clearance, and fan balance where required.
It can. Incorrect or uneven blade pitch may contribute to aerodynamic noise and vibration.
However, noise can also result from damaged blades, loose fasteners, poor alignment, or mechanical wear.
No. Blade pitch adjustment must be performed with the fan shut down and safely isolated. Never attempt to measure or adjust a rotating fan.
Cooling tower fan blade pitch adjustment plays an important role in maintaining airflow, controlling motor load, and improving overall cooling system reliability.
Common mistakes include ignoring manufacturer specifications, measuring at inconsistent positions, setting unequal blade angles, increasing pitch excessively, overlooking hub damage, and failing to check motor current after adjustment.
By following a systematic inspection and adjustment procedure, maintenance teams can reduce unnecessary equipment stress and achieve more stable fan operation.
For industrial cooling tower operators, choosing high-quality fan blades and working with an experienced cooling tower fan blade manufacturer are also important steps toward long-term performance and reliable operation.
