Cooling tower fan blades play a critical role in maintaining airflow, supporting heat rejection, and ensuring stable cooling tower operation. However, continuous operation, environmental exposure, improper installation, and uneven blade loading can lead to vibration, noise, reduced efficiency, and premature component failure. Proper cooling tower fan blade balancing and regular maintenance are essential for keeping industrial cooling systems reliable and energy-efficient.
Cooling tower fan blade balancing involves checking and correcting mass distribution so that the rotating assembly operates within acceptable vibration and balance limits. Maintenance also includes inspecting blade surfaces, mounting hardware, hubs, pitch settings, and other components that affect fan performance.
Whether you operate a large industrial cooling tower, an HVAC cooling system, or a power plant cooling installation, understanding fan blade balancing procedures can help reduce unexpected downtime and extend equipment service life.
This guide explains why cooling tower fan blade balancing matters, how imbalance develops, which inspection methods are useful, and how to establish an effective maintenance program.
Cooling tower fans typically operate for long periods under demanding environmental conditions. Their blades are exposed to moisture, airborne particles, temperature changes, and mechanical forces. Even relatively small defects can affect the performance of a rotating fan assembly.
When the fan assembly has uneven mass distribution, rotation can generate additional centrifugal forces. These forces may cause vibration that transfers to the hub, shaft, gearbox, motor, bearings, and supporting structure.
Excessive vibration can contribute to loose fasteners, bearing wear, fatigue damage, and premature failure of connected components.
Proper balancing helps limit vibration caused by mass imbalance. However, vibration can also result from misalignment, blade deformation, aerodynamic loading, loose mounting hardware, bearing defects, or structural resonance. Balancing should therefore be performed alongside a broader mechanical inspection when vibration problems occur.
The fan moves air through the cooling tower fill and drift eliminators to support heat transfer. If vibration or blade damage forces the fan to operate at reduced speed or requires frequent shutdowns, the cooling tower may struggle to maintain its required performance.
A properly maintained fan assembly helps support consistent airflow and reliable operation.
Unexpected fan failures can interrupt industrial production and increase repair expenses. Regular inspection and timely balancing help identify developing problems before they cause extensive damage.
Potential benefits include:
Reduced vibration-related wear
Fewer unexpected shutdowns
Longer service life for selected mechanical components
More stable fan operation
Improved maintenance planning
Lower risk of secondary equipment damage
Fan efficiency depends on blade geometry, pitch angle, rotational speed, airflow resistance, and operating conditions. Excessive vibration may indicate a problem that also affects mechanical reliability and operating performance.
Balancing alone does not guarantee lower electricity consumption. However, correcting imbalance and resolving related mechanical defects can help maintain the fan in its intended operating condition.
Understanding the causes of imbalance is the first step toward effective maintenance. Not every vibration problem originates from an unbalanced blade, so diagnosis should be based on inspection and measurement.
Dust, mineral deposits, biological growth, and other contaminants can accumulate on blade surfaces. If the deposits are unevenly distributed, they may change the mass distribution of the rotating assembly.
Inspect the blades for buildup during scheduled maintenance. Clean them using methods approved by the fan manufacturer, taking care not to damage the blade surface, protective coating, or composite structure.
Do not remove material through grinding or aggressive scraping unless the manufacturer explicitly permits the procedure.
Cracks, erosion, impact damage, deformation, and corrosion can affect blade strength and mass distribution. A damaged blade may also produce abnormal aerodynamic forces even when the fan's mass balance appears acceptable.
Inspect the leading edge, trailing edge, blade root, mounting holes, and other stress-sensitive areas.
Replacement may be necessary when a blade has structural cracks, severe deformation, damaged mounting features, or deterioration beyond the manufacturer's limits. Structural damage should not be treated as a simple balancing problem.
Uneven mounting positions, inconsistent blade pitch, improperly tightened fasteners, and incorrect blade orientation can contribute to vibration or uneven loading.
Even when individual blades have similar mass, installation differences may cause aerodynamic imbalance or mechanical problems.
Loose bolts, worn mounting interfaces, damaged hubs, and degraded locking components can allow movement during operation. Such conditions can create vibration and increase the risk of blade detachment.
All mounting hardware should be checked according to the manufacturer's torque requirements and maintenance instructions.
Cooling towers often operate in wet and potentially corrosive environments. Corrosion can remove material unevenly from metal blades or mounting components. Composite blades may also deteriorate through impact, chemical exposure, UV degradation, or fatigue.
The inspection method should match the blade material and the suspected damage.
A fan may vibrate even when its blades are correctly balanced. Bent shafts, worn bearings, gearbox defects, coupling misalignment, motor problems, and structural looseness can all contribute to abnormal vibration.
Before arranging a balancing procedure, check the entire rotating assembly and its support system.
Static balancing and dynamic balancing are two different methods used to evaluate rotating components. The appropriate method depends on the fan design, operating speed, assembly configuration, and manufacturer's requirements.
Static balancing evaluates whether a component has an uneven mass distribution that causes it to tend toward a particular position when supported appropriately.
It is commonly associated with individual components or assemblies where a static balance check is suitable.
Static balancing may be appropriate for certain individual fan blades, hubs, or simple rotating components. However, it cannot identify every imbalance condition that appears when a complete fan rotates at operating speed.
For large cooling tower fans, follow the manufacturer's specified procedure rather than assuming a static check is sufficient.
Dynamic balancing evaluates the rotating assembly under conditions that reveal imbalance effects during rotation. Depending on the equipment and method, it may identify imbalance associated with different axial planes.
A specialist may use balancing equipment, vibration sensors, and phase measurements to determine the appropriate correction.
Large fan assemblies can experience complex vibration behavior because of their diameter, rotational speed, hub configuration, blade flexibility, and supporting structure. Dynamic balancing may be required when the manufacturer's specifications, fan configuration, or measured vibration indicate that a more comprehensive procedure is necessary.
There is no single method suitable for every cooling tower fan.
| Factor | Static balancing | Dynamic balancing |
|---|---|---|
| Main purpose | Evaluates static mass imbalance | Evaluates imbalance during rotation |
| Typical application | Suitable individual components or assemblies | Rotating assemblies requiring dynamic evaluation |
| Equipment | Appropriate static balancing fixture | Suitable dynamic balancing equipment and sensors |
| Limitations | May not reveal all operating-speed imbalance conditions | Requires suitable equipment, expertise, and safe test conditions |
| Selection basis | Component design and manufacturer guidance | Fan design, operating conditions, and balance requirements |
The manufacturer's instructions and applicable balancing standards should determine the required method and acceptance criteria.
A systematic inspection helps identify the actual cause of vibration and prevents unnecessary balancing work.
Before accessing the fan, shut down the equipment, isolate all relevant energy sources, apply the site's lockout/tagout procedure, and confirm that the fan cannot restart unexpectedly.
Allow moving components to stop completely and follow the manufacturer's access and safety requirements.
Use suitable access equipment and personal protective equipment. Ensure the fan assembly is safely accessible, and never stand on unsupported blades or use them as lifting points.
Check each blade for visible defects and changes in condition.
Important inspection points include:
Cracks and surface splits
Leading-edge and trailing-edge damage
Corrosion, erosion, or pitting
Uneven dirt or mineral deposits
Deformation or permanent bending
Damaged blade roots and mounting holes
Signs of impact or chemical deterioration
Record the condition of each blade using a consistent numbering system. Photographs and inspection notes can help identify recurring damage and provide a useful reference for future maintenance.
If structural damage is suspected, arrange an appropriate engineering assessment before attempting to balance the fan.

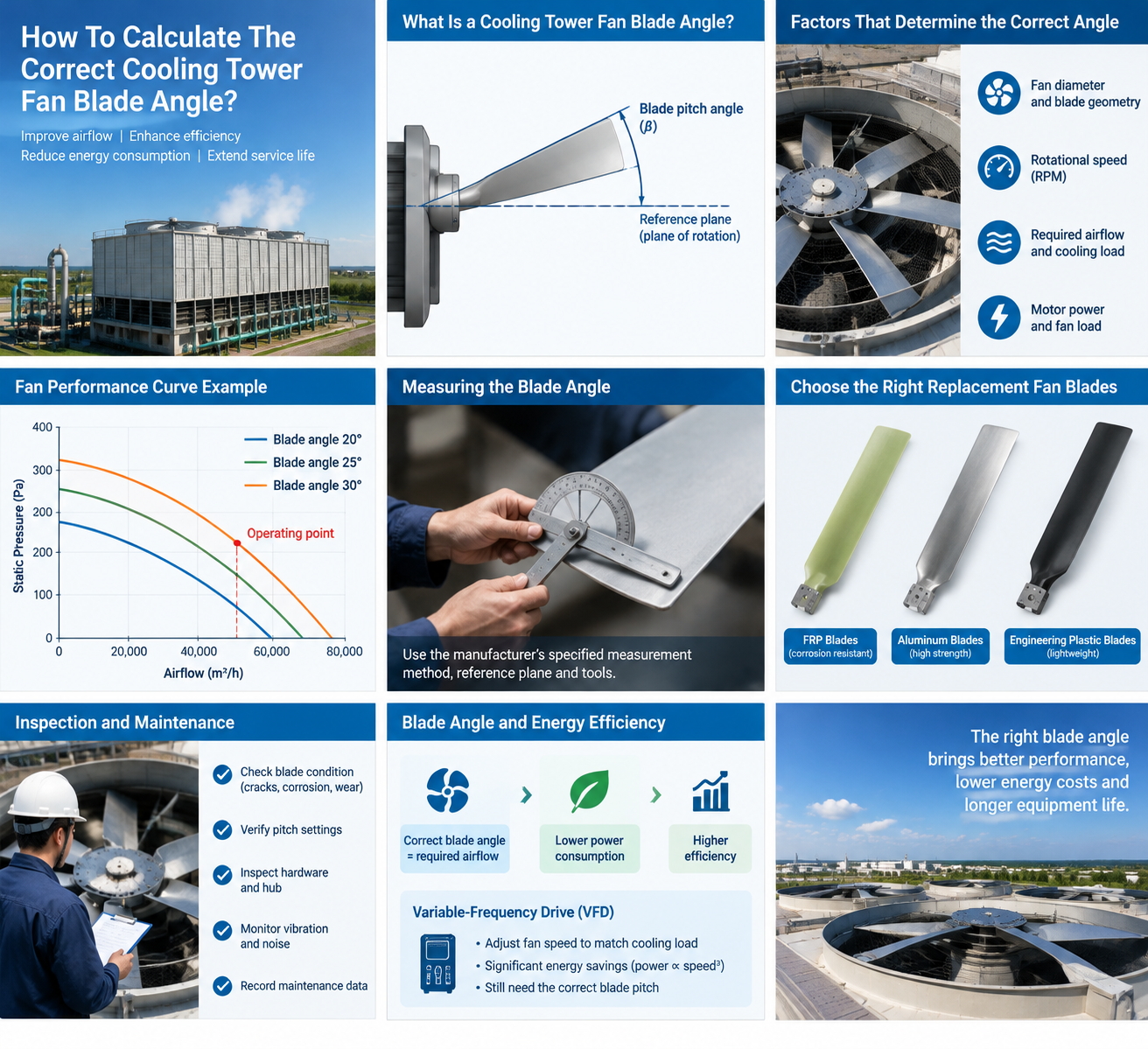

Blade pitch influences aerodynamic loading and airflow. Unequal pitch settings can create uneven loading even when the blades have similar mass.
Measure each blade using the manufacturer's specified reference plane, measuring location, and tool.
Do not assume that the same angle can be applied to every fan model. Blade geometry and the manufacturer's measurement convention must be considered.
Examine the hub, mounting brackets, bolts, locking devices, and blade-root interfaces for wear or damage.
Verify that fasteners are tightened according to the manufacturer's specified torque values. Do not apply a generic torque value to hardware without confirming its size, grade, and assembly requirements.
Inspect accessible drive components for looseness, wear, and visible damage. Where appropriate, check shaft runout, coupling alignment, gearbox condition, and bearing condition using the prescribed procedures.
These checks help distinguish blade imbalance from other mechanical sources of vibration.
The exact balancing procedure depends on the fan design and the manufacturer's requirements. The following steps describe a general maintenance approach rather than a universal field-balancing procedure.
If the fan can be operated safely and there are no conditions requiring immediate shutdown, record baseline vibration measurements before intervention.
Use suitable vibration monitoring equipment at the specified measurement points. Record the fan speed, measurement location, vibration magnitude, and relevant operating conditions.
A vibration specialist may examine amplitude, frequency, phase, and changes with rotational speed to distinguish imbalance from misalignment, looseness, bearing defects, and structural resonance.
A single vibration reading is rarely sufficient to diagnose every possible fault.
Before performing a balancing correction, address defects that can invalidate the results.
Examples include:
Loose mounting hardware
Damaged or distorted blades
Worn bearings
Incorrect blade pitch
Shaft or coupling problems
Loose structural supports
Contamination on blade surfaces
Balancing a mechanically defective assembly may provide only temporary improvement or create additional risks.
Confirm whether the fan requires static balancing, dynamic balancing, factory balancing, or a manufacturer-approved field-balancing procedure.
For large industrial cooling tower fans, a qualified technician may be required to perform measurements and corrections using specialized equipment.
Do not drill blades, grind blade surfaces, weld weights onto components, or attach improvised balancing weights without explicit engineering approval.
Unauthorized modifications can weaken the blade, damage protective coatings, create additional imbalance, or cause a component to detach during operation.
A qualified technician should apply corrections according to the balancing equipment's results and the fan manufacturer's procedure.
The correction method must be appropriate for the blade material, hub construction, rotational speed, and mechanical design.
After each approved correction, verify that the assembly remains mechanically secure and that the correction has not introduced another problem.
After balancing, conduct the required inspection and test procedure. Confirm that vibration levels meet the applicable acceptance criteria and that no abnormal noise, looseness, or other defect is present.
Where a controlled operational test is authorized, compare the results with the baseline data under comparable conditions.
A useful balancing report should include:
Equipment identification and fan model
Date and reason for maintenance
Initial vibration measurements
Identified faults and corrective actions
Balancing method and equipment used
Final vibration measurements
Fan speed and test conditions
Technician or service provider details
Recommendations for future inspection
Documentation helps establish a baseline for trend analysis and future maintenance planning.
Regular maintenance helps detect problems early and reduces the likelihood of expensive emergency repairs.
Inspection frequency should be based on the manufacturer's recommendations, operating hours, environmental conditions, and the criticality of the cooling tower.
A practical maintenance program may include routine visual inspections, periodic mechanical checks, and condition-based vibration monitoring.
| Inspection item | What to check | Recommended action |
|---|---|---|
| Blade surfaces | Cracks, deposits, corrosion, erosion | Clean, assess, repair, or replace as approved |
| Blade pitch | Consistency and approved settings | Measure and correct according to specifications |
| Hub and fasteners | Looseness, wear, damage | Inspect and tighten to specified torque |
| Bearings and drive | Noise, wear, temperature, alignment | Investigate abnormal conditions |
| Vibration | Changes from established baseline | Diagnose before making corrections |
| Fan cylinder | Clearance, damage, obstruction | Restore approved operating condition |
| Motor | Current, temperature, electrical condition | Compare with rated limits and investigate deviations |
| Maintenance records | Repeated defects and trends | Update the maintenance plan |
Remove dirt and deposits using an approved cleaning method. Avoid aggressive chemicals, excessive pressure, or abrasive tools that may damage coatings or composite materials.
After cleaning, inspect the blades again. Cleaning can reveal defects that were previously hidden by deposits.
Changes in blade pitch can affect airflow, power demand, and mechanical loading. Record the approved pitch setting and measurement method so that future maintenance can reproduce the correct configuration.
Do not change the angle simply to increase airflow without checking the fan performance data and motor operating limits.
Periodic vibration measurements can help identify developing mechanical problems before they lead to a breakdown.
Establish baseline readings when the equipment is known to be operating correctly. Compare later measurements using consistent sensor locations, operating speeds, and measurement procedures.
If vibration increases significantly, investigate the cause instead of assuming that the blades need balancing.
During seasonal shutdowns or extended maintenance periods, protect blades from impact, standing water where inappropriate, chemical exposure, and unsupported loading.
Replacement blades should be stored according to the manufacturer's instructions. Avoid stacking or handling them in ways that could deform the airfoil or damage the blade root.
Cooling tower fan blades are manufactured from different materials to suit various operating environments. Material selection influences corrosion resistance, stiffness, weight, fatigue performance, and inspection requirements.
Fiberglass-reinforced plastic (FRP) blades are widely used in industrial cooling applications because they can offer low weight, corrosion resistance, and design flexibility.
Maintenance should focus on cracks, delamination, impact damage, surface deterioration, and damage around the blade root or mounting holes.
Visible surface appearance alone may not reveal every internal defect. Suspected structural damage should be evaluated using a suitable inspection method and the manufacturer's acceptance criteria.
Do not attempt to remove material from an FRP blade to correct imbalance unless the manufacturer specifically authorizes the procedure.
Aluminum blades can provide a favorable strength-to-weight ratio and may be suitable for certain industrial fan designs.
Inspect for corrosion, dents, deformation, fatigue cracks, and damage to mounting interfaces. Surface treatment and alloy selection should be appropriate for the operating environment.
A damaged aluminum blade should not be straightened, welded, or modified without confirming that the repair method is approved for the specific design. Improper repairs can affect structural strength and balance.
Engineering plastic blades may be suitable for selected applications where low weight and corrosion resistance are important.
Check for cracks, UV-related deterioration, deformation, temperature-related damage, and fatigue. Confirm that the material is suitable for the operating temperature and chemical environment.
When replacing one blade or an entire fan set, confirm compatibility with the original fan design. Differences in mass, geometry, stiffness, and aerodynamic profile can affect both balance and performance.
A replacement blade should not be selected based on material appearance alone. Dimensional accuracy, mounting compatibility, pitch requirements, and manufacturer approval are equally important.
Even a well-planned maintenance program can fail if the root cause of vibration is misunderstood or the balancing procedure is performed incorrectly.
Uneven deposits can change mass distribution. If the fan is balanced while contaminated, later cleaning may change the balance condition again.
Clean the blades using an approved procedure before the final balancing assessment.
Uneven pitch can create aerodynamic loading differences that balancing weights cannot correct. Check pitch consistency as part of the inspection process.
Vibration may be caused by shaft misalignment, bearing damage, loose fasteners, structural resonance, or aerodynamic disturbances.
Use suitable diagnostic measurements before deciding on a corrective action.
Unapproved weights, drilling, grinding, or other unauthorized modifications can compromise structural integrity and create serious safety risks.
Use only approved correction methods and qualified personnel.
Acceptable vibration and balance limits depend on the fan design, operating speed, measurement location, installation, and applicable standards.
Do not apply one generic vibration limit to every cooling tower fan. Follow the equipment manufacturer's instructions and the relevant standard for the specific assembly.
For replacement projects, selecting an experienced cooling tower fan blade manufacturer can help reduce compatibility problems and simplify maintenance.
Provide the supplier with the existing fan model, diameter, blade count, hub dimensions, operating speed, motor power, blade material, and approved pitch settings.
Where possible, include original drawings and photographs of the complete assembly.
Ask the manufacturer to provide relevant information such as:
Blade dimensions and material specifications
Approved pitch-angle range
Mounting and installation requirements
Balancing and quality-control procedures
Operating temperature and environmental limits
Inspection and maintenance recommendations
Applicable warranty and replacement terms
A qualified manufacturer should have consistent processes for checking dimensions, blade geometry, mounting interfaces, and product condition. Depending on the fan design, quality control may include mass checks, balance verification, structural inspection, and dimensional inspection.
Ask which tests are performed on individual blades and which are performed on the complete fan assembly.
Some industrial cooling towers use nonstandard fan diameters, specialized hubs, or application-specific blade profiles. Customized replacement blades may be appropriate when the original model is obsolete or the cooling tower has unique requirements.
However, customization should be based on verified technical specifications and engineering review. A replacement should not be considered equivalent solely because its dimensions appear similar.
When evaluating suppliers, consider technical support, documentation, quality assurance, delivery reliability, packaging, and after-sales service.
A lower initial price may not represent the best overall value if the blades require additional modification or fail to meet the required operating conditions.
There is no universal balancing interval. Follow the manufacturer's recommendations and use inspection findings, operating hours, vibration trends, and maintenance history to determine when balancing is necessary.
Balancing may be required after certain repairs, blade replacement, significant contamination removal, or investigation of abnormal vibration.
Common warning signs include increased vibration, unusual noise, loose fasteners, and abnormal loading on connected components. However, these symptoms can have other causes, so measurements and inspection are necessary to confirm imbalance.
Basic visual inspections and checks of mounting hardware can be performed by trained maintenance personnel following the appropriate safety procedures. Accurate dynamic balancing may require specialized equipment and qualified technicians.
Do not rely on visual inspection alone to confirm that a rotating fan is correctly balanced.
Balancing primarily addresses mass imbalance and related vibration. It may help restore reliable operation, but it does not automatically increase airflow or thermal performance.
Cooling efficiency also depends on fan pitch, speed, blade geometry, tower cleanliness, water distribution, and system resistance.
Follow the replacement manufacturer's instructions. Depending on the fan design and replacement scope, individual blades may require specified mass or dimensional checks, and the complete assembly may require balance verification.
Replacing one blade can alter the balance condition, particularly if its mass or geometry differs from the original component.
Yes. A balanced fan can still vibrate because of misalignment, damaged bearings, structural resonance, aerodynamic disturbances, loose supports, or other mechanical defects.
Balancing is one part of vibration control, not a substitute for complete equipment diagnostics.
Cooling tower fan blade balancing and maintenance are essential for reliable industrial cooling tower operation. Uneven deposits, damaged blades, incorrect pitch settings, loose mounting hardware, and mechanical defects can all contribute to vibration and reduced reliability.
An effective maintenance strategy combines regular visual inspection, correct cleaning, blade pitch verification, mechanical checks, vibration monitoring, and manufacturer-approved balancing procedures. When abnormal vibration occurs, identify the underlying cause before applying corrective weights or modifying the blades.
For replacement projects, choose cooling tower fan blades that match the required geometry, material, mounting interface, pitch specifications, and operating conditions. Working with a qualified cooling tower fan blade manufacturer helps ensure that replacement components are suitable for the application.
With proper balancing, systematic inspection, and well-documented maintenance, industrial facilities can reduce avoidable downtime, protect rotating equipment, and maintain dependable cooling tower performance.
