What is cooling tower fill material？
Cooling Tower Fill Material is one of the most critical components in the cooling tower structure, which directly affects the thermal efficiency, operational stability, and energy consumption level of the entire system. Simply put, packing is a type of material installed inside the tower to increase the contact area between air and water, prolong the contact time, and enhance heat and mass transfer efficiency.
1. Increase heat exchange efficiency
By expanding the contact area between water and air and prolonging their contact time, fillers significantly improve the efficiency of evaporative cooling and reduce the outlet water temperature.
2. Efficient cooling:
The main function of cooling tower packing is to enhance the cooling effect of water. It increases the surface area of water, allowing it to better come into contact with air, thereby accelerating the evaporation rate of water and improving the cooling effect.
3. Reduce energy consumption
Packing improves the utilization efficiency of natural or mechanical ventilation, enabling cooling towers to achieve better cooling effects under the same energy consumption, thereby reducing operating costs.
4. Corrosion and aging resistance
Common fillers such as PVC and PP materials have good chemical resistance and can resist corrosion from scale, microorganisms, ultraviolet radiation, and most common chemical gases.
5. Lightweight and easy to install
Modern fillers have the characteristics of light weight, flexible structure, and easy cutting and installation, reducing construction difficulty and labor costs.
6. Strong customizability
The packing can be designed according to the cooling tower form (cross flow, counter flow), water quality conditions, air volume and other requirements, such as corrugated packing, grid packing, inclined wave packing, etc.
7. Reduce noise
Efficient fillers can promote uniform water flow distribution, reduce water droplet impact sound, and make overall operation quieter.
8. Easy to clean and maintain (depending on materials and structure)
Partial PP or open design fillers are more suitable for high wastewater quality, and can be disassembled and cleaned to reduce scaling and blockage problems.
1. Increase the heat exchange area
The filling material has a layered, mesh like, or corrugated structure, which can disperse the falling water into a thin film or small water droplets, thereby greatly increasing the contact area between water and air.
2. Enhance heat and mass transfer efficiency
Water forms a water film on the surface of the packing, and air flows through it, promoting evaporation and heat dissipation, significantly improving the cooling effect.
3. Improve water flow distribution
High quality packing can evenly distribute water and reduce phenomena such as short flow and bias that affect tower efficiency.
4. Reduce wind resistance and improve energy efficiency
The adapted packing structure is beneficial for optimizing air flow, reducing fan energy consumption, and improving operational efficiency.

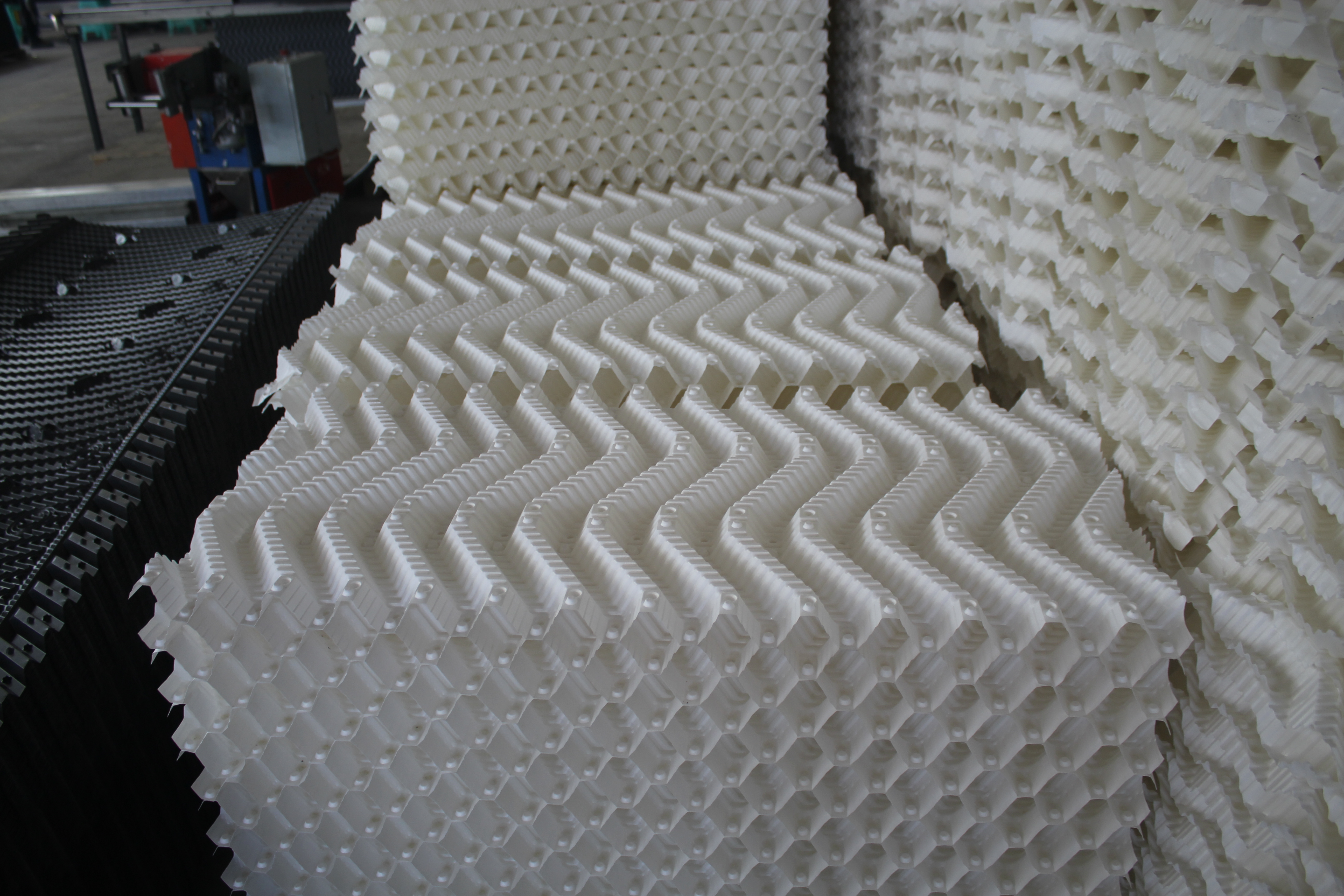

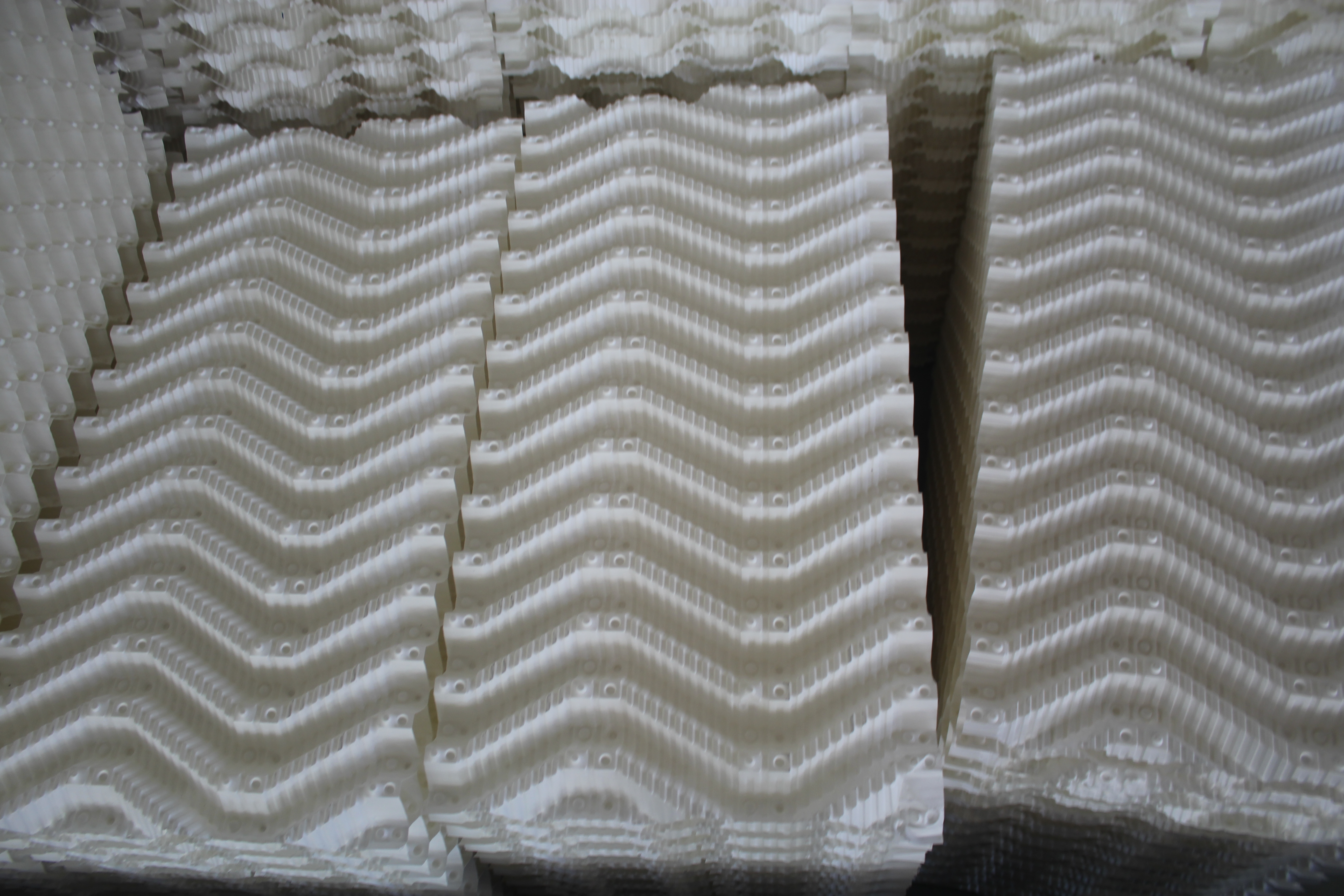

1. Film Fill
Thin film fillers are currently the most widely used type, characterized by water forming a thin film on the surface of the filler and flowing downwards.
Advantages: High heat exchange efficiency, lightweight material, and low cost.
Applicable scenarios: medium and high-efficiency cooling towers, industrial cooling towers, central air conditioning systems, etc.
2. Splash Fill
By continuously hitting the packing board or grille with water droplets, it breaks down into smaller droplets, thereby enhancing heat dissipation.
Advantages: Strong anti clogging ability, suitable for working conditions with poor water quality.
Applicable scenarios: Circulating water systems with high impurities such as steel, chemical, and power plants.
3. Hybrid Fill
A hybrid structure that combines the advantages of thin film and splash water, balancing efficiency and stain resistance.
Applicable scenarios: Industrial systems that require both high cooling efficiency and certain water quality challenges.
Common materials for cooling tower fill
1. PVC (polyvinyl chloride)
The most commonly used filler material, with good corrosion resistance, flame retardancy, and processability, moderate cost, light weight, and easy installation
2. PP (polypropylene)
High temperature resistance superior to PVC, suitable for high-temperature water conditions (above 70 ℃), stronger impact resistance and flexibility
