Uniform water distribution over cooling tower fill
Circular multi-orifice spray distribution design
Heavy-duty protective support frame
Flanged upper inlet connection
Corrosion-resistant molded polymer construction
Suitable for industrial cooling tower applications
Designed for stable operation under continuous water circulation
Helps maintain consistent fill wetting
Available for replacement and cooling tower refurbishment projects
Custom dimensions and hydraulic configurations available
Water distribution is one of the most important functions inside a mechanical cooling tower. The circulating-water system must distribute water evenly over the cooling tower fill so that the available fill area is effectively wetted.
The industrial cooling tower water distribution spray nozzle shown above is designed for this purpose. Water enters through the upper inlet and is directed toward the circular distribution section. Multiple openings in the spray plate disperse the water across the tower fill, helping create a more consistent wetting pattern.
The surrounding support structure protects the spray assembly and helps maintain its position during operation. The flanged inlet allows the nozzle to be integrated with an appropriate water distribution pipe or header system.
A properly selected nozzle can help reduce dry areas in the fill, improve water-to-air contact, and support stable cooling tower thermal performance.
The operating principle is straightforward:
Circulating water enters through the upper inlet.
Water passes into the internal distribution chamber.
The distribution geometry directs water toward the perforated spray plate.
Multiple openings disperse water across the required coverage area.
The spray reaches the cooling tower fill.
Air flowing through the tower contacts the water film on the fill surface.
Heat is transferred from the circulating water to the air.
Cooled water collects in the cold-water basin and returns to the cooling system.
The actual spray pattern and flow rate depend on nozzle geometry, operating pressure, inlet size, orifice configuration, installation height, and system water flow.
The large circular plate contains numerous distribution openings arranged across multiple concentric areas. This configuration is intended to spread water over a broad area rather than concentrating discharge at a single point.
The heavy surrounding frame provides structural support for the distribution assembly. It also helps protect the spray plate from mechanical damage during installation, inspection, and maintenance.
The upper section incorporates a flange-style mounting connection. The exact flange dimensions should be matched to the cooling tower header, pipe connection, and existing installation.
The pictured component has a black molded construction commonly used for cooling tower water-distribution components. Polymer construction can provide advantages in wet, chemically treated environments compared with conventional unprotected metal components.
The final material should be confirmed against the required operating temperature, water chemistry, UV exposure, and chemical-treatment conditions.
The circular spray arrangement is intended to provide broad coverage of the fill. Correct coverage is particularly important in counterflow cooling towers because poor distribution can result in underutilized fill area and reduced cooling performance.
| Specification | Typical Configuration |
|---|---|
| Product Type | Cooling tower water distribution spray nozzle |
| Application | Industrial cooling tower |
| Function | Circulating-water distribution |
| Spray Design | Circular multi-opening distribution plate |
| Inlet Connection | Flanged |
| Construction | Molded engineering polymer |
| Color | Black |
| Distribution Pattern | Wide-area circular spray/distribution |
| Installation | Cooling tower water distribution system |
| Water Source | Recirculating cooling water |
| Compatible Fill | Film fill and other compatible cooling tower fills |
| Operating Pressure | Application-dependent |
| Flow Rate | Application-dependent |
| Inlet Diameter | Custom / according to system design |
| Overall Diameter | Custom / according to tower requirements |
| Mounting Dimensions | Custom / according to existing header |
| OEM Replacement | Available |
| Customization | Size, connection, material and hydraulic configuration |
| Service | Industrial cooling tower replacement and retrofit |
Important: Exact dimensions, flow rate, pressure range, orifice configuration, and material grade should be confirmed from the engineering drawing or product specification before ordering. These parameters should not be assumed from the product photograph alone.
Depending on the application, water-distribution nozzles may be manufactured from engineering plastics or other corrosion-resistant materials.
Potential material selections include:
PP
ABS
PVC
Reinforced engineering polymers
Other application-specific polymer compounds
Material selection should consider:
Circulating-water temperature
Water chemistry
Biocide concentration
Scale and corrosion conditions
UV exposure
Mechanical loading
Expected service life
For demanding industrial applications, customers should provide water temperature and chemical information when requesting a material recommendation.
These spray nozzles are used in industrial cooling towers to distribute hot circulating water over the fill.
Typical industries include:
Power generation
Chemical processing
Petrochemical plants
Steel production
Cement manufacturing
Oil and gas
Food processing
Pharmaceutical manufacturing
HVAC and central utility systems
Manufacturing plants
Process cooling systems
The nozzle is particularly applicable to water-distribution systems positioned above counterflow cooling tower fill. Uniform distribution helps maximize the effective wetted surface of the fill.
A replacement nozzle can be used when existing components become:
Cracked
Blocked
Worn
Deformed
Chemically damaged
Mechanically damaged
Ineffective due to changing hydraulic conditions
Replacing damaged nozzles can restore more consistent water coverage.
When upgrading an existing cooling tower, changing the water-distribution system can be part of a broader efficiency improvement program. Nozzle selection should be based on the existing header arrangement, water flow, operating pressure, fill geometry, and required spray coverage.
Uniform water distribution helps minimize dry areas and ensures more of the fill surface participates in the heat-transfer process.
When water is distributed correctly, the air and water can interact more effectively throughout the fill.
Poor nozzle performance can create areas of insufficient water coverage. Maintaining functional spray nozzles helps reduce this problem.
A suitable polymer nozzle can provide resistance to many wet-service conditions encountered in cooling tower systems. Compatibility must be verified against the actual water chemistry.
A nozzle designed around the existing connection and mounting arrangement can simplify cooling tower maintenance and component replacement.
Choosing the correct cooling tower nozzle requires more than matching the outside diameter. The following parameters should be evaluated.
The nozzle must be capable of distributing the required circulating-water flow without excessive restriction.
Nozzle performance is affected by the pressure available at the inlet. The required pressure depends on the nozzle's internal geometry and desired distribution pattern.
The inlet flange and mounting dimensions must match the existing water distribution pipe or header.
The distribution pattern must cover the intended fill area. A nozzle with the wrong spray pattern can produce uneven fill wetting even when the total water flow is correct.
Suspended solids, scale, biological growth, and chemical treatment can affect nozzle performance.
The selected material must withstand the cooling-water temperature throughout the operating cycle.
The correct nozzle depends on the tower's:
Fill type
Fill dimensions
Header arrangement
Distribution height
Circulating-water rate
Airflow
Basin configuration
Regular inspection is recommended as part of a cooling tower preventive-maintenance program.
Scale, sediment, biological deposits, and debris can restrict nozzle openings.
An irregular spray pattern can indicate blockage, damage, insufficient pressure, or an incorrectly selected nozzle.
Check the surrounding frame for cracking, deformation, or loose mounting.
Inspect the flange and connection area for leaks, cracking, gasket problems, or loose fasteners.
Cleaning procedures should be selected according to the material and type of deposit. Avoid aggressive tools or chemicals that could damage the distribution openings or polymer body.
A nozzle may require replacement when you observe:
Uneven water distribution
Reduced spray coverage
Blocked discharge openings
Cracked nozzle body
Damaged support structure
Leakage around the connection
Deformed distribution plate
Significant mineral scaling
Persistent dry areas on the fill
Reduced cooling tower thermal performance
Nozzle replacement should be considered together with inspection of the water header, strainers, fill, and overall distribution system.
For replacement applications, we can supply cooling tower spray nozzles according to existing equipment requirements.
Customers can provide:
Existing nozzle photographs
Overall dimensions
Inlet diameter
Flange dimensions
Bolt-hole spacing
Existing manufacturer/model
Cooling-water flow rate
Operating pressure
Cooling tower fill dimensions
These details allow the replacement component to be matched more accurately to the existing installation.
For cooling tower refurbishment and special industrial projects, custom configurations can be developed according to the required hydraulic and mechanical specifications.
Customization may include:
Inlet diameter
Flange dimensions
Overall nozzle diameter
Distribution plate geometry
Number and size of openings
Mounting configuration
Material selection
Color
Connection arrangement
For a custom quotation, provide an existing sample, technical drawing, dimensions, or clear photographs showing the connection and mounting arrangement.
A cooling tower nozzle is a relatively small component, but its hydraulic performance can influence the effectiveness of the entire water distribution system.
A reliable supplier should be able to provide:
Accurate dimensional matching
Consistent manufacturing quality
Material information
Hydraulic specifications where available
OEM-compatible replacement options
Custom manufacturing
Export packaging
Technical assistance for replacement projects
A cooling tower spray nozzle is a water-distribution component that disperses circulating water over the cooling tower fill. Its purpose is to provide relatively uniform wetting of the fill surface so that heat can be transferred efficiently between water and air.

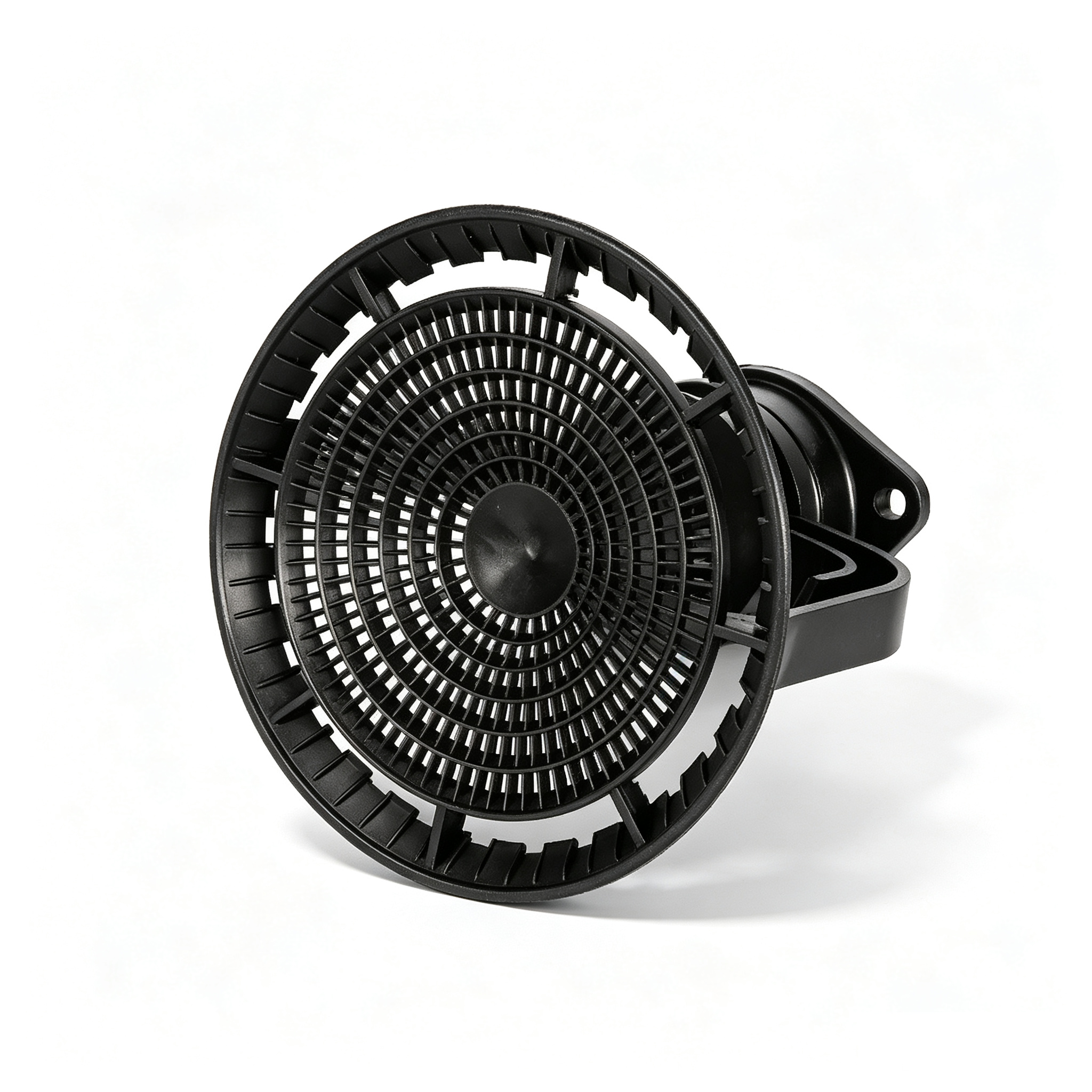

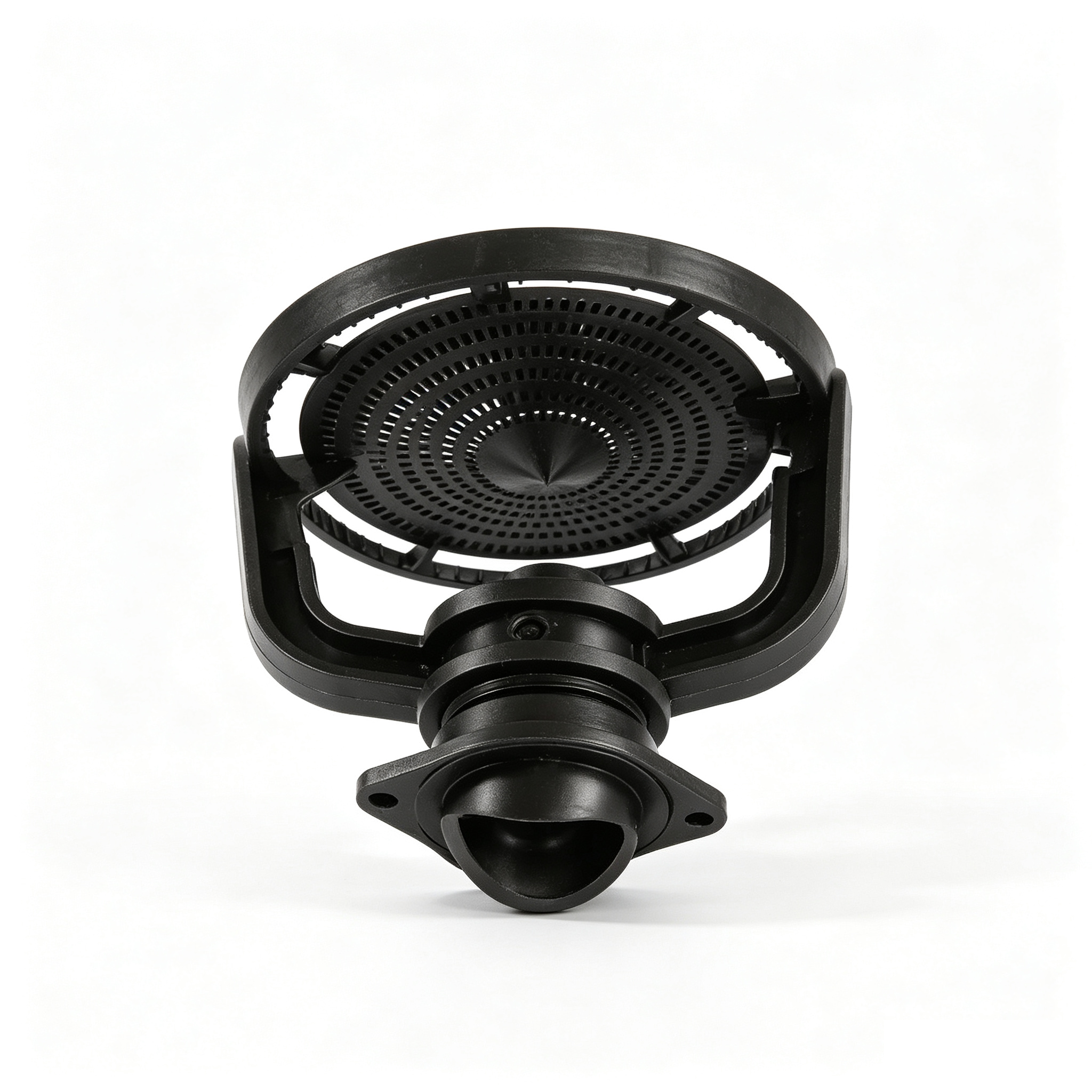

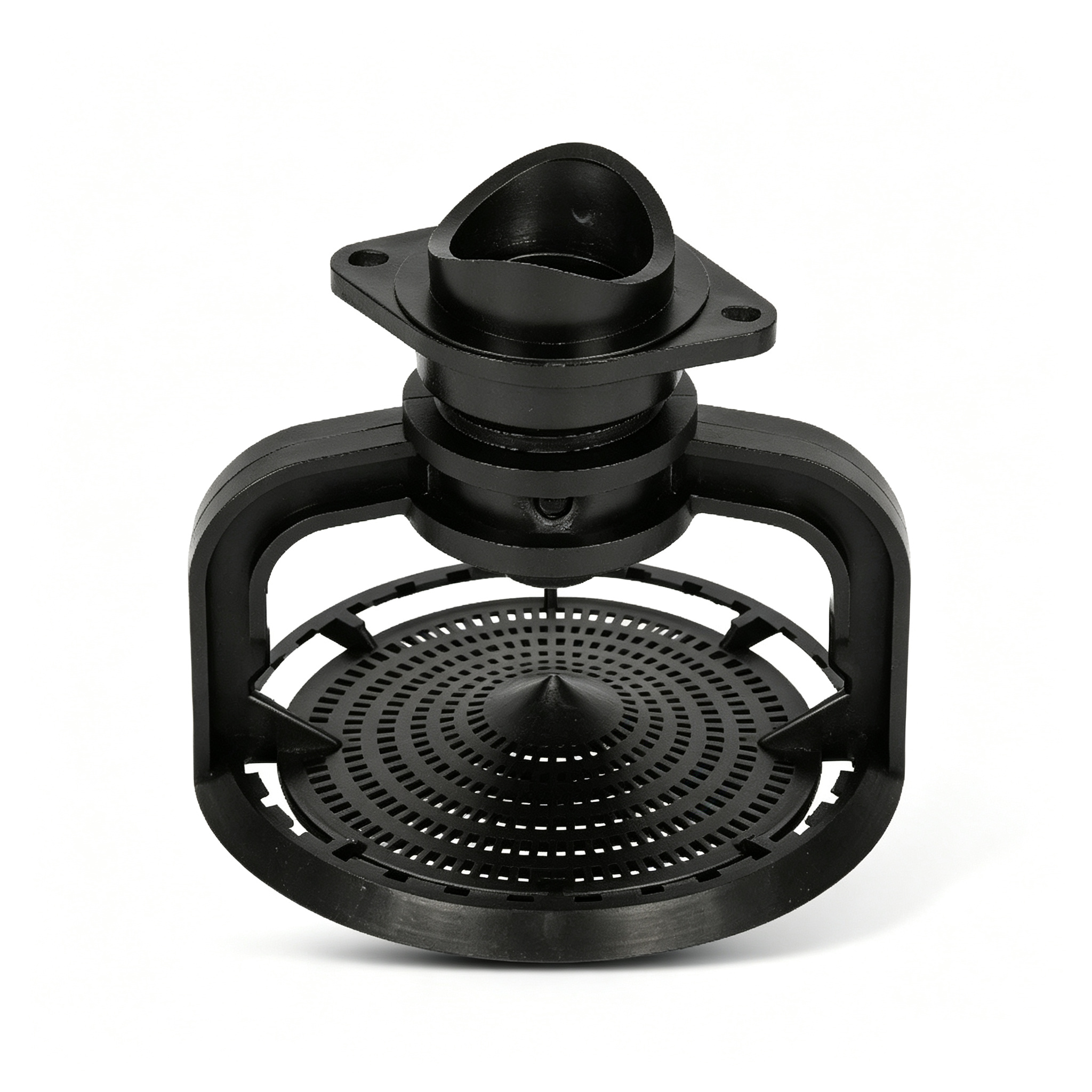

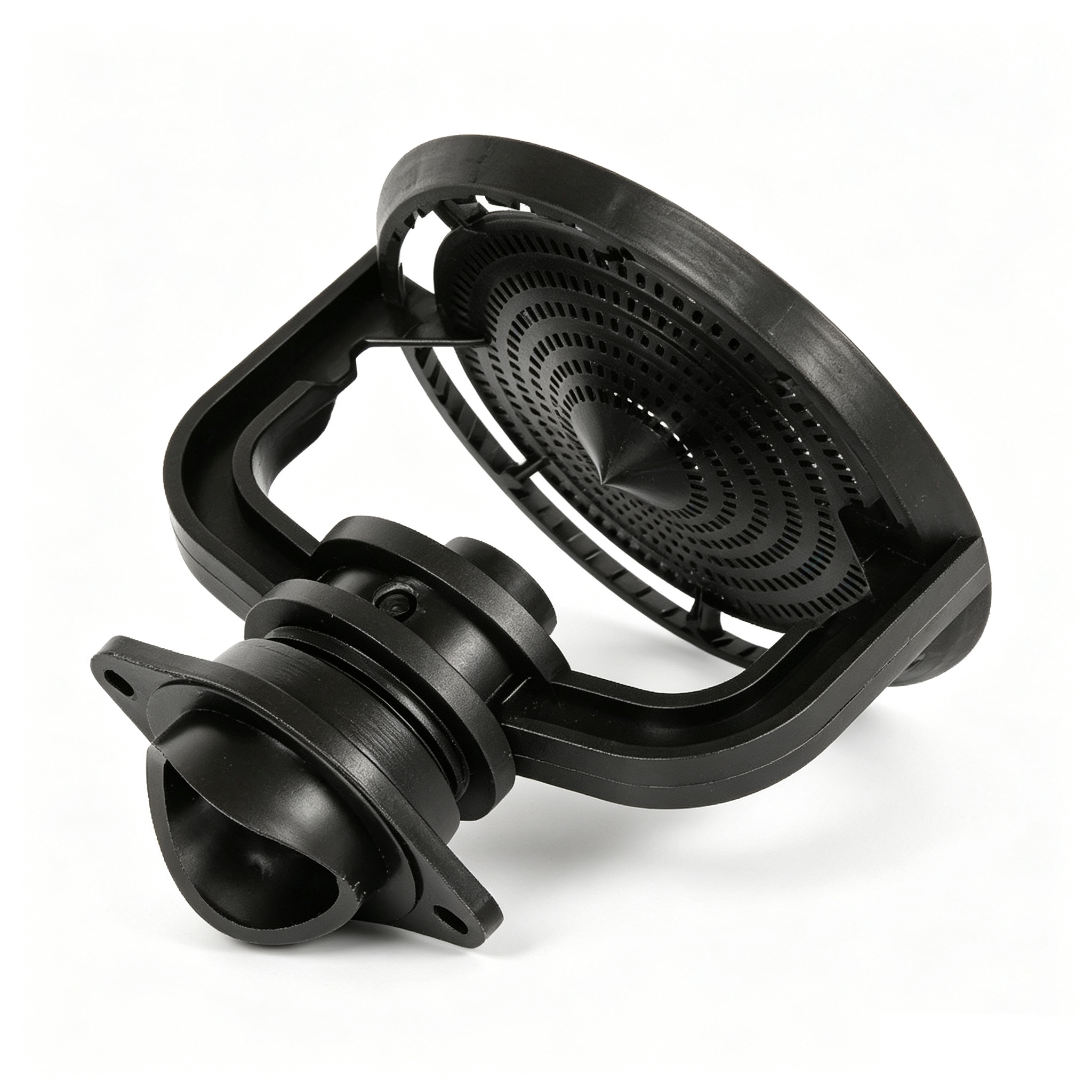

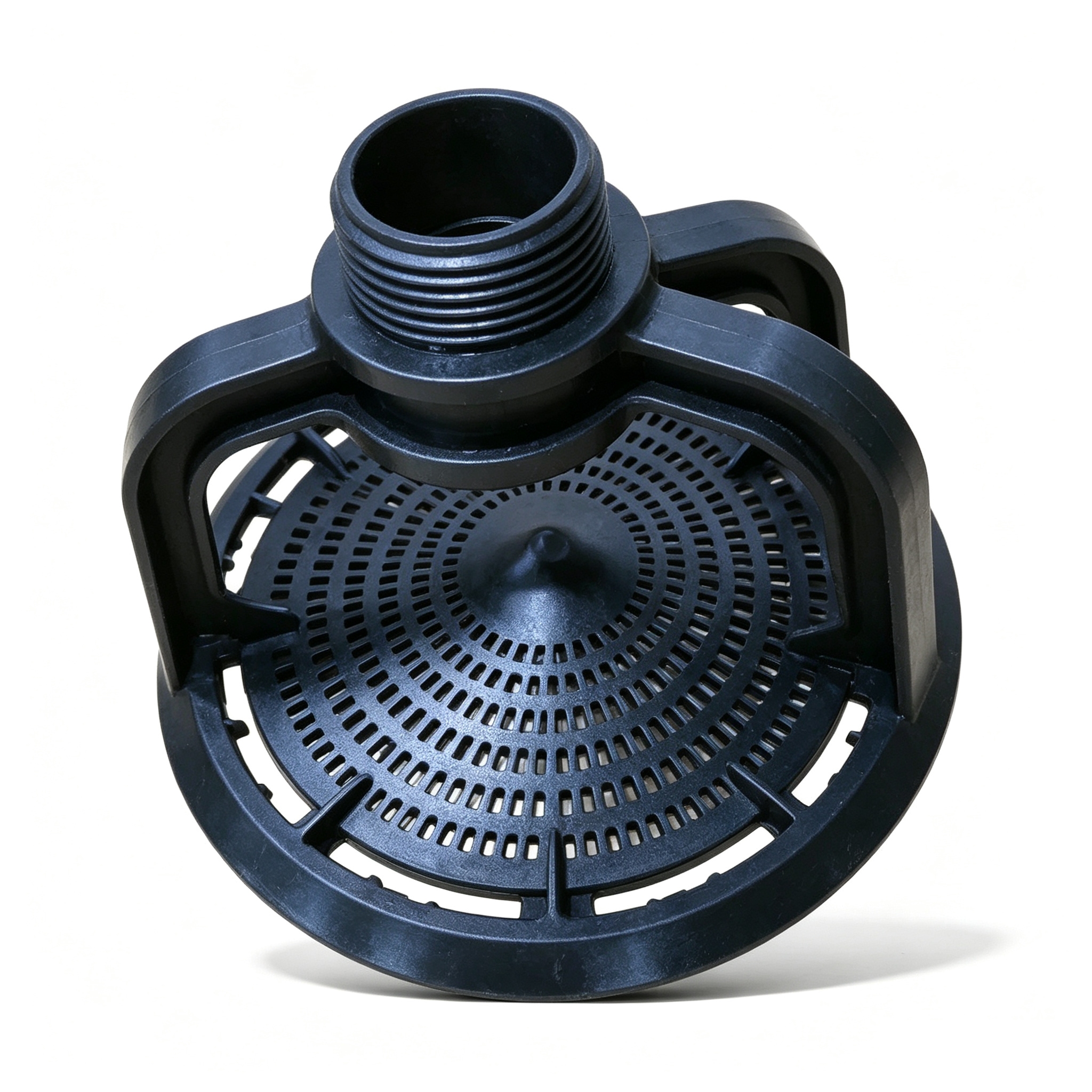

The pictured product is an industrial cooling tower water distribution spray nozzle assembly featuring a flanged inlet, circular perforated distribution plate, and protective support frame.
Spray nozzles are generally installed within the cooling tower water distribution system, typically above the fill in configurations where the water is sprayed downward over the heat-transfer media.
The pictured nozzle appears to be a molded black polymer component. The exact polymer grade should be confirmed from the manufacturer's technical specification rather than determined solely from the photograph.
Yes, an OEM-compatible replacement can be manufactured or supplied when the required dimensions, connection configuration, hydraulic requirements, and material are known.
Start with the existing nozzle dimensions, inlet connection, water flow rate, operating pressure, spray coverage, fill dimensions, and water chemistry. Matching only the physical appearance is not sufficient for hydraulic replacement.
Inspection frequency depends on water quality, operating conditions, and the cooling tower maintenance program. Nozzles should be inspected whenever distribution problems, scaling, blockage, or unusual cooling performance is observed.
In many cases, yes. Deposits can sometimes be removed through appropriate cleaning procedures. Severely damaged, cracked, deformed, or persistently blocked nozzles should generally be replaced.
Custom sizes can be produced according to engineering requirements. Customers should provide dimensions, drawings, photographs, flow requirements, or an existing sample whenever possible.
Provide the nozzle photograph, quantity, dimensions, inlet connection, flange dimensions, existing cooling tower brand/model if known, water flow, operating pressure, temperature, and required material.
Looking for a replacement industrial cooling tower spray nozzle?
Send us your existing nozzle dimensions, photographs, drawing, or cooling tower model. Our team can evaluate the connection and configuration and help identify a suitable replacement or custom-manufactured solution.
Request a quotation for cooling tower spray nozzles, replacement water distribution components, and OEM-compatible cooling tower parts.
Industrial Cooling Tower Water Distribution Spray Nozzle is a heavy-duty water distribution component designed to provide uniform spray coverage across cooling tower fill. The product shown features a robust black polymer construction, a flanged inlet connection, protective support frame, and a circular perforated distribution plate that disperses circulating water into multiple streams.This type of cooling tower spray nozzle is suitable for industrial cooling towers where reliable water distribution, corrosion resistance, and consistent coverage of the fill surface are essential for efficient heat transfer.Manufactured for industrial replacement and OEM-compatible applications, the nozzle can be supplied in different connection sizes, flow capacities, materials, and configurations according to the cooling tower design.
