The cooling tower filler is one of the core components in the cooling tower, and its main function is to increase the contact area between water and air and improve the heat dissipation effect of water. Cooling tower fill is a crucial component in cooling tower systems, directly impacting cooling efficiency and overall system performance. Regular inspection and maintenance of cooling tower fill are essential for ensuring the efficient operation of cooling systems. When fill shows signs of aging, wear, contamination, blockage, loosening, detachment, or reduced cooling efficiency, it should be replaced promptly to maintain stable system operation and efficient cooling.
Cooling Tower PVC Types Of Fills Specification
There are different requirements for fills, such as length and width, material or thickness, etc. Please tell us your detailed requirements so as to get the correct solution and provide a quotation. PT can cover all customer needs. Filler media can also be required in flame retardant or antibacterial performance.

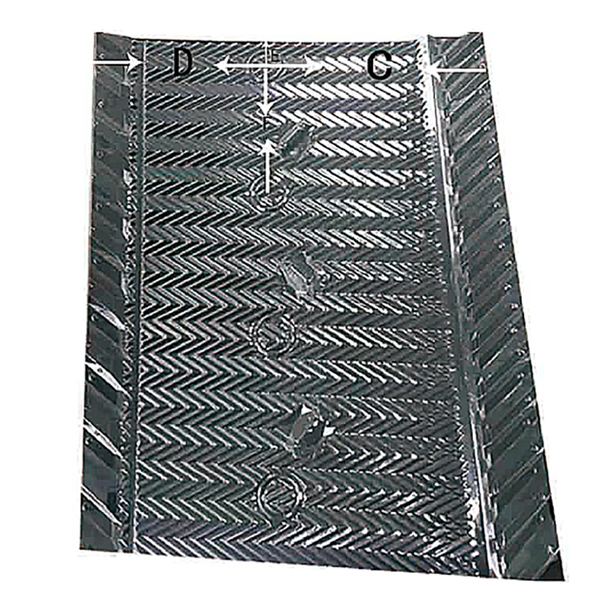

W
| H | A | B | C | D |
E | F | Gap | Angle |
| 620 | F multiple | 80 | 90 | 265 | 335 | 150 | 206 | 18.5 | 5° |
Cooling Tower PVC Types Of Fills Features
Cooling tower PVC types of fills are a key component widely used in industrial cooling systems. Its main function is to increase the contact area between air and water, thereby promoting heat exchange and improving cooling efficiency.
Here are the detailed characteristics of cooling tower PVC types of fills:
Cooling Tower PVC Types Of Fills Physical Properties
Cooling Tower PVC Types Of Fills are Lightweight:
PVC fill has a relatively low density, typically ranging from 0.95 to 2.00. This makes it convenient for installation and transportation and also reduces the overall weight of the cooling tower.
Moderate Strength: PVC fill possesses a certain level of mechanical strength, which allows it to withstand certain pressures and impacts. Although it is not as strong as metal fill, it is generally sufficient for most industrial applications.
Cooling Tower PVC Types Of Fills Good Dimensional Stability:
PVC fill exhibits good dimensional stability during the manufacturing process. It can maintain its shape and size under different environmental conditions and is not prone to deformation due to temperature changes.
Cooling Tower PVC Types Of Fills Chemical Properties
Cooling Tower PVC Types Of Fills High Corrosion Resistance:
PVC fill has excellent resistance to acids, alkalis, and chemical corrosion. It can withstand the erosion of most chemical substances. Even in cooling water containing corrosive materials, PVC fill can operate stably over the long term.
Cooling Tower PVC Types Of Fills Good Flame Retardancy:
The oxygen index of PVC fill is usually above 30, which gives it good self-extinguishing properties. In the event of a fire or other extreme conditions, it can effectively reduce the risk of fire spread.
Cooling Tower PVC Types Of Fills Wide Temperature Range:
PVC fill has a broad operating temperature range, typically from -20°C to 70°C. Some specially modified PVC fills can even withstand higher temperatures.
Thermal Properties
Cooling Tower PVC Types Of Fills Good Thermal Stability:
PVC fill can maintain stable performance over a wide temperature range and will not deform or be damaged due to temperature changes.
Cooling Tower PVC Types Of Fills Moderate Thermal Conductivity:
The thermal conductivity of PVC fill is relatively low. This enables it to effectively maintain the temperature of the water in the cooling tower and reduce heat loss.
Hydraulic Properties
Cooling Tower PVC Types Of Fills Strong Hydrophilicity:
The surface of PVC fill has good hydrophilic properties, which allows water to be evenly distributed on the fill surface, forming a film. This increases the contact area between water and air, thereby improving cooling efficiency.
Cooling Tower PVC Types Of Fills Low Ventilation Resistance:
The smooth surface of PVC fill results in a low friction coefficient. The resistance to air flow through the fill is minimal, which helps reduce the energy consumption of the cooling tower.
Cooling Tower PVC Types Of Fills Large Contact Area:
PVC fill is designed with a large specific surface area, which significantly increases the contact area between water and air, thereby enhancing heat exchange efficiency.
Economic Properties
Cooling Tower PVC Types Of Fills Low Cost:
The raw materials for PVC fill are relatively inexpensive, and the manufacturing process is simple, resulting in a low production cost. Therefore, it has a high cost-performance ratio in the market.
Cooling Tower PVC Types Of Fills Long Service Life:
Due to its good corrosion resistance and stability, PVC fill has a long service life under normal use and maintenance conditions. This reduces the frequency of fill replacement and lowers long-term operating costs.
Cooling Tower PVC Types Of Fills Low Maintenance Cost:
The smooth surface of PVC fill is not prone to fouling, making it easy to clean. It can be simply washed with water, reducing the amount of cleaning and maintenance work required.
Environmental Adaptability
Cooling Tower PVC Types Of Fills UV Resistance:
PVC fill has a certain level of UV resistance and can be used outdoors for extended periods without significant aging.
Cooling Tower PVC Types Of Fills Strong Adaptability:
PVC fill can adapt to different water qualities and environmental conditions and can provide good cooling effects in various industrial settings.
Cooling Tower PVC Types Of Fills Design and Application Features
Cooling Tower PVC Types Of Fills Diverse Structures:
PVC fill is available in various structural forms, such as S-wave fill, cross-angled fill, and honeycomb fill. Each structure has its unique advantages. For example, honeycomb fill has a large hydrophilic area and good laminar flow effect, while cross-angled fill has low ventilation resistance and a large contact area.
Cooling Tower PVC Types Of Fills Easy Installation:
PVC fill is lightweight and has a simple structure, making the installation process relatively easy. This can save installation time and costs.
Cooling Tower PVC Types Of Fills Wide Application:
PVC fill is widely used in various types of cooling towers, including counterflow, crossflow, and hybrid flow cooling towers. It is suitable for chemical, power, metallurgy, air conditioning, and many other fields.
Environmental Performance
Cooling Tower PVC Types Of Fills Recyclability:
PVC material is recyclable. Discarded PVC fill can be recycled and reused, reducing environmental impact.
Non-polluting: PVC fill does not release harmful substances during use and does not pollute the water quality or the environment.
Cooling Tower PVC Types Of Fills Other Features
Cooling Tower PVC Types Of Fills Good Formability:
PVC fill has good vacuum forming properties and can be processed into various shapes according to different design requirements.
Cooling Tower PVC Types Of Fills Flexibility:
PVC fill has a certain degree of flexibility, which allows it to adapt to vibrations and deformations in the cooling tower to some extent.
In summary, cooling tower PVC fill is characterized by its lightweight, moderate strength, high corrosion resistance, good thermal stability, strong hydrophilicity, low ventilation resistance, low cost, long service life, low maintenance cost, UV resistance, strong adaptability, easy installation, wide application, recyclability, non-polluting nature, good formability, and flexibility. These characteristics make PVC fill widely used in industrial cooling towers and an indispensable component in cooling tower systems.
Material:
PVC, PP, CPVC
Thickness:
0.32mm or customized (customized min order 3000 pieces)
Cooling Tower PVC Types Of Fills Customization options
Customized logo (Min. order: 3,000 pieces)
Customized packaging (Min. order: 3,000 pieces)
Graphic customization (Min. order: 3,000 pieces)
Cooling Tower PVC Types Of Fills Size Measurement
Please measure the following data for the quality and reliability requirements of your maintenance cooling tower or maintenance project to adapt to the design of cooling tower filling or components.
Application of Cooling Tower PVC Types Of Fills
The application range of cooling tower PVC fills is: Industrial water cooling,Air compressor, Aluminum profile processing, Steam turbine, Power generation, Tannery, Electric furnace, Freezing Series, Air conditioning cooling system
Cooling Tower PVC Types Of Fills Shippment
Packing:
In bundle,wooden pallet or as your request.
Delivery time:
With in 10 days.
Selling units:
Single item.
Our Services of Cooling Tower PVC Types Of Fills
-Pre-sale services
Based on the clients' requirements, we will offer product pictures, videos, quotation,information,
engineering drawings until you satisfied with it. Warmly welcome to visit our factory.
-Sale services
1 Providing production schedule photos to ensure you know every process.
2 Our experienced technician are available on the phone also internet, the clients can get instance
guidance by telephone,email, online service anytime, anywhere.
3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.
-After-sale services
Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients
to follow up the working condition of our machines, and offer support for maintenance.
