Repair And Replacement of Ebara Cooling Tower Filler

Repair and Replacement of Ebara Cooling Tower Filler

In the cooling tower system, fill is one of the core components that affect heat transfer efficiency. Ebara cooling tower filler achieves efficient heat dissipation by expanding the contact area between water and air. However, after long-term operation, the fill is prone to aging, blockage, or damage, so timely maintenance and replacement are necessary. This article will systematically introduce the functions, common problems, maintenance and replacement methods of Ebara cooling tower fill.

What is Ebara Cooling Tower Filler?

Ebara cooling tower filler is an important component installed inside the cooling tower, whose main function is to increase the residence time and contact area of water, thereby improving cooling efficiency.

Basic structure of Ebara filler

Ebara cooling tower filler is typically made of the following materials:

1）PVC or PP polymer materials

2）Corrugated or honeycomb structure design

3）Modular assembly form

4）Corrosion and aging resistant coating

These designs enable the fill to operate stably for a long time in high humidity and high temperature environments.

The working principle of Ebara cooling tower filler

Hot water is sprayed onto the surface of the fill material from above, forming a thin water film that fully contacts with the air from bottom to top, and evaporates to remove heat, achieving a cooling effect.

Why is it necessary to repair and replace Ebara cooling tower filler?

1）Aging of fillers affects cooling efficiency

As the service life increases, Ebara cooling tower filler is prone to deformation, embrittlement, or rupture, resulting in uneven water flow distribution and reduced cooling efficiency.

2）Blockage and scaling issues

After long-term operation, scale, algae, and impurities may adhere to the surface of the fill, hindering air circulation and affecting heat dissipation performance.

3）Prevent system failures and energy consumption increase

Damaged or blocked fill can increase the load on the cooling tower, increase the energy consumption of fans and pumps, and even cause system failures.

Common repair methods for Ebara cooling tower filler

1）Surface cleaning and descaling

Regular high-pressure water rinsing or chemical cleaning of Ebara Cooling Tower Filler can effectively remove scale and biological deposits.

2）Partial repair and replacement

For locally damaged fill modules, separate replacement can be used to reduce maintenance costs.

3）Structural reinforcement treatment

Reinforce loose or deformed fill support frames to ensure overall structural stability.

Steps for replacing Ebara cooling tower filler

1）Preparation before replacement

Before replacing the Ebara Cooling Tower Filler, the following preparations should be made:

1.Stop the machine and cut off the power supply

2.Drain the accumulated water inside the cooling tower

3.Prepare suitable types of new fillers

4.Prepare safety protection tools

2）Dismantle old filling materials

Be careful when disassembling Ebara cooling tower filler that has aged or been damaged to avoid damaging the internal structure of the cooling tower.

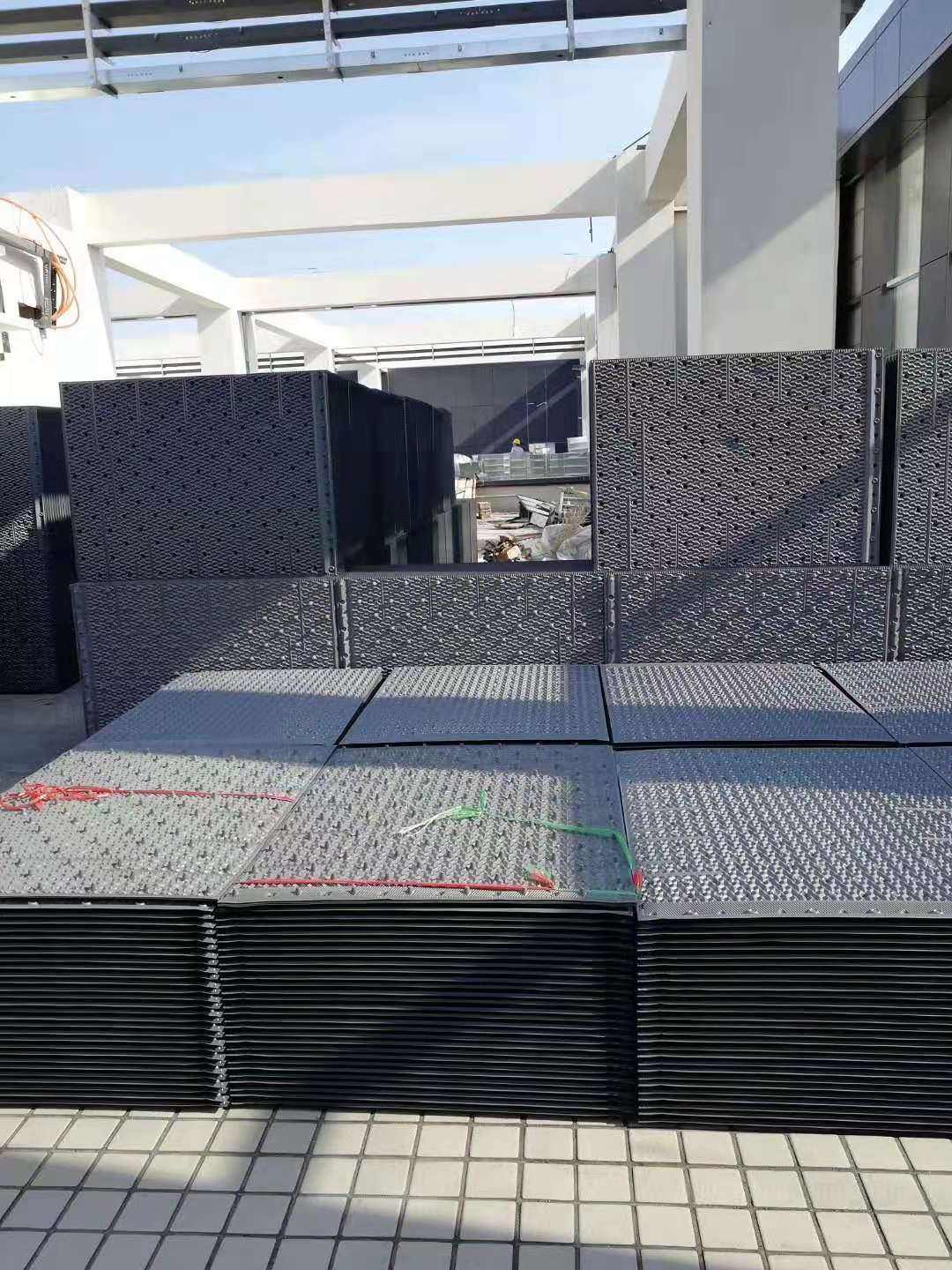

3）Install new fill material

Install the new fillers layer by layer in a modular manner to ensure neat arrangement, reasonable spacing, and smooth airflow.

4）System testing and operational checks

After the replacement is completed, start the cooling tower and check the water flow distribution and operating noise to ensure that the Ebara Cooling Tower Filler is working properly.

How to choose the appropriate Ebara cooling tower filler?

1）Match specifications based on the cooling tower model

Different models of cooling towers have different requirements for fill size, thickness, and ventilation resistance. Therefore, fill products that match the original equipment should be selected.

2）Pay attention to materials and durability

High quality Ebara cooling tower filler shall have good corrosion resistance, aging resistance and mechanical strength.

3）Choose a reliable supplier

Choose suppliers with experience and technical support capabilities who can provide customized solutions and after-sales support.

Precautions for repairing and replacing Ebara cooling tower filler

1）Ensure construction safety

Construction personnel should wear protective equipment to avoid safety accidents in damp or narrow spaces.

2）Avoid affecting other components

During the replacement process, avoid damaging the water distribution system, float, and fan components.

3）Establish a regular maintenance plan

Suggest developing an annual inspection and maintenance plan to extend the service life of Ebara Cooling Tower Filler.
