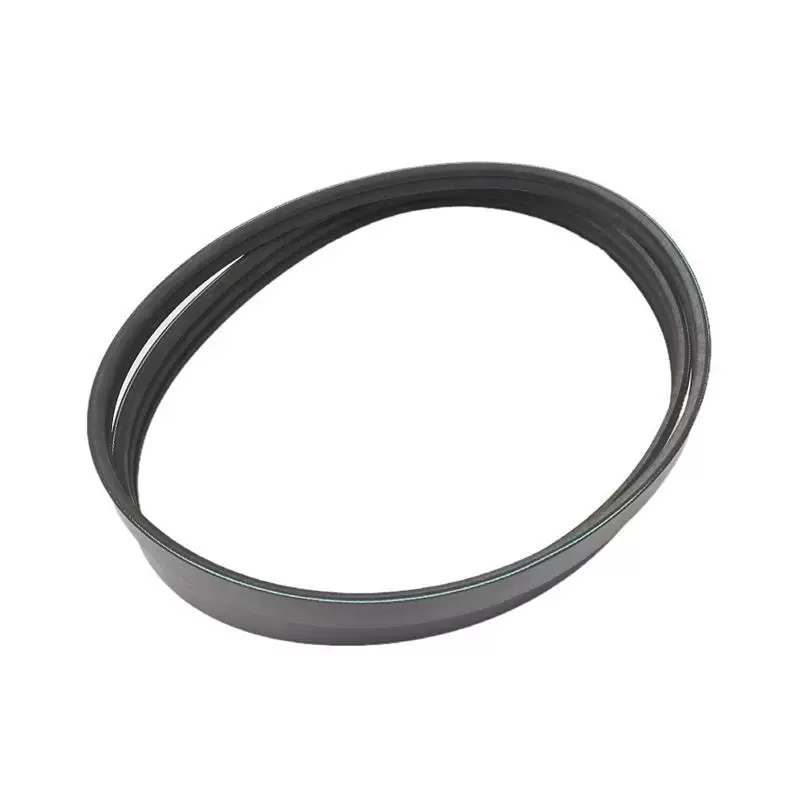

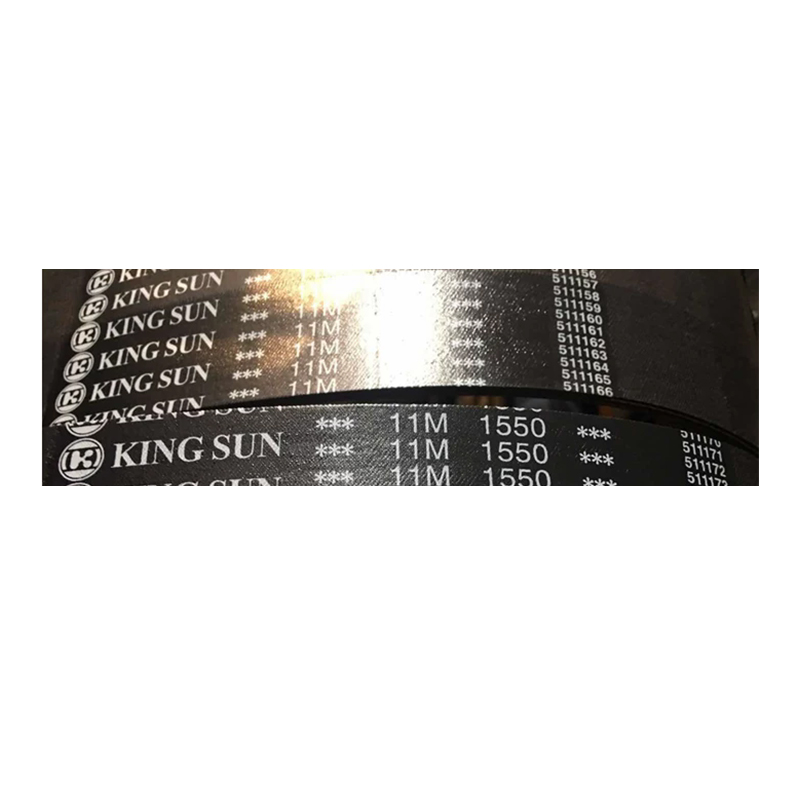

A Kingsun cooling tower wide angle belt is designed for high-load, continuous-duty operation in industrial cooling tower applications. Compared with standard V-belts, wide-angle belts provide improved power transmission capacity, higher torque resistance, and longer service life under demanding cooling tower operating conditions.

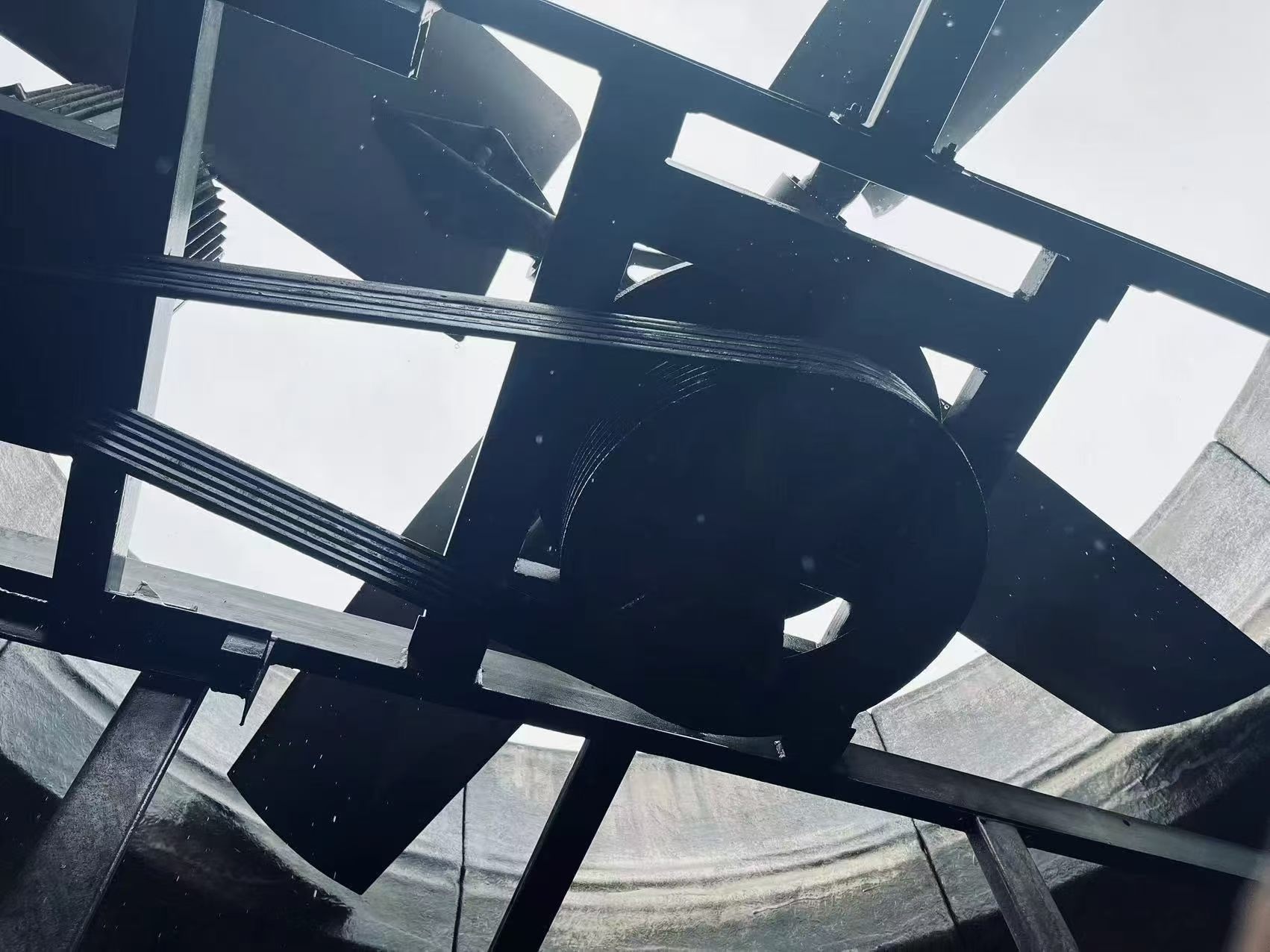

These belts are commonly installed on mechanical draft cooling towers, including induced draft cooling towers and forced draft cooling towers, where reliable fan operation is essential for maintaining heat transfer efficiency.
The wide-angle profile allows the belt to transmit greater horsepower within a compact drive system. It is suitable for cooling towers requiring continuous fan operation and stable airflow performance.
Cooling tower environments expose belts to:
High humidity
Water spray
Temperature fluctuations
Chemical exposure
Outdoor weather conditions
Kingsun wide-angle belts are manufactured with durable rubber compounds to maintain flexibility and strength in these conditions.
The optimized belt angle improves contact between the belt and pulley grooves, reducing:
Slip losses
Energy waste
Fan speed fluctuation
Motor overload risk
High-strength tension members and wear-resistant rubber construction help extend replacement intervals and reduce cooling tower maintenance costs.
| Parameter | Description |
|---|---|
| Product Name | Kingsun Cooling Tower Wide Angle Belt |
| Application | Cooling tower fan drive system |
| Belt Type | Wide-angle V-belt |
| Drive System | Motor-to-shaft fan drive |
| Material | Reinforced rubber with high-strength cord |
| Operating Environment | Wet, humid, outdoor industrial conditions |
| Temperature Resistance | Suitable for continuous industrial operation |
| Installation | Cooling tower gearbox/belt drive assemblies |
| Replacement Use | OEM and aftermarket cooling tower maintenance |
Kingsun wide angle belts are widely used in:
Industrial cooling towers
HVAC cooling towers
Power plant cooling systems
Chemical processing plants
Steel mills
Refineries
Manufacturing facilities
Commercial building cooling systems
They are especially suitable for cooling towers where fan reliability directly affects production efficiency and equipment performance.
Regular inspection is recommended because worn belts can reduce cooling tower performance.
Common replacement indicators include:
Visible cracks on the belt surface indicate aging rubber and reduced flexibility.
A stretched belt may cause:
Lower fan speed
Reduced airflow
Poor cooling performance
Incorrect belt tension or belt wear can create vibration in:
Fan shaft
Motor assembly
Drive system
Noise during startup or operation may indicate:
Belt slipping
Incorrect tension
Pulley wear
Uneven sidewall wear usually indicates pulley misalignment or improper installation.
Incorrect tension can cause:
Overloading of motor bearings
Belt slipping
Reduced belt life
Both over-tensioning and under-tensioning should be avoided.
Proper alignment between motor pulley and fan pulley helps prevent:
Uneven belt wear
Excessive vibration
Premature failure
For multiple-belt drives, all belts should normally be replaced as a matched set to maintain equal load sharing.
Avoid contamination from:
Oil
Chemicals
Dirt
Excessive water deposits
Using a compatible Kingsun cooling tower belt replacement provides:
Reliable fan operation
Improved energy efficiency
Reduced downtime
Lower maintenance costs
Extended drive system life
A correctly selected replacement belt should match:
Belt profile
Length
Width
Angle
Horsepower rating
Cooling tower model requirements
Kingsun cooling tower wide angle belts are often used together with:
Cooling tower fan motors
Cooling tower pulleys
Fan shafts
Bearings
Belt tensioners
Gear reducers
Fan blades
Drive assemblies
For complete cooling tower belt replacement, checking the entire drive system is recommended rather than replacing only the belt.
