Kingsun Cooling Tower Drift Eliminators

The water cooling tower drift eliminators is an important part of the cooling tower system, which is mainly used to collect and recover floating water generated in the cooling process to improve cooling efficiency and save water resources. A drift eliminator in a cooling tower is a device installed within the cooling tower designed to reduce the drift of water. Water drift refers to the phenomenon where water droplets are carried away by the airflow and emitted outside the cooling tower during its operation. The drift eliminator captures these water droplets and returns them to the cooling tower's water circulation system, thereby reducing water waste and enhancing the operational efficiency of the cooling tower.

Kingsun Cooling Tower Drift Eliminators Specification

The water collector removes the small water droplets carried in the waste gas. If they are allowed to escape through the top of the tower together with the heated air, the harm and health problems will be minimized. The drift eliminator is designed to create a tortuous path for air flow. When the water drops pass through them, they are forced to change direction, hit the side wall of the drift eliminator, aggregate and discharge back to the wet section of the cooling tower.

Kingsun Cooling Tower Drift Eliminators Features

I. Kingsun cooling tower drift eliminators Material and Structural Features

1. Kingsun cooling tower drift eliminators Material Selection

• PVC Material: The Kingsun cooling tower drift eliminator is typically made of PVC. PVC is known for its excellent corrosion resistance and aging resistance, ensuring stable performance over a long period of use. Additionally, PVC has a low density, making the drift eliminator lightweight and easy to install and maintain.
• Fiberglass (FRP): Some Kingsun cooling towers use drift eliminators made of fiberglass. Fiberglass is characterized by its high strength, corrosion resistance, and UV resistance, which allows it to withstand harsh environmental conditions and extend its service life.
• Additives: Carbon black is added to the sheet material of the drift eliminator, enhancing its UV resistance. This ensures that the drift eliminator maintains good performance even when exposed to sunlight for extended periods.

2. Kingsun cooling tower drift eliminators Structural Design

• Wavy Plate Structure: The drift eliminator often features a wavy plate structure. This design increases the contact area between the airflow and the drift eliminator, improving water collection efficiency. The wavy plates also help reduce air resistance, lowering the energy consumption of the fans.
• Honeycomb Structure: Some drift eliminators have a honeycomb structure. This design offers higher water collection efficiency by providing more channels per unit area, further enhancing the effectiveness of water capture.
• Multi-Dimensional Zigzag Structure: Newer models of Kingsun cooling tower drift eliminators feature a multi-dimensional zigzag structure. This structure, formed by alternating multi-dimensional zigzag plates and flat plates, creates multiple triangular channels. It changes the traditional single-direction, single-dimensional airflow guidance method, effectively addressing the problem of water drift.

II. Kingsun Cooling Tower Drift Eliminators Performance Features

1. Kingsun cooling tower drift eliminators High Water Collection Efficiency

• The Kingsun cooling tower drift eliminator has a high water collection efficiency. The specially designed PVC water-blocking curtains (drift eliminators) significantly prevent splashing and effectively reduce water drift. In practical applications, the drift eliminator can intercept water droplets in the cold, humid air discharged by the cooling tower, reducing water loss.
• The multi-dimensional zigzag structure of the drift eliminator has a water collection effect that is 50% higher than that of ordinary drift eliminators. This high-efficiency water collection not only conserves water resources but also reduces water mist pollution in the surrounding environment.
• The installation location of the drift eliminator also affects its water collection efficiency. Typically installed at the outlet of the fan, it can maximize the capture of water droplets in the air.

• In a cooling tower, hot water is sprayed over the fill material, where it comes into contact with the incoming air. As the water cools, it releases heat into the air, which then becomes saturated and rises through the tower. During this process, some water droplets can be carried away by the air stream, resulting in water drift. This water loss not only reduces the efficiency of the cooling system but also increases water consumption and operational costs.

2. Kingsun cooling tower drift eliminators Low Airflow Resistance

• The design of the Kingsun cooling tower drift eliminator focuses on reducing airflow resistance. The wavy plate and honeycomb structures of the drift eliminator effectively reduce the resistance when air passes through, thereby reducing the energy consumption of the fans. Low airflow resistance not only improves the operating efficiency of the cooling tower but also reduces the operating costs of the equipment.
• The multi-dimensional zigzag structure of the drift eliminator further reduces airflow resistance by optimizing the airflow channel design. This design allows air to pass through the drift eliminator more smoothly, enhancing the overall performance of the cooling tower.

3. Kingsun cooling tower drift eliminators Strength and Stability

• The Kingsun cooling tower drift eliminator has sufficient strength and rigidity. The high strength characteristics of PVC and fiberglass materials ensure that the drift eliminator does not deform easily over long-term use. The assembly blocks of the drift eliminator also have enough rigidity to withstand certain pressures, ensuring stable operation of the equipment.
• The design of the drift eliminator also considers its stability when installed in the cooling tower. Its simple structure makes it easy to install, and it can maintain stable resistance operation under normal operating conditions.

4. Kingsun cooling tower drift eliminators Long Service Life

• The Kingsun cooling tower drift eliminator has a long service life. The corrosion resistance of PVC and fiberglass materials allows the drift eliminator to be used in harsh environments for a long time. Additionally, the UV resistance of the materials further extends its service life by protecting it from the effects of sunlight.
• The structural design of the drift eliminator also contributes to its long service life. Its high strength and rigidity ensure that the drift eliminator does not easily get damaged over long-term use. Moreover, the installation and maintenance of the drift eliminator are relatively simple, allowing for timely repairs and replacements.
• Reducing water waste means less makeup water is required, which in turn reduces the costs associated with water treatment and energy consumption.

• By reducing water drift, the drift eliminator can decrease scaling and corrosion within the cooling tower, extending its service life and reducing maintenance costs.

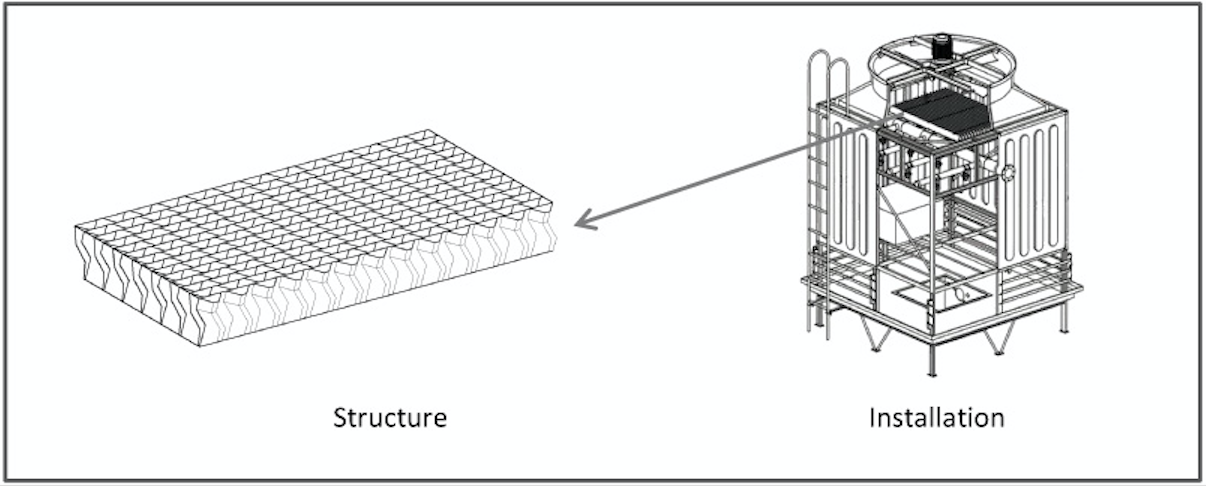

Kingsun Cooling Tower Drift Eliminators Structural installation drawing

The structural position of the water drift eliminator is shown in the following figure.

Please tell us the model or size of the cooling tower, and we will estimate the number of sheets needed to replace the cooling tower.

Kingsun Cooling Tower Drift Eliminators Application

Drift eliminators, also known as water eliminators or drift eliminators, are essential components in cooling towers. They are designed to capture and return water droplets that would otherwise be carried out of the cooling tower by the exhaust air. This process significantly reduces water loss and improves the overall efficiency of the cooling system. Drift eliminators play a crucial role in modern cooling tower systems by reducing water loss, improving energy efficiency, protecting the environment, and enhancing overall system performance. By effectively capturing and returning water droplets, drift eliminators contribute to water conservation, reduced maintenance costs, and improved operational efficiency. Their importance in maintaining a reliable and efficient cooling system cannot be overstated, making them an essential component in both new and existing cooling tower installations.

Kingsun Cooling Tower Drift Eliminators Shipment

Packing:

Wooden,cartons,custom package.

Delivery time:

With in 10 days.

Our Services Of Kingsun Cooling Tower Drift Eliminators

-Pre-sale services

Based on the clients' requirements, we will offer product pictures, videos, quotation,information,

engineering drawings until you satisfied with it. Warmly welcome to visit our factory.

-Sale services

1 Providing production schedule photos to ensure you know every process.

2 Our experienced technician are available on the phone also internet, the clients can get instance

guidance by telephone,email, online service anytime, anywhere.

3 Also can arrange experienced technician to clients site for installation guidance, commissioning and training etc.

-After-sale services

Normally, the equipment warranty is 12 months since installation. We will keep in touch with our clients

to follow up the working condition of our machines, and offer support for maintenance.
