Introduction to cooling tower air inlet louvers

Cooling Tower Air Inlet Louvers，It is an important component installed at the inlet position of the cooling tower. Its main function is to ensure smooth air flow into the cooling tower while effectively preventing water droplets from splashing, debris from entering, and direct sunlight, thereby improving the overall operating efficiency and service life of the cooling tower.

Cooling tower air inlet louvers are widely used in industrial cooling towers, power plant cooling systems, chemical plants, central air conditioning cooling systems, and other fields.

The main function of the cooling tower air inlet louver

1. Prevent water droplets from splashing (Drift Control)

The efficient Cooling Tower Air Inlet Louvers can effectively block the overflow of circulating water with the airflow, reduce water waste, and minimize the impact on the surrounding environment and equipment.

2. Optimize the distribution of incoming airflow

Reasonable design of cooling tower inlet louvers can improve the flow state of air entering the cooling tower, make the airflow distribution more uniform, and thus enhance heat exchange efficiency.

3. Prevent debris and foreign objects from entering

The louver structure can prevent foreign objects such as leaves, dust, and birds from entering the interior of the cooling tower, reducing the risk of fill blockage and equipment damage.

4. Block sunlight and inhibit algae growth

Cooling Tower Air Inlet Louvers can effectively reduce direct sunlight on circulating water, inhibit algae and microbial growth, and lower maintenance and cleaning costs.

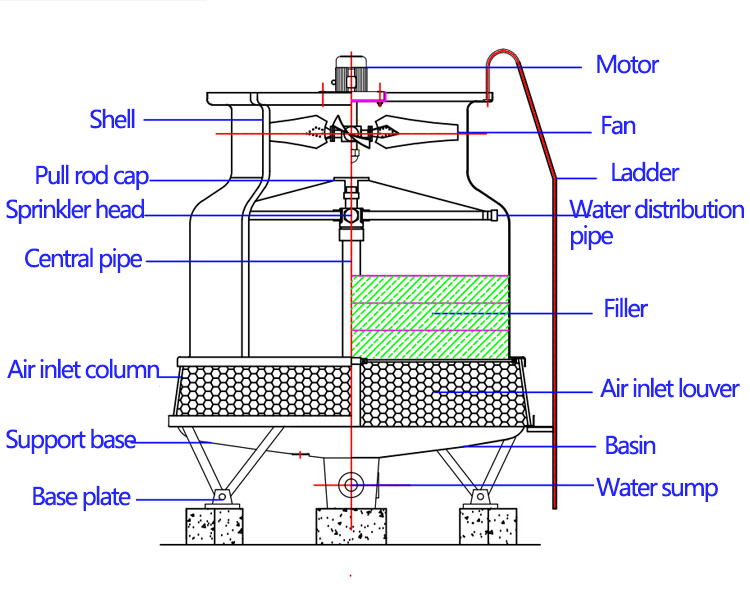

Structural diagram of the air inlet louvers in the cooling tower

Common types of cooling tower air inlet louvers materials

1. PVC cooling tower air inlet louver

PVC louvers have the advantages of light weight, corrosion resistance, and easy installation, making them suitable for most industrial cooling tower applications.

2. FRP air inlet louvers

FRP (glass fiber reinforced plastic) louver has high strength, high temperature resistance, good aging resistance, and is suitable for high corrosive or high temperature conditions.

3. PP/ABS engineering plastic louvers

Engineering plastic louvers have good mechanical strength and chemical resistance, and are suitable for special industries such as chemical and pharmaceutical industries.

Design points of cooling tower air inlet louvers

1.Reasonable louver angle design

The angle of the louver directly affects the air intake resistance and waterproof performance, and it is usually necessary to strike a balance between ventilation efficiency and anti flying water performance.

2.Good structural strength

The Cooling Tower Air Inlet Louvers need to have sufficient wind resistance to ensure that they do not deform or detach during harsh weather or long-term operation.

3.Easy to install and maintain

The modular design of the cooling tower air inlet louvers can significantly reduce installation difficulty and facilitate later inspection and replacement.

Application scenarios of cooling tower air inlet louvers

1. Industrial circulating water cooling tower

2. Cooling system of power plant

3. Petrochemical and fine chemical equipment

4. Central air conditioning system for commercial buildings

5. Steel, metallurgy, and paper industries
