Here is a clear, practical way to calculate the cooling-tower *fan* capacity (airflow) starting from the heat to be rejected.

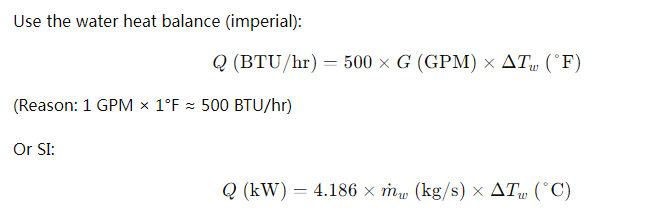

* Water flow through tower, (G) (GPM) or mass flow ( ṁw) (kg/s)
* Water temperature drop across tower (range) (ΔTw ) (°F or °C)
* Ambient wet-bulb (for detailed design) — not required for the simple method below

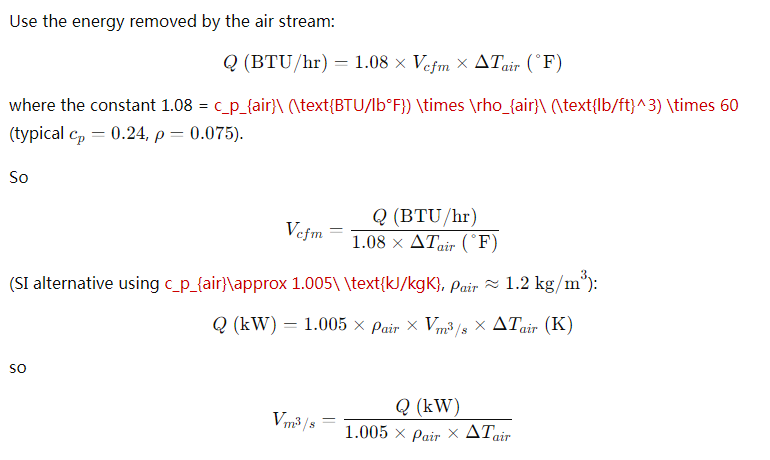

* Estimated air temperature rise through the tower, ( ΔTair ) (°F). Typical design values are ~10–30°F but vary by tower type and load.

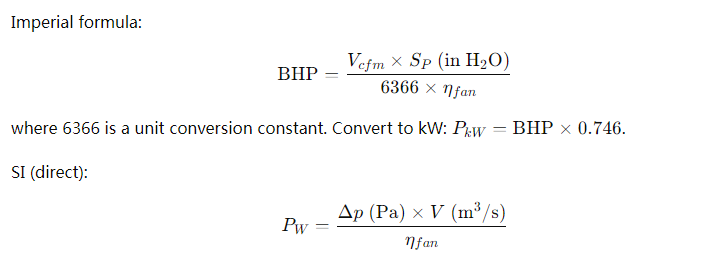

* Fan static pressure Sp (in H₂O) and fan efficiency (nfan ) (for fan power)




* The simple method above assumes a guessed (ΔTair) (air temperature rise through the tower). In reality, tower performance is governed by wet-bulb temperature, airflow, tower airflow effectiveness (Merkel number), and psychrometry.
* For accurate sizing you usually:
* Use tower manufacturer performance curves (preferred), or
* Perform a Merkel analysis (enthalpy vs. mass transfer), or
* Use a psychrometric enthalpy balance (Q = ṁair(hhot - hin)with known inlet wet-bulb and outlet conditions.
* Fan static pressure must include losses: inlet/outlet screens, louvers, drift eliminators, transition ducting, guard, and velocity pressure. If you underestimate SP the chosen fan will be underpowered.
* Use the manufacturer’s recommended correction factors for altitude and temperature.
* Water flow (GPM) and water range ΔT (°F) — required
* Ambient wet-bulb temp (for accuracy)
* Expected air temperature rise ΔT_air or enthalpy change (or use psychrometric data)
* Total system static pressure (in H₂O)
* Fan efficiency (or motor & gearbox efficiencies)
