Cooling tower fan blade balancing is an essential maintenance procedure for maintaining stable operation, improving energy efficiency, and extending the service life of industrial cooling tower systems. Cooling tower fans operate continuously in demanding environments, where even a small imbalance can cause excessive vibration, unusual noise, increased bearing loads, and premature equipment failure.
Whether operating a large industrial cooling tower, an HVAC cooling system, or a power plant cooling facility, proper fan blade balancing helps maintain reliable airflow and mechanical stability. Understanding the causes of fan imbalance, balancing methods, inspection procedures, and maintenance best practices can help operators reduce unexpected downtime and maintenance costs.
This guide explains how cooling tower fan blade balancing works, why it matters, which balancing methods are commonly used, and how to achieve long-term fan performance.
 |  |
Cooling tower fan blade balancing is the process of adjusting the mass distribution of fan blades and related rotating components to minimize vibration during operation.
A cooling tower fan typically consists of several important components, including fan blades, a fan hub, a drive shaft, a gearbox, and a motor. When these components rotate at high speeds, their weight must be distributed evenly around the rotational axis.
If one blade is heavier than another, or the fan assembly has an uneven mass distribution, centrifugal forces can create vibration.
Proper balancing ensures that the rotating fan assembly operates smoothly without generating excessive mechanical forces.
An unbalanced cooling tower fan may experience:
Excessive vibration during operation.
Increased bearing and gearbox loads.
Unusual operating noise.
Reduced airflow stability.
Higher maintenance requirements.
Premature fatigue of fan blades and structural components.
Increased risk of mechanical failure.
When a fan rotates, an uneven mass distribution produces centrifugal force. The force increases with the square of rotational speed.
A simplified relationship is:
Where:
F = Centrifugal force.
m = Unbalanced mass.
r = Distance from the rotation axis.
ω = Angular velocity.
This means that even a relatively small imbalance can generate significant vibration at high rotational speeds.
For industrial cooling tower fans, controlling imbalance is especially important because equipment often operates continuously for extended periods.
Several factors can affect the balance of cooling tower fan blades. Some problems develop gradually through normal operation, while others occur after installation, maintenance, or accidental damage.
Manufacturing variations, material differences, and improper replacement parts can create weight differences between blades.
For example, if replacement blades have different weights or dimensions, the fan assembly may become unbalanced.
Replacement cooling tower fan blades should match the original equipment specifications as closely as possible.
Important parameters include:
Blade length and diameter.
Blade weight.
Blade profile and geometry.
Blade material.
Mounting dimensions.
Pitch angle.
Hub connection specifications.
Using compatible blades helps maintain consistent aerodynamic performance and mechanical balance.
Cooling towers operate in environments where water droplets, dust, minerals, and airborne contaminants can accumulate on fan blades.
Uneven deposits can change the mass distribution of the rotating assembly.
For example, one blade may accumulate more mineral deposits than the others, creating an imbalance even if all blades were originally manufactured to identical specifications.
Fan blades may become damaged because of excessive vibration, foreign objects, improper handling, or long-term environmental exposure.
Common problems include:
Cracks near the blade root.
Surface erosion.
Bent blade tips.
Uneven wear.
Delamination of FRP fan blades.
Corrosion of metallic components.
Damaged blades should be inspected and repaired or replaced according to the manufacturer's recommendations before balancing.
Fan blade pitch directly affects airflow, aerodynamic loading, and fan performance.
If individual blades are installed at different pitch angles, the fan may generate uneven aerodynamic forces.
Although pitch differences are primarily an aerodynamic issue rather than a simple mass imbalance, they can produce uneven operating loads and vibration.
Therefore, checking blade pitch is an important part of a complete fan inspection.
Incorrect installation is another common cause of cooling tower fan vibration.
Potential installation problems include:
Loose mounting bolts.
Incorrect blade positioning.
Improper hub alignment.
Uneven bolt tightening.
Incorrect blade orientation.
Damaged mounting brackets.
A properly assembled fan hub is essential for maintaining reliable rotating performance.
Different balancing methods are suitable for different fan configurations, operating conditions, and maintenance requirements.
The most appropriate method depends on fan size, rotational speed, accessibility, and the type of imbalance.
Static balancing is a basic method used to identify uneven mass distribution in a stationary fan assembly.
The fan is placed on a suitable balancing fixture or low-friction support. The assembly is allowed to rotate freely, and the heavier section tends to move toward the lowest position.
This helps technicians identify the location of the heavy spot.
Static balancing offers several advantages:
Simple inspection procedure.
Relatively low equipment requirements.
Suitable for identifying basic mass imbalance.
Useful for smaller fan assemblies.
Can be performed during workshop maintenance.
However, static balancing cannot fully identify dynamic imbalance in larger rotating systems.
Dynamic balancing is a more advanced method that evaluates the rotating assembly under controlled operating conditions.
Specialized balancing equipment measures vibration and identifies the magnitude and position of imbalance.
Technicians can then determine the appropriate correction.
A typical dynamic balancing procedure includes:
Mounting the fan assembly on suitable balancing equipment.
Installing vibration sensors and a rotational reference.
Running the fan at the specified test speed.
Measuring vibration amplitude and phase.
Calculating the imbalance location and correction amount.
Adding or adjusting correction weights.
Repeating the test to verify the results.
Dynamic balancing is particularly useful for large industrial cooling tower fans because it can identify imbalance that static methods may not detect.
Single-plane balancing corrects imbalance in one correction plane.
It is generally suitable for relatively thin rotating components where the dominant imbalance can be corrected in a single plane.
This method may be appropriate for certain smaller fan assemblies or configurations where the axial distribution of mass is not significant.
The technician should evaluate the rotor geometry before selecting this method.
Two-plane balancing corrects imbalance in two separate planes along the rotating assembly.
It is commonly used when the rotor has a relatively large axial dimension or when imbalance occurs in different planes.
Large cooling tower fans may have long blades, substantial hub assemblies, and complex rotating structures.
Correcting imbalance in two planes can help reduce both static and couple-related dynamic imbalance.
The final balancing requirements should follow the applicable equipment specifications and relevant standards.
Accurate balancing depends on appropriate measuring instruments and reliable inspection equipment.
Professional maintenance teams typically use several types of tools.
A vibration analyzer measures vibration levels and helps identify mechanical problems.
It can provide useful information about:
Overall vibration velocity.
Acceleration.
Displacement.
Vibration frequency.
Phase relationships.
These measurements help technicians distinguish imbalance from other mechanical problems.
Portable balancing equipment is useful for correcting certain rotating machinery imbalances without removing the entire assembly.
Depending on the equipment design, it may allow technicians to perform field balancing directly on an installed fan.
However, field balancing should only be performed when the installation conditions, safety requirements, and equipment instructions permit it.
Digital angle gauges and inclinometers help measure fan blade pitch angles.
Maintaining consistent blade angles is important for ensuring balanced aerodynamic loading.
Torque wrenches help ensure that mounting bolts are tightened according to the manufacturer's specified values.
Other useful tools include:
Calipers.
Measuring tapes.
Dial indicators.
Inspection mirrors.
Crack detection equipment.
Laser alignment tools.
Using appropriate tools improves the accuracy and repeatability of maintenance work.
Proper fan balancing provides several operational and economic advantages.
One of the most immediate benefits is reduced vibration.
A balanced fan generates fewer unwanted centrifugal forces, helping protect bearings, gearboxes, motors, and support structures.
This also contributes to smoother operation and reduced mechanical noise.
Excessive vibration can accelerate fatigue and wear throughout the cooling tower fan system.
By reducing vibration, proper balancing helps extend the service life of important components.
These may include:
FRP fan blades.
Aluminum alloy fan hubs.
Bearings.
Gearboxes.
Drive shafts.
Motor mounting structures.
For facilities operating large cooling tower systems, extending equipment life can significantly reduce long-term maintenance expenses.
A properly balanced fan supports stable mechanical operation and helps maintain consistent airflow.
When combined with correct blade pitch, suitable fan speed, and clean air passages, balanced fan operation contributes to reliable cooling performance.
Fan balancing can help prevent unnecessary mechanical losses and excessive vibration.
However, balancing alone does not guarantee a significant reduction in motor power consumption.
Actual energy savings depend on the overall condition of the fan system, including aerodynamic efficiency, blade pitch, motor performance, gearbox condition, and operating speed.
Unbalanced fans may require frequent inspections, bearing replacements, bolt tightening, and vibration troubleshooting.
Proper balancing reduces the likelihood of vibration-related maintenance problems.
This helps maintenance departments improve equipment availability and control operating expenses.
Severe vibration can damage rotating equipment and supporting structures.
In extreme situations, damaged fan components may become a safety hazard.
Regular inspection and proper balancing help reduce these risks and support safer cooling tower operation.
A systematic procedure helps technicians identify the actual cause of vibration and avoid unnecessary adjustments.
The following workflow provides a practical reference for industrial maintenance teams.
Before starting any inspection, stop the fan and isolate the electrical power supply.
Follow the facility's lockout/tagout procedures.
Confirm that the fan has completely stopped before accessing the rotating assembly.
Technicians should confirm:
The fan cannot restart unexpectedly.
The electrical supply is isolated.
The rotating components have stopped.
The work area is safe.
Appropriate personal protective equipment is available.
Carefully inspect each blade for physical damage, dirt accumulation, and uneven wear.
For FRP fan blades, pay particular attention to cracks, delamination, and damage around the blade root.
Clean the blades before making balancing adjustments.
Measure the pitch angle of every blade at the same specified reference location.
Compare the measurements with the fan manufacturer's recommended settings.
Also inspect blade spacing, mounting bolts, and hub connections.
If the fan can be operated safely under the approved maintenance procedure, measure its initial vibration using a suitable analyzer.
Record the following information:
Vibration amplitude.
Vibration frequency.
Measurement location.
Rotational speed.
Operating conditions.
These measurements provide a baseline for further diagnosis.
Use an appropriate balancing method to identify the magnitude and position of the imbalance.
For large industrial cooling tower fans, dynamic balancing may provide more useful information than static balancing alone.
Depending on the measurement results, technicians may need to:
Clean accumulated deposits.
Replace damaged blades.
Correct blade positioning.
Adjust approved correction weights.
Inspect or repair the fan hub.
Correct installation problems.
Correction weights should only be installed at manufacturer-approved locations using suitable materials and secure fastening methods.
After making corrections, repeat the vibration measurements.
Compare the final readings with the initial results and the applicable manufacturer or project acceptance criteria.
Record the final balancing information for future maintenance reference.
Balancing should not be treated as a one-time maintenance activity. Regular inspections and proper operating procedures help maintain long-term performance.
Every cooling tower fan has specific mechanical and aerodynamic requirements.
Blade pitch, installation position, mounting torque, operating speed, and balancing tolerances should follow the equipment manufacturer's documentation.
Avoid applying universal balancing values to different fan designs.
When replacing damaged or worn blades, select products that match the original fan specifications.
Important considerations include material, dimensions, weight, profile, and mounting structure.
FRP (Fiber Reinforced Plastic) fan blades are widely used in industrial cooling tower applications because of several useful characteristics:
Lightweight construction.
Good corrosion resistance.
High strength-to-weight ratio.
Design flexibility.
Good fatigue resistance when properly manufactured.
Suitability for demanding industrial environments.
However, FRP blade quality depends on fiber reinforcement, resin selection, manufacturing processes, and quality control.
Incorrect blade pitch can affect airflow and aerodynamic loading.
During routine maintenance, measure all blade angles using the same reference position and suitable instruments.
If adjustments are necessary, follow the manufacturer's recommended procedure.

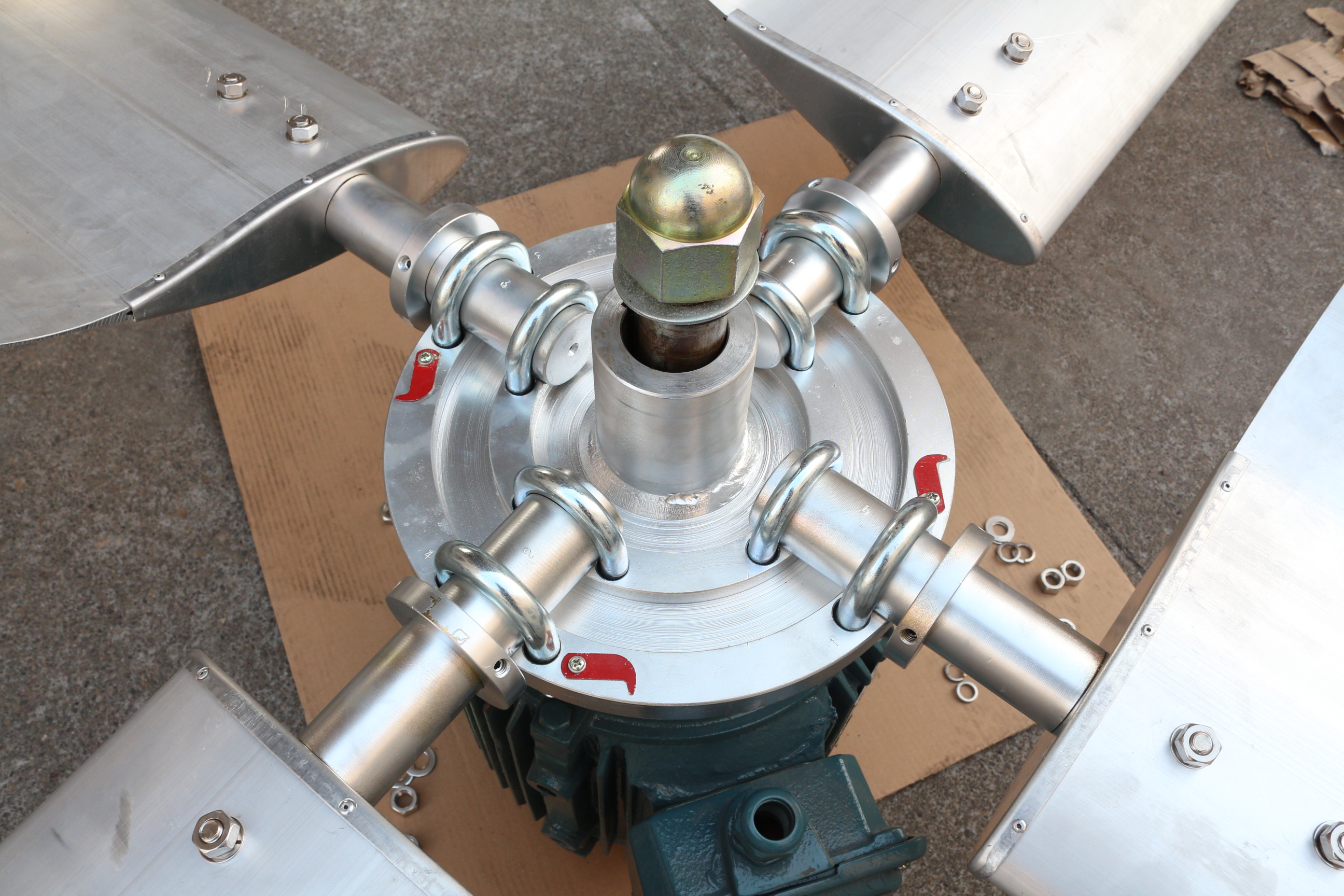

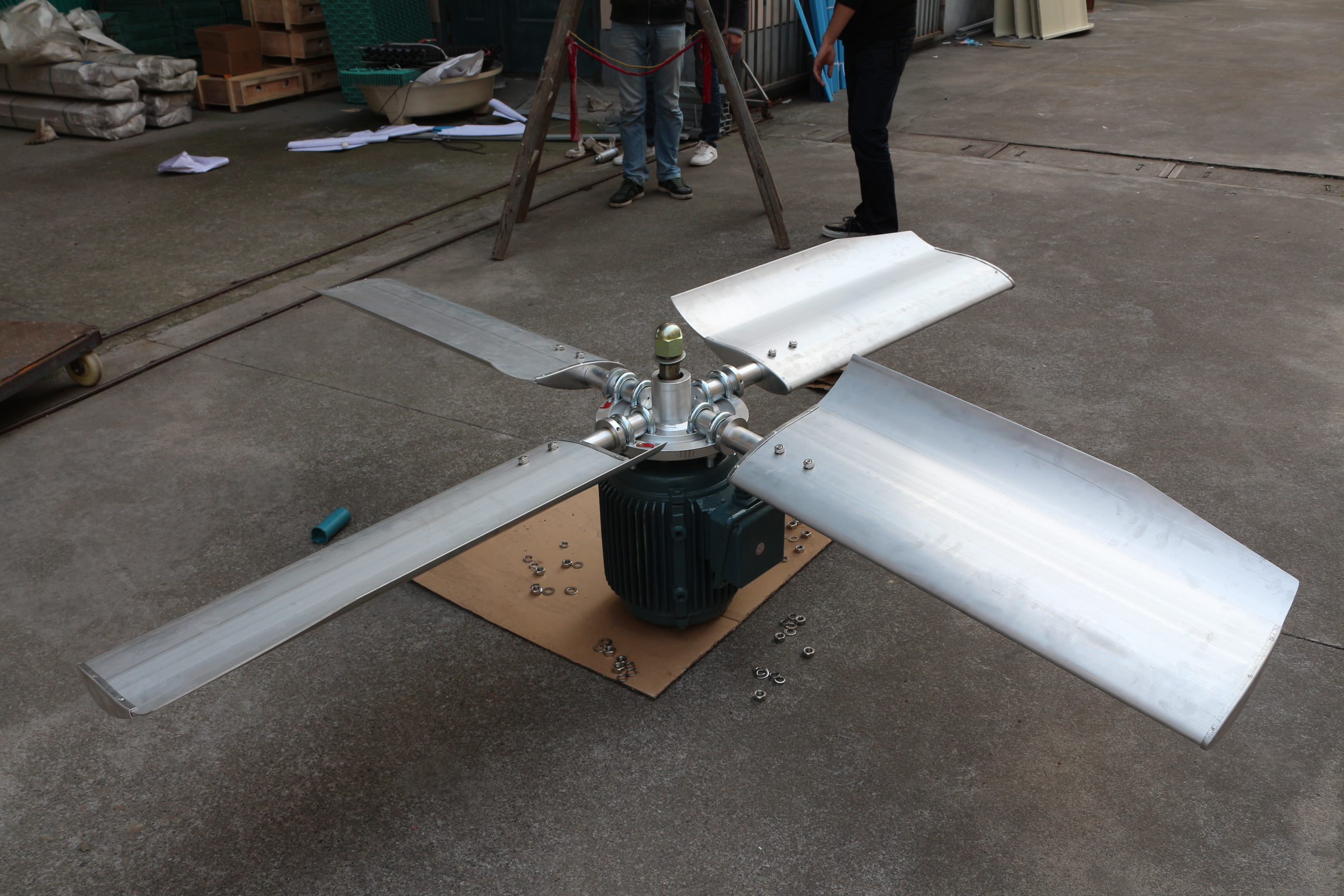

The fan hub connects individual blades to the rotating assembly.
A damaged or incorrectly assembled hub can affect both structural stability and fan performance.
Regularly inspect:
Hub body condition.
Blade mounting points.
Fasteners and locking devices.
Signs of corrosion.
Cracks or deformation.
Blade root connections.
A preventive maintenance program helps identify developing problems before they become serious failures.
Inspection item | Recommended activity |
|---|---|
Fan blades | Check cracks, deformation, and deposits |
Fan hub | Inspect mounting points and structural condition |
Blade pitch | Measure and compare blade angles |
Bolts | Check fastening condition and specified torque |
Vibration | Monitor and record operating trends |
Bearings | Inspect temperature, lubrication, and noise |
Gearbox | Check oil condition, temperature, and vibration |
Inspection frequency should depend on operating hours, environmental conditions, equipment criticality, and manufacturer recommendations.
Recording balancing measurements allows maintenance teams to identify changes over time.
Useful records include:
Original vibration measurements.
Final vibration measurements.
Fan operating speed.
Blade replacement history.
Balancing correction details.
Inspection dates.
Identified mechanical problems.
Historical information makes future troubleshooting more efficient.
These two maintenance procedures are closely related but serve different purposes.
Comparison | Fan blade balancing | Fan blade pitch adjustment |
|---|---|---|
Main purpose | Reduce rotating mass imbalance | Set the correct blade angle |
Primary concern | Mass distribution | Aerodynamic performance |
Main equipment | Balancing analyzer and sensors | Digital angle gauge |
Typical result | Reduced mechanical vibration | Improved airflow consistency |
Main adjustment | Approved correction weights or component correction | Blade angle and positioning |
Yes. Performing both inspections during scheduled maintenance can help identify mechanical and aerodynamic problems.
For example, a fan may have correct mass balance but inconsistent blade pitch. Conversely, the blade angles may be identical while uneven deposits create mass imbalance.
Therefore, a complete maintenance inspection should consider both conditions.
Incorrect balancing procedures can create additional mechanical problems rather than solve the original issue.
Adding weights based on visual inspection or guesswork is not a reliable balancing method.
Correction weights should be calculated using appropriate balancing equipment and installed according to approved procedures.
Balancing cannot repair structural damage.
If a blade has cracks, delamination, or severe deformation, it should be evaluated for repair or replacement before balancing.
Technicians sometimes focus only on individual blades and overlook the hub assembly.
However, loose connections, damaged mounting points, and hub deformation can also cause vibration.
Changing the pitch of one blade without checking the others can create uneven aerodynamic loading.
All blade adjustments should follow the specified installation procedure.
Not every vibration problem is caused by fan blade imbalance.
Other possible causes include:
Shaft misalignment.
Bearing defects.
Gearbox problems.
Loose support structures.
Motor imbalance.
Structural resonance.
Mechanical looseness.
A proper diagnosis should evaluate the complete rotating system instead of automatically assuming that the blades are responsible.
Selecting a reliable manufacturer is important when purchasing replacement fan blades or upgrading an existing cooling tower fan system.
A professional manufacturer should provide products that meet the required mechanical, aerodynamic, and environmental specifications.
Different cooling tower applications require different blade materials.
Common choices include:
FRP fan blades.
Aluminum alloy fan blades.
Engineered composite fan blades.
FRP is particularly popular for industrial applications because of its lightweight structure and corrosion resistance.
Cooling tower fan blades are not universal components.
A suitable manufacturer should be able to evaluate and provide customized solutions based on:
Fan diameter.
Blade length.
Blade profile.
Hub dimensions.
Blade pitch requirements.
Operating speed.
Temperature and environmental conditions.
Reliable manufacturing quality helps ensure consistent blade geometry and weight distribution.
Ask manufacturers about their quality inspection processes, including:
Raw material inspection.
Mold and dimensional inspection.
Weight consistency checks.
Structural strength testing.
Surface quality inspection.
Finished product inspection.
A professional cooling tower fan blade supplier should provide technical support throughout the purchasing and installation process.
Useful services may include:
Replacement blade selection.
Fan dimension confirmation.
Technical drawings.
Installation guidance.
Balancing recommendations.
Customized manufacturing solutions.
Choosing an experienced supplier helps reduce compatibility problems and improve the reliability of replacement projects.
Cooling tower fan blade balancing plays an important role in maintaining reliable industrial cooling operations.
Even a small imbalance can create excessive centrifugal forces, accelerate component wear, and increase the risk of unexpected equipment failure.
By combining accurate balancing methods, regular blade inspections, correct pitch adjustment, and preventive maintenance, operators can improve fan reliability and extend equipment service life.
For cooling tower owners, maintenance contractors, and industrial equipment buyers, selecting high-quality fan blades and working with an experienced manufacturer are equally important.
A properly designed, manufactured, installed, and balanced cooling tower fan provides a stronger foundation for stable airflow, dependable operation, and long-term cooling system performance.
There is no universal balancing interval for all cooling tower fans. Balancing should be considered during commissioning, after blade replacement or major maintenance, and whenever vibration measurements indicate a potential imbalance.
Common signs include excessive vibration, unusual noise, increased bearing temperatures, loose mounting bolts, and abnormal mechanical wear.
Yes. Certain fan assemblies can be balanced in place using portable dynamic balancing equipment. However, this depends on fan design, accessibility, operating conditions, and applicable safety procedures.
Not necessarily. Static balancing can identify basic mass imbalance, but large industrial fan assemblies may require dynamic balancing to evaluate imbalance across multiple planes.
Proper balancing primarily improves mechanical stability and reduces vibration. It can support reliable cooling performance, but overall efficiency also depends on fan design, blade pitch, airflow resistance, motor power, and operating conditions.
Yes. FRP fan blades can be balanced using suitable static or dynamic balancing procedures. Their weight, dimensions, structural condition, and installation accuracy should all be considered.
Fan imbalance results from uneven mass distribution in rotating components, while misalignment occurs when connected rotating components are not correctly aligned. Both can cause vibration but require different corrective procedures.
Yes. After replacing fan blades, technicians should verify blade compatibility, pitch angles, installation accuracy, and the balance of the complete rotating assembly before returning the fan to normal operation.
