How to balance cooling tower fan blades

The cooling tower fan blade plays a crucial role in air circulation within the cooling system, and its operational status directly affects cooling efficiency, equipment lifespan, and energy consumption. During long-term operation, the blades of the fan may experience imbalance due to wear, dirt, installation deviation, or structural fatigue, leading to vibration, noise, and even bearing and gearbox failures. Therefore, understanding and mastering how to balance the blades of cooling tower fans is an important skill for equipment maintenance personnel.

Common causes of blade imbalance in cooling tower fan

1. Dust or scaling on the blades

Exposed to humid environments, leaf surfaces are prone to attachment of scale, algae, or sediment, resulting in uneven weight distribution.

2. Inconsistent installation angle

The installation angle of fan blades directly affects aerodynamic parameters, and unequal angles can result in uneven thrust and vibration.

3. Blade damage or deformation

Cracks, wear, or slight deformation may occur during long-term operation, altering the original weight and aerodynamic characteristics.

4. Loose connectors

Loose bolts and increased clearance between wheel hubs may cause eccentricity or imbalance.

5. Inconsistent blade weight

Production errors or failure to perform weight calibration when replacing individual blades.

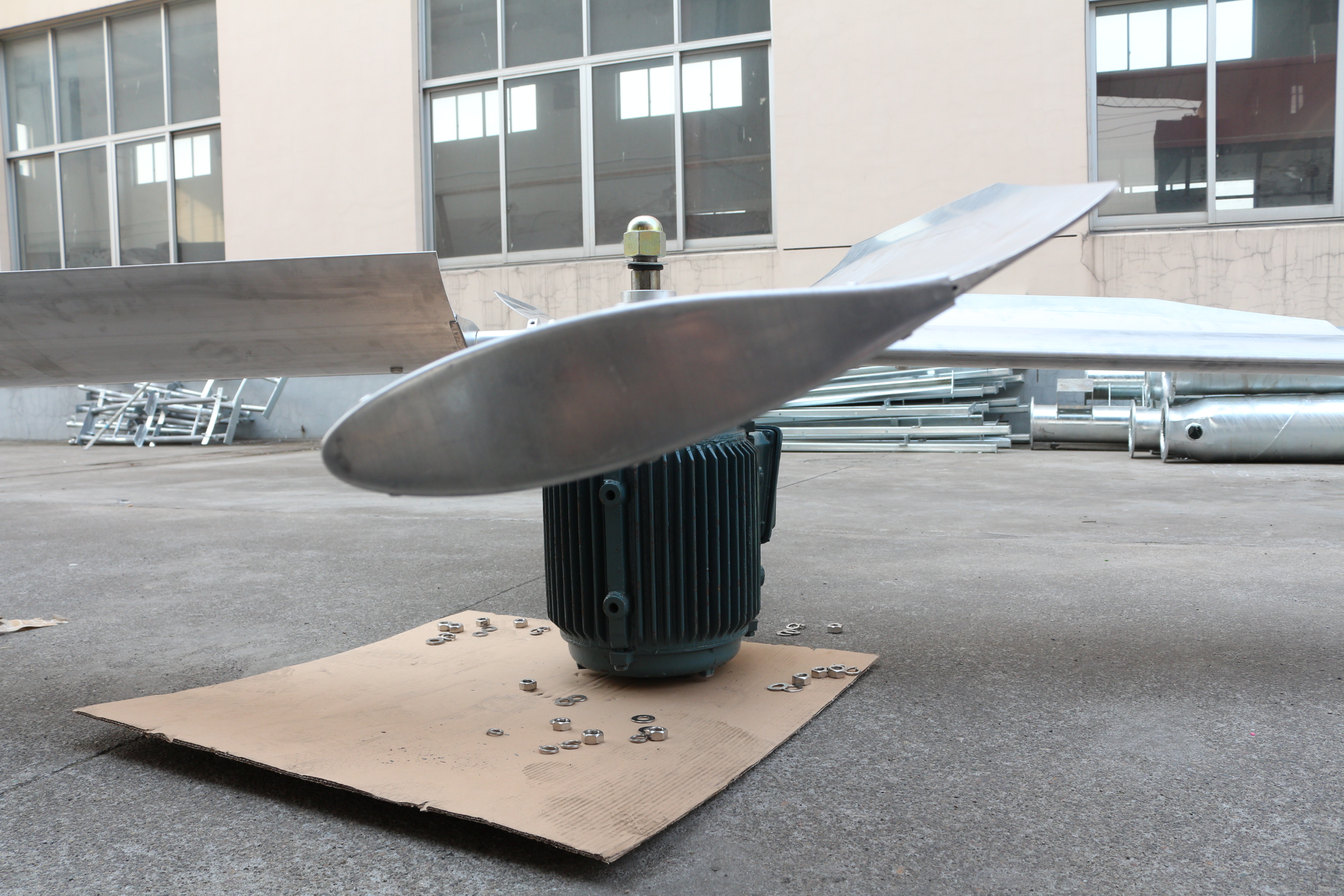

The main methods for balancing the blades of cooling tower fan

3.1 Static Balancing

Usually performed when the fan is not installed, it is used to calibrate the blade weight.

Main steps:

1. Weigh the blades one by one and compare the quality differences.

2. Add counterweights to lighter blades (usually in the tail or root area).

3. Adjust all blade weights within the error range (generally within ± 5-10g, depending on the model).

4. Before installation, double check the weight and center position.

3.2 Dynamic Balancing

During the actual operation of the fan on the tower, vibration is detected and the counterweight position is calculated using specialized equipment.

Common process:

1. Use a dynamic balance meter to measure the operating vibration spectrum of the fan.

2. Add small counterweights at the specified angle and position according to the instrument recommendations.

3. Restart the fan and retest the vibration.

4. Repeat the adjustment until the vibration drops below the standard range (usually ≤ 4.5 mm/s RMS, depending on the model and standard).

Maintenance suggestions for preventing blade imbalance

1. Regularly clean the leaves to keep the surface free of scale and algae.

2. Regularly inspect the wear, cracks, and looseness of the blades.

3. Conduct a blade angle calibration check every six months.

4. Conduct a dynamic balance test once a year (for high load systems, it is recommended to do so every six months).

5. Use high-quality lubricating oil to keep the bearings and gearbox in good condition.
