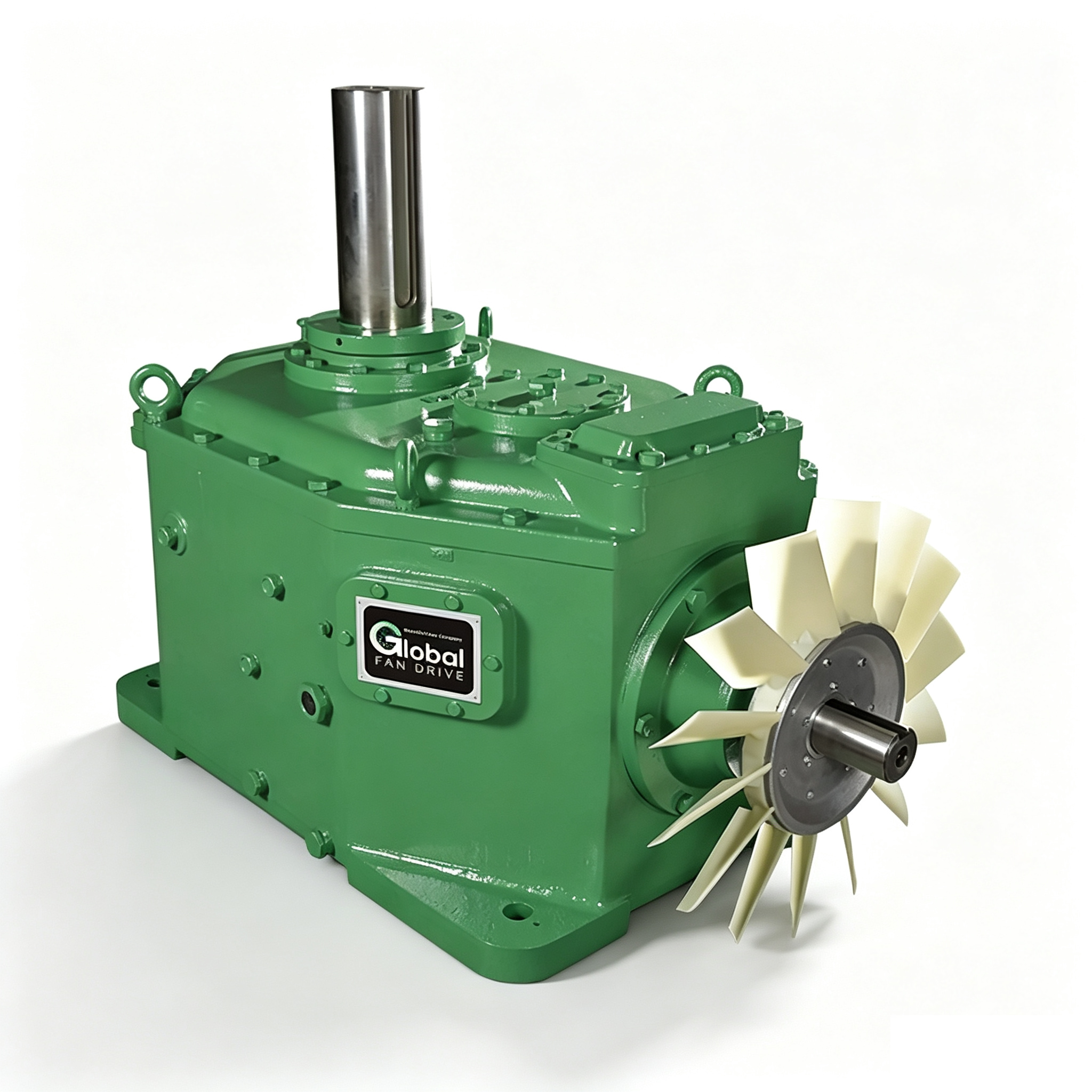

A Global fan drive is a mechanical power transmission system used to drive a large axial fan in an industrial cooling tower.
The motor generates rotational power, while the drive system transfers and, where required, reduces the motor speed before transmitting torque to the fan.
A typical arrangement can include:
Electric Motor → Drive Coupling → Gearbox/Speed Reducer → Drive Shaft → Fan Hub → Fan Blades
The exact configuration depends on the cooling tower design and fan-drive arrangement.
The fan drive must provide sufficient torque and rotational speed to operate the fan efficiently while maintaining reliable performance under continuous-duty conditions.
The fan drive is one of the most important mechanical systems in a mechanical-draft cooling tower.
The cooling tower fan moves air through the heat-transfer section, allowing heat to be rejected from the circulating water.
If the fan drive operates incorrectly, the cooling tower may experience:
Reduced airflow
Increased water temperature
Reduced cooling capacity
Excessive vibration
Abnormal noise
Increased energy consumption
Fan or gearbox damage
Unplanned downtime
For this reason, selecting a suitable fan drive is important when replacing or upgrading cooling tower mechanical-drive components.
Depending on the cooling tower design, a fan drive assembly may contain several interconnected components.
The motor supplies the input power required by the fan drive.
Cooling tower motors are normally selected according to:
Required horsepower or kW
Operating speed
Voltage
Frequency
Duty cycle
Ambient conditions
Enclosure requirements
A gearbox can reduce the motor's rotational speed while increasing available output torque.
The reducer must be selected according to the required fan speed, power, torque, service factor, and operating conditions.
The drive shaft transfers rotational power between the gearbox and fan assembly.
Proper alignment is important because excessive misalignment can contribute to:
Vibration
Bearing wear
Coupling damage
Shaft fatigue
Reduced service life
Couplings connect rotating components while accommodating the required mechanical arrangement and, depending on the design, limited misalignment.
The fan hub connects the fan blades to the rotating drive assembly.
A properly balanced hub and blade assembly is important for smooth fan operation.
The fan blades convert mechanical rotation into airflow through the cooling tower.
Fan blade pitch and diameter must be matched to the cooling tower's airflow requirements and drive characteristics.
A properly selected fan drive provides consistent transmission of mechanical power from the motor to the cooling tower fan.
Industrial cooling towers may operate for extended periods. Fan-drive components must therefore be suitable for continuous operation.
Correct motor, gearbox, shaft, and fan matching helps the system operate efficiently.
Proper alignment, balancing, lubrication, and component selection can help minimize unnecessary mechanical stress.
A suitable Global fan drive solution can be used for cooling tower repair, refurbishment, and replacement projects when dimensions and performance requirements are compatible.
Cooling tower fan-drive components can eventually require replacement because of:
Bearing wear
Gearbox wear
Shaft fatigue
Coupling deterioration
Lubrication problems
Corrosion
Excessive vibration
Fan imbalance
Motor failure
Long-term operating wear
Replacing worn fan-drive components can help restore reliable cooling tower operation.
Before selecting a replacement, it is important to compare the original equipment specifications with the proposed replacement.

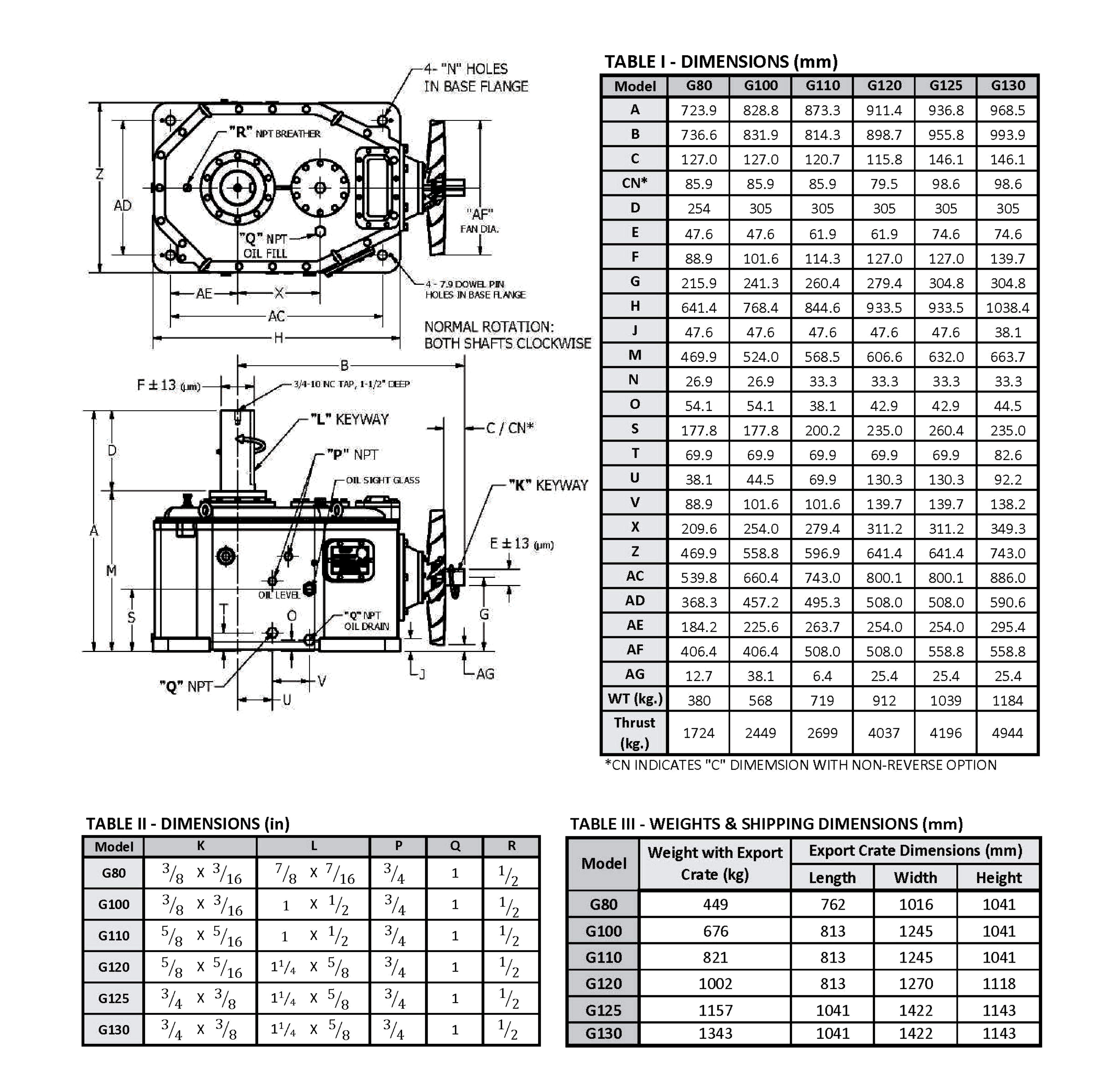

| Specification | Typical Requirement |
|---|---|
| Product | Global Fan Drive |
| Application | Industrial Cooling Towers |
| Drive Type | Mechanical Fan Drive |
| Fan Type | Axial Cooling Tower Fan |
| Motor | Electric Motor |
| Transmission | Gearbox / Speed Reducer / Direct Drive Configuration |
| Drive Shaft | Available according to system |
| Coupling | Available according to configuration |
| Fan Hub | Compatible configuration |
| Fan Blades | Aluminum / FRP / Other specified material |
| Installation | Cooling Tower Fan Stack |
| Operation | Continuous Duty |
| Replacement | Available |
| Customization | Available |
| OEM-Compatible | Subject to dimensional and performance matching |
Important: Actual gearbox ratio, input/output speed, power rating, torque rating, shaft dimensions, mounting dimensions, and service factor should be confirmed from the cooling tower's original specifications before ordering.
Selecting a cooling tower fan drive requires consideration of both mechanical and operating requirements.
The fan diameter affects the required airflow and power.
A larger fan generally requires a different drive configuration than a smaller fan.
Fan speed must correspond to the cooling tower's design airflow.
Changing fan speed can significantly affect airflow, power consumption, noise, and cooling capacity.
Check the existing motor nameplate for:
kW
HP
RPM
Voltage
Frequency
Current

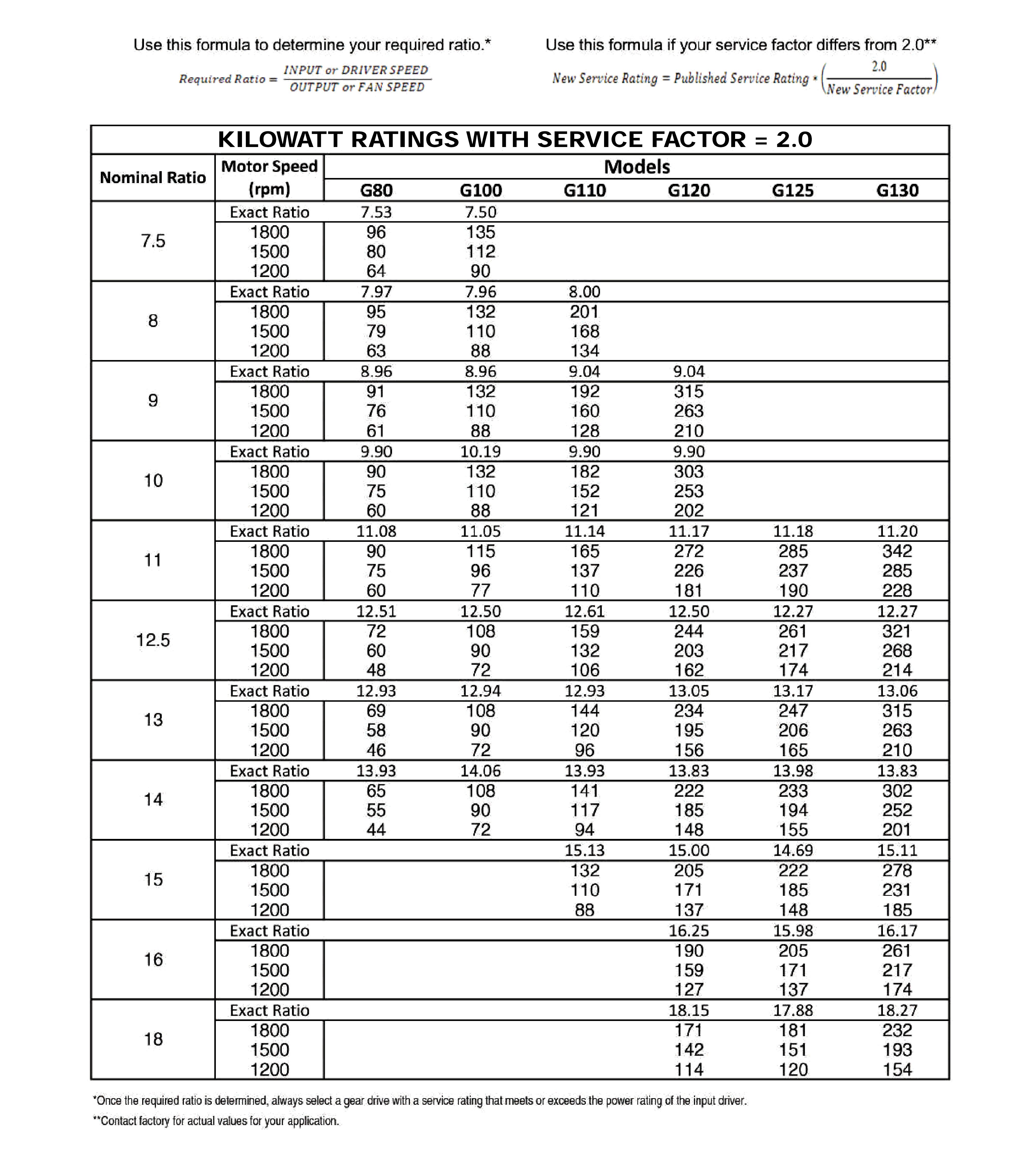

If a gearbox is used, confirm the existing reduction ratio and output speed.
For replacement projects, check:
Shaft diameter
Shaft length
Keyway dimensions
Coupling dimensions
Mounting dimensions
The fan drive should be suitable for the cooling tower's:
Ambient temperature
Humidity
Vibration environment
Operating hours
Corrosive atmosphere
Maintenance conditions
Regular maintenance can significantly improve the operating life of cooling tower fan-drive components.
During scheduled maintenance, inspect the:
Motor
Gearbox
Drive shaft
Couplings
Bearings
Fan hub
Fan blades
Mounting hardware
Unexpected vibration can indicate:
Fan imbalance
Shaft misalignment
Bearing deterioration
Coupling problems
Loose mounting hardware
Gearbox problems
Vibration should be investigated before it develops into a major mechanical failure.
Gearboxes and bearings should be lubricated according to the applicable manufacturer's requirements.
Incorrect lubricant, insufficient lubrication, or excessive lubrication can all contribute to premature component failure.
Check fan blades for:
Cracks
Erosion
Deformation
Loose hardware
Incorrect pitch
Accumulated deposits
A damaged or improperly balanced fan can place additional loads on the drive system.
Possible causes include fan imbalance, shaft misalignment, worn bearings, loose components, or gearbox problems.
Grinding, whining, knocking, or unusual mechanical noise may indicate a bearing, coupling, gearbox, or alignment problem.
Potential causes include insufficient lubrication, excessive loading, incorrect oil, bearing problems, or inadequate ventilation.
Incorrect fan speed can result from motor problems, gearbox issues, incorrect gearing, or drive-system faults.
Bearing life can be reduced by excessive vibration, misalignment, contamination, incorrect lubrication, or excessive mechanical loading.
The fan drive system can be used in a wide range of industrial cooling tower applications.
Cooling tower fan drives support heat rejection systems in power-generation facilities.
Reliable mechanical fan operation is important for process cooling applications.
Fan drives can be used in refinery and petrochemical cooling towers operating under demanding conditions.
Industrial process cooling systems often require continuous-duty cooling tower fan operation.
Cooling towers serving production equipment, compressors, furnaces, and process machinery can use mechanical fan-drive systems.
Large commercial and industrial HVAC cooling towers also use fan-drive systems to move air through the tower.
We supply cooling tower fan drive components and replacement solutions for industrial cooling tower applications.
Our product range can include:
Cooling tower fan drives
Gearboxes and speed reducers
Drive shafts
Couplings
Fan hubs
Axial fan blades
Cooling tower motors
Bearings
Fan-drive accessories
Replacement cooling tower components
For replacement projects, customers can provide the cooling tower model, motor nameplate, gearbox nameplate, fan diameter, shaft dimensions, photographs, or technical drawings.
These details allow the required fan-drive configuration to be evaluated more accurately.
Cooling towers can use different fan-drive arrangements.
A motor drives a gearbox, which reduces rotational speed and increases output torque before driving the fan.
This arrangement is widely used for large industrial cooling tower fans.
A motor transfers power through pulleys and belts.
Belt drives can be relatively simple to maintain but require regular belt tension and condition checks.
A direct-drive motor connects directly to the fan without a conventional gearbox.
Direct-drive systems can reduce the number of mechanical transmission components, but motor selection must match the required fan speed and torque.
The best configuration depends on the cooling tower design, fan diameter, operating speed, required power, and maintenance strategy.
The fan-drive system is intended for mechanical cooling tower fan applications where reliable airflow is essential.
Suitable configurations can be considered for existing cooling tower refurbishment and replacement projects.
Motor, gearbox, shaft, coupling, hub, and fan specifications can be evaluated as an integrated system.
Drive dimensions and components can be configured according to specific cooling tower requirements.
Fan-drive systems can be supplied for demanding process cooling, HVAC, power generation, chemical, petrochemical, and manufacturing applications.
A Global fan drive is a mechanical drive solution used to transmit power from a motor to a cooling tower fan. Depending on the configuration, it can include a gearbox, shaft, coupling, hub, and related components.
The fan drive transfers motor power to the cooling tower fan, allowing the fan to move air through the tower and support heat rejection.
Potentially, provided the replacement meets the required power, speed, torque, shaft, mounting, and dimensional specifications. Existing equipment details should be checked before ordering.
Useful information includes the cooling tower model, motor power and speed, fan diameter, gearbox model, gearbox ratio, shaft dimensions, mounting dimensions, photographs, and nameplate information.
Common causes include fan imbalance, shaft misalignment, worn bearings, damaged couplings, loose fasteners, gearbox problems, or incorrect fan installation.
Inspection frequency depends on the tower's operating conditions and manufacturer's maintenance recommendations. Industrial towers operating continuously should be included in a scheduled preventive maintenance program.
Yes. Depending on the application, individual components such as gearboxes, shafts, couplings, fan hubs, motors, bearings, and fan blades can be supplied as replacement parts.
It can be used for industrial cooling tower applications when the selected drive configuration is correctly matched to the tower's fan power, speed, torque, dimensions, and operating conditions.
