Maintenance Guide for Cooling Tower Gear Reducer

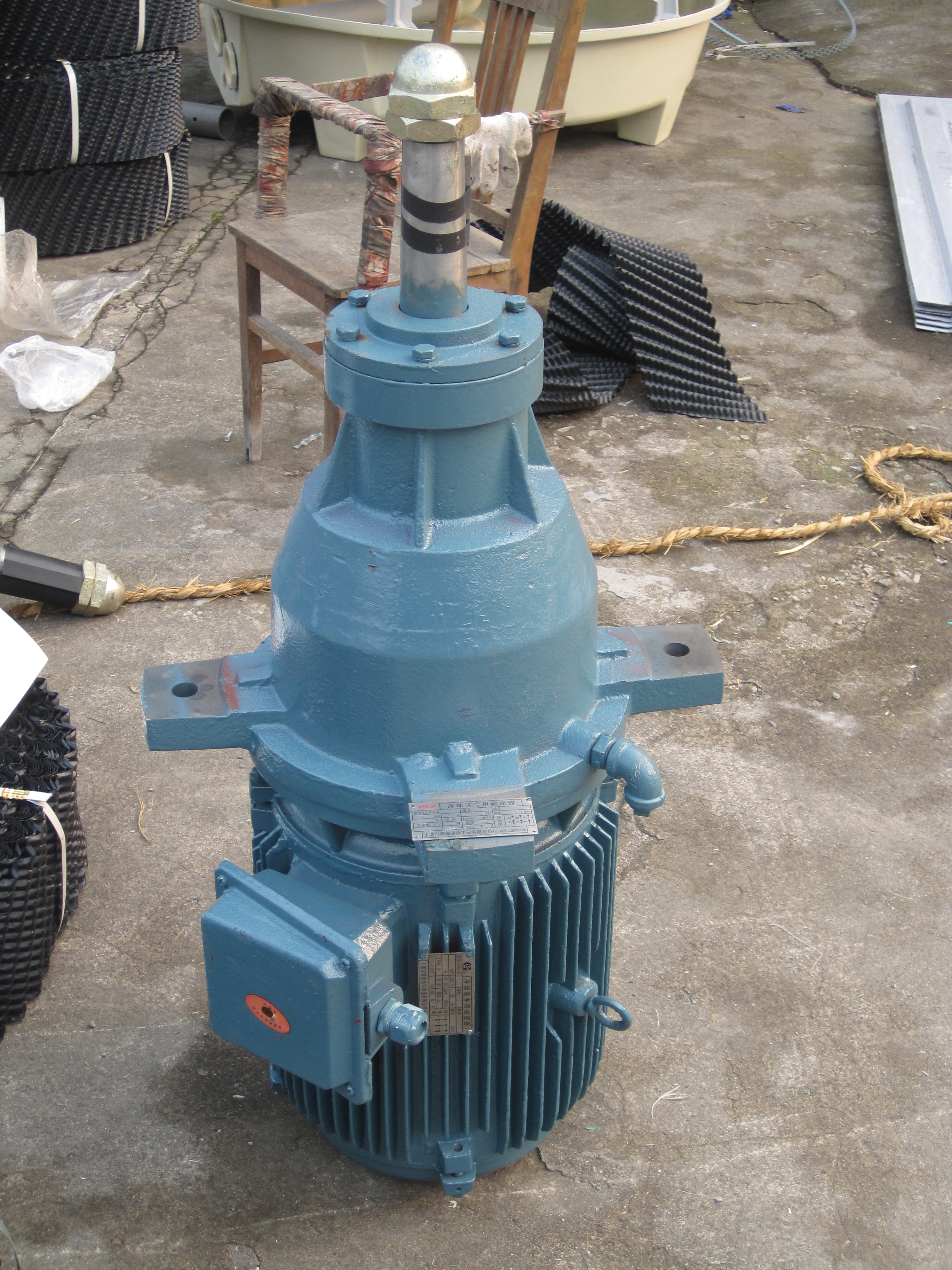

The cooling tower gear reducer is the core component of the cooling tower fan transmission system, which converts the high-speed rotation of the motor into low-speed high torque and drives the fan impeller to operate. During long-term operation, gear reducers may experience wear, leakage, vibration, and other malfunctions. Timely maintenance is crucial for extending equipment life and ensuring the efficiency of cooling tower operation.

Common faults of cooling tower gear reducer

1. Gear wear or damage

During long-term operation, gears may experience tooth pits, peeling, and poor meshing, leading to increased operating noise or decreased efficiency.

2. Bearing malfunction

Bearing wear, insufficient lubrication, or improper installation can cause fan vibration, increased noise, and even prevent the fan from starting.

3. Poor lubrication

Lack of lubricating oil, deterioration of oil quality, or mixing with water can accelerate gear and bearing wear.

4. Damaged seals

Aging or rupture of seals may cause lubricant leakage, water ingress into gears, leading to corrosion and failure.

5. Abnormal temperature

The high temperature of the gearbox during operation may be a signal of excessive load, gear damage, or insufficient lubrication.

Repair steps

1. Shutdown and power outage

Cut off the power and lock the fan before stopping to ensure safe maintenance.

2. Disassemble the gearbox

1）Remove the connectors, fan impeller, motor coupling, etc., and take out the reducer.

2）Record the disassembly sequence and component positions for easy installation.

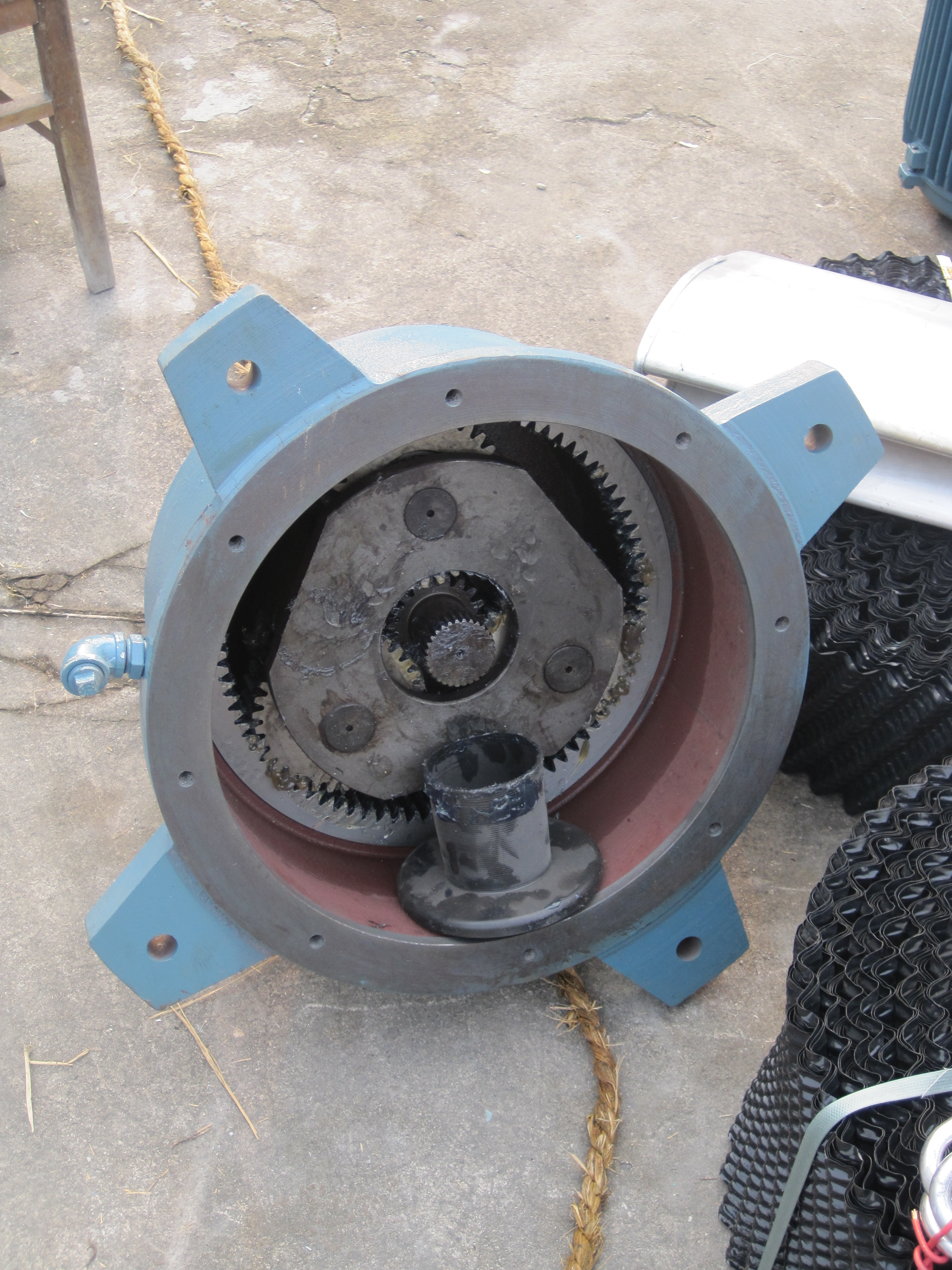

3. Check the gears and bearings

1）Whether the gear meshing surface is severely worn, whether there are missing teeth or cracks.

2）Check if the bearings are loose or worn, and replace them with new bearings if necessary.

4. Clean and replace lubricating oil

1）Clean up old oil and sediment, and check if the oil quality meets the standards.

2）Add the new oil recommended by the manufacturer to ensure sufficient lubrication of the gears and bearings.

5. Replace the seals

If aging or damage is found in the sealing components, they should be replaced in a timely manner to prevent lubricating oil leakage and water ingress.

6. Final assembly and debugging

1）Assemble in the order of disassembly to ensure correct gear clearance and proper installation of bearings.

2）Start the gearbox, check the operating noise, temperature, and vibration, and confirm that it is running normally.

Maintenance precautions

1.Strictly follow the manufacturer's instructions for operation, and the disassembly and installation requirements for different models of reducers may vary.

2.Prevent impurities from entering, maintain cleanliness during maintenance, and avoid dust and iron filings from entering the gearbox.

3.Pay attention to torque matching, avoid overloading when installing the fan impeller, and protect the gears and bearings.

4.Record maintenance logs, including replacement parts, lubricant replacement time, and inspection results, for subsequent maintenance.

Daily maintenance suggestions

1.Regular lubrication:

Check and replace lubricating oil regularly according to the usage environment and manufacturer's requirements.

2. Monitor temperature and vibration:

Install temperature or vibration sensors to detect abnormalities in a timely manner.

3. Keep the gearbox clean:

Prevent dust, moisture, and chemicals from corroding the gears and bearings.

4.Regular inspection of seals and fasteners:

Prevent leakage and looseness to ensure the safe operation of the gearbox.
