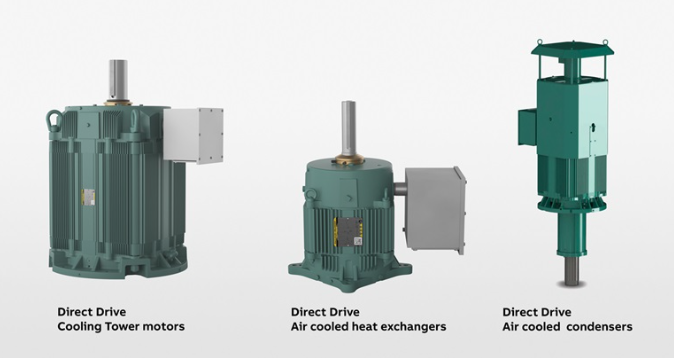

Baldor Direct Drive Cooling Tower Motor

A Baldor direct-drive cooling tower motor is a special type of motor designed specifically for cooling tower fans. Unlike belt-drive or gearbox systems, the fan blade mounts directly to the motor shaft, eliminating many mechanical components. Below is a clear, quick overview.

✅ What a Baldor Direct-Drive Cooling Tower Motor Is

It is a TEAO (Totally Enclosed – Air Over) or WPI/WPII motor built for wet, high-humidity cooling tower environments. Baldor’s line is known as:

**Baldor Cooling Tower Direct Drive (CTD series)**

or

**Baldor Cooling Tower Premium Efficient Motors**

These motors are designed to:

* Be mounted vertically

* Have the fan hub directly attached to the motor shaft

* Operate in 100% humidity, high moisture, and corrosive drift

* Provide variable-speed capability with VFDs (most are inverter-duty)

Advantages of Baldor Direct-Drive Motors

1. No gearbox

* Eliminates maintenance

* No oil changes

* No gear alignment issues

* No risk of gearbox failure

2. No belts

* No belt tensioning

* No belt wear or slippage

* Quieter operation

3. Higher efficiency / lower energy cost

Direct drive motors often run 5–20% more efficient than gear-driven systems.

4. Lower vibration

Better balance results in smoother fan operation.

5. Designed for wet air

* Epoxy-coated windings

* Stainless hardware

* Corrosion-resistant materials

* Sealed bearings (or no bearings on the load end, depending on design)

Common Specs (Typical Baldor CTD Motor)

Specs vary, but general ranges:

Feature	Typical Values
HP	5–200 HP
Voltage	460V or 575V
Speed	900 RPM (6-pole) is most common
Enclosure	TEAO or WPII
Mounting	Vertical – shaft up
Drive	Direct fan mounting
Service Factor	1.15 (or 1.0 when used with VFD)
Insulation	Class F or H
Coating	Epoxy or moisture-resistant varnish

⚠️ Common Issues / Failures

Even though they are very reliable, problems can occur:

1. Motor overload trips

Often caused by:

* Fan blade ice buildup

* Fan imbalance

* VFD programming incorrect

* Mechanical drag from fan hub

2. Bearing failure

* Occurs if water intrusion happens

* Or if shaft alignment/mounting is off

3. Motor winding failure

From:

* Poor insulation

* Excessive moisture

* VFD harmonics (if motor isn’t inverter-duty)

4. Corrosion

If coating is damaged by chemicals or drift
