What Is Fan Dive Motor Cooling Tower​

Here is a clear explanation of a cooling tower fan drive motor—what it is, what it does, and the types of drives used in cooling towers.

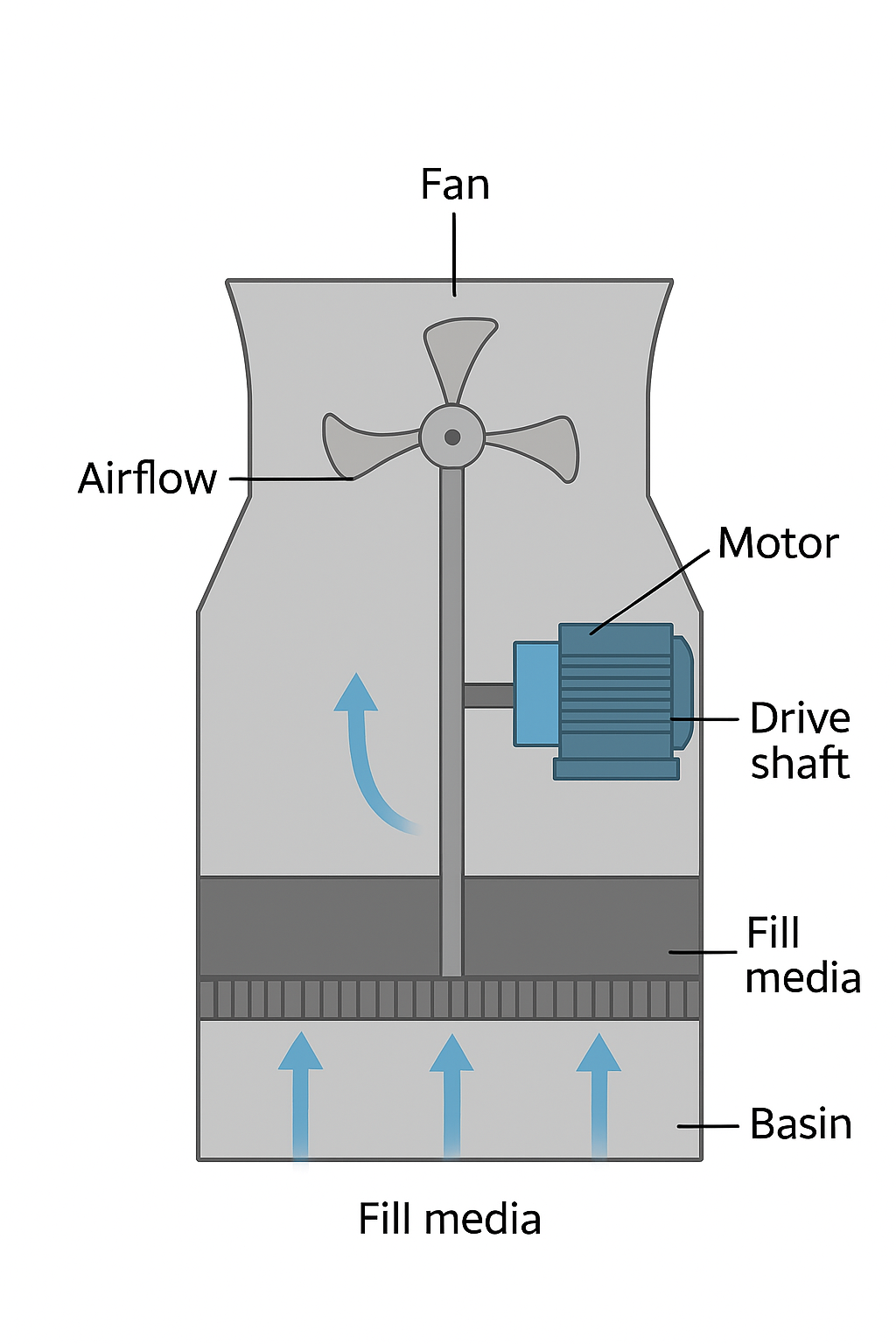

⭐ What Is a Fan Drive Motor in a Cooling Tower?

A fan drive motor is the electric motor that provides the power needed to rotate the cooling tower fan.

It is the heart of the cooling tower’s mechanical system, responsible for creating the airflow required for evaporative cooling.

Function of the Fan Drive Motor

The motor:

* Supplies rotational power (HP)

* Drives the fan through a gearbox, belt drive, or direct drive

* Maintains the required RPM & torque to move high volumes of air (CFM)

* Helps regulate cold-water temperature

Without the fan drive motor → no airflow → no cooling.

⚙️ Types of Fan Drive Systems in Cooling Towers

There are **three main types**:

1️⃣ Gear Drive (Most common for large towers)

Motor → Drive Shaft → Gearbox → Fan

Advantages:

✔ High torque

✔ Reliable for large fans

✔ Used in EVAPCO, Marley, BAC industrial towers

2️⃣ Belt Drive (Small & medium towers)

Motor → Belts → Fan pulley

Advantages: cheap, simple

Disadvantages: belts slip, require frequent tensioning

Used in small HVAC towers.

3️⃣ Direct Drive (Modern EC or PM motors)

Motor directly turns the fan — no gearbox, no belts

Advantages:

✔ Very quiet

✔ High efficiency

✔ Low maintenance

✔ VFD-ready

Used in newer EVAPCO & BAC models.

 ⚡ Fan Drive Motor Types

* TEAO (Totally Enclosed Air Over) – common for direct airflow cooling

* TEFC (Totally Enclosed Fan Cooled) – sealed motor

* Inverter Duty – for VFD fan speed control

* Two-Speed Motors – low speed & high speed

* Permanent Magnet EC Motors – ultra-efficient

Typical Motor Specs

Depending on tower size:
