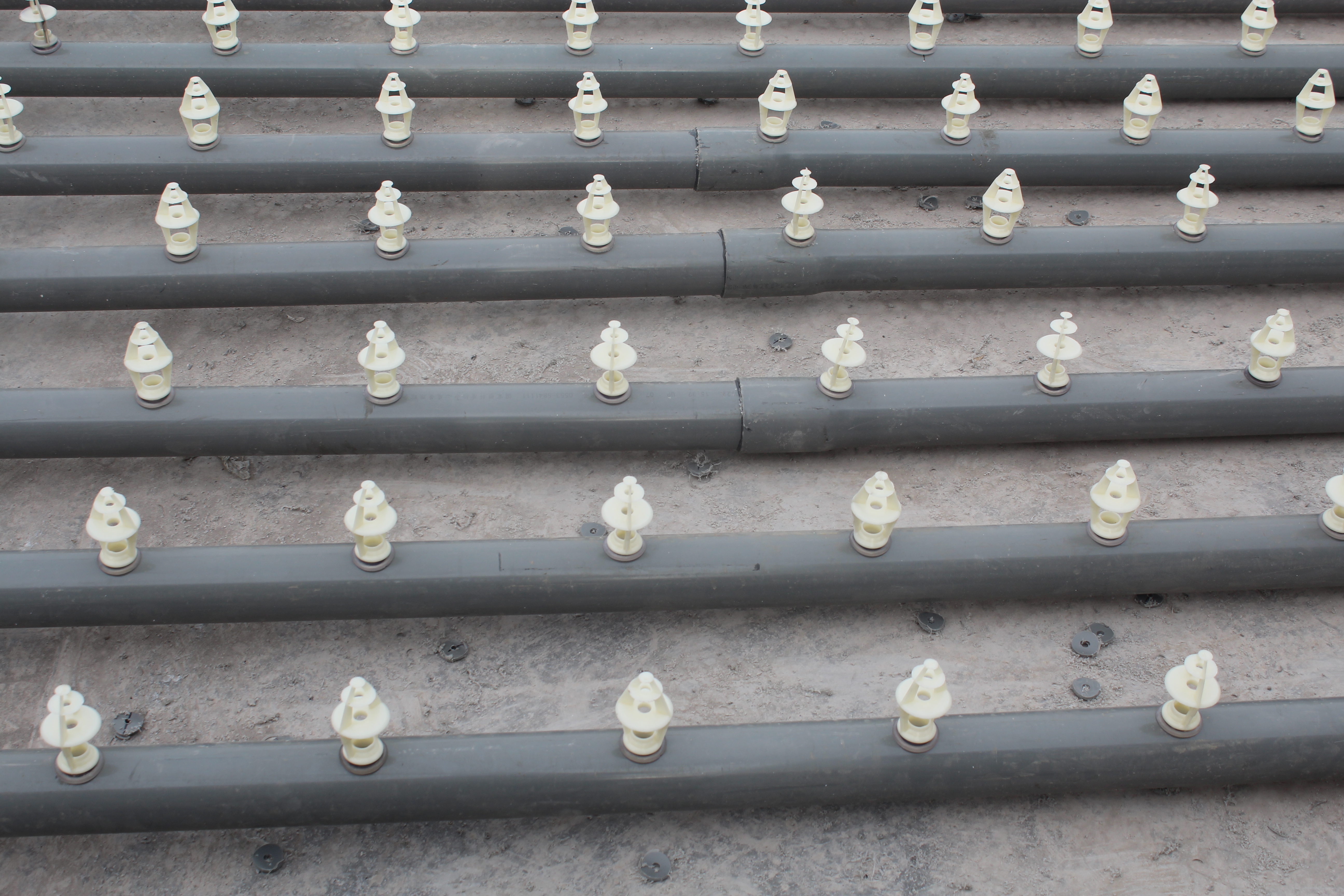

A cooling tower spray nozzle is one of the most important components in a cooling tower water distribution system. Installed at the top of the tower, the nozzle distributes hot circulating water evenly across the cooling tower fill, allowing maximum contact between water and airflow for efficient evaporative cooling.
Although relatively small, cooling tower nozzles have a significant impact on heat transfer efficiency, water distribution, energy consumption, and the overall reliability of industrial cooling systems. A poorly designed or clogged nozzle can reduce cooling capacity, increase operating costs, and shorten the lifespan of cooling tower components.
Whether you're operating a power plant, HVAC system, petrochemical facility, steel mill, or manufacturing plant, selecting the right industrial cooling tower spray nozzle is essential for maintaining optimal cooling performance.
A cooling tower spray nozzle is a specially engineered device that converts a continuous water flow into a controlled spray pattern. The nozzle distributes hot water uniformly over the fill media, where evaporation removes heat from the circulating water before it is returned to the process.
Modern spray nozzles are designed to:
Deliver uniform water coverage
Prevent dry spots on the fill
Increase water surface area
Improve evaporation efficiency
Minimize pressure loss
Resist clogging and scaling
High-quality nozzles are manufactured from durable materials such as ABS, polypropylene (PP), PVC, or stainless steel to withstand continuous operation in harsh industrial environments.
The cooling tower spray nozzle operates by forcing hot water through specially designed internal channels. Depending on the nozzle design, the water exits as droplets, streams, or a fine spray.
This process increases the contact area between water and air, allowing heat to be transferred more efficiently through evaporation.
The operating sequence is simple:
Hot process water enters the water distribution system.
Water flows into each spray nozzle.
The nozzle distributes water evenly across the cooling tower fill.
Air moves upward through the fill.
Heat is removed through evaporation.
Cooled water collects in the basin for recirculation.
Uniform water distribution ensures that the entire fill surface participates in the cooling process.
The primary function of a cooling tower spray nozzle is to distribute water evenly across the fill media.
Proper distribution eliminates:
Dry areas
Water channeling
Uneven loading
Poor heat transfer
Uniform coverage enables the cooling tower to operate at maximum efficiency.
Spray nozzles divide water into thousands of small droplets or thin streams.
This greatly increases the surface area exposed to moving air, improving:
Evaporative cooling
Convective heat transfer
Cooling efficiency
Efficient water distribution allows every section of the fill to participate in heat exchange.
Benefits include:
Lower outlet water temperature
Reduced fan energy consumption
Higher cooling capacity
Stable operating conditions
Uneven water flow can overload certain sections of the fill while leaving others dry.
Proper spray nozzles prevent:
Scaling
Fouling
Premature fill damage
Uneven aging
This extends the service life of the cooling tower fill.
Reliable spray nozzles help minimize clogging, reduce equipment wear, and lower maintenance frequency.
This translates into lower operating costs and fewer unexpected shutdowns.
Different cooling towers require different spray nozzle designs.
Spiral nozzles create a uniform cone-shaped spray pattern with excellent clog resistance.
Applications include:
Industrial cooling towers
Dirty water systems
Chemical processing plants
Advantages:
Self-cleaning design
Low maintenance
Wide spray coverage

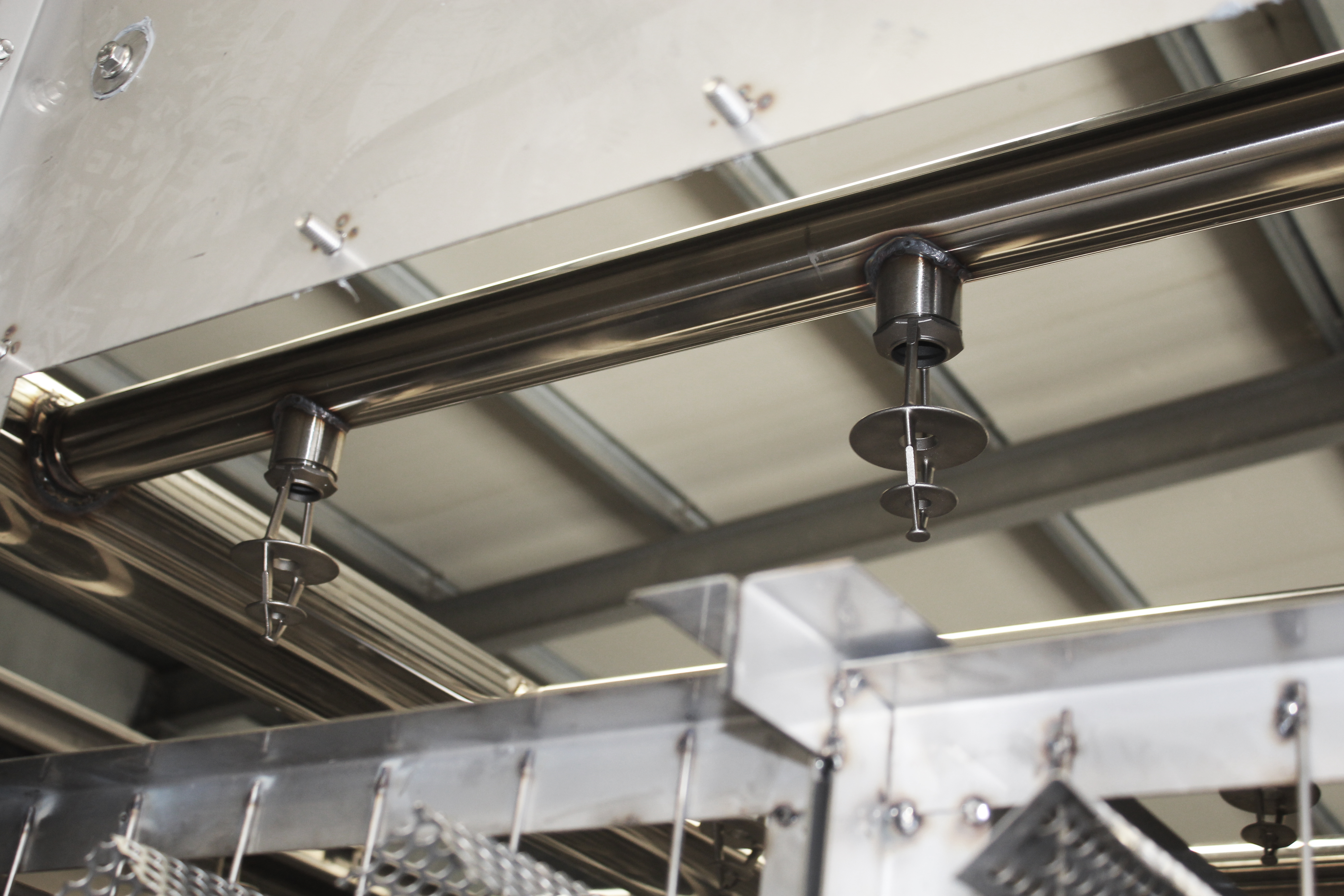

Target nozzles direct water onto a deflector plate before distributing it across the fill.
Commonly used in:
Crossflow cooling towers
Gravity-fed systems
Benefits:
Uniform distribution
Low operating pressure
Reliable performance
Pressure nozzles atomize water using water pressure.
Advantages:
Fine droplet formation
Excellent cooling performance
High heat transfer efficiency
Gravity nozzles rely on gravity instead of pressure to distribute water.
Ideal for:
Large industrial cooling towers
Low-pressure systems
Variable flow nozzles automatically adjust spray characteristics according to water flow.
Benefits include:
Improved efficiency under varying loads
Better water distribution
Energy savings
Selecting the appropriate material is important for durability and chemical resistance.
| Material | Features | Applications |
|---|---|---|
| ABS | Lightweight, corrosion resistant | HVAC, industrial cooling |
| Polypropylene (PP) | Excellent chemical resistance | Chemical plants |
| PVC | Cost-effective and corrosion resistant | General cooling towers |
| Nylon | High strength and wear resistance | Heavy-duty systems |
| Stainless Steel | Superior durability and high-temperature resistance | Power plants and harsh environments |
Cooling tower spray nozzles are widely used in:
HVAC systems
Power stations
Petrochemical plants
Steel manufacturing
Cement plants
Food processing
Pharmaceutical factories
Mining operations
Textile manufacturing
Commercial refrigeration
When selecting a cooling tower nozzle, consider the following factors:
The nozzle should match the required flow capacity.
Different nozzle designs require different inlet pressures.
Crossflow and counterflow cooling towers use different nozzle configurations.
Water containing suspended solids requires anti-clogging nozzle designs.
Choose materials that resist corrosion and chemical attack.
Ensure complete coverage of the fill media.
Over time, spray nozzles may experience operational issues.
Mineral deposits and debris can block nozzle openings.
Hard water causes calcium buildup that affects spray patterns.
Continuous water flow gradually enlarges nozzle openings.
Damaged nozzles create dry spots within the fill.
Mechanical damage reduces cooling efficiency.
Routine inspection helps prevent these problems.
Proper maintenance improves nozzle performance and extends service life.
Recommended practices include:
Inspect nozzles every three to six months.
Remove scale and debris regularly.
Replace worn or cracked nozzles.
Check spray patterns during operation.
Flush the water distribution system periodically.
Monitor water treatment to reduce scaling.
Preventive maintenance minimizes downtime and improves cooling efficiency.
Replacement is recommended when:
Spray patterns become uneven
Water flow decreases
Cracks or deformation appear
Excessive scaling cannot be removed
Cooling performance declines
Maintenance costs increase
Replacing worn nozzles is often one of the most cost-effective ways to restore cooling tower performance.
Choosing an experienced cooling tower spray nozzle manufacturer ensures reliable product quality and long-term performance.
A reputable manufacturer offers:
Precision injection molding
High-quality engineering plastics
Strict quality control
OEM and ODM services
Customized nozzle designs
Fast global delivery
Technical support
Replacement nozzles compatible with major cooling tower brands
Professional manufacturers also provide solutions compatible with Marley, BAC, EVAPCO, Liang Chi, and other leading cooling tower systems.
It distributes hot water evenly over the cooling tower fill to maximize heat transfer and evaporative cooling.
ABS and polypropylene (PP) are commonly used because they offer excellent corrosion resistance, durability, and cost-effectiveness.
Industrial cooling towers should inspect spray nozzles every three to six months, depending on water quality and operating conditions.
Yes. Clogged nozzles create uneven water distribution, resulting in dry spots, reduced heat transfer, and higher energy consumption.
No. Nozzle size, flow rate, spray pattern, and connection type vary among cooling tower manufacturers and models. Always select a nozzle compatible with your system.
A cooling tower spray nozzle is a critical component that directly influences water distribution, heat transfer, cooling efficiency, and system reliability. Selecting the correct nozzle design, material, and flow characteristics can significantly improve cooling tower performance while reducing maintenance costs and extending equipment life.
Whether you require replacement nozzles for an existing system or customized solutions for a new installation, working with an experienced cooling tower spray nozzle manufacturer ensures high-quality products that meet the demanding requirements of industrial cooling applications.
By combining proper nozzle selection, regular maintenance, and high-quality materials, businesses can maximize cooling efficiency, reduce operating expenses, and achieve reliable long-term
